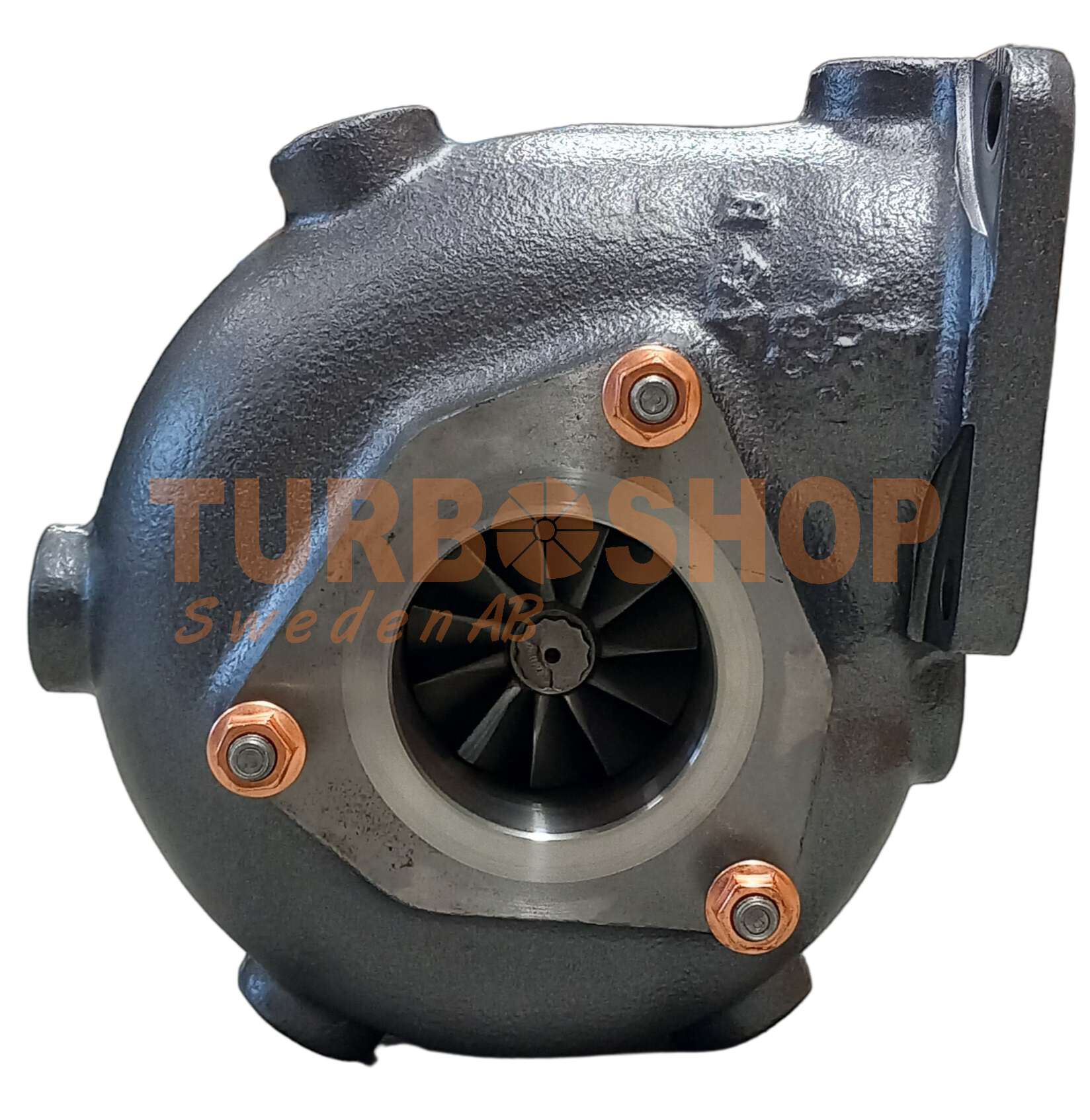

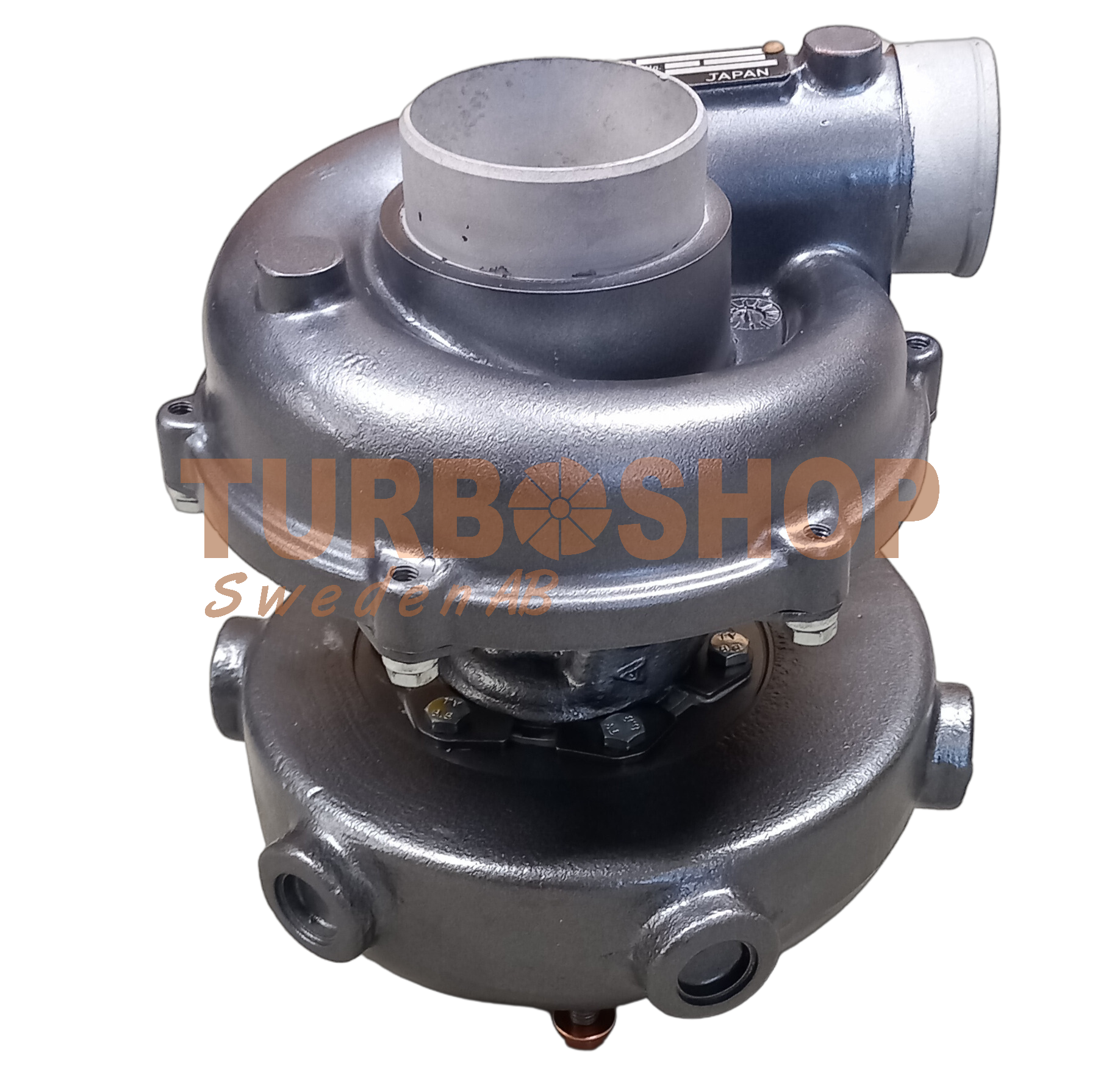

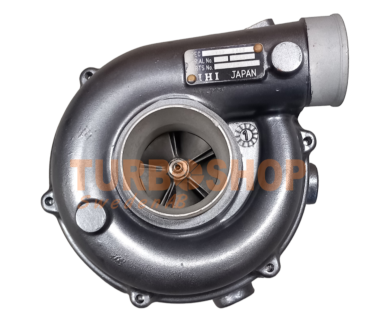

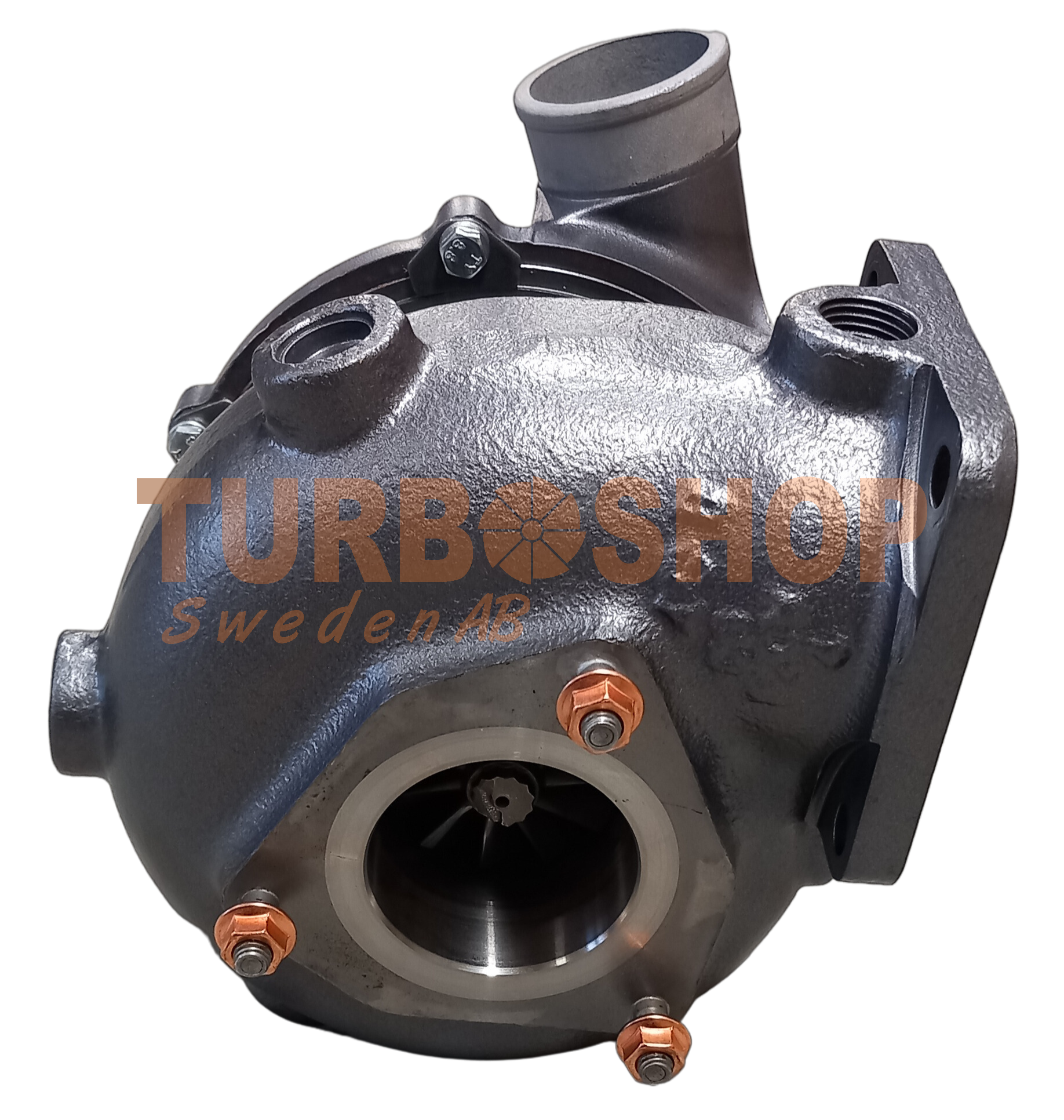

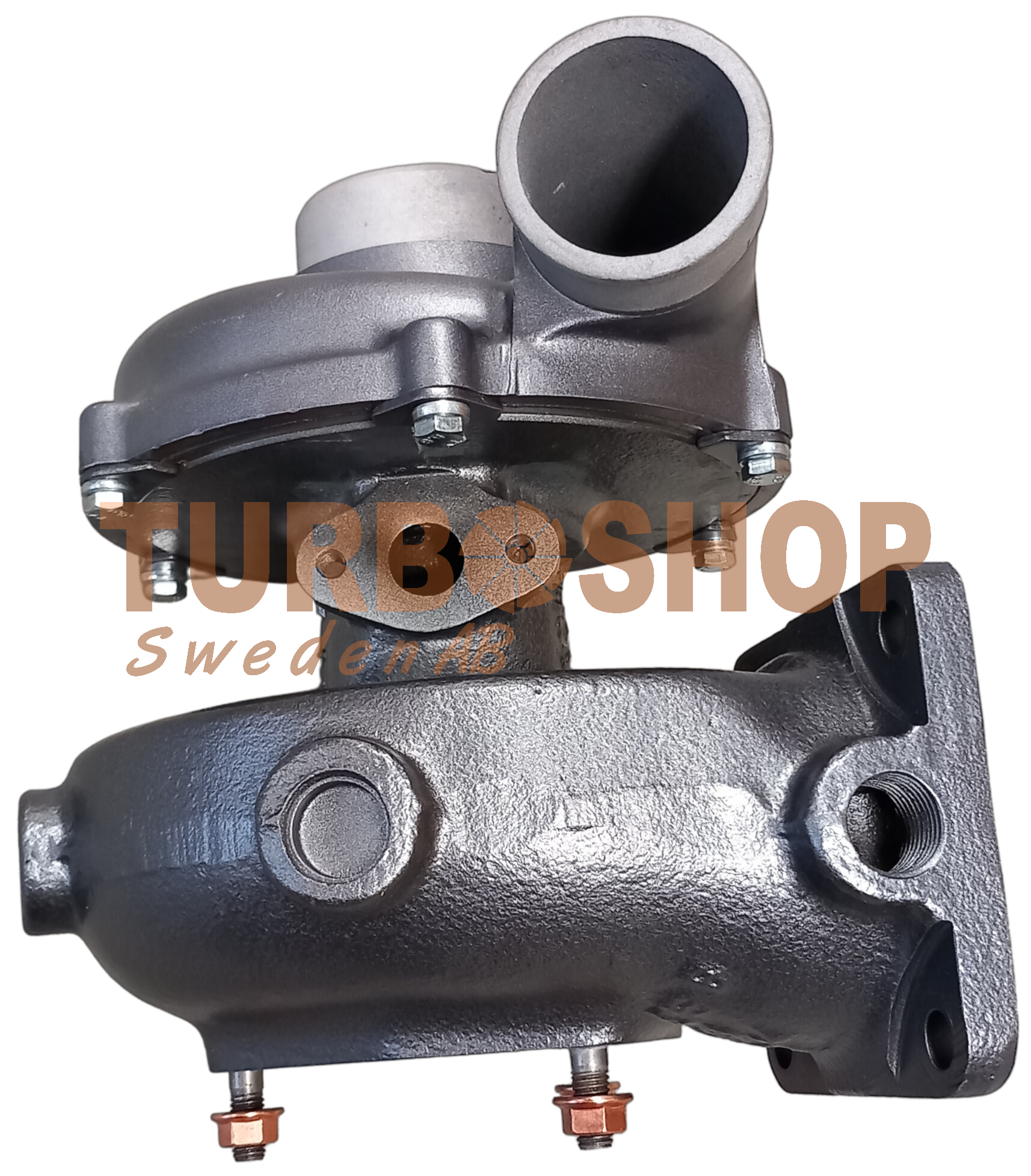

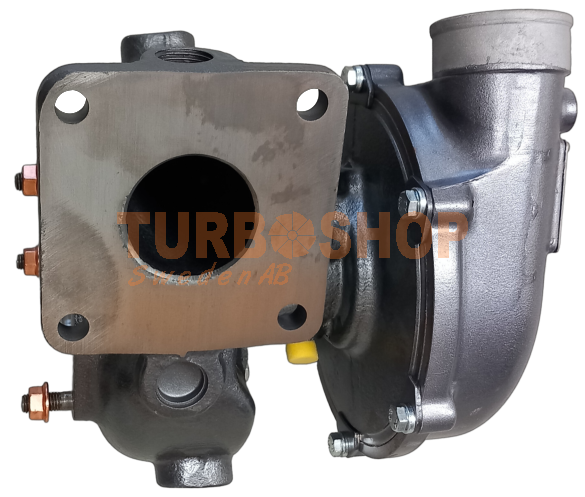

MY58 renoverad bytesturbo med rostfri hylsa : OEM IHI RHC61W Turbo Yanmar Marine 4LH-HT 4LH-TE Diesel Engine VD240076 ( Bytesturbo )

MY58 renoverad bytesturbo med rostfri hylsa : OEM IHI RHC61W Turbo Yanmar Marine 4LH-HT 4LH-TE Diesel Engine VD240076 ( Bytesturbo )

- I produktion. ( Vi kan även renovera eran befintliga turbo här,Bara att skicka in )

Denna skall gamla turbon i retur på .

Packningar som medföljer vid köp utav denna är olja in / ut + avgas in / ut.

Turbonummer / Originalnummer / Turbofakta :

 Part Number: VD240076

Short Spec.: MY58

Interchangeable Number: C61CND-S0076B, NH160022, VA240076, VB240076, VC240076

OEM Number : 119171-18010, 11917118010, 119171-18011, 11917118011, 6T-582

Turbo Model: RHC61W, RHC61W-1183P20NWBRL504A

Manufacturer: IHI Turbo - CloverTurbo

Year: 1988-01

Engine: 4LH-HT, 4LH-TE •

Yanmar 4LH-HTE 140 hk 3455cc (1988-2000)
• Yanmar 4LH-TE 110 hk 3455cc (1988-2000)

Produktnummer: MY58, VA240076, VB240076

Displacement: 3455 ccm, 4 Cylinders

Fuel: Diesel

Power: 110 HP

Angle α (Compressor Housing): 70°

Angle ß (Turbine Housing): 182°

Back Plate: NN193012

Bearing Housing: NH163155 (Oil Cooled)

Compressor Cover: NH164602 (NE964530)

Compressor Wheel: NH165203 (NH161300)(Ind. 45.63 mm, Exd. 65 mm, 5+5 Blades, Super Back)

Gasket (Oil Outlet): 210161 (128300-1323, Gasket Paper)

Gasket (Turbine Inlet): 210235 (Stainless Steel)

Heat Shield: NH261107

Repair Kit: GF169846NS/NH169836 (NN169836)

Turbine Housing (Water Cooled): NH167519 (NE967160)

Turbine Housing A/R: 20

Turbine Wheel: NH161402 (NH161312, NH165203)(Wheel BR504A)(Ind. 56.33 mm, Exd. 30.91 mm, 11 Blades)

Application:

1988-01 Yanmar Marine with 4LH-TE Engine
