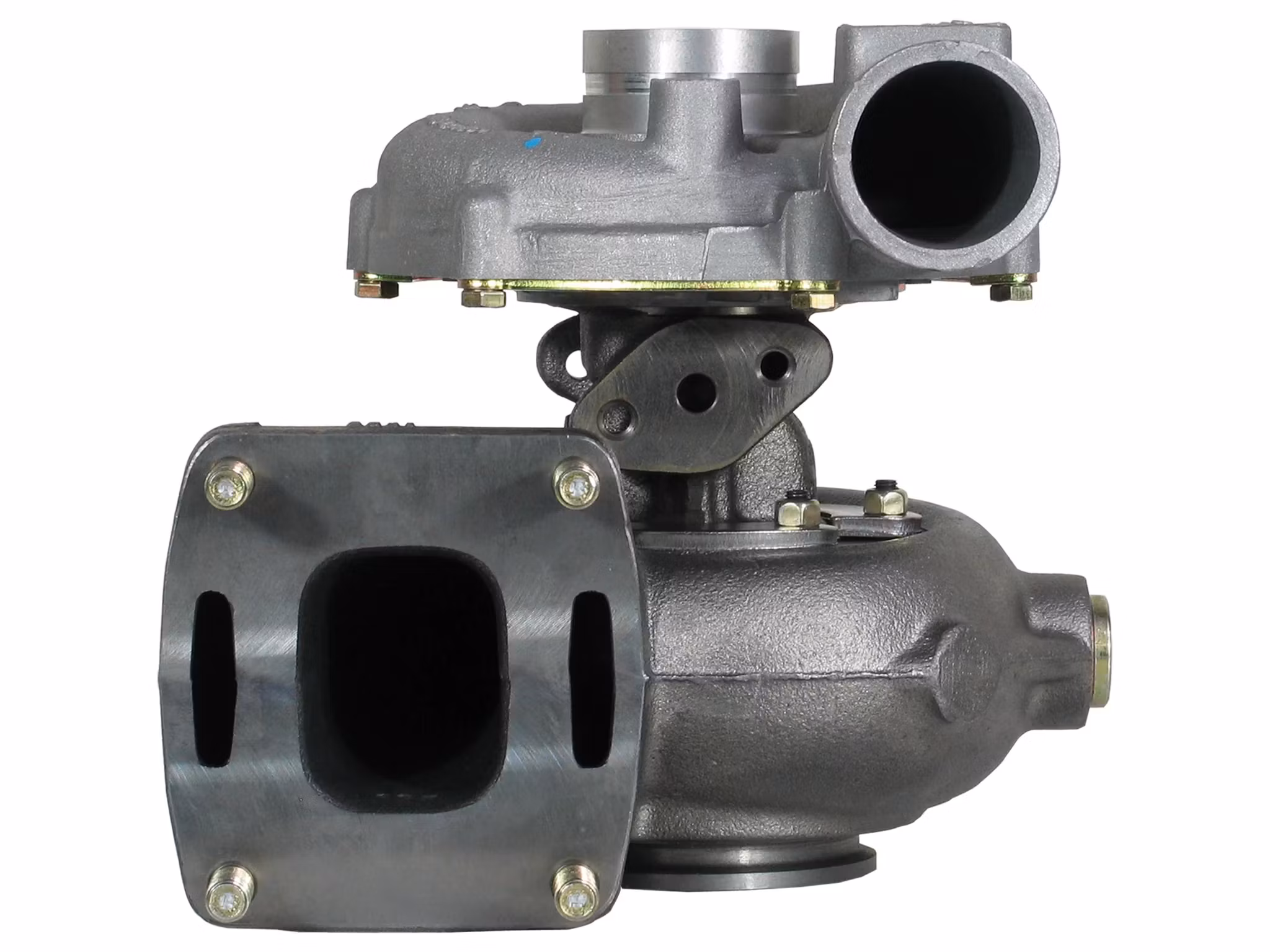

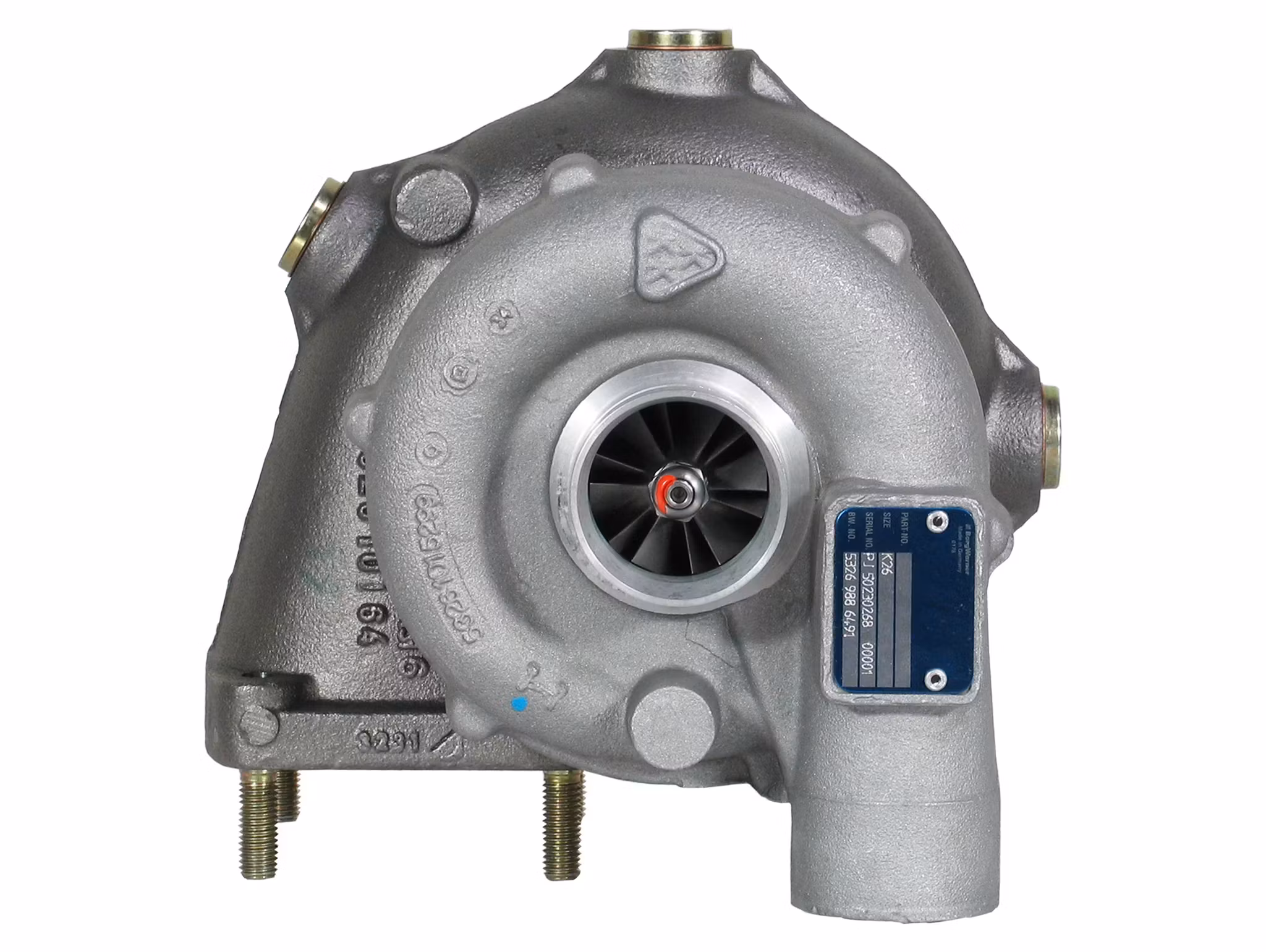

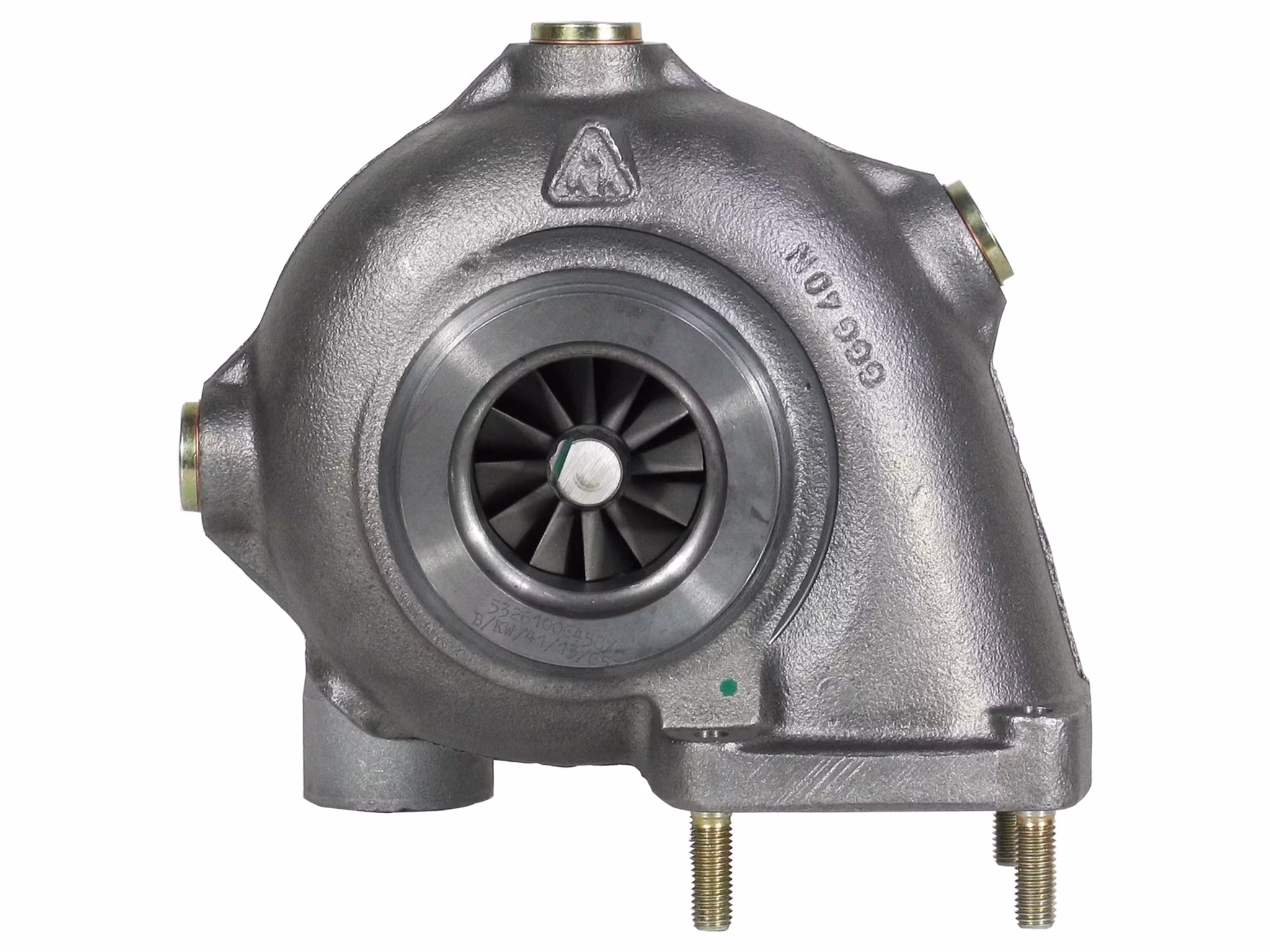

53269886491 K26 Marin BMW / Mercruiser / VM marine Motorkod : HR692/9HT

53269886491 K26 Marin BMW / Mercruiser / VM marine Motorkod : HR692/9HT ( Beställningsvara 2-3 dagar )

Fabriksny original turbo ifrån BorgWarner exakt samma som ifrån original handeln.

Passar följande MerCruiser motormodeller:

• 528 D-TA VM183 I/L5
• D183 Turbo AC I/L5
• D3.0L I/L5

• D3.6L VM 219 I/L6
• D219 TURBO AC VM 219 I/L6
• 636 D-TA VM 219 I/L6
• D254 TURBO AC VM254 I/L6

Passar följande BMW marine motormodeller:

• D150
• D190
• D636

Passar följande VM-motori motorfamiljer:

• HR592
• HR692

Passar följande modeller / motorkoder :

Part Number: 53269886491

 Interchangeable Number: 5326-988-6491, 5326 988 6491, 53269706491,  5326-970-6491, 5326 970 6491, 53269706490, 5326-970-6490, 5326 970 6490,  53269886490, 5326-988-6490, 5326 988 6490

OEM Number: 35240023A, 35240025A, 35242011A, 35242011B

Turbo Model: K26, K26-2664GA12.71GAAXB

Manufacturer: BorgWarner - 3K - Schwitzer

Year: 1978-11

Engine: HR692/9HT

Displacement: 3.6L, 3600 ccm

Fuel: Diesel

Power: 95 kW/129 HP

Speed: 3800 RPM

Angle α (Compressor Housing): 195/270°

Angle ß (Turbine Housing): 0/180°

Back Plate: 53261515701

Bearing Housing: 53261500015 (53241205000)

CHRA: 53267100011 (5326-710-0011)

Compressor Cover: 53261015219/53261015034

Compressor Wheel: 53261232008/53261232018/53271232030/53271232037/53271232226 (Ind. 47.39 mm, Exd. 73.88 mm, 7+7 Blades)

Gasket (Oil Inlet): 52231586500 (210023.147837, 147837)

Gasket (Oil Outlet): 52231586501 (210060)

Gasket (Turbine Inlet): 210294

Heat Shield: 53261652001

Repair Kit: 53267110039/53267110001 (1301026752)

Turbine Housing (Water Cooled): 53261006436/53261006403

Turbine Housing A/R: 12

Turbine Wheel: 53261202119/53261202107/53261205002 (Ind. 64.3 mm, Exd. 54.5 mm, 12 Blades)(1301026436)

NOTE: Replacement for K26-6490.

Application:

1978-11 BMW Marine with HR692/9HT Engine

1978-11 Mercruiser Marine with HR692/9HT Engine

1978-11 VM Marine with HR692/9HT Engine
