56509880000 Borgwarner S500W fabriksny originalturbo Volvo Penta Ship Marine D12M 12.14L

  • 48 000 kr

56509880000 Borgwarner S500W fabriksny originalturbo Volvo Penta Ship Marine D12M 12.14L- Fabriksny originalturbo.- 3 års garanti.Vanligt fel på denna turbo är

I lager.
Artikelnummer: 565098800000
Dela

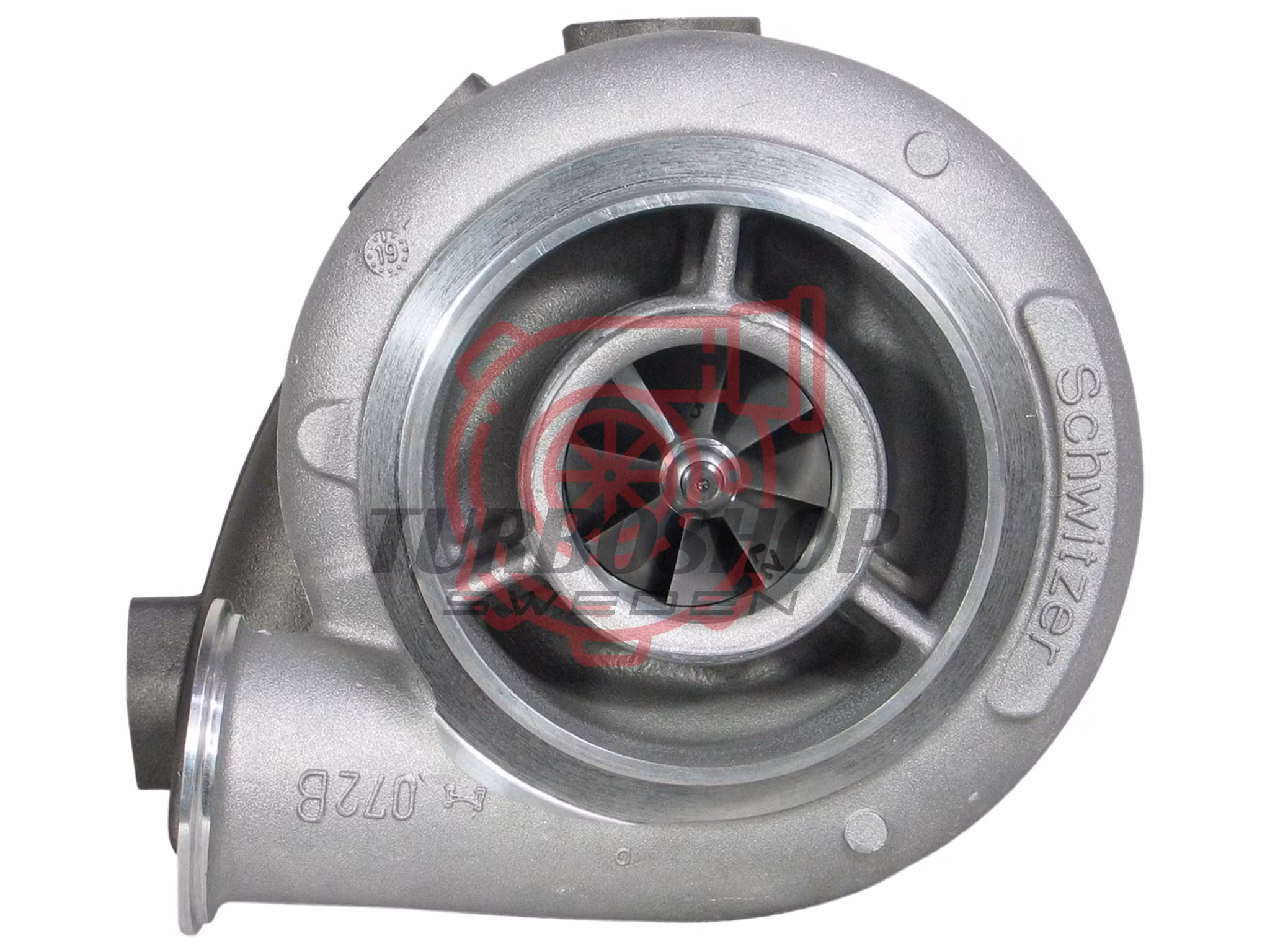

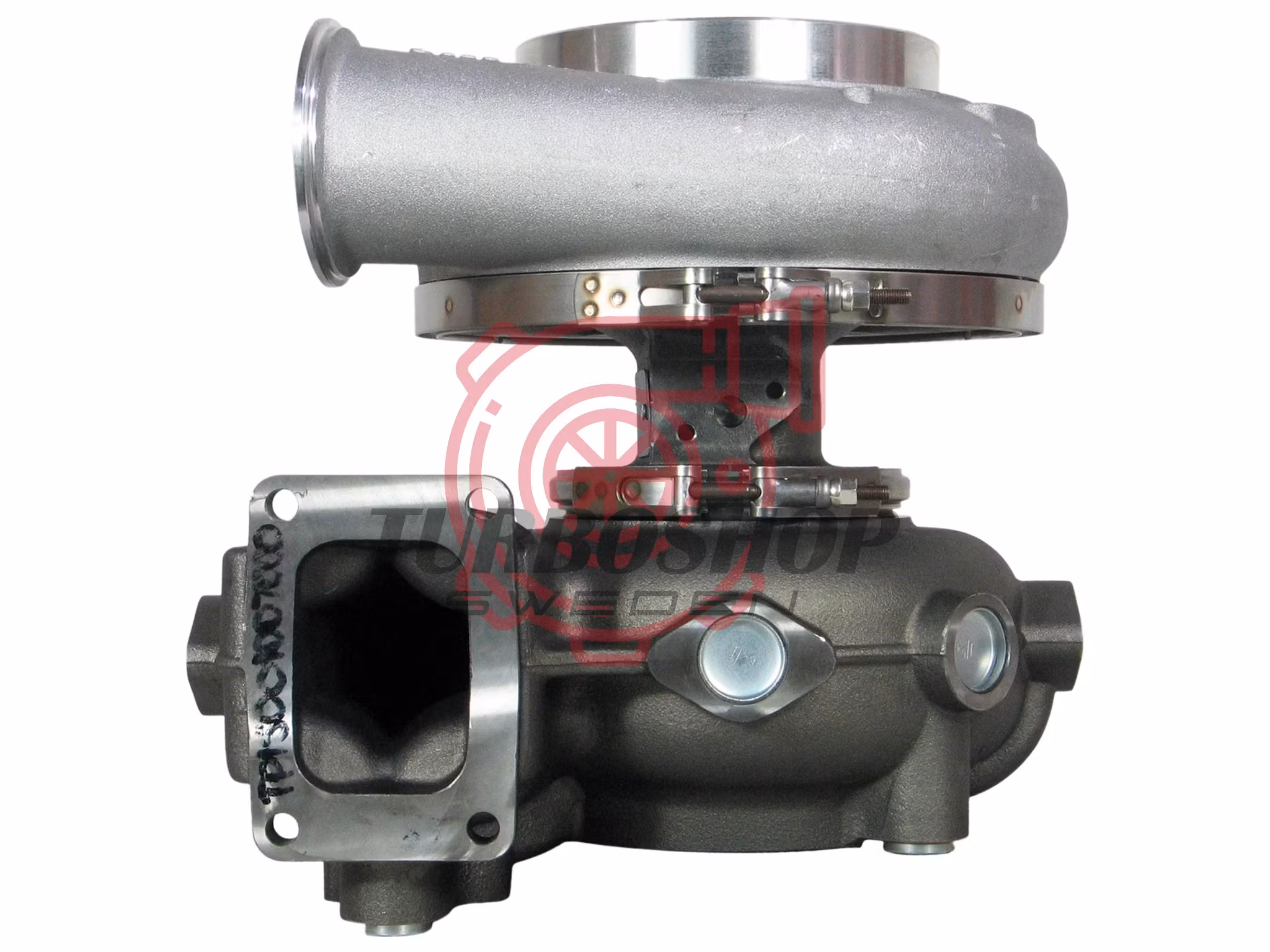

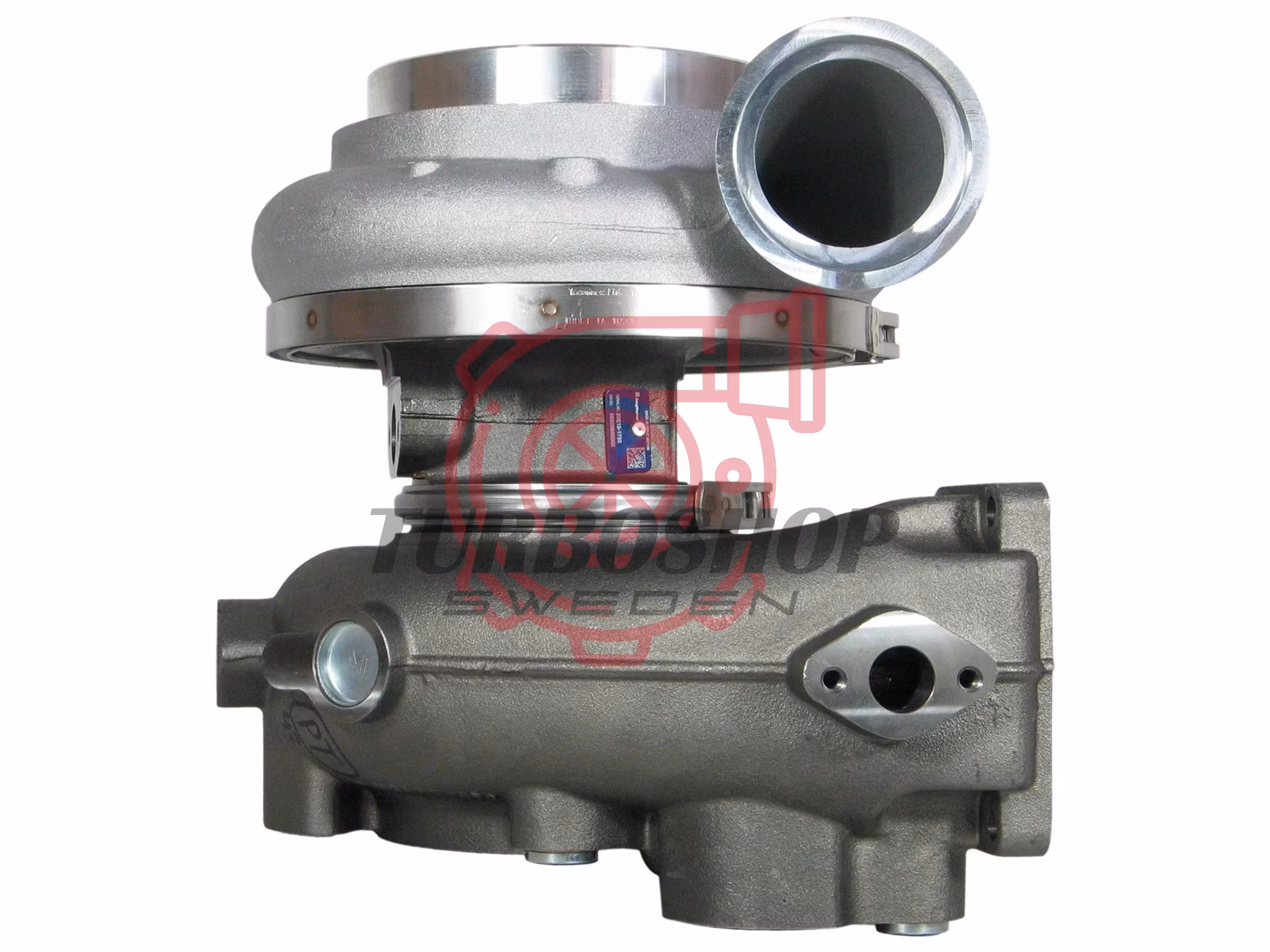

56509880000 Borgwarner S500W fabriksny originalturbo Volvo Penta Ship Marine D12M 12.14L


- Fabriksny originalturbo.

- 3 års garanti.

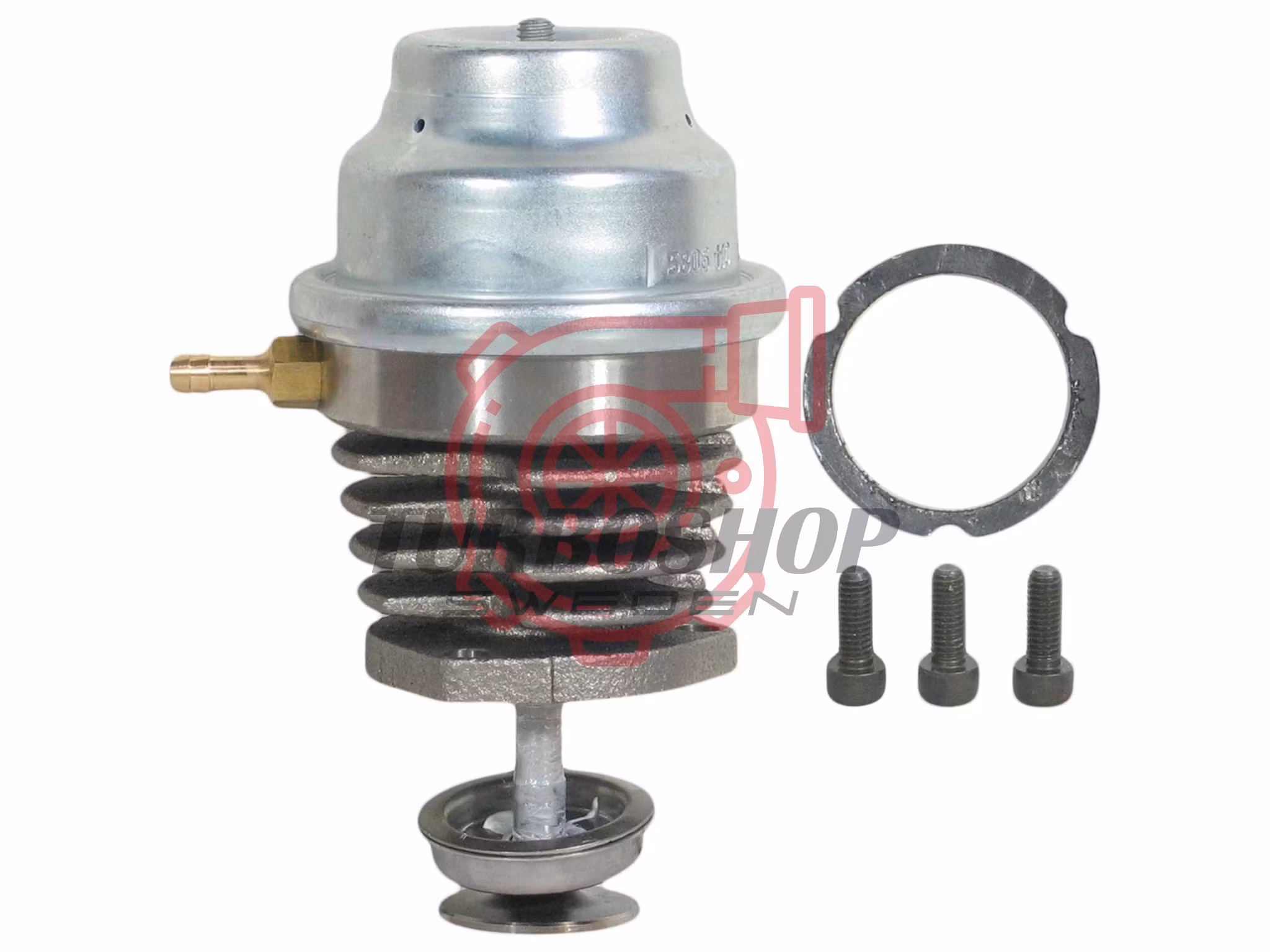

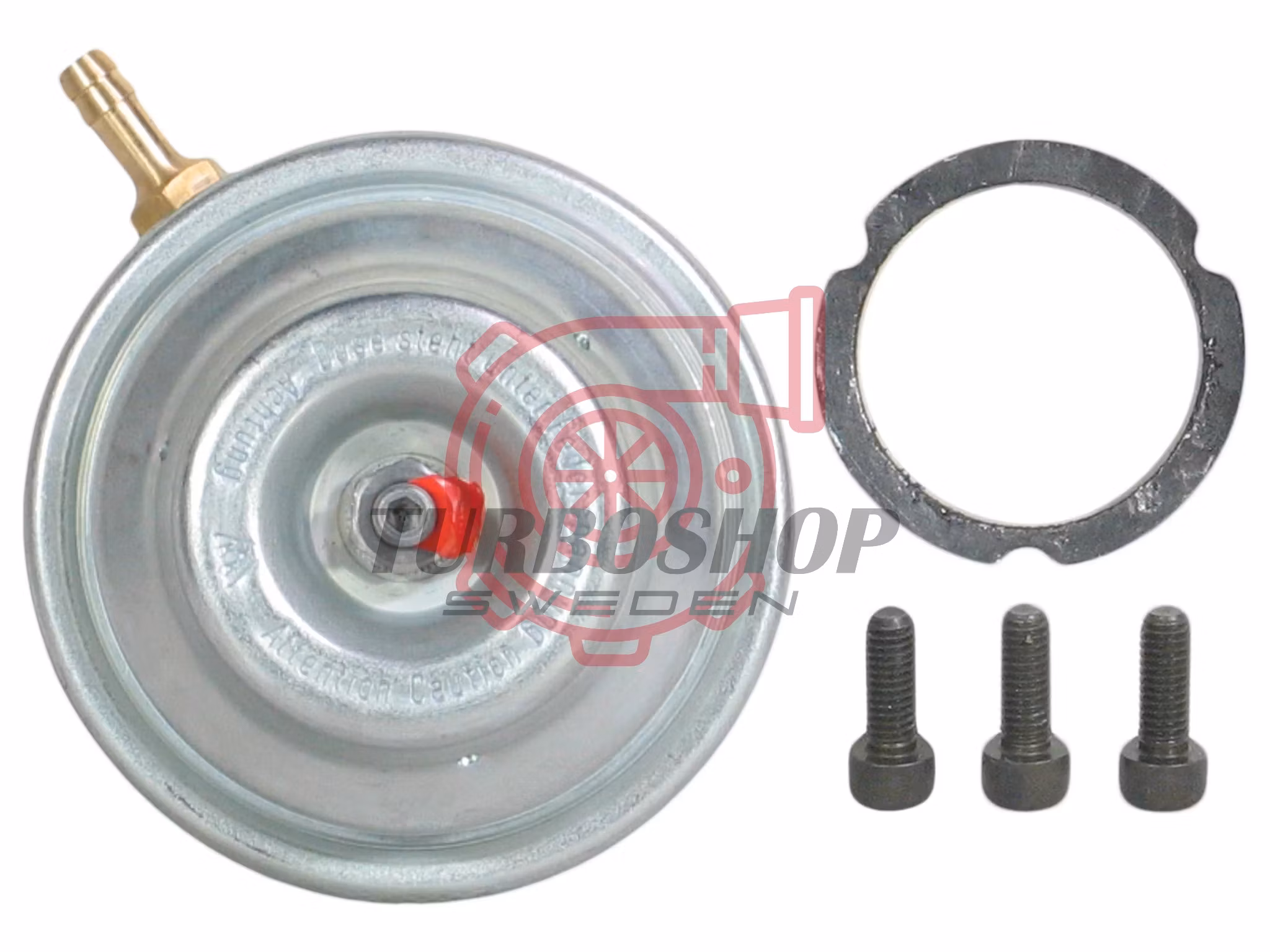

Vanligt fel på denna turbo är att wastegate ventilen fastnar.


Turbonummer / ersättningsnummer tillverkaren BorgWarner : 5650-988-0000, 5650 988 0000, 56501970000, 5650-197-0000, 5650 197 0000


Originalnummer Volvo Penta : 3801134, 3886223

Turbonummer / Originalnummer / Turbofakta :



Part Number56509880000
Previous Part Number5650-988-0000, 56501970000
OE number3886223, 3801134
Year2006-08
DescriptionShip,   Marine
Manufacturer Part Number5650-197-0000,  56501970000
CHRA317865 $1958.17 NEW IN STOCK
Turbo ModelS500WG-110_55AABM/0.70HJ3
Engine Model D12M, D12C-A MP, D12D-A MP, D12D-B MP, D12D-C MP
Engine Manufacturer Volvo
Displacement 12.14L,  1214 ccm
KW 578/786
RPM Max2300
FuelDiesel
Equip.452164-5001S
Angle α (compressor housing)108°
Angle β (turbine housing)320°
Bearing Housing317303 (Oil Cooled)
Turbine Wheel318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades) $672.48 NEW IN STOCK
Comp. Wheel317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) $394.27 NEW IN STOCK
Back plate317311 (171524) $74.04 NEW IN STOCK
Heat shield Number318032
Repair Kit318416 $227.25 NEW IN STOCK

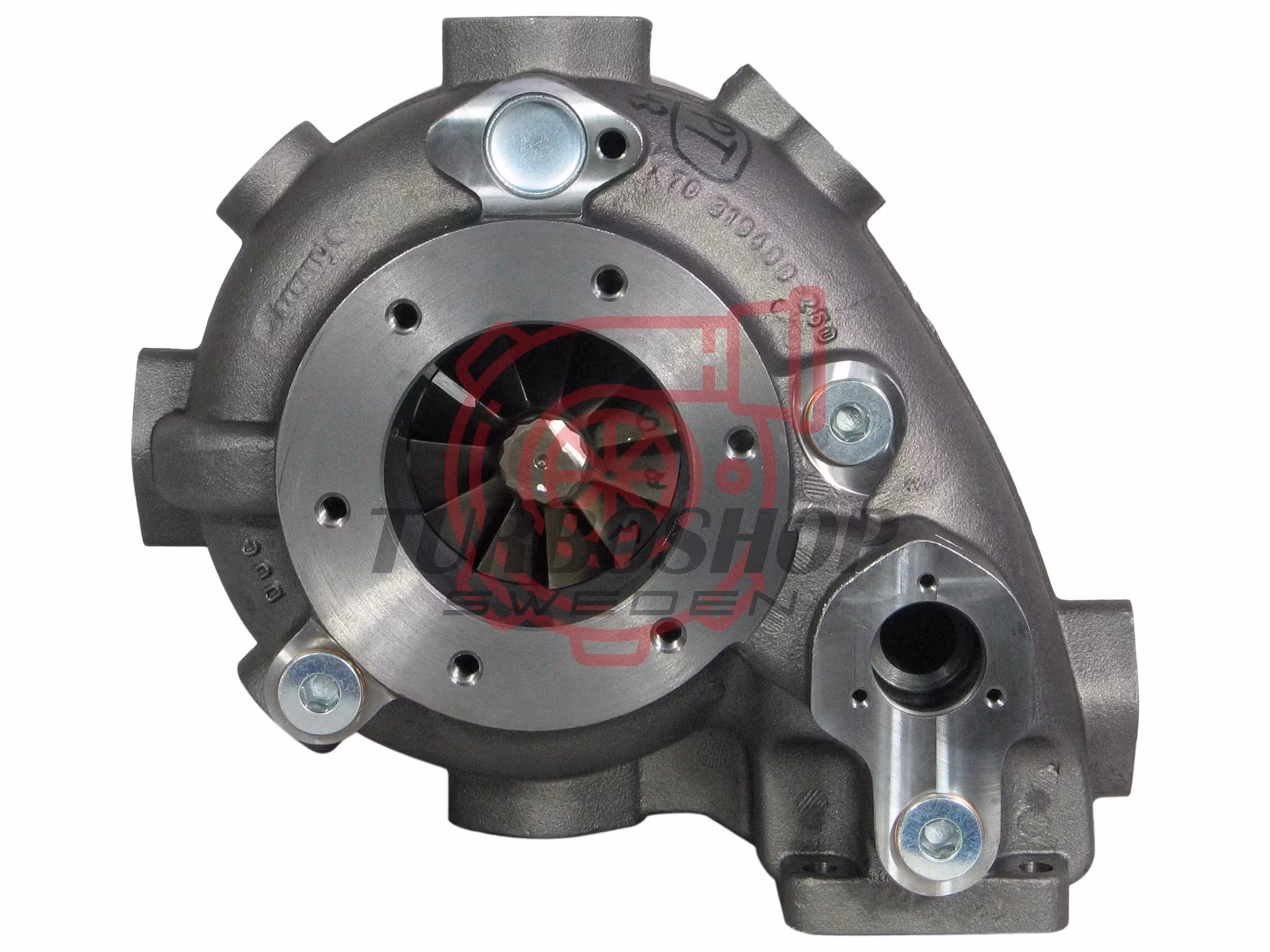

Turbine Housingwater-cooled
Settings for waste gatePressure: 2.05 kPa Stroke: 4.0 mm
Turbo Mnt. Gasket20784537
Gasket (turbine inlet)470939 (417382, 20784537) (Stainless Steel) $21.50
Gasket oil inlet420641 (1006177) $3.61
Gasket (oil outlet)470993 (1027702) $3.61
NOTEInter-cooler
ManufacturerBorg Warner - 3K - Schwitzer, BWTS UK


Applications


2006-08 Volvo D12 Ship  with D12M Engine
