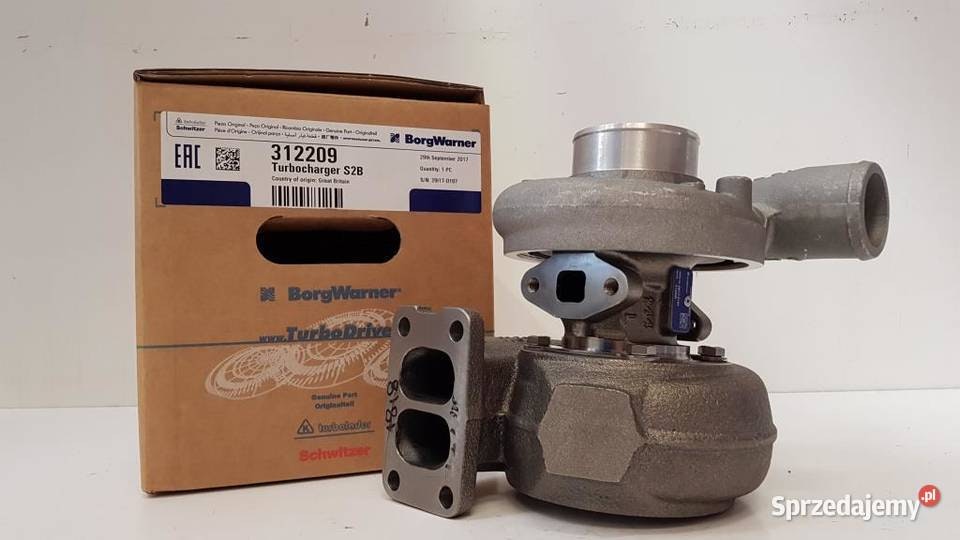

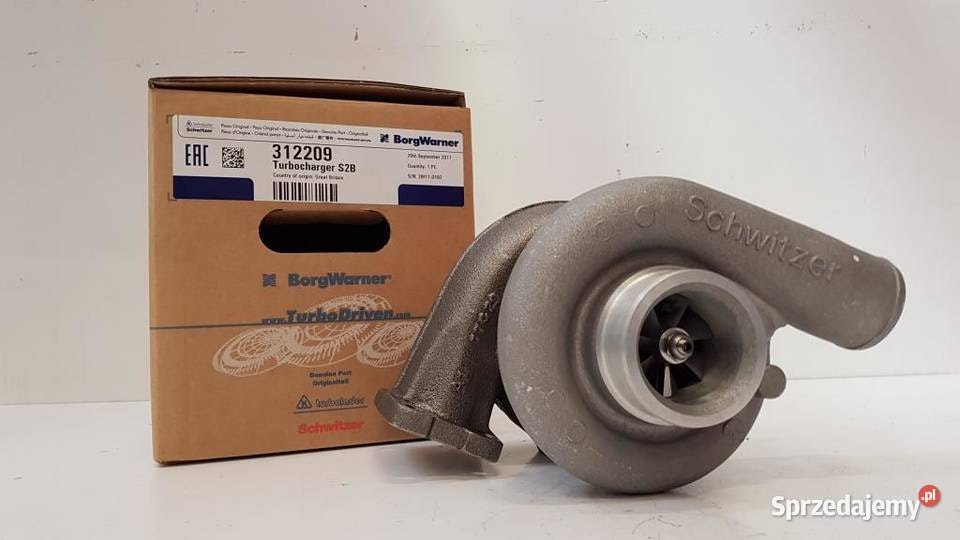

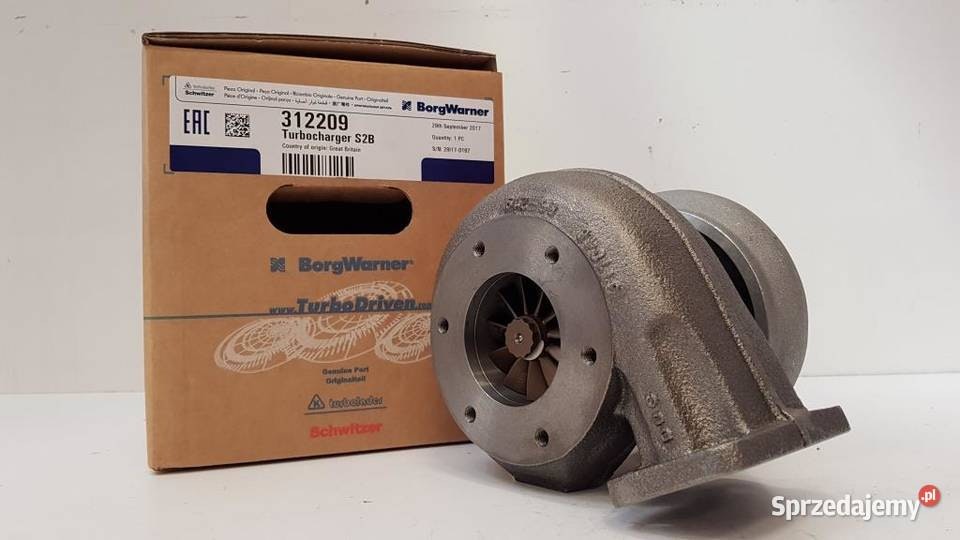

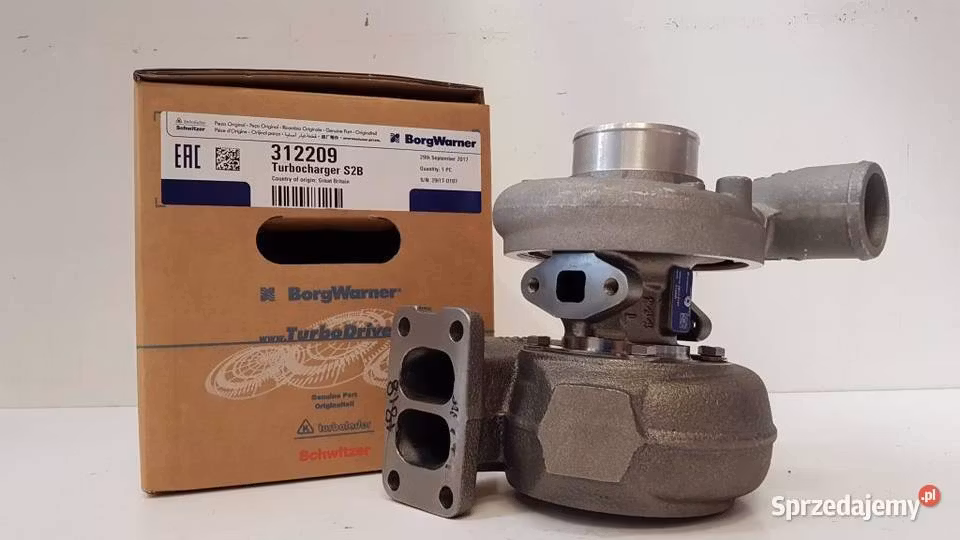

315026 BorgWarner S2B - Fabriksny originalturbo OEM : 2674A127 2674A121 2674A145 2674A051 2674A060 2674A078 2674A065 2674A107 2674A109 2674A110 2674A133 2674A154
- 11 995 kr
315026 BorgWarner S2B - Fabriksny originalturbo OEM : 2674A127 2674A121 2674A145 2674A051 2674A060 2674A078 2674A065 2674A107 2674A109 2674A110 2674A133 2674A15
Artikelnummer:
315026
315026 BorgWarner S2B - Fabriksny originalturbo OEM : 2674A127 2674A121 2674A145 2674A051 2674A060 2674A078 2674A065 2674A107 2674A109 2674A110 2674A133 2674A154
- Fabriksny originalturbo samma turbo som originalhandeln men priset samt kunskapen är skillnaden.
- 3 års garanti.
- Denna turbo renoverar vi även ofta i vår turboverkstad här på Turboshop Sweden AB.
Beställningsvara 2-3 dagars levtid ( Express går alltid att köpa till vid panik )
Schwitzer / BorgWarner turbos som denna turbo ersätter : 315026 310881 311005 311098 311429 313715 314494 314495 2674407 2674407P 2674407R 3640702M1 311900 312209
Garrett turbos som denna turbo ersätter : - 466828-5001S 466828-0001 466828-1 466828-5002S 466828-0002 466828-2 466828-5003S 466828-0003 466828-3 466828-5004S 466828-0004 466828-4 466828-5005S 466828-0005 466828-5 466828-5006S 466828-0006 466828-6 466828-5007S 466828-0007 466828-7 466828-5008S 466828-0008 466828-8 466828-5009S 466828-9 466828-0009 466828-9 466828-9 466828-5010S 466828-0010 466828-10 466828-5011S 466828-0011 466828-11
Holset turbos som denna turbo ersätter : - 3580227 3580227H
Originalnummer / ersättningsnummer : - 2674A127 2674A121 2674A145 2674A051 2674A060 2674A078 2674A065 2674A107 2674A109 2674A110 2674A133 2674A154 4222178M91 Pojazd: Perkins Diverse JCB ASTRAC-155T; FASTRAC 185Ti; FASTRAC-185Ti; FASTRAC 135T; FASTRAC 155T; FASTRAC 125; CONTRACTOR 150T; JCB AGRICULTURAL FASTRAC 185Ti; FASTRAC 125; CONTRACTOR 150T MASSEY FERGUSON 3635 3645 MASSEY FERGUSON 3120 3125 McCormick MXT110 MXT125 MXT140 Landini Legend 120 130 140 Silnik: T6.60
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 315026 |
| Previous versions | 466828-0002, 465191-0001, 465191-0003 |
| OE number | 2674407, 2674A109, 2674A410, 2674A110 |
| Year | 1994-04 |
| Description | 180ti Phaser |
| Manufacturer Part Number | 466828-0003, 314494, 314495 |
| CHRA | 315027 (408105-0280) $463.97 |
| Turbo Model | S2B, TB4131, TB41 |
| Engine | Phaser 160T, T6-60cc, T6-354 |
| Displacement | 6.0L |
| KW | 120/135/160/181 |
| Fuel | Diesel |
| Angle α (compressor housing) | 122/310º |
| Angle β (turbine housing) | 180/255º |
| Bearing Housing | 312487 (430027-0025) $55.20 |
| Turbine Wheel | 167420 (451309-0003) |
| Comp. Wheel | 311669 (409826-0006) |
| Back plate | 197340 (408045-0051) $48.66 |
| Heat shield Number | 311943 (409299-0001) $38.03 |
| Repair Kit | 468100-0000 $69.60 |
| Turbine Housing | 314534 |
| Compressor Cover | 314790 |
| Turbine Housing A/R | 1.0 |
| NOTE | Installation Gaskets Included |
| Gasket (turbine inlet) | 409039-0000 |
| Gasket (turbine outlet) | 210226 |
| Gasket oil inlet | 210023 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Applications
1994-04 Perkins Agricultural 180ti Phaser with Phaser 160T, T6-60cc, T6-354 Engine
Perkins Various with Phaser 160T, T6-60cc, T6-354 Engine
Dodge S900 Series With Perkins Engine
