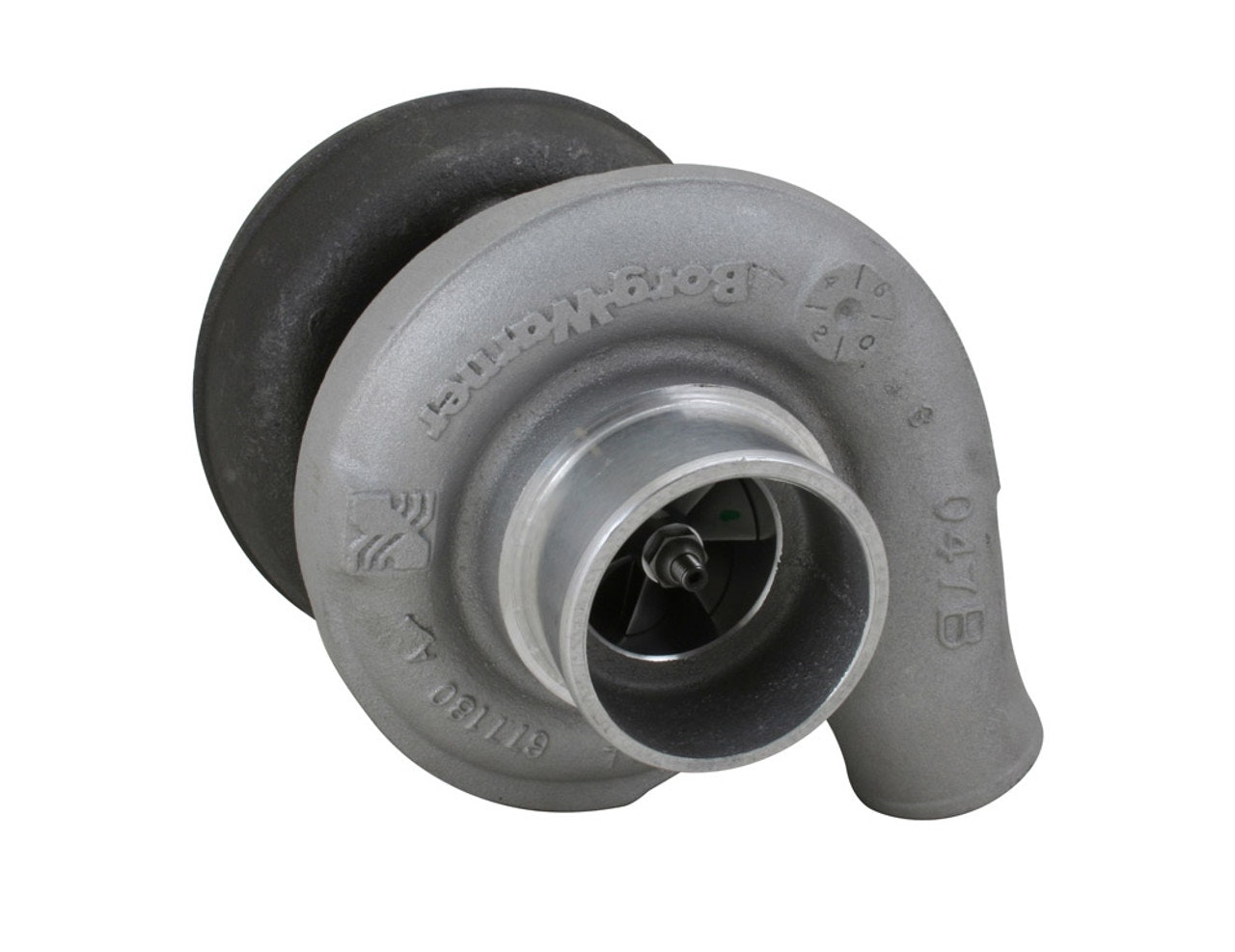

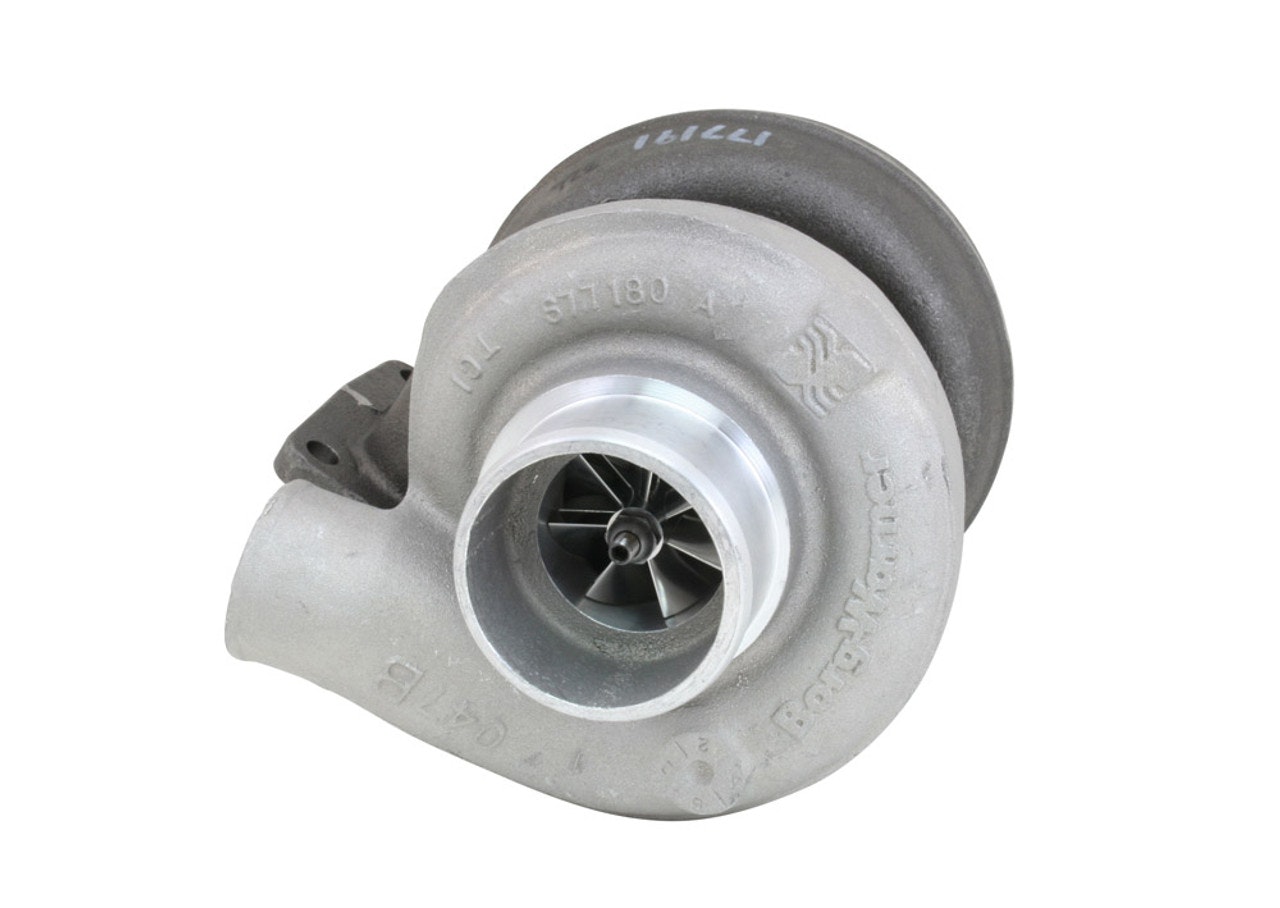

BorgWarner AirWerks S200SX Turbo 0.83 A/R - 51mm 70/70 - 177257 aka S251X
Detta är en fabriksny originalturbo ifrån tillverkaren BorgWarner.
En turbo som tidigare ofta används i olika driftingbyggen samt dieselprojekt.
Sitter även original på John Deere traktorer.
Denna turbo är det som är grundpelaren till den mycket populära BorgWarner SX-E 52MM + 57MM.
Vi renoverar även ofta denna turbo här som vi gör med samtliga BorgWarener SX / SX-E turbos vi kan även erbjuda uppgradering till 360 glidlagring samt Billet kompressordel för att få turbon mer modern samt snabbspoolad.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 177257 |
| Previous Version | 173354, 173354R, 173407, 173407R, 173588, 173588R, 173753, 173753R, 173754, 173754R, 173921, 173921R, 174139, 174139R, 174176, 174176R, 177257R |
| OE number | RE516007, RE518094, RE518517, RE518519, RE519662, RE519787, RE519800, RE520580, RE520643, RE520650, SE501677, SE502188, SE502348, SE502381, 473354, 473407, 473588, 473753, 473754, 473921, 474139, 474176, 477257 |
| Year | 2902-07 |
| Description | John Deere 460D Skidder Various |
| Manufacturer Part Number | 173588, 173921, 173753, 174176, 173407, 173354 |
| CHRA | 176638 (167638)(1000070104) $495.00 NEW IN STOCK |
| Turbo Model | S200S069 |
| Engine | 6068H |
| Engine Manufacturer | John Deere |
| Displacement | 6.8L, 6800 ccm |
| Fuel | Diesel |
| KW | 220 HP |
| Bearing Housing | 172242 (Oil Cooled)(1900011261C) $164.24 NEW IN STOCK |
| Turbine Wheel | 169779 (Ind. 61.3 mm, Exd. 69.47 mm, Trm 9.18, 10 Blades)(1100016547) $393.01 NEW IN STOCK |
| Comp. Wheel | 172244 (Ind. 48.83 mm, Exd. 73. mm, Trm 5.11, 7+7 Blades, Superback)(1200016759) |
| Back plate | 167744 (1253200300, 1800016065) |
| Heat shield Number | 194149 (2030016117) |
| Repair Kit | 318383 (318382)(1253200750, 5000030021) |
| Gasket Kit | 318418 $16.60 |
| Gasket (turbine inlet) | 310694 (407294-0001)(Stainless Steel) |
| Gasket (oil outlet) | 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021, 210021) $4.32 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Applications
2002-07 John Deere Various with 6068H Engine
2008- (2735) 640G-III Cable Skidder and 648G-III Grapple Skidder(S.N. 576603-604613) Worldwide Edition
2008- (2871) 460DC Cable Skidder and 460DG Grapple Skidder ( -604613)
2008- (9224) 7420 and 7520 Tractors (North American Edition)
2008- (9582) PowerTech 6.8L AG (6068 Tier 2 Engines)
2008- (2735) 640G-III Cable Skidder and 648G-III Grapple Skidder(S.N. 576603-604613) Worldwide Edition
2008- (2871) 460DC Cable Skidder and 460DG Grapple Skidder ( -604613)
2008- (9224) 7420 and 7520 Tractors (North American Edition)
2008- (9582) PowerTech 6.8L AG (6068 Tier 2 Engines)
2008- (2521) PowerTech 4.5L Engines; Torreon (PE) (ESN 010000-), Saran (CD) (ESN500000-), Dubuque (T0) (ESN 700000-)
2008- (9239) 1070D Wheeled Harvester (S.N. -1300)
2007- (9246) 1410D Forwarder (s.n. 0472-1200)
2007- (9264) 1490D Slash Bundler (Timberjack)
2008- (9584) PowerTech 6.8L (6068) Tier 2 Engines - C & F Applications
2008- (9224) 7420 and 7520 Tractors (North American Edition)
2008- (9582) PowerTech 6.8L AG (6068 Tier 2 Engines)
2008- (4351) 6820, 6920, 6920S Tractors (European Edition)
