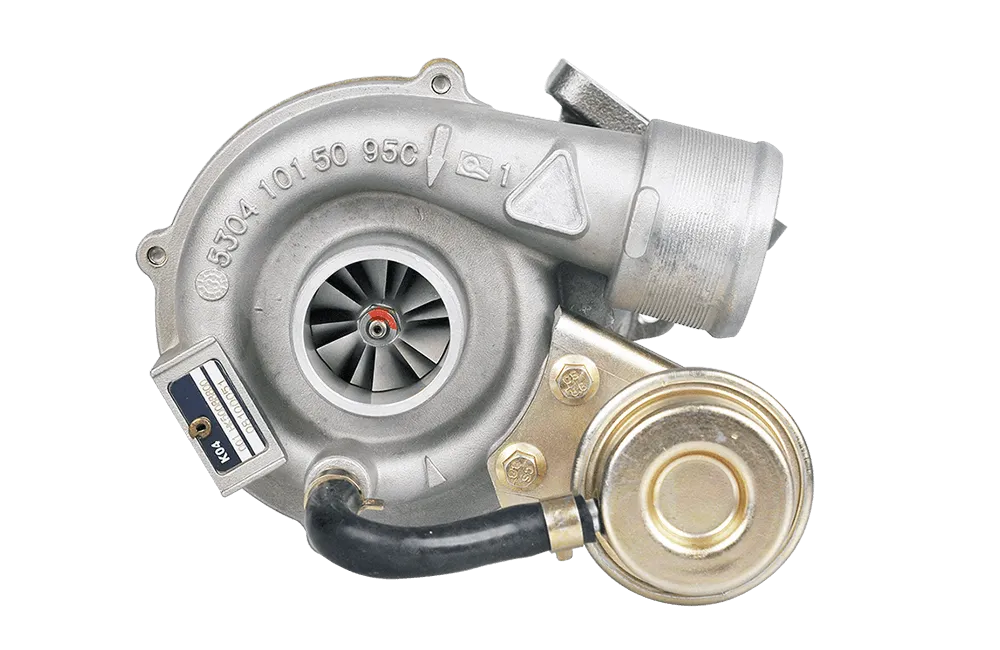

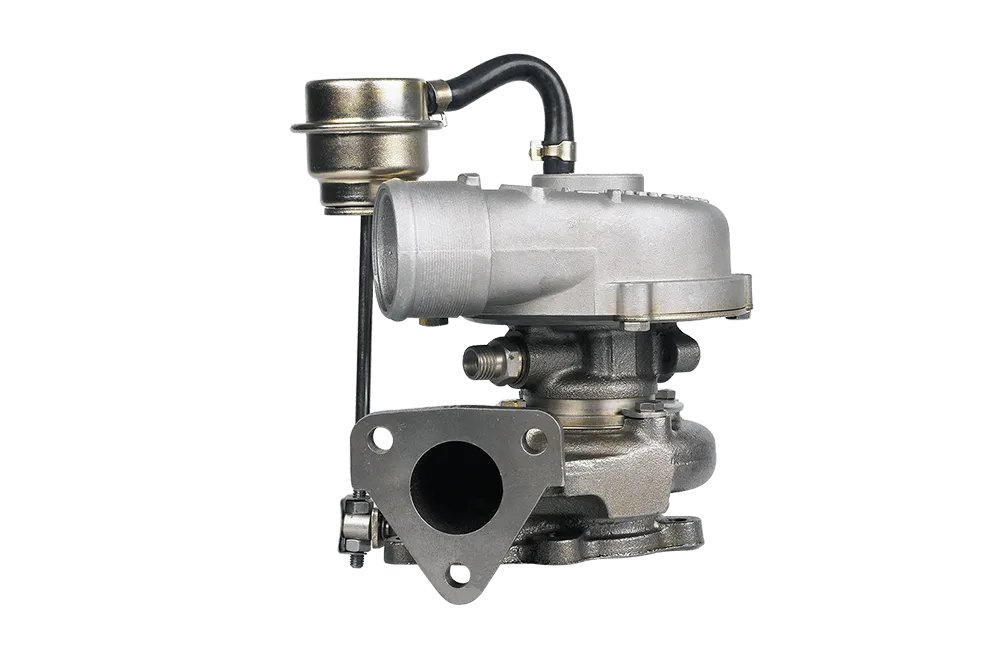

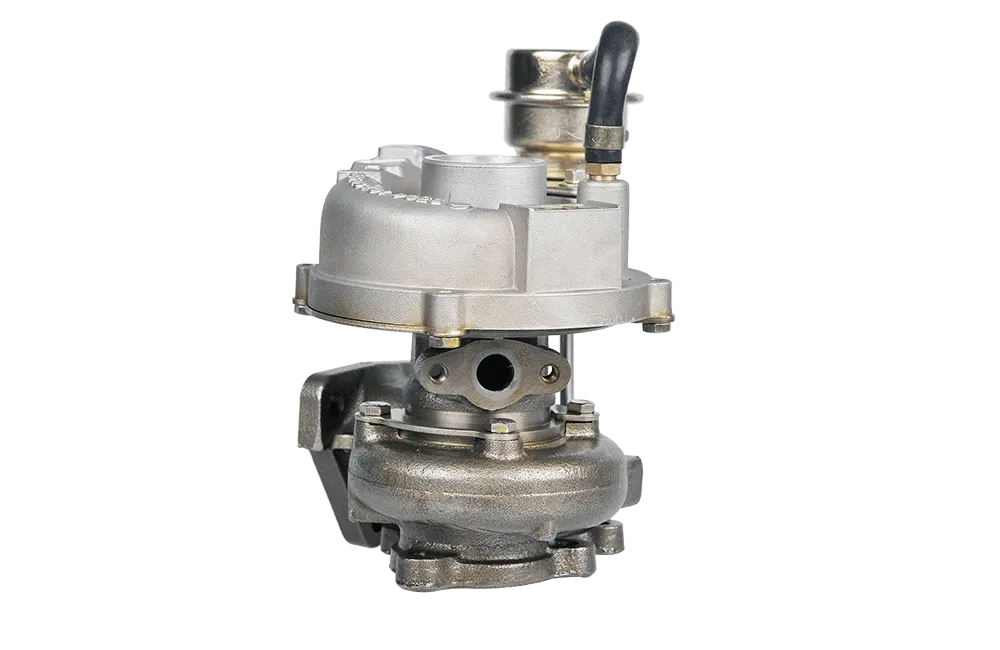

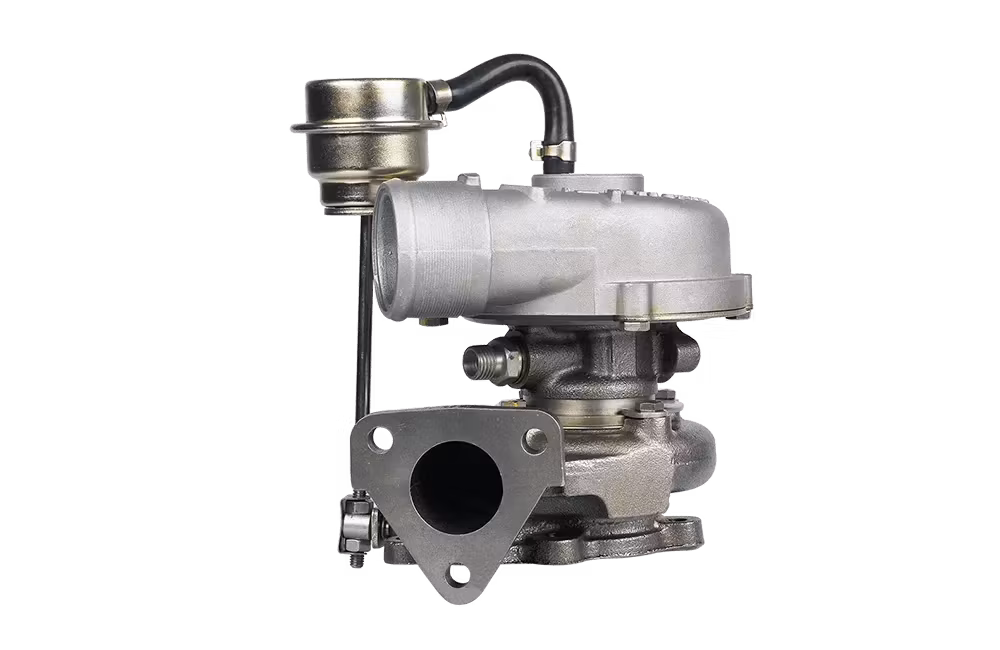

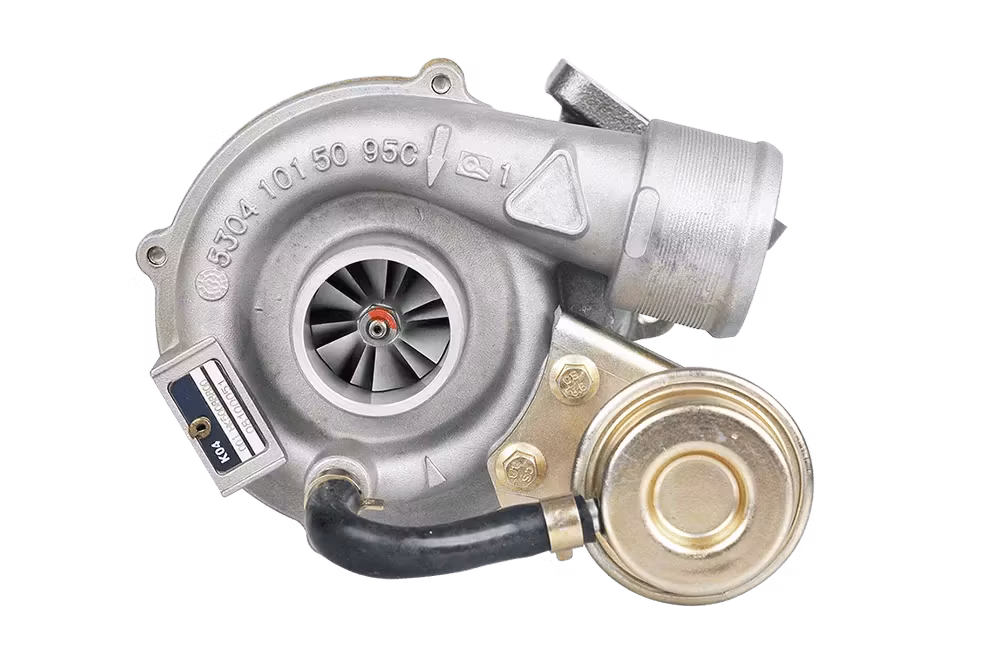

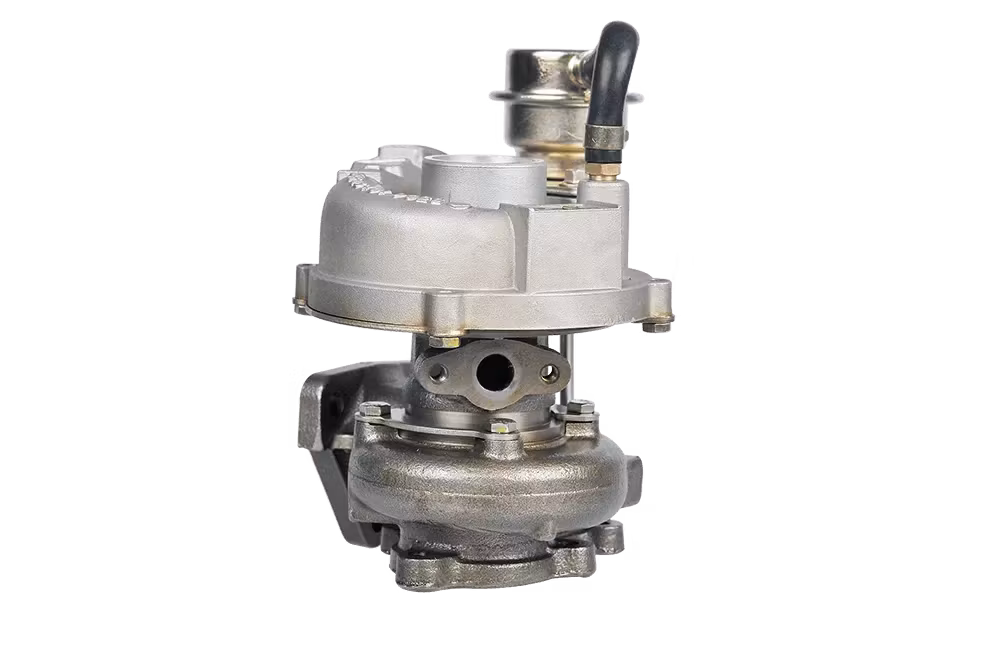

53049880001 - Renoverad originalturbo BorgWarner ( Bytesturbo ) FT 190 4EB/4EA/4EC

  • 4 995 kr
  • 4 246 kr

53049880001 - Renoverad originalturbo BorgWarner ( Bytesturbo- Renoverad originalturbo.- 3 års garanti.- Monteringssats medföljer.- Beställningsvara 2-3 dagar.T

I lager.
Artikelnummer: 53049880001-BT
Dela

53049880001 - Renoverad originalturbo BorgWarner ( Bytesturbo

- Renoverad originalturbo.

- 3 års garanti.

- Monteringssats medföljer.

- Beställningsvara 2-3 dagar.

Turbonummer / originalnummer / Turbofakta :

Part Number 53049880001
Previous Version 5304-988-0001, 5304 988 0001
OE number 914F6K682AF,  914F6K682AG, 914F6K682AC, 914F6K682AB, 1057139, 1113104,  1057139,  914F6K682AG, 914F6K682AF, 914F6K682AB, 6611235, 914F6-K682-AF
Year1991-09
DescriptionCommercial Transit IV FT
Manufacturer Part Number53049700001, 5304-970-0001
CHRA53047100500 (5304-710-0500) (1302004900) $295.00 NEW IN STOCK,MADE IN USA
Turbo ModelK04-2070GAA5.82GCAAD
EngineFT 190 4EB/4EA/4EC
Displacement2.5L, 2496 ccm, 4 Cylinders
KW74/100
RPM Max4000
Angle α (compressor housing)299°
Angle β (turbine housing)220°
Bearing Housing53041500010 (53041500003, 53041500004)(1302004450, 1302004451)(Oil Cooled) $71.60 NEW IN STOCK
Turbine Wheel53041500010  (53041205008, 53041500011, 53041500014, 53041202100)(Ind. 42. mm, Exd.  50. mm, 12 Blades)(1302004436) $97.20 NEW IN STOCK
Comp. Wheel53041232005  (53041235010, 53041015331, 53041015009)(Ind. 34.9 mm, Exd. 49.96 mm, 6+6  Blades, Superback)(1302003408) $55.20 NEW IN STOCK
Back plate53041515702 (53041515700, 53041232005)(1302003302) $18.35 NEW IN STOCK
Heat shield Number53031652000 (53041652000)(1302003341, 1302003340) $14.82 NEW IN STOCK
Repair Kit53037110000 (1302003752) $69.00 NEW IN STOCK
Turbine Housing53041009021
Compressor Cover53041015001
Actuator58201104024/58201104100
Settings Waste gate (pressure)  1.25 bar
Settings Waste gate (lifting rod)3.40 mm
Turbine Housing AR5
Gasket (turbine outlet)210331 (Stainless Steel)
Gasket (oil outlet)210317 (Paper) $2.89
Fitting oil inlet430066-0001
ManufacturerBorg Warner - 3K - Schwitzer


Applications


1991-09   Ford Transit IV 2.5 TD   Engine  FT 190 4EB/4EA/4EC
