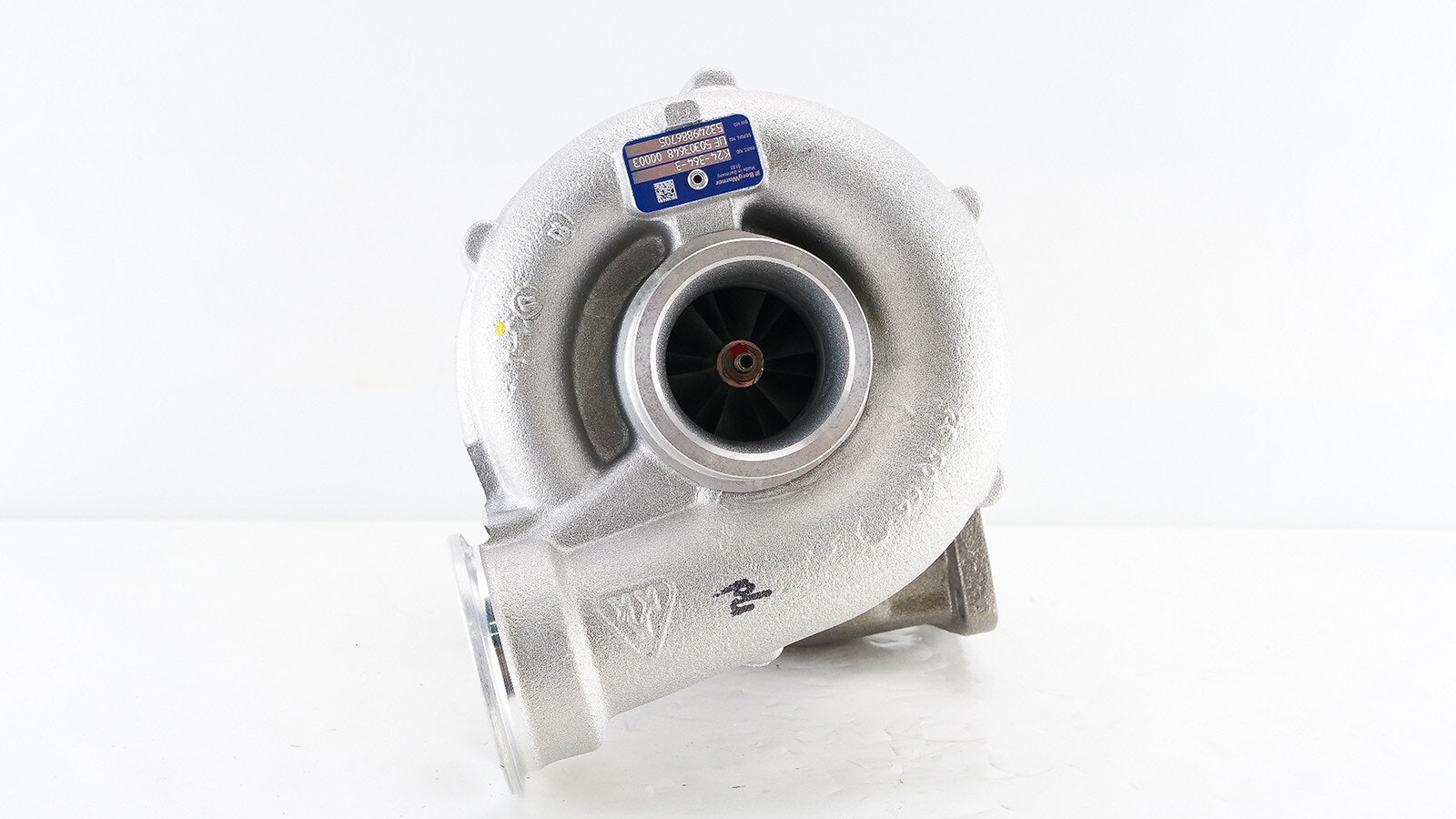

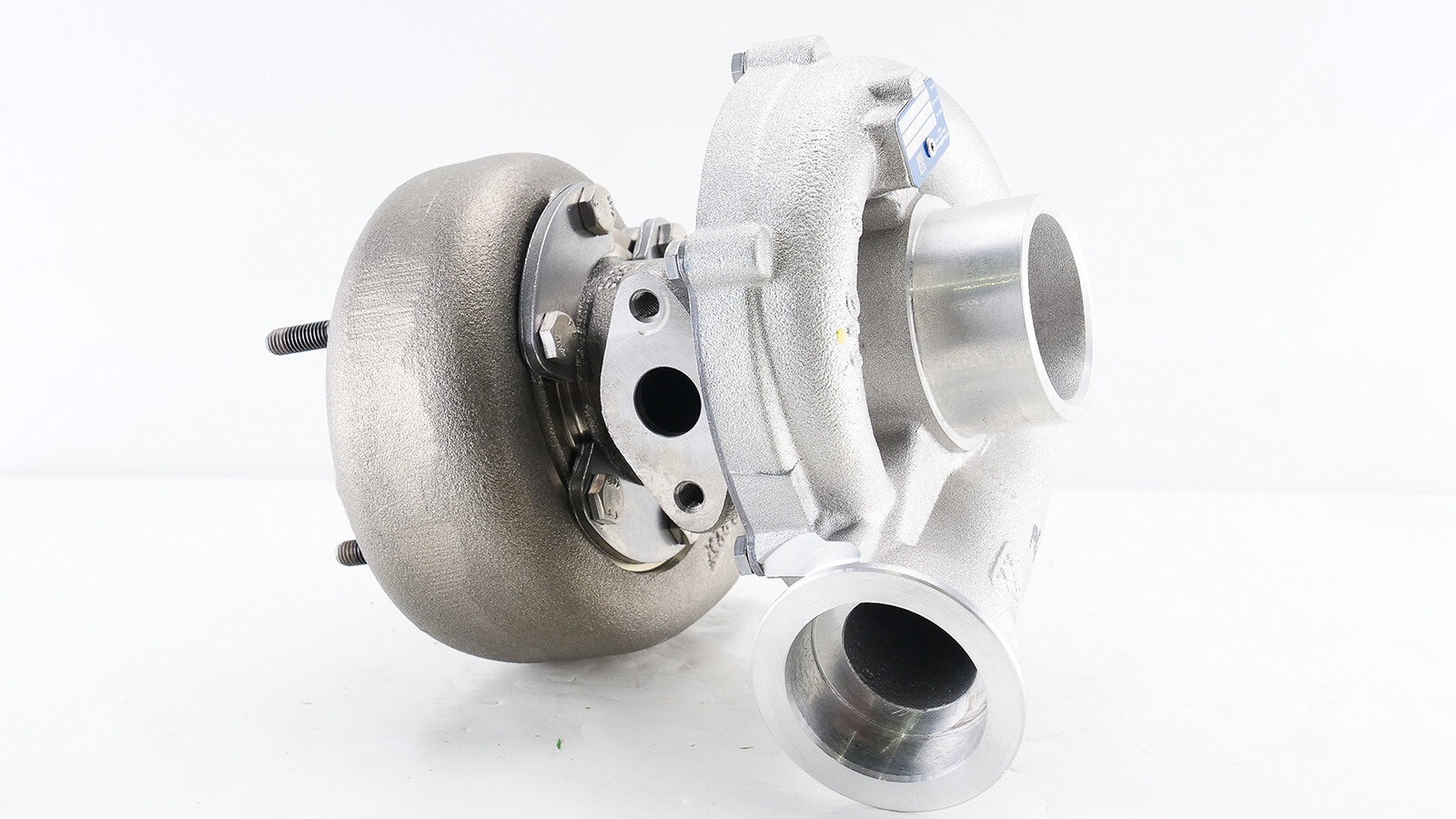

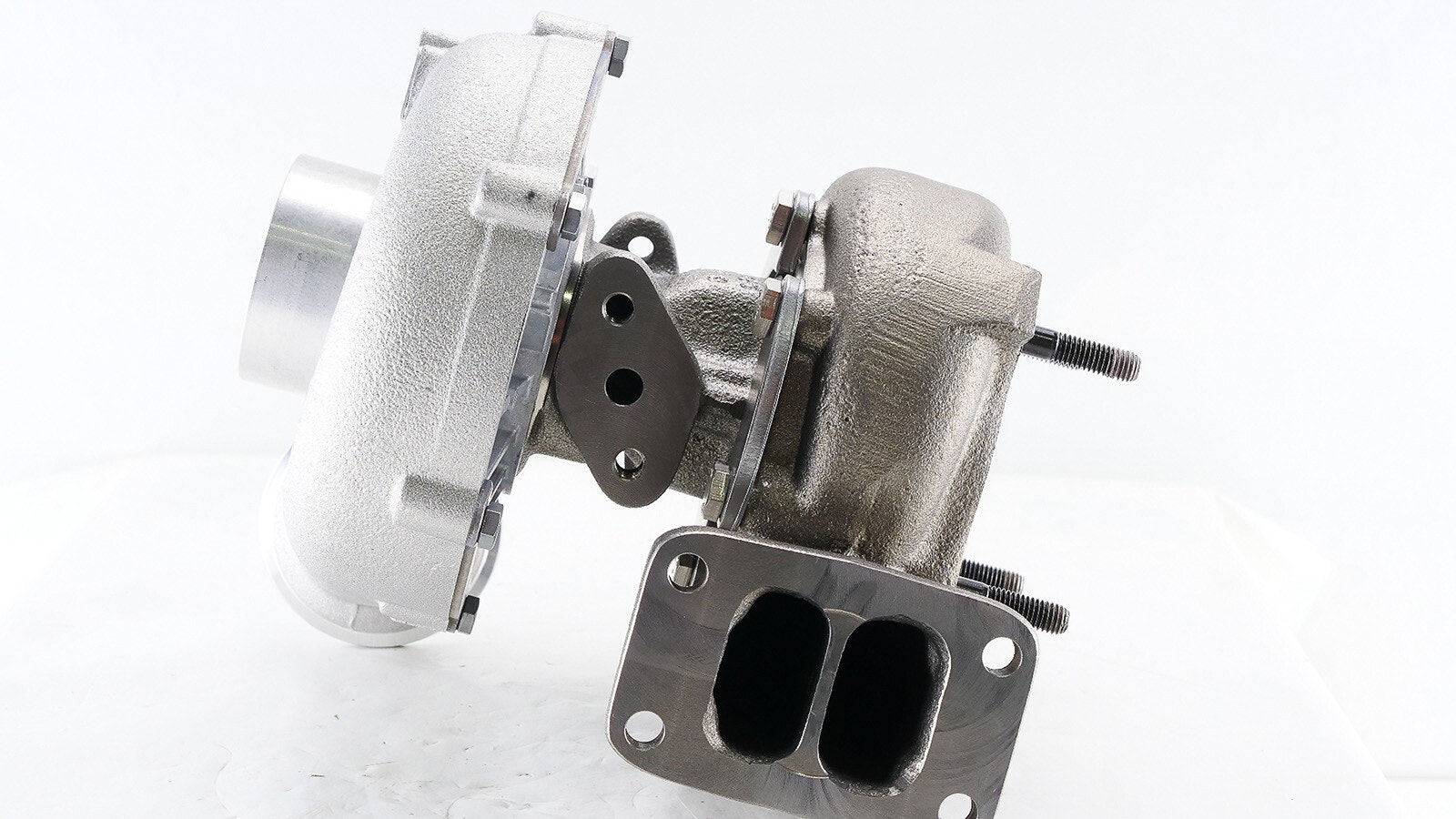

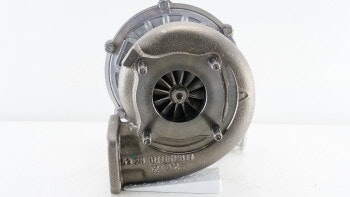

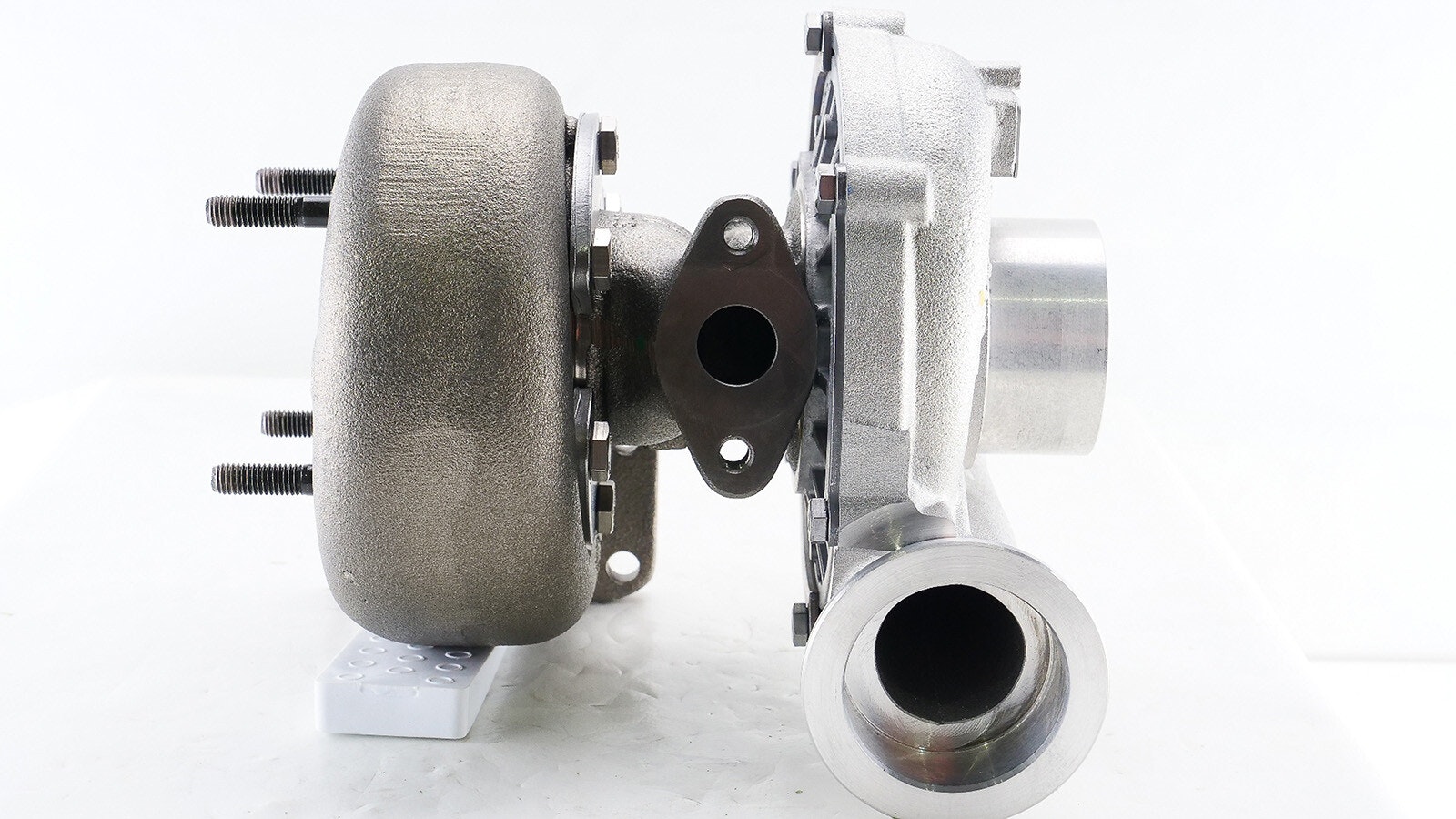

53249886705 - Fabriksny BorgWarner originalturbo
- Fabriksny originalturbo.
- 3 års garanti.
- Monteringssats medföljer.
- Beställningsvara 2-3 dagars levtid.
Denna turbo är en direkt ersättare / uppgradering för : 466192 Garrett.
Turbonummer / Originalnummer :
| Part Number | 53249886705 |
| Previous Version | 5324-988-6705, 5324 988 67059 |
| OE number | 3640962799, 3640962699, 3640962599, 3640963099, 3640962399, A3640962399, A3640962699 |
| Year | 1992-04 |
| Description | Commercial, 711D/814D Truck |
| Manufacturer Part Number | 53249706705, 5324-970-6705 |
| CHRA | 53247100021 (5324-710-0021, 53247100019) $1,439.4 |
| Turbo Model | K24.2-2467GXA12.21GBAQD |
| Engine | OM364LA- Euro 1, OM364LA 1 |
| Displacement | 3.97L, 3970 ccm, 4 Cylinders |
| KW | 102/137/139 |
| Fuel | Diesel |
| RPM Max | 2600 |
| Angle α (compressor housing) | 18/79/285° |
| Angle β (turbine housing) | 30/186° |
| Bearing Housing | 53241500021 (Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 53241202108 (53241205006)(Ind. 49.55 mm, Exd. 59. mm, Trm 9.2, 12 Blades) NEW IN STOCK |
| Comp. Wheel (hipped) | 53241232008 (Ind. 40.6 mm, Exd. 60.5 mm, Trm 4.8, 6+6 Blades, Superback) NEW IN STOCK |
| Back plate | 53261515712 (53261515706) NEW IN STOCK |
| Heat Shield | 53261652005 (53261652007) $23.62 NEW IN STOCK |
| Repair Kit | 53247110009 (53247110025, 5326-711-0001, 53267110015, 53267110024, 53267110025, 53267110027, 53267110028, 53267110029, 53267110038, 53277110001, 53277110004, 53277110008, 53277110010, 53277110018, 53277110020, 53277110021, 53277110030, 53277110040, 53277110061, 53247110022) $72.98 NEW IN STOCK |
| Turbine Housing | 53161009025 |
| Compressor Cover | 53241013001 (53241013005) |
| Turbine Housing AR | 6 |
| Actuator | 58201104114/58201104181 |
| Settings Waste gate (pressure) | 2.30 bar |
| Settings Waste gate (lift shaft) | 3.30 mm |
| NOTE | Intercooler, also for 125 kW at 2300 rpm |
| Gasket (turbine inlet) | 210640 (INOX Steel) $17.00 |
| Gasket (turbine outlet) | 210541 (INOX Steel) $18.00 |
| Gasket (oil outlet) | 210317 (Paper) $2.89 |
| Replaces | 466192-0012 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Applications
1992-04 Mercedes Benz Commercial Vario with OM364LA- Euro 1 Engine
1991-03 Mercedes Benz Truck with OM364LA- Euro 1 Engine
