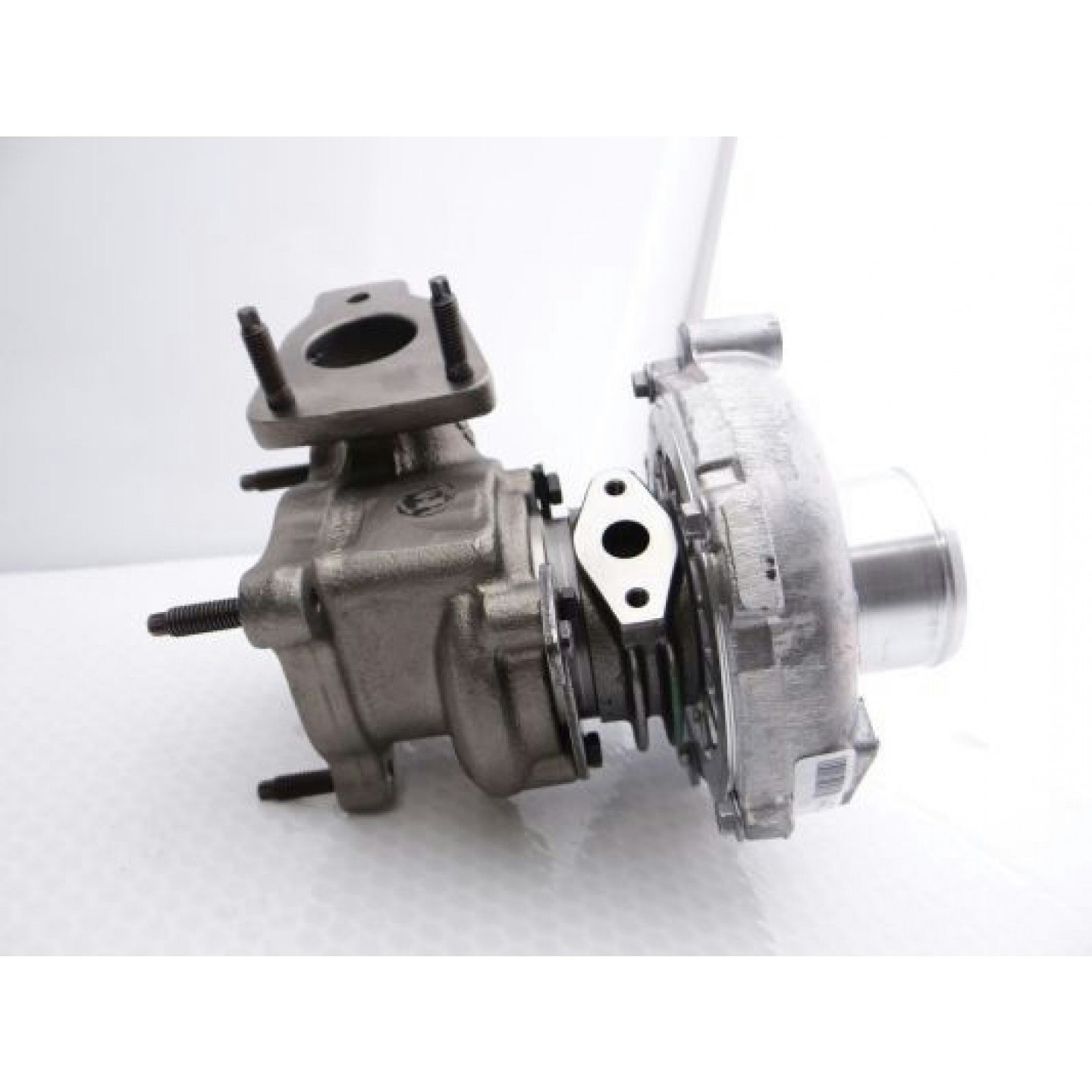

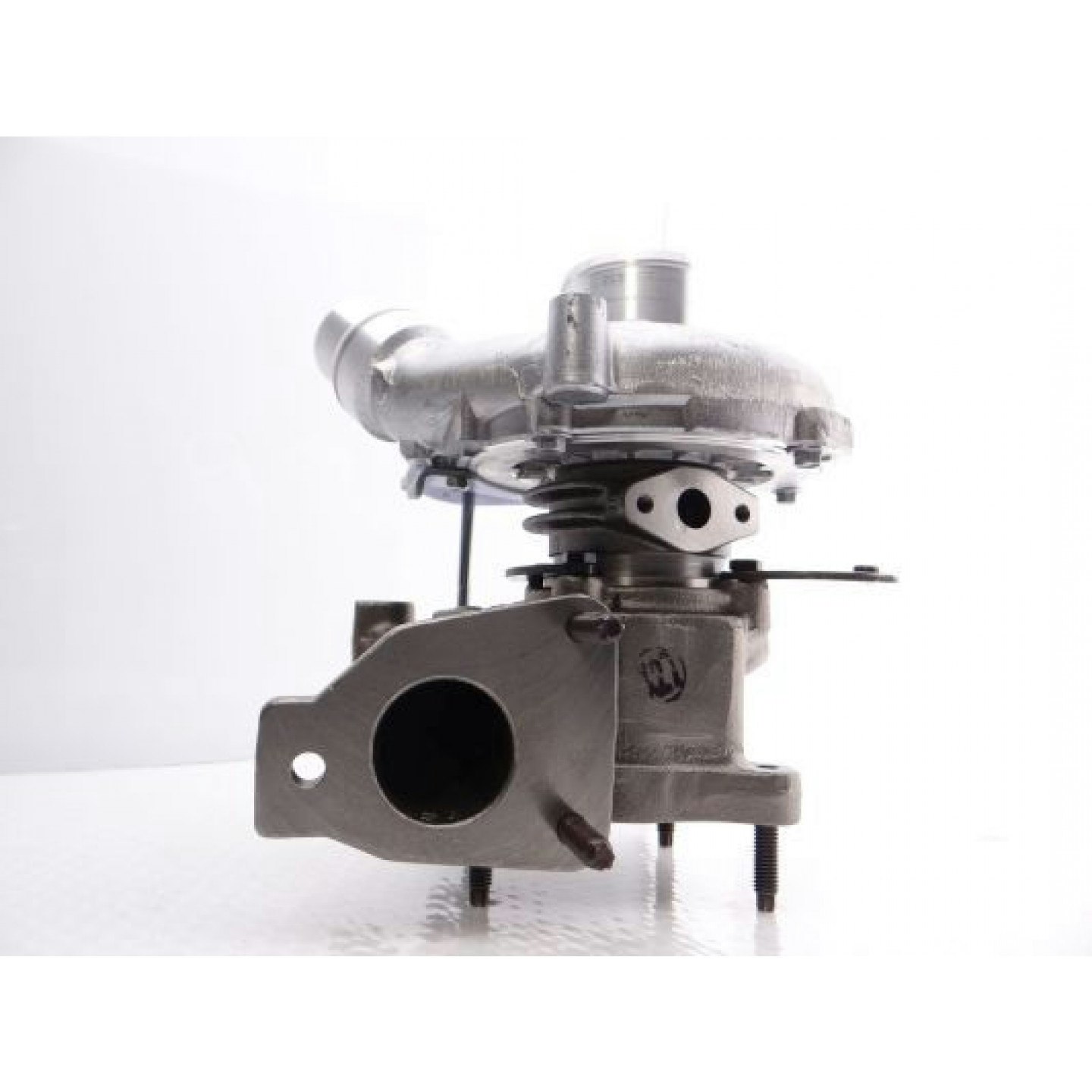

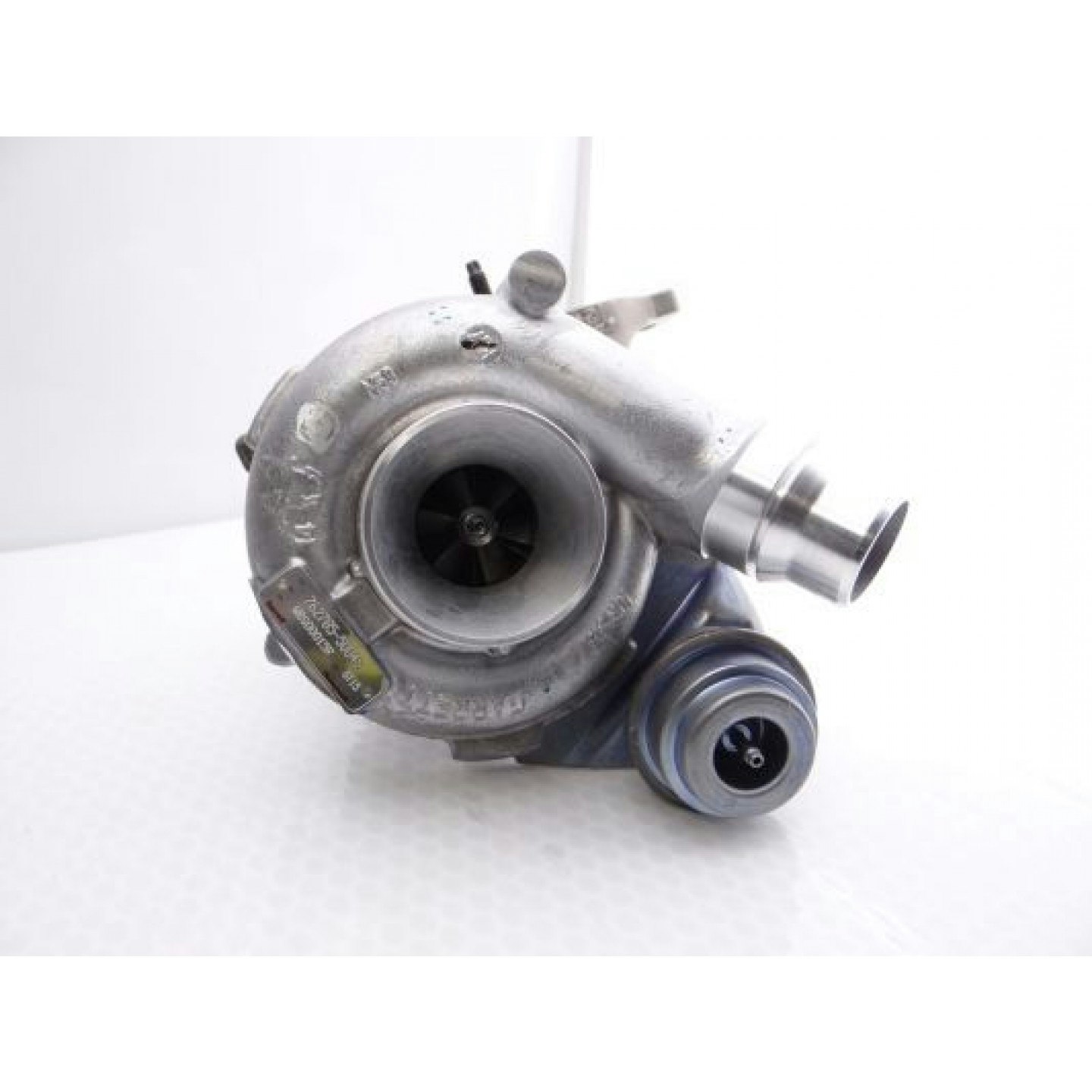

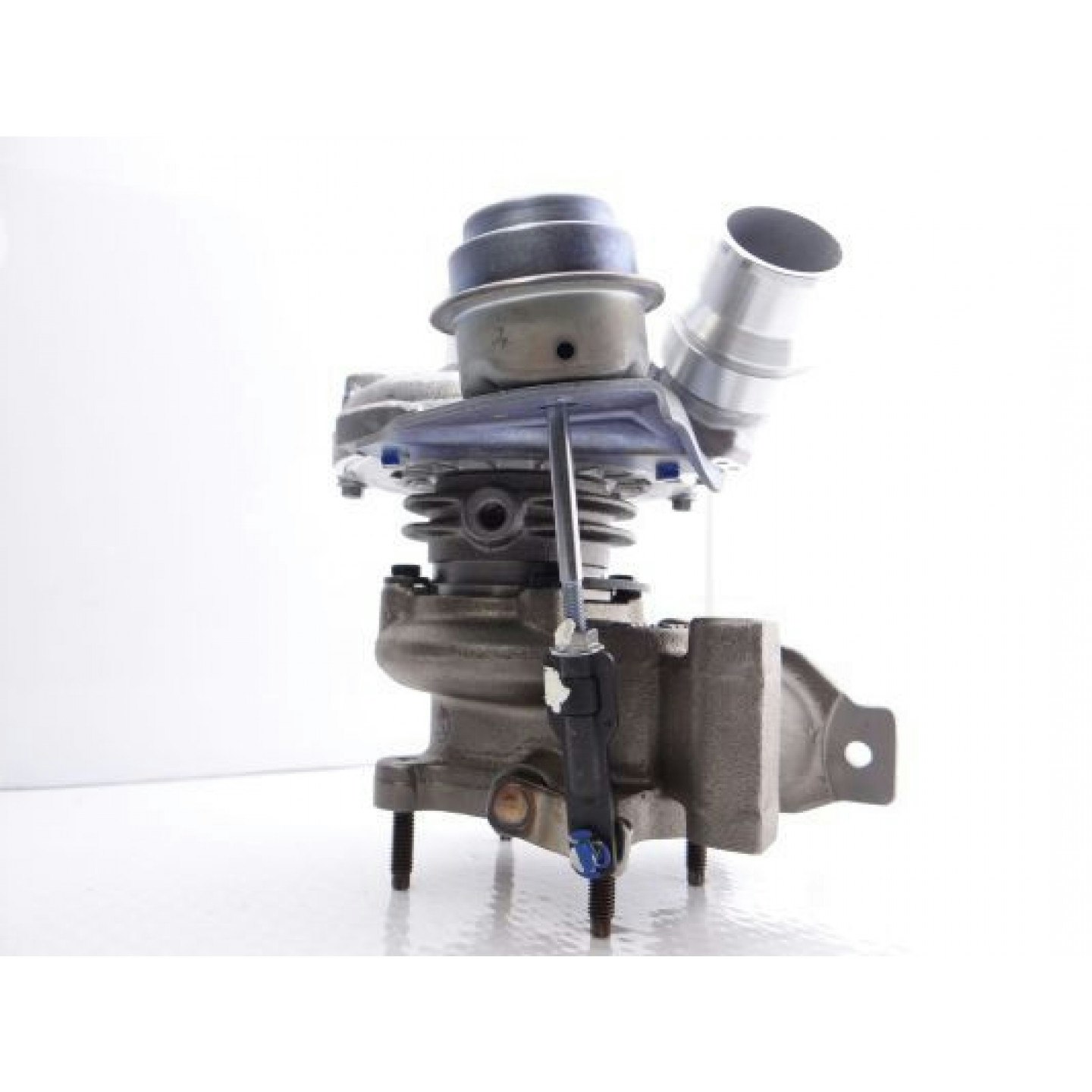

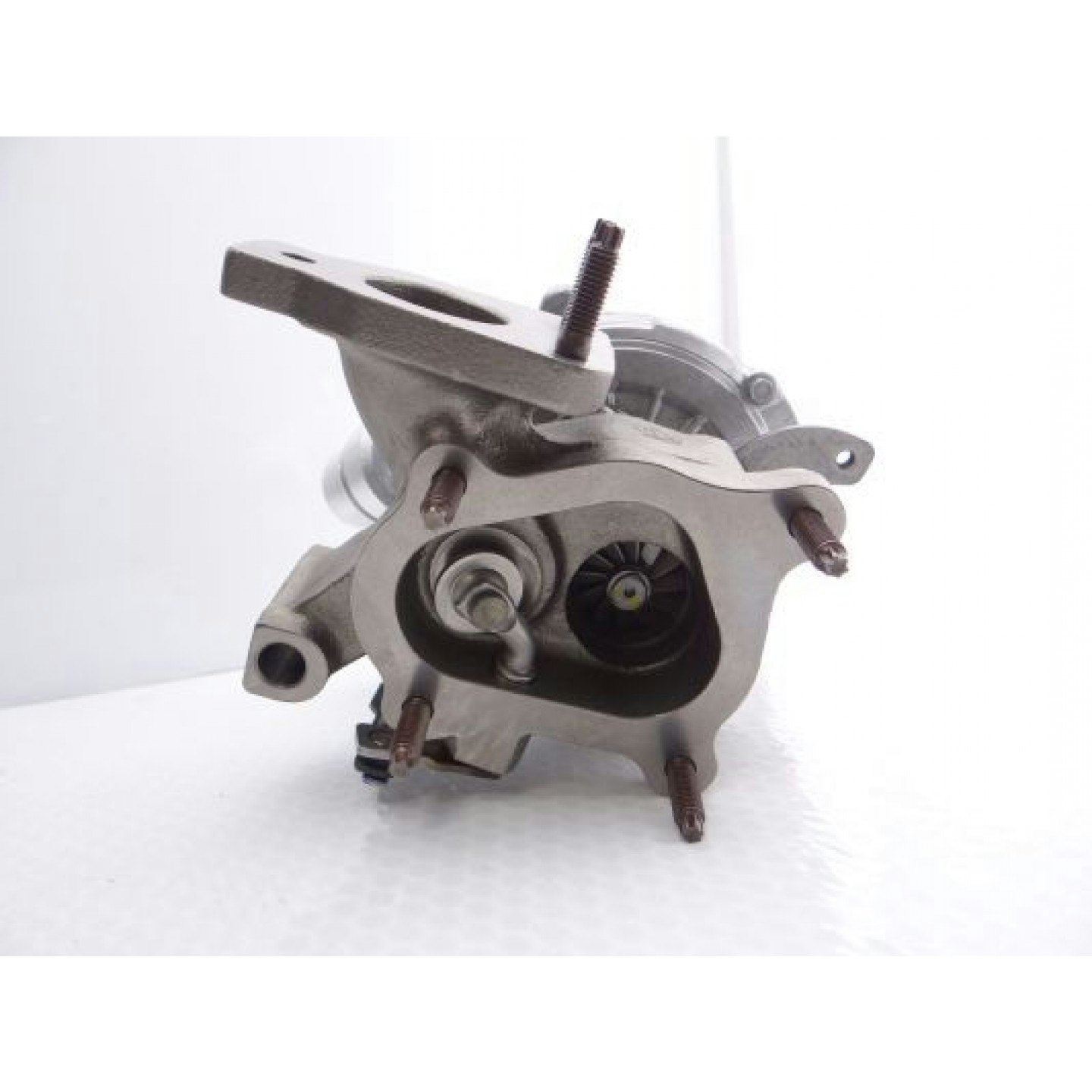

762785-5004S - Garrett GT1549S fabriksny originalturbo - Motorkod : M9R780

  • 6 495 kr

762785-5004S - Garrett  GT1549S  fabriksny originalturbo - Motorkod : M9R780- Fabriksny originalturbo.- 3 års garanti.- Monteringssats medföljer.Origi

I lager.
Artikelnummer: 762785-5004S
Dela

762785-5004S - Garrett  GT1549S  fabriksny originalturbo - Motorkod : M9R780

- Fabriksny originalturbo.

- 3 års garanti.

- Monteringssats medföljer.


Originalnummer : 8200543466B, 8200766344, 8200637628, 820091077A, 7701477300, 7711368774

Turbonummer / Originalnummer / Turbofakta :

Part Number 762785-5004S
Previous Version 762785-0001, 762785-0002, 762785-0003, 762785-0004, 762785-5004S, 762785-5003S
OE number 8200543466B, 8200766344, 8200637628, 820091077A, 7701477300, 7711368774
Year 2000-08
Description Traffic, Commercial Vehicle
CHRA433289-0419 (433289-5419S, 433289-0380)(1102015955, 1000010319) $250.00 NEW IN STOCK, MADE IN USA
Turbo Model GT1549S
Engine M1DVU, M1D VU Euro 4, M9R780
Displacement 2.0L,  2000 ccm, 4  Cylinders
KW 84/90/102/116 HP
RPM Max 4000
  Fuel  Diesel
Angle α (compressor housing)13°
Angle β (turbine housing) 0°
Bearing Housing435911-0002 (713782-0003)(Oil Cooled)(1102015453, 1900011151B) $55.00 NEW IN STOCK
Turbine Wheel434712-0034 (434712-0026)(Ind. 42.1 mm, Exd. 34.3 mm, Trm 7.87, 12 Blades)(1102015433, 1100016262) $86.00 NEW IN STOCK
Comp. Wheel784361-0003 (735492-0003)(Ind. 42. mm, Exd. 35.6 mm, 6+6 Blades, Superback)(1102017402, 1200016350) $47.00 NEW IN STOCK
Back plate703682-0220 (1102015319, 1300016080) $18.55 NEW IN STOCK
Heat shield Number434302-0001 (1102015343, 2030016026) $14.82 NEW IN STOCK
Repair Kit732252-0001 (1102015783, 5000010067) $66.80 NEW IN STOCK
Turbine Housing 700866-0013
Compressor Cover752187-0017
Actuator703785-0017 (2061016592)
Settings  Waste gate (pressure)0.120-0.400 bar
Settings Waste gate (lift shaft)  1.0-4.0 mm/9.5-11.5 mm
Gasket (turbine inlet)210661  (Stainless Steel)
Gasket (turbine outlet)210880   (Stainless Steel)
Gasket Kit215220 (2090505511)
Gasket (oil outlet) 210243  $4.50
ManufacturerHoneywell-Garrett


Applications


2006-08 Renault Commercial Traffic with M1D VU Euro 4 Engine

2006- Opel Vivaro 2.0L CDTI  with M9R780  Engine
