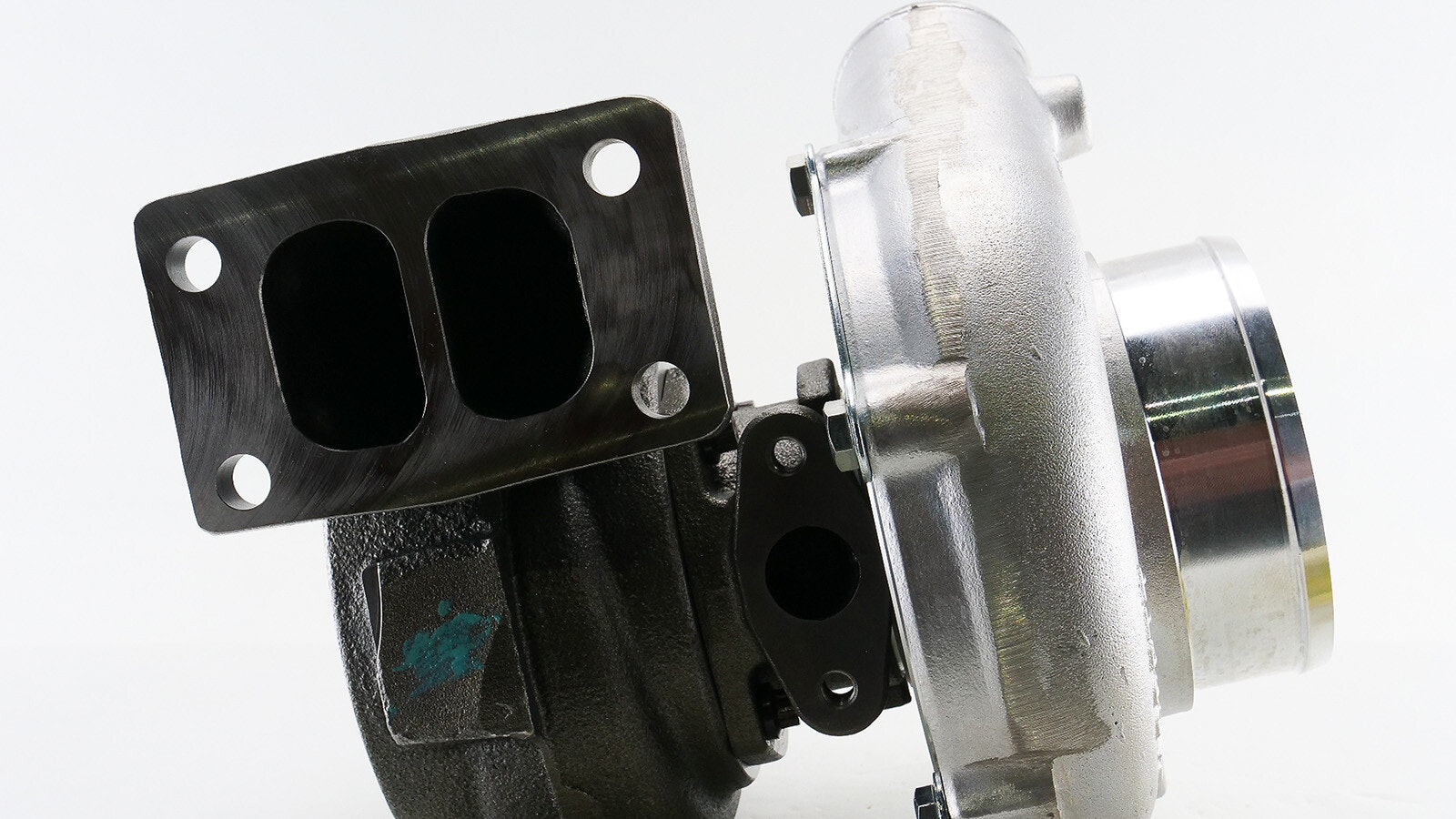

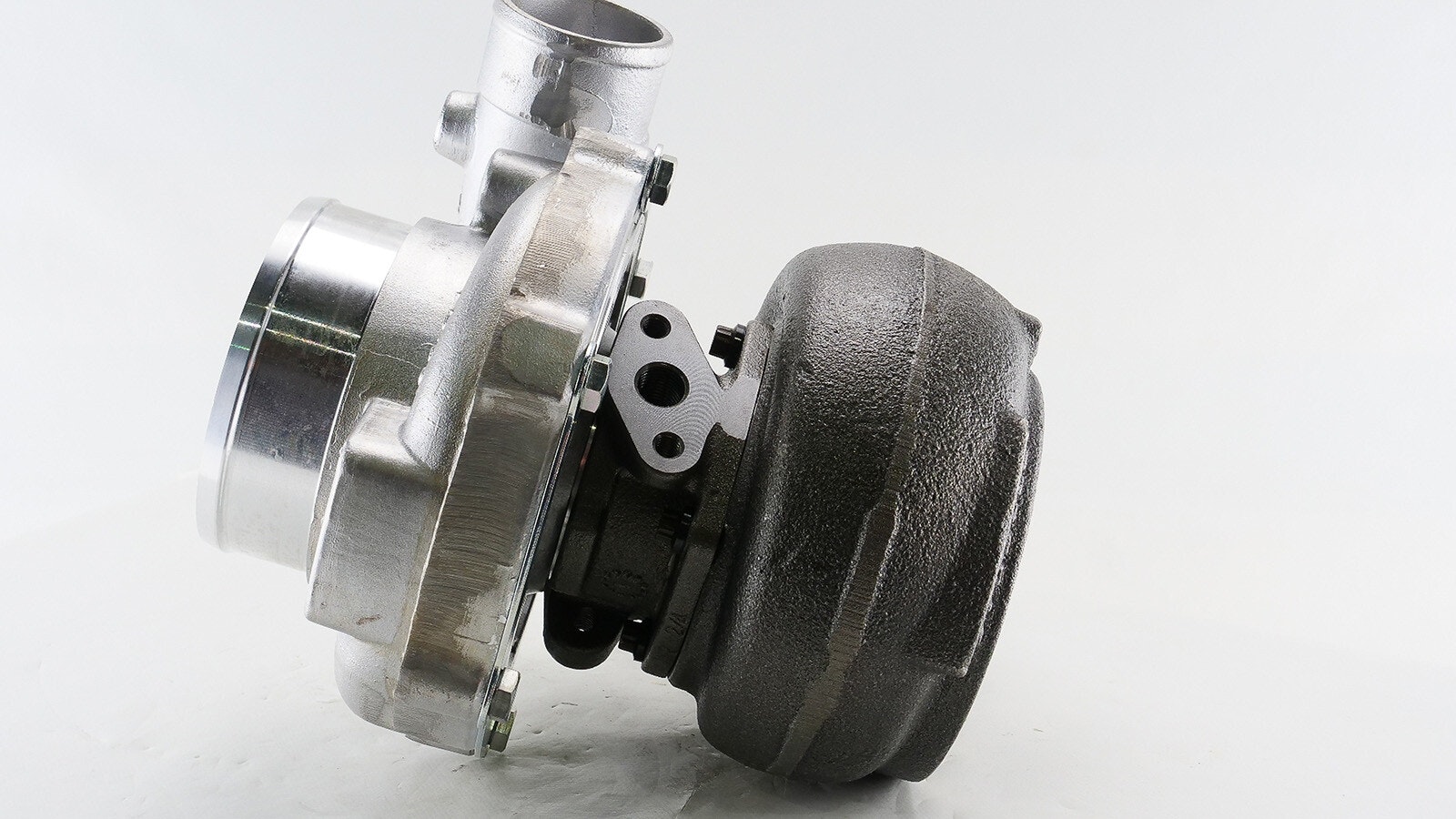

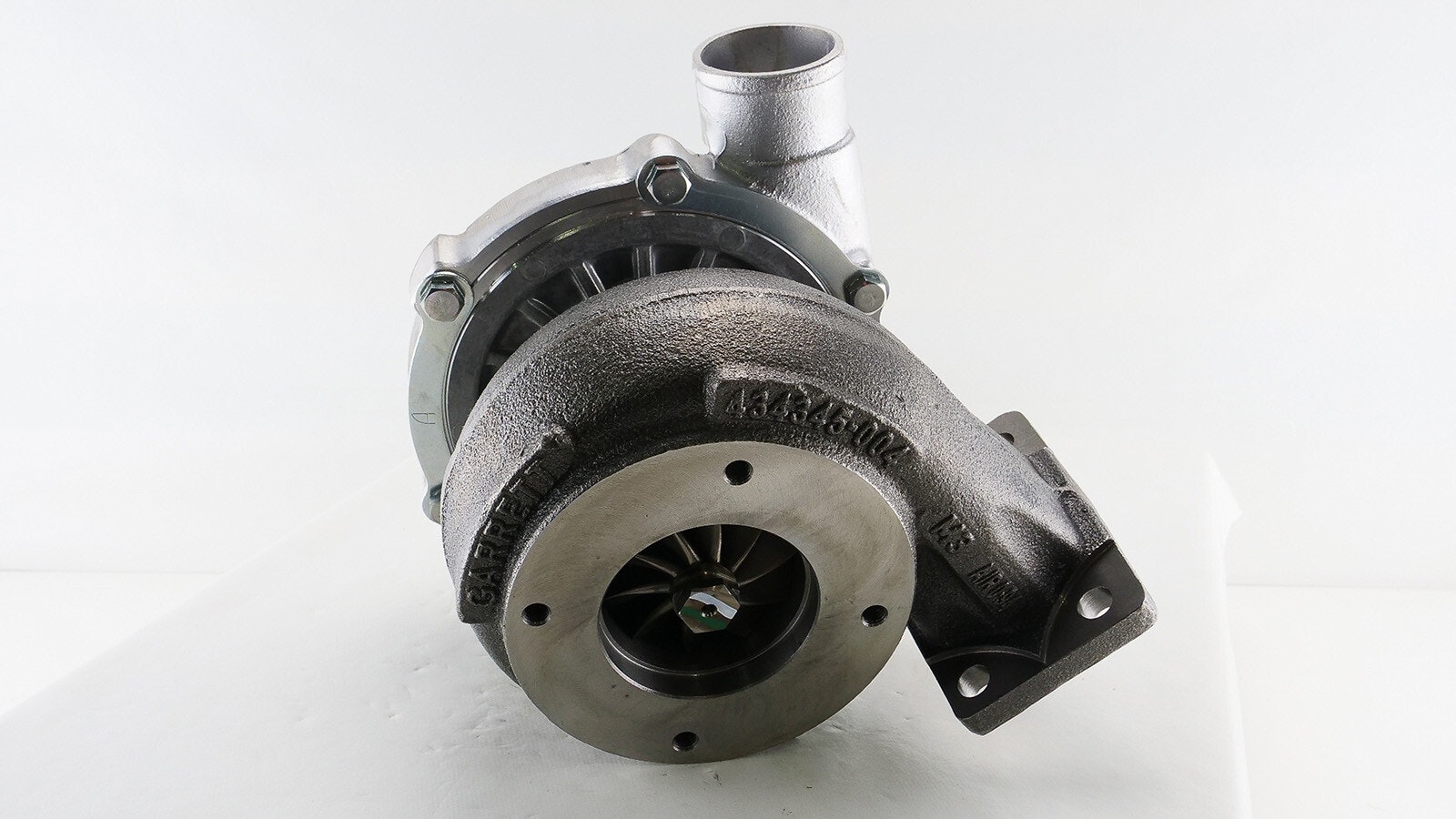

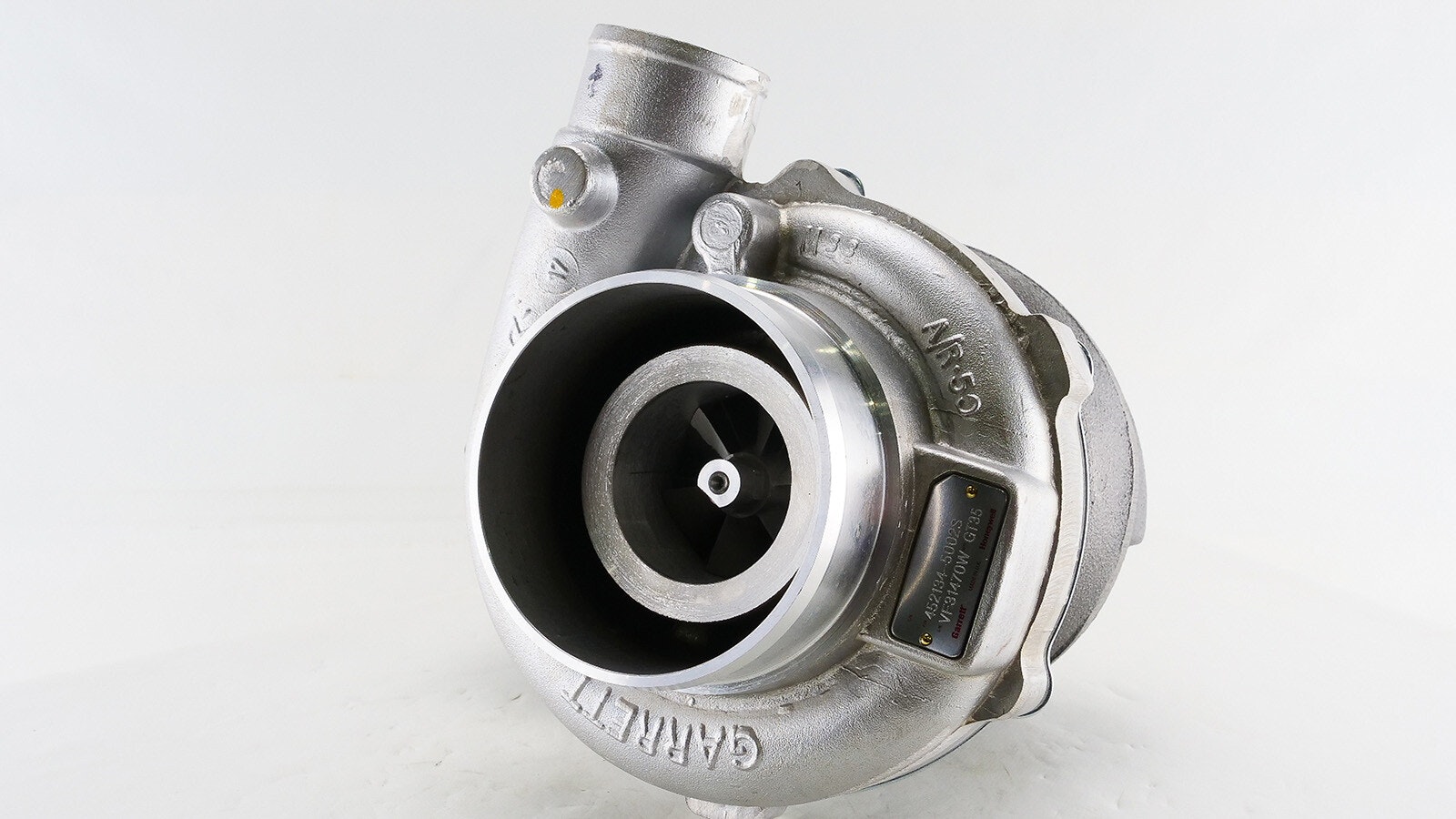

452134-5002S GT3571 - Garrett fabriksny originalturbo OEM : 87840733, 87840440, 87840733

  • 12 995 kr
  • 11 046 kr

452134-5002S GT3571 - Garrett fabriksny originalturbo OEM : 87840733, 87840440, 87840733- Fabriksny originalturbo.- 3års garanti.- Komplett monteringgsats medfö

I lager.
Artikelnummer: 452134-5002S
Dela

452134-5002S GT3571 - Garrett fabriksny originalturbo OEM : 87840733, 87840440, 87840733

- Fabriksny originalturbo.

- 3års garanti.

- Komplett monteringgsats medföljer som packningar,muttrar,pinnbultar.


Utöver fabriksny turbo erbjuder vi även bytesturbo samt renovering utav eran befintliga turbo.

Turbonummer / Originalnummer / Turbofakta



Part Number452134-5001S
Previous Version 452134-0001, 452134-1, 452134-5002S
OE number87840733, 87840440, 87840733
DescriptionAgricultural Tractor F160, Tractor TM1650
Application 675T EPO23 Tractor, Tractor TM165
CHRA4434499-0001 (434499-5001S) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelGT3571
Engine EP023 F160
ModelTM165, 675T EPO23
KW 140
FuelDiesel
Angle α (compressor housing)120º
Angle β (turbine housing) 0º
Bearing Housing447535-0007 (Oil cooled)(1900011181B) $65.00 NEW IN STOCK
Turbine Wheel434176-0006 (447522-0006)(Ind. 68. mm, Exd. 61. mm, Trm 84, 10 Blades) $157.25 NEW IN STOCK
Comp. Wheel434244-0002 (434244-0008)(Ind. 51.2 mm, Exd. 71. mm, Trm 52, 6+6 Blades, Threaded bore type)(1200016594) $62.00 NEW IN STOCK
Back plate436040-0001 (1102035300, 1300016138) $21.33 NEW IN STOCK
Heat shield Number447553-0006 (2030016048) $15.60 NEW IN STOCK
Repair Kit709147-0002 (1102032751, 5000010173) $85.50 NEW IN STOCK
Turbine Housing434346-0030
Compressor Cover434246-0013
Turbine Housing AR1.06
Gasket kit(1900100267)
Gasket (turbine inlet)409039-0000 (210022-0000, 409039-0000, 2405022) $13.52
Gasket (turbine outlet)409196-0003 $14.54
Gasket oil inlet210023 (409036-0000, 210023-0000, 55739, 147837) $4.48
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) $4.20
ManufacturerGarrett


Applications

1994- Ford New Holland Tractor TM165 With  CNH  Engine

New Holland Agricultural Tractor F160 TM165 With 675T EP023 Engine
