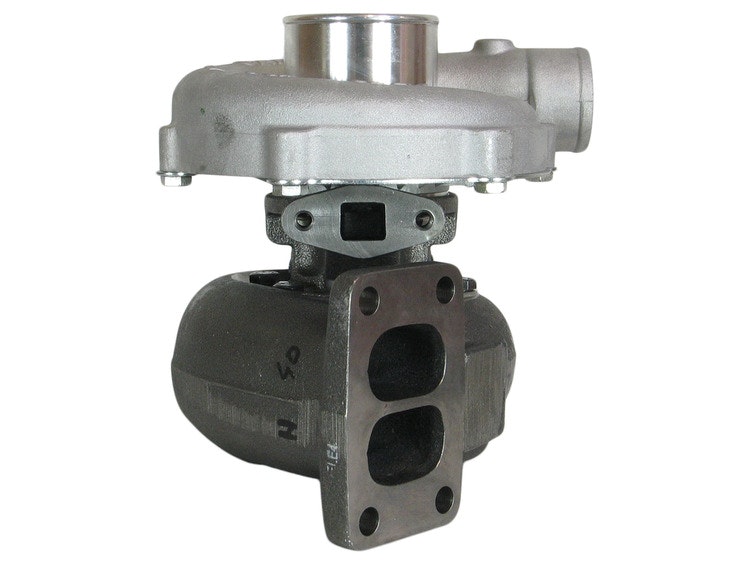

466742-5014S Garrett T04E10 Turbo Volvo L90B 6.7L ( Bytesturbo )

  • 7 495 kr

466742-5014S Garrett T04E10 Turbo Volvo L90B  6.7L ( Bytesturbo ) - Renoverad bytesturbo till perfektion i vår egna verkstad här i Sverige.- Nya pinnb

I lager.
Lagersaldo: 2
Artikelnummer: 466742-5012SBT
Dela

466742-5014S Garrett T04E10 Turbo Volvo L90B  6.7L ( Bytesturbo )


- Renoverad bytesturbo till perfektion i vår egna verkstad här i Sverige.

- Nya pinnbultar avgas ut + muttrar ingår.

- Packningar avgas in ut + Olja in / ut medföljer.


Turbonummer / ersättningsnummer Garrett :

466742-5006S

466742-5009S

466742-5014S

466742-5006

466742-5009

466742-5014

466742-0006

466742-0009

466742-0014

Originalnummer Volvo : 11032959, 11033436, 11033904, BM-11032959, BM-11033904


Sitter på följande modeller Volvo BM :

VOLVO BM/VOLVO

L90

L90B

L90C

L90D

Den gamla turbon skall i retur.

Turbonummer / Originalnummer / Turbofakta :

Part Number 466742-5014S
Previous Version 466742-0009, 466742-0003, 466742-9
OE number 1103390,  11033436 , 11032959
DescriptionL90B Loader  Earth Moving
CHRA408105-0259 (408105-5259S) $550.00
Turbo Model T04E04
ModelL90B Loader
EngineTD61GB
Displacement 6.72L, 6720 ccm, 6 Cylinders
Fuel Diesel
Bearing Housing 430027-0025 (430027-0022, 430027-0048,186879, 186881)(1100030450)(Oil Cooled)
Turbine Wheel446905-0004 (Ind. 57.65 mm, Exd. 73. mm, Trm 62, 11 Blades)
Comp. Wheel442293-0006 (Ind. 47.4 mm, Exd. 75. mm, Trm 40, 6+6 Blades)
Back plate 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0061, 408045-0019) (ME078204)
Heat shield Number409299-0001 (409299-0000)(311943, 7N0012, 3524773B)
Repair Kit468265-0000 (1100040760)
Turbine Housing410424-0102
Compressor Cover443219-0003
Turbine Housing AR0.58
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022)(1900000006)(Inox Steel)
Gasket (turbine outlet)409196-0001 (210226)(Stainless Steel)
Gasket oil inlet210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (oil outlet)210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Replaced By466742-0003,  466742-5014S
ManufacturerHoneywell-Garrett

Interchangeable with 466742-5006S but changes the orientation


Applications


Volvo BM (VME)  L90B Loader  TD61GB
