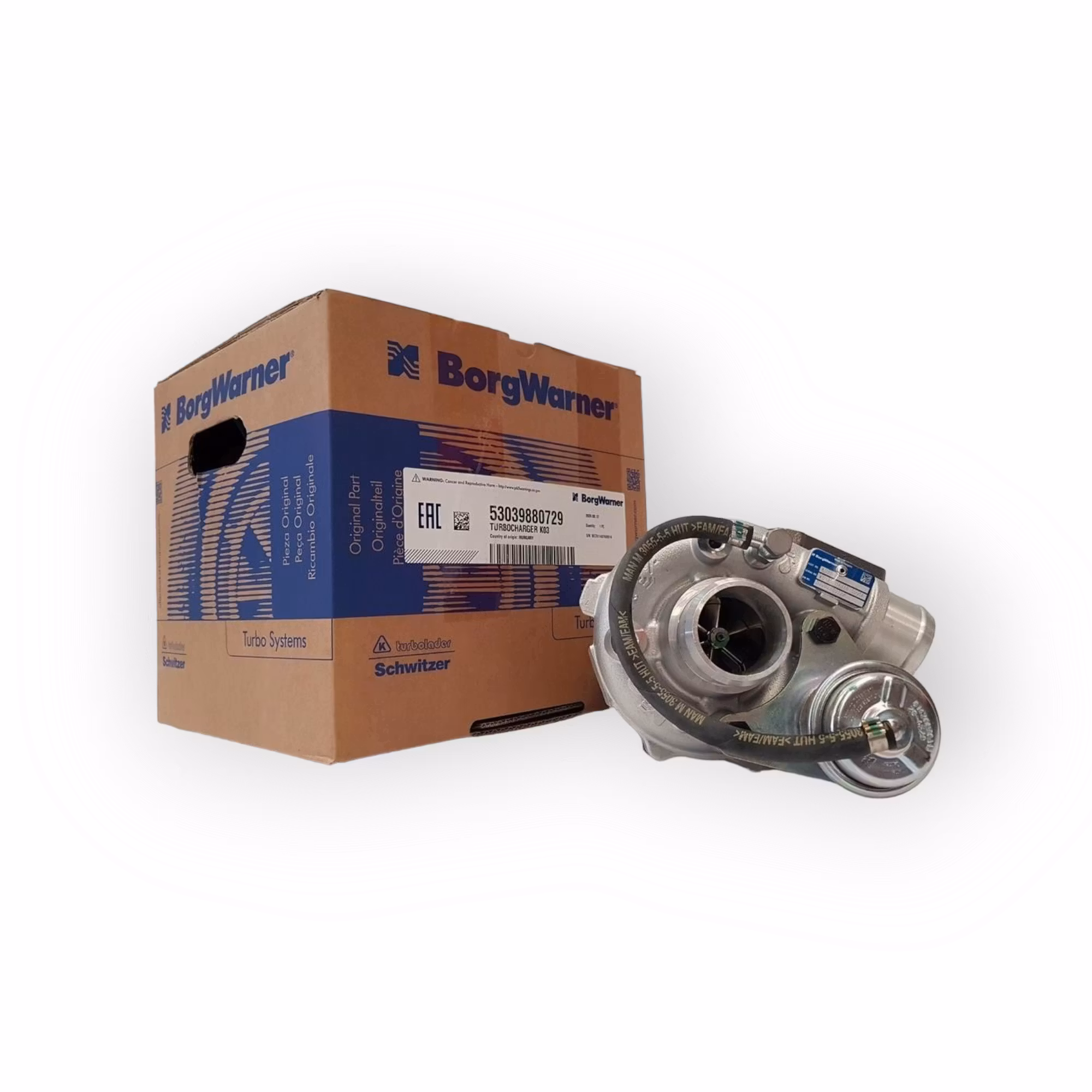

53039880729 / 53039700729 BorgWarner K03 fabriksny originalturbo

  • 7 995 kr

53039880729 / 53039700729 BorgWarner K03 fabriksny originalturboTurbonummer / Originalnummer / Turbofakta : Part Number53039880228Previous Version5303-988-

I lager.
Artikelnummer: 2282
Dela

53039880729 / 53039700729 BorgWarner K03 fabriksny originalturbo

Turbonummer / Originalnummer / Turbofakta :

Part Number53039880228
Previous Version5303-988-0228, 5303 988 0228, 53039880552, 53039880729
OE number04124770, 4124770, 04124770KZ, 4128303, 4127583, 04127583, 4127583KZ, 04128303, 04128303KZ
Year2011-09
CHRA(1302003962)
Manufacturer Part Number53039700228, 5303-970-0228, 53039700552
DescriptionIndustrial Engine
Turbo ModelK03-0-0729, K03
Engine Model TCD
Engine Manufacturer Deutz
Displacement5.04L, 5040 ccm
KW85/115
RPM Max2400

FuelDiesel
Angle α (compressor housing)104°
Angle β (turbine housing) 256°
Bearing Housing (Oil Cooled)(1302003453)
Turbine Wheel(Ind. 44.64 mm, Exd. 37.7 mm, 11 Blades)(1302003443)
Comp. Wheel53041232044 (5304123-2220)(Ind. 36.57 mm, Exd. 53.51 mm, Trm 3.9, 6+6 Blades, Superback)(1302004410 )
Back plate(1302003312, 1300016042)
Heat shield Number53031652000 (1302003346)
Repair Kit(1302003782)
NOTEInter cooler
ManufacturerBorg Warner - 3K - Schwitzer,  BWTS DE


Applications


2011-09 Deutz Industrial Engines,  Various with  TCD  Engine
