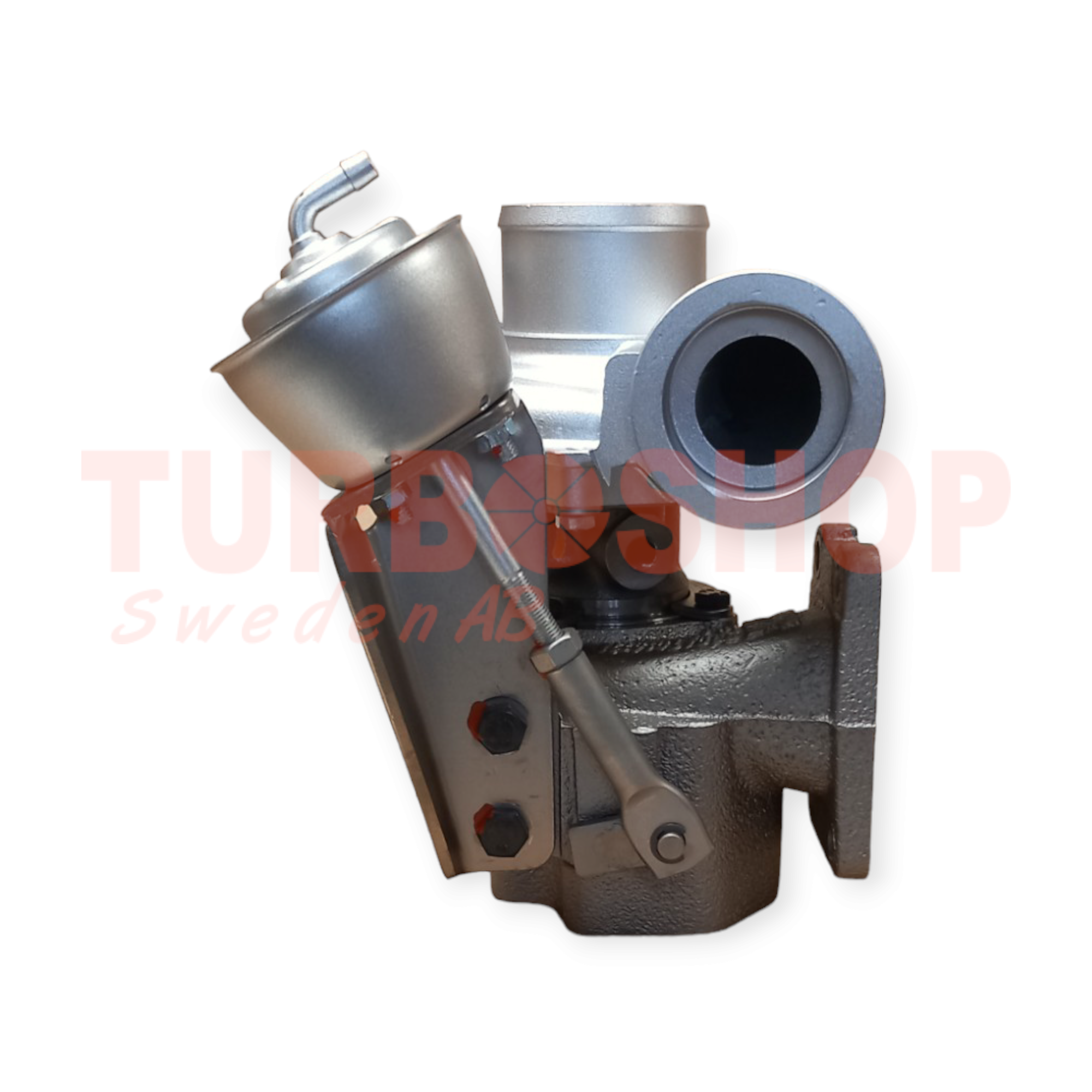

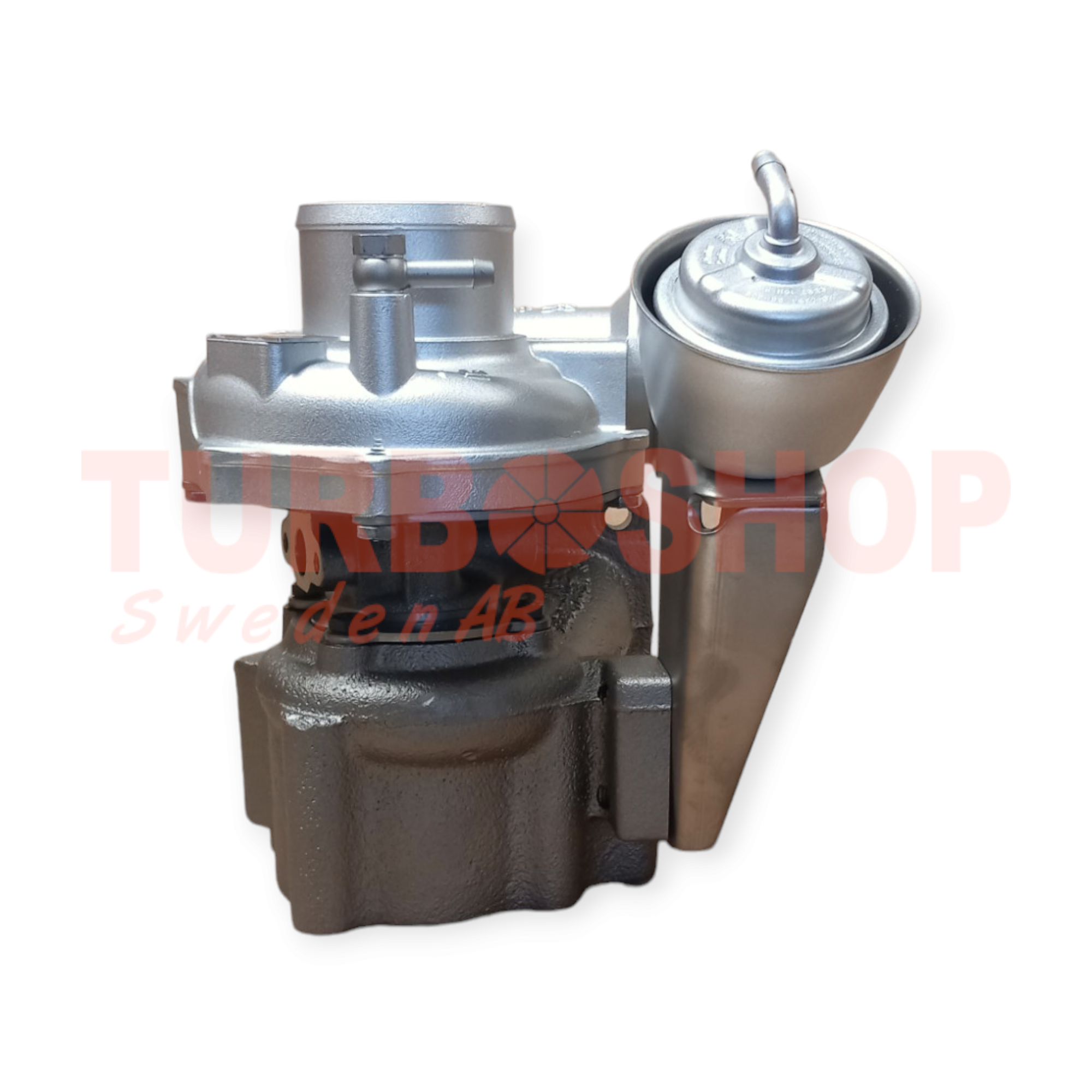

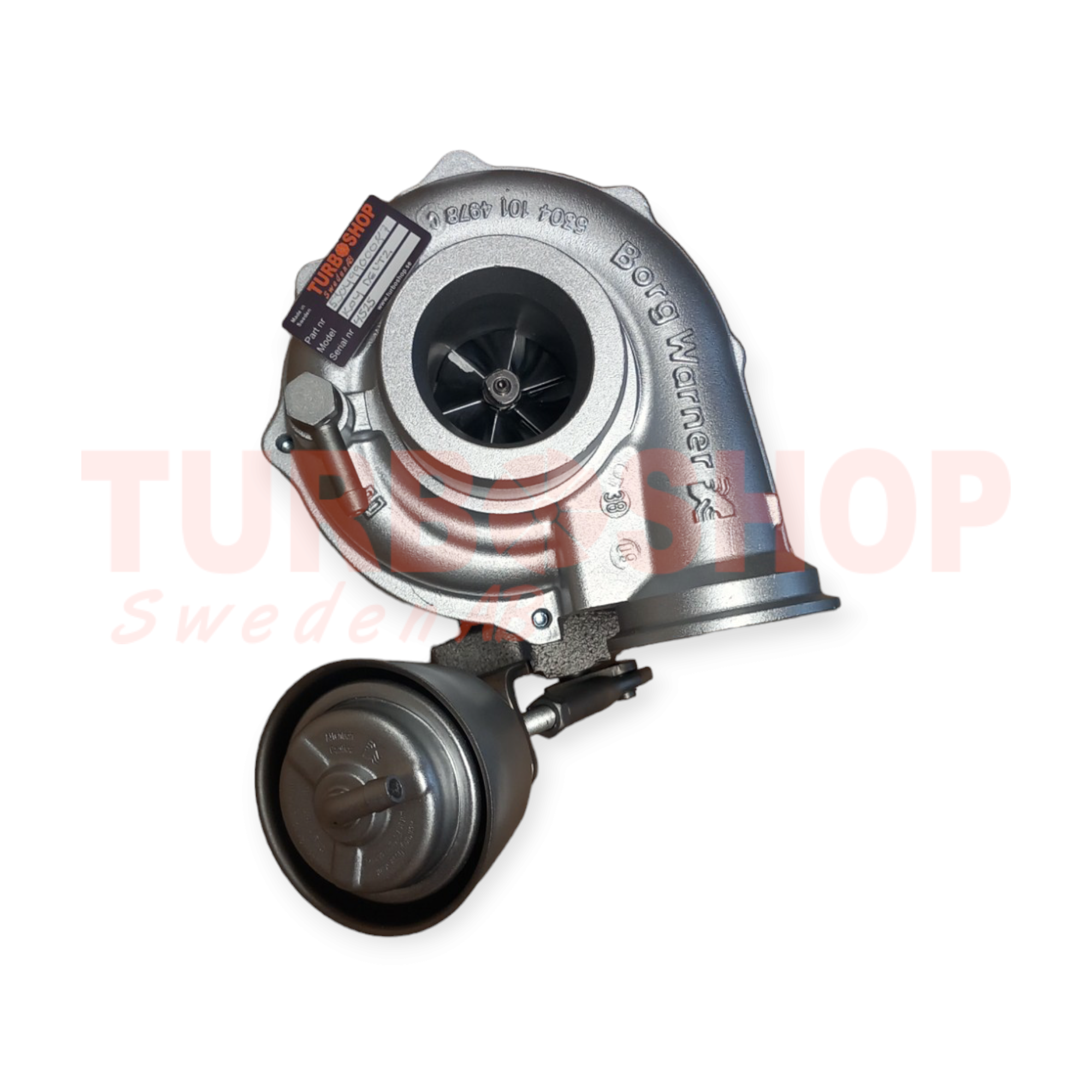

53049880087 K04 Deutz industri bytesturbo OEM : 04299166, 4299166, 04299166, 04298276, 04297601, 04299166KZ, 04298276KZ, 04297601KZ
- 8 500 kr
53049880087 K04 Deutz industri bytesturbo OEM : 04299166, 4299166, 04299166, 04298276, 04297601, 04299166KZ, 04298276KZ, 04297601KZ- Renoverad originalturbo.- 3
Artikelnummer:
53049880087-BT
53049880087 K04 Deutz industri bytesturbo OEM : 04299166, 4299166, 04299166, 04298276, 04297601, 04299166KZ, 04298276KZ, 04297601KZ
- Renoverad originalturbo.
- 3 års garanti.
- Monteringssats medföljer.
Vanligt fel på dessa är att klockan går sönder och dom övervarvar.
Fabriksny originalturbo finns relaterad nedan.
Turbonummer / originalnummer / Turbofakta :
| Part Number | 53049880087 |
| Previous Part Number | 5304-988-0087, 5304 988 0087,5304-988-0075 |
| OE number | 04299166, 4299166, 04299166, 04298276, 04297601, 04299166KZ, 04298276KZ, 04297601KZ |
| Year | 2007-05 |
| Description | Industrial Engine |
| CHRA | 53047100520 (5304-710-0520)(1302004920) : Finns att köpa nedan ! |
| Turbo Model | K04-2072DCBHA5.82GCAAD |
| Engine Model | TCD2012L4-2V |
| Engine Manufacturer | Deutz |
| Displacement | 4.04L, 4040 ccm |
| KW | 103/141 HP |
| Manufacturer Part number | 5304-970-0087, 53049700087, 5304 970 0087,5304-970-0075, 53049700075, 5304 970 0075 |
| Rpm Max | 2400 |
| Fuel | Diesel |
| Angle α (compressor housing) | 293° |
| Angle β (turbine housing) | 249° |
| Bearing Housing | 53041510006 (1302004452) $68.00 NEW IN STOCK |
| Turbine Wheel | 53041205015 (53041205010, 53041205018, 53041205015, 53041206506, 53041206511, 53041205004, 53041206503)(Ind. 50. mm, Exd. 42. mm, 12 Blades)(1302004437, 1100030064) |
| Comp. Wheel | 53041232044 (Ind. 53.1 mm, Exd. 71. mm, Trm 56, 6+6 Blades)(1302004410) |
| Back plate | 1302004303 |
| Heat shield Number | 53041652000 (1302003341) |
| Repair Kit | 53037110000 (1302003753) |
| Turbine Housing | 53041009044 |
| Compressor Cover | 53041015242 |
| Turbine Housing AR | 5 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS DE |
Originalnummer : 0013024290, 13024290, 04298262, 03052740, 04299166, 4299166, 21092582, 21075166, 04298276, 4298276, 10870580, 53049700087, 0299166, 04298261, 21075166, 21092582, 04297601, 04298276, 04299166, 04298276, 04504914, 04294249, 04288265, 04294248, 04294724, 04298276, 4297601KZ, 4298276KZ, 4299166KZ, 4298276KZ, 4504914KZ, 4294249KZ, 4288265KZ, 4294248KZ, 4294724KZ, 4298276KZ, 19931260, 7421075166, 5411664803, 7421092582, 04503042, 04503042KZ
BorgWarner turbonummer / ersättningsnummer : 53049880087, 53049700087, 5304 988 0087, 5304 970 0087, 5304-988-0087, 5304-970-0087, 53049880075, 53049700075, 5304 988 0075, 5304 970 0075, 5304-988-0075, 5304-970-0075
Sitter på följande maskiner :
2005-07 Deutz Industrial with TCD2012L4-2V Engine
2007- Volvo Industrial with TCD2012L4-2V Engine
