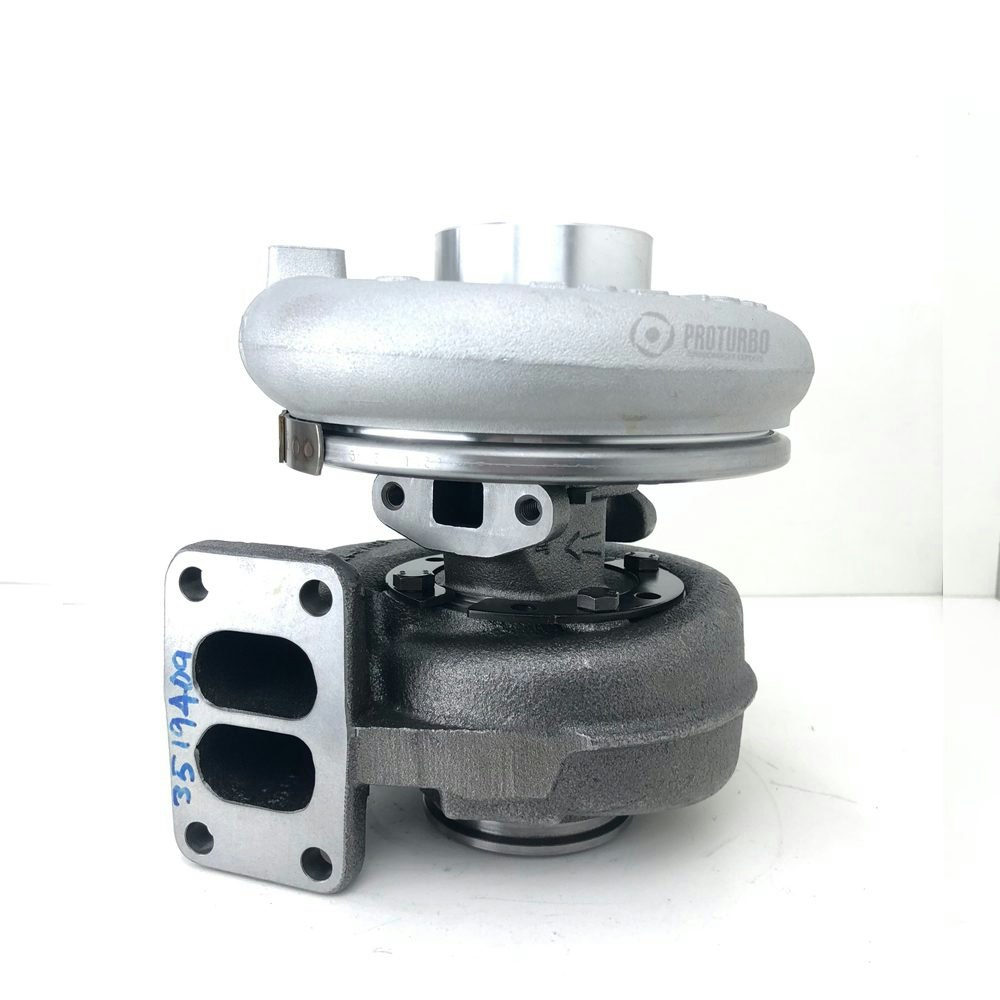

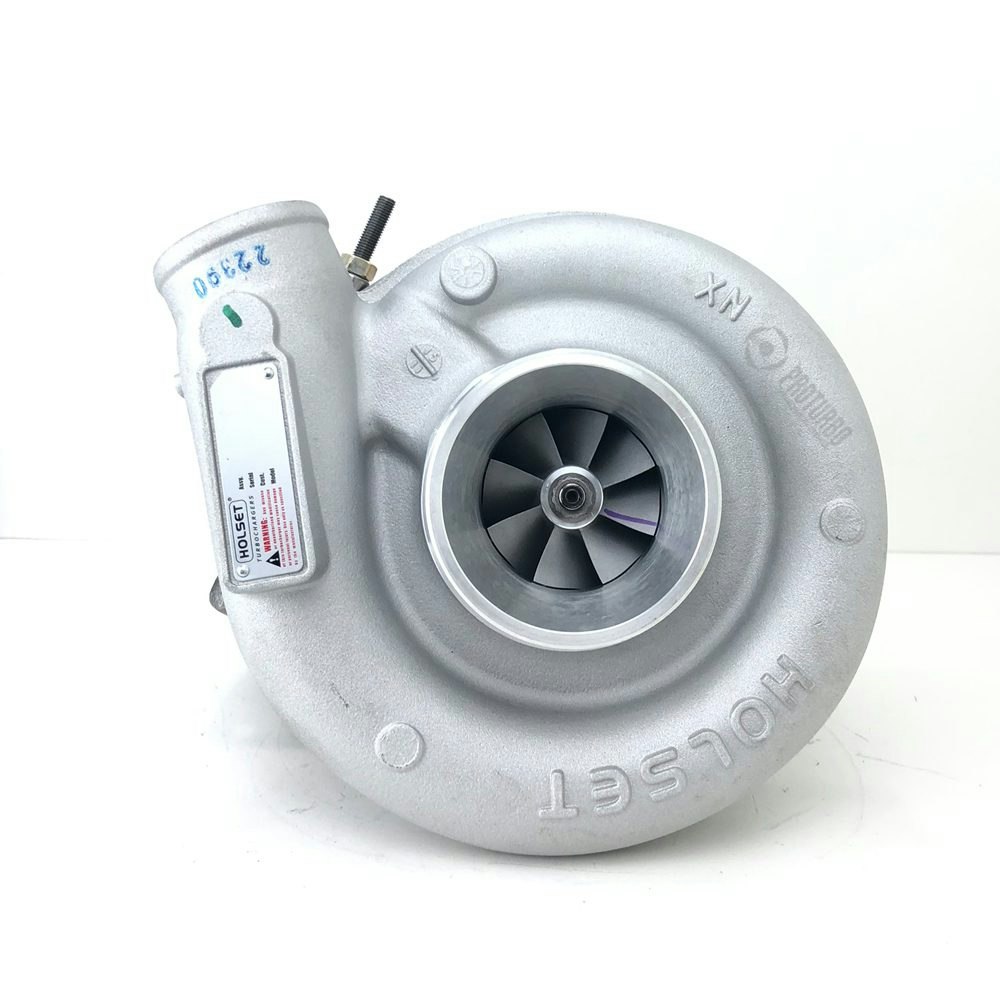

3522777H Holset H1C fabriksny originalturbo. ( Beställningsvara 1-2 dagars levtid )
Fabriksny originalturbo som tas in i vårat bytessystem.
Monteringssats ingår vid köp utav denna turbo online.
Turbonummer / ersättningsnummer / Originalnummer / Turbofakta :
| Part Number | 3522777 |
| Previous Version | 3522778 |
| OE number | 3802289, J919121, J907029, J919117, J907028, J919115, J919113, J907026, 3528742, 3535414, 3535419, 3535417, 3535418, 3535416, 3538188, 3535415, 3535420, 3535454, 3530714, 3535421, 3528741, 3530772 |
| Description | Tractor Komatsu Industrial CDC |
| CHRA | 3523317 (3545713) |
| Turbo Model | H1C, H1C-8243AF/E18DA11 |
| Engine | 6BTA, 6T-590, 6BT-590, 6BTA-590 |
| Manufacturer Part Number | 3528741 |
| Displacement | 5.9L, 59080 ccm |
| Fuel | Diesel |
| Engine Manufacturer | Cummins, J I Case |
| Angle α (compressor housing) | 209/213/304/310/320/323/327/337/340/345/360° |
| Angle β (turbine housing) | 5/20/130/165/169/180/360° |
| Bearing Housing | 3530591 (3530592)(1152301450 |
| Turbine Wheel | 3519336 (3595832)(Ind. 70.0 mm, Exd. 59.9 mm, 12 Blades) (1152301435 |
| Comp. Wheel | 3521711 (3599639)(Ind. 50. mm, Exd. 83. mm, 8+8 Blades) (1152301400) |
| Back plate | 3522801 |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 3545652 (4027309)(3802148)(1152301750) |
| Turbine Housing | 3519409 |
| Compressor Cover | 3522390 |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52 |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48 |
| Manufacturer | HOLSET |
Interchangeable with 166592
Applications
1986-03 Cummins Agricultural Tractor with 6T-590, 6BT-590, 6BTA-590
JI Case Agricultural Tractor with 6T-590, 6BT-590, 6BTA-590 Engine
1986-03 Komatsu Industrial Tractor with 6BTA
