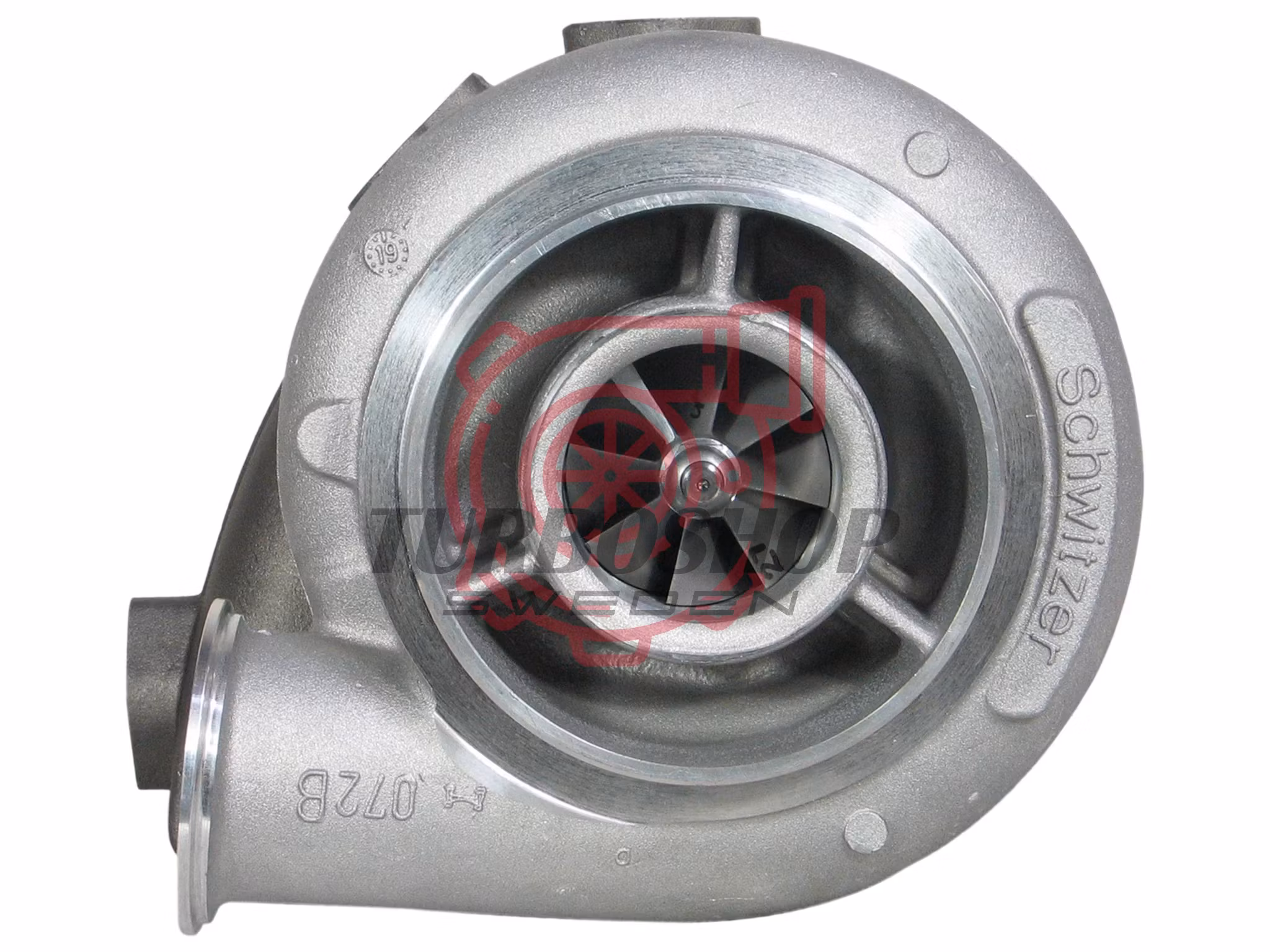

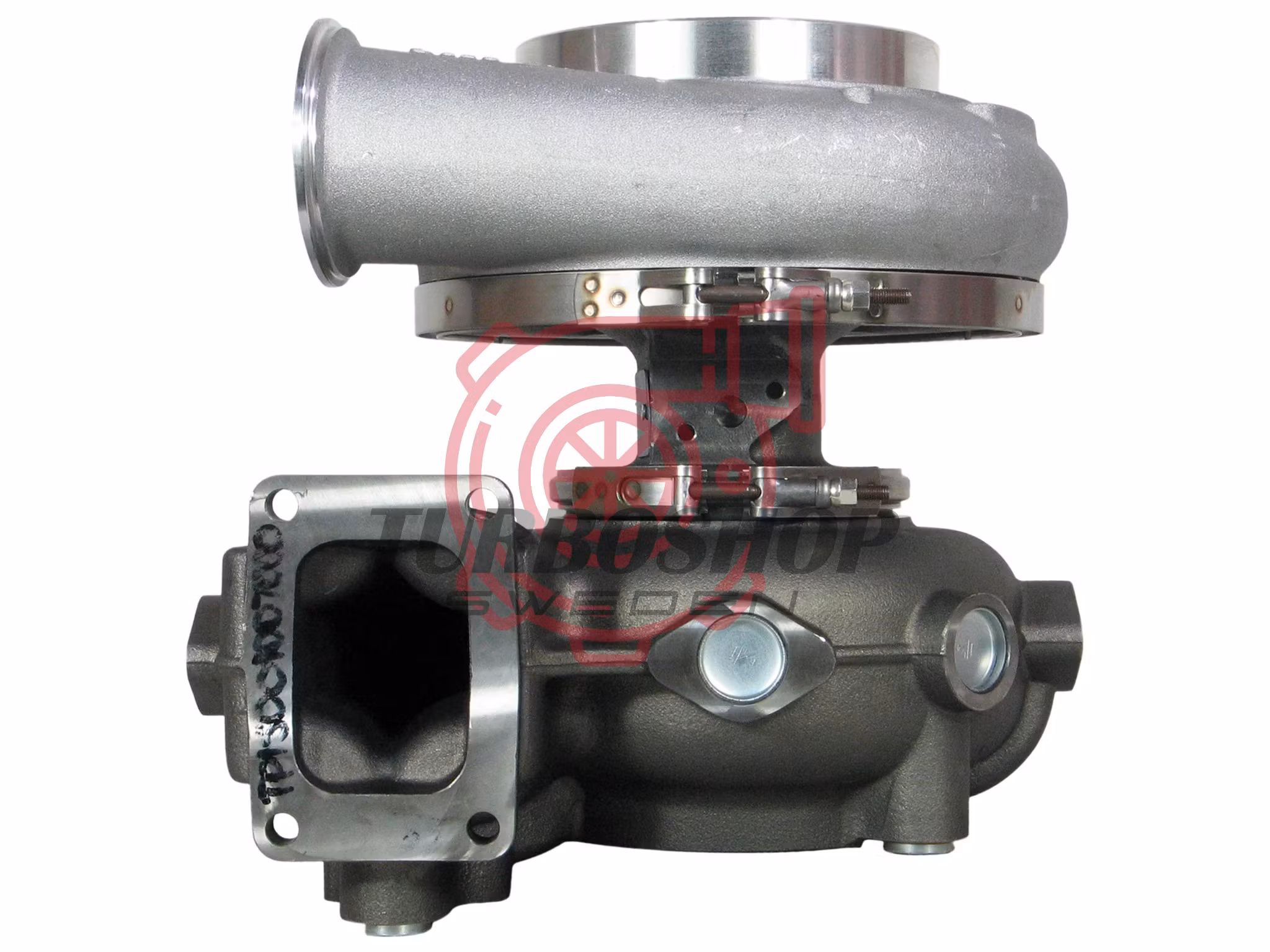

56509880000 Borgwarner S500W renovering originalturbo Volvo Penta Ship Marine D12M 12.14L ( Renovering )
-
25 000 kr - 21 250 kr
56509880000 Borgwarner S500W renovering originalturbo Volvo Penta Ship Marine D12M 12.14L ( Renovering )- Renovering utav din originalturbo.- 3 års garanti
Article Number:
565098800000-R
56509880000 Borgwarner S500W renovering originalturbo Volvo Penta Ship Marine D12M 12.14L ( Renovering )
- Renovering utav din originalturbo.
- 3 års garanti.
- Leveranstid för renovering är ca 1-3 dagar.
Fabriksny originalturbo finns relaterad nedan.

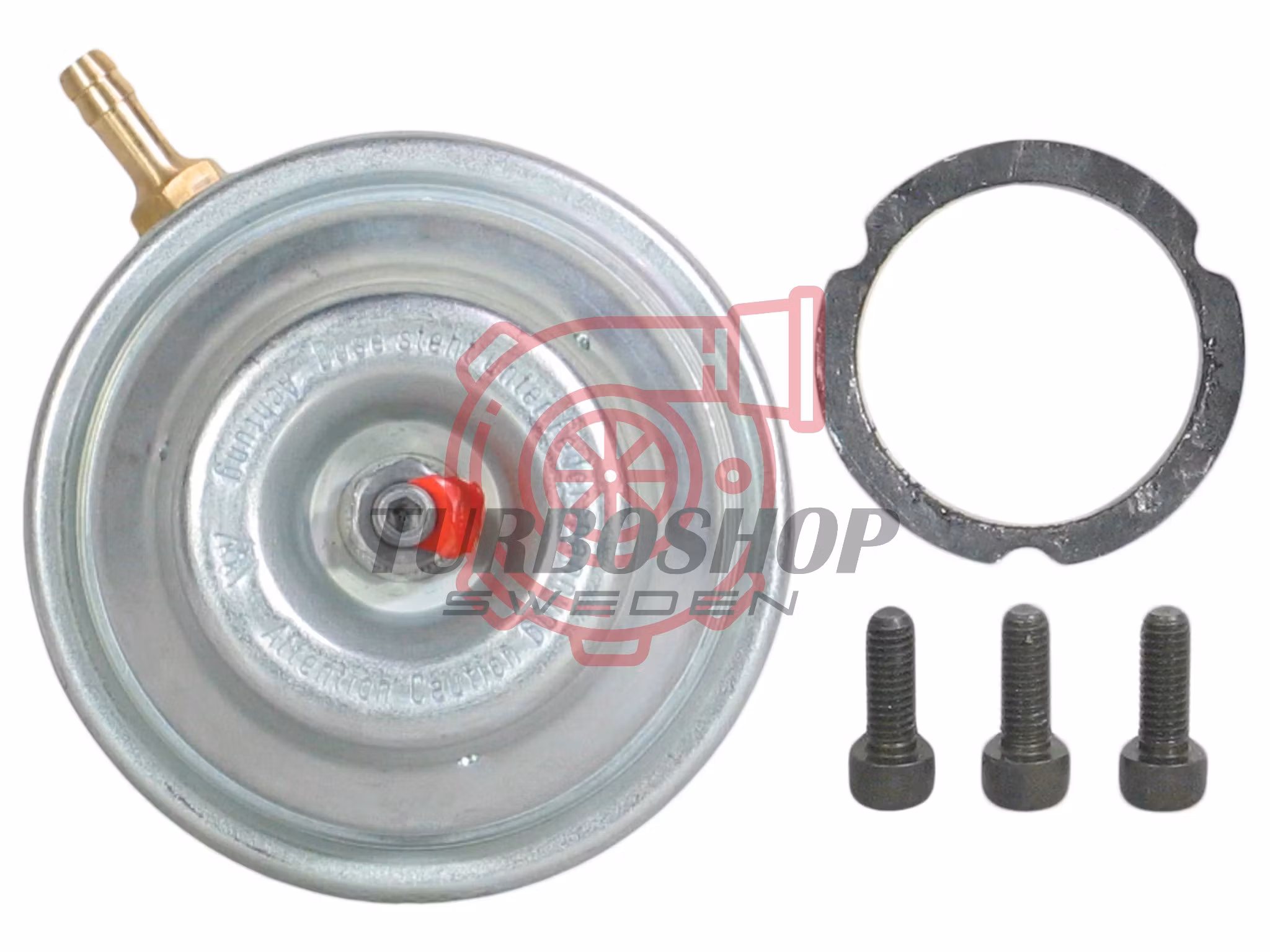

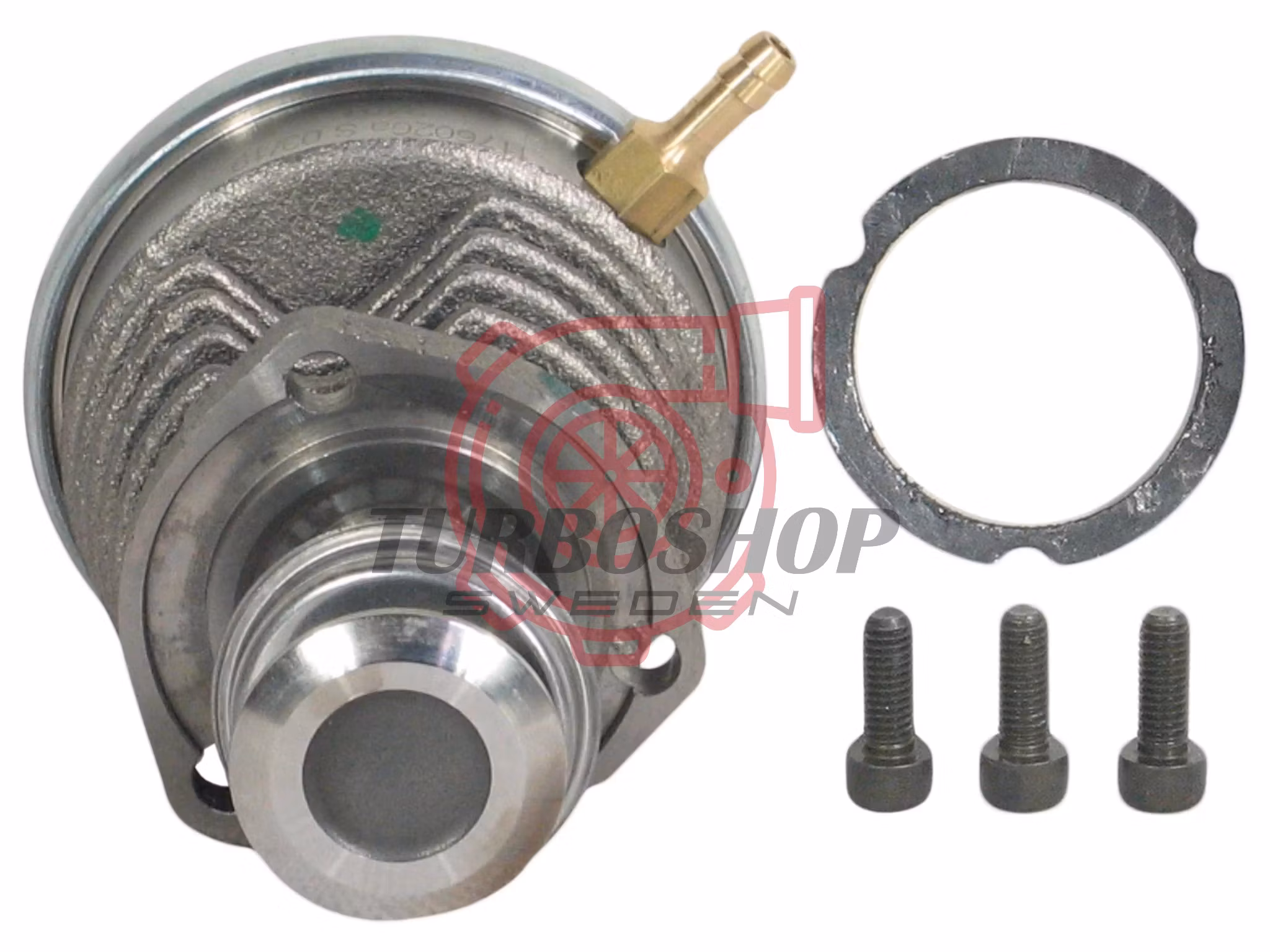

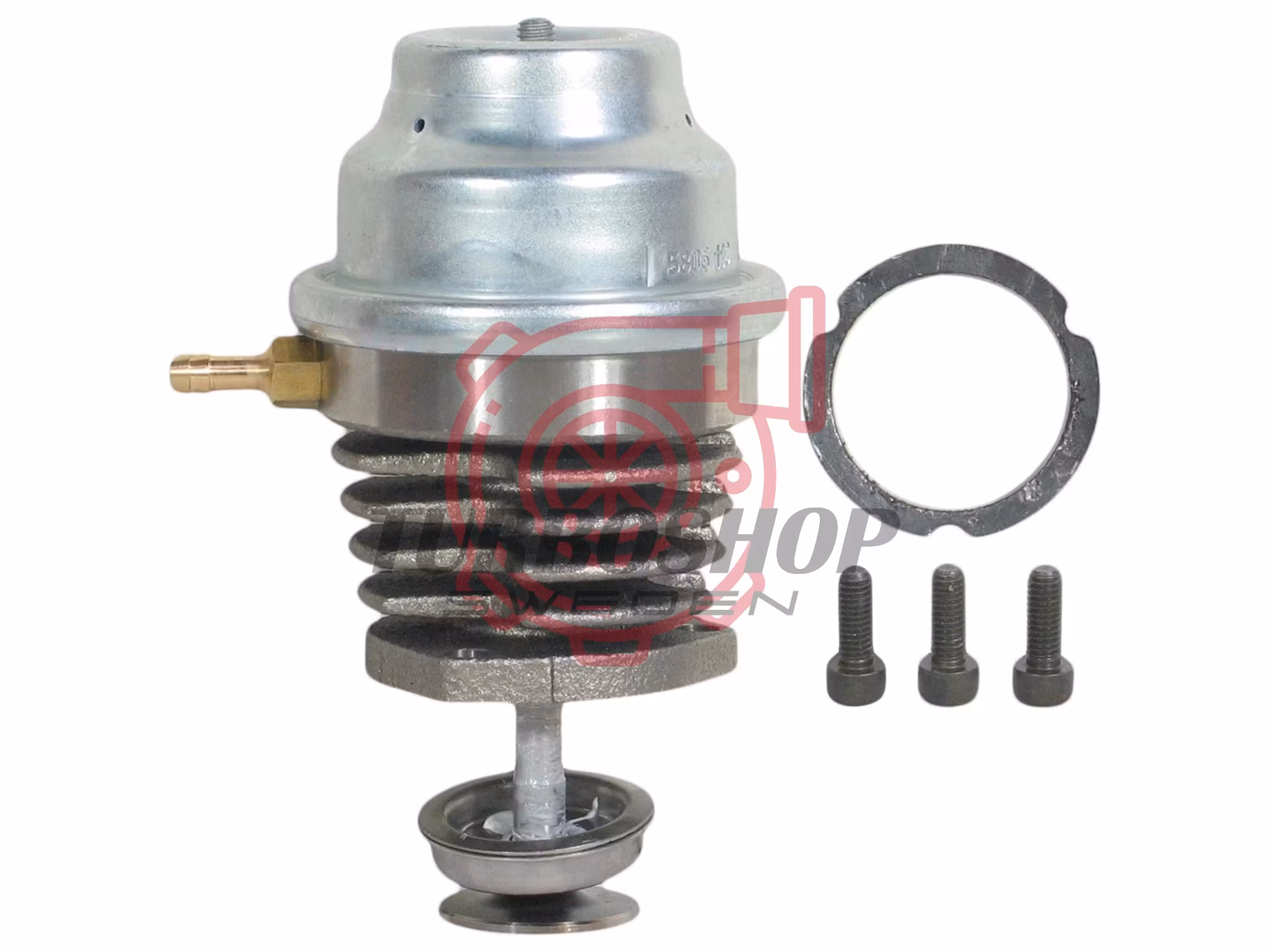

Vanligt fel på denna turbo är att wastegate ventilen fastnar.
Turbonummer / ersättningsnummer tillverkaren BorgWarner : 5650-988-0000, 5650 988 0000, 56501970000, 5650-197-0000, 5650 197 0000
Originalnummer Volvo Penta : 3801134, 3886223
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 56509880000 |
| Previous Part Number | 5650-988-0000, 56501970000 |
| OE number | 3886223, 3801134 |
| Year | 2006-08 |
| Description | Ship, Marine |
| Manufacturer Part Number | 5650-197-0000, 56501970000 |
| CHRA | 317865 $1958.17 NEW IN STOCK |
| Turbo Model | S500WG-110_55AABM/0.70HJ3 |
| Engine Model | D12M, D12C-A MP, D12D-A MP, D12D-B MP, D12D-C MP |
| Engine Manufacturer | Volvo |
| Displacement | 12.14L, 1214 ccm |
| KW | 578/786 |
| RPM Max | 2300 |
| Fuel | Diesel |
| Equip. | 452164-5001S |
| Angle α (compressor housing) | 108° |
| Angle β (turbine housing) | 320° |
| Bearing Housing | 317303 (Oil Cooled) |
| Turbine Wheel | 318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades) $672.48 NEW IN STOCK |
| Comp. Wheel | 317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) $394.27 NEW IN STOCK |
| Back plate | 317311 (171524) $74.04 NEW IN STOCK |
| Heat shield Number | 318032 |
| Repair Kit | 318416 $227.25 NEW IN STOCK |
| Turbine Housing | water-cooled |
| Settings for waste gate | Pressure: 2.05 kPa Stroke: 4.0 mm |
| Turbo Mnt. Gasket | 20784537 |
| Gasket (turbine inlet) | 470939 (417382, 20784537) (Stainless Steel) $21.50 |
| Gasket oil inlet | 420641 (1006177) $3.61 |
| Gasket (oil outlet) | 470993 (1027702) $3.61 |
| NOTE | Inter-cooler |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS UK |
Applications
2006-08 Volvo D12 Ship with D12M Engine
