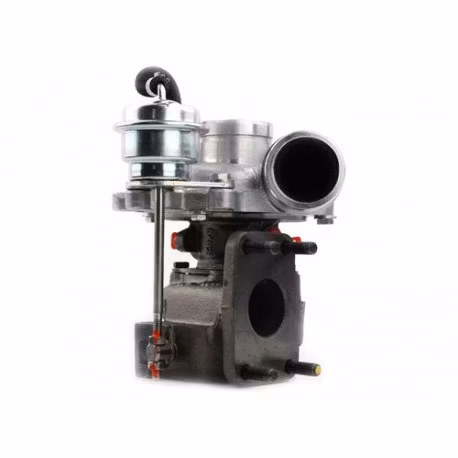

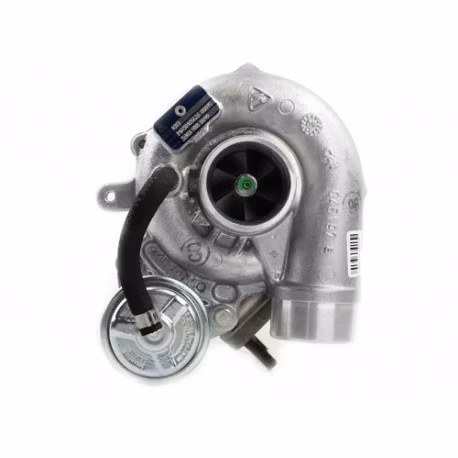

53039880090 Fabriksny BorgWarner K03 originalturbo till Fiat / Iveco OEM : 504070186, 71785480, 71785482
-
5 500 kr - 4 675 kr
53039880090 Fabriksnya BorgWarner originalturbo till Fiat / Iveco OEM : 504070186, 71785480, 71785482 ( Levtid 2-3 dagar efter beställning. )Packningssats ingår
Article Number:
53039880090
53039880090 Fabriksnya BorgWarner originalturbo till Fiat / Iveco OEM : 504070186, 71785480, 71785482 ( Levtid 2-3 dagar efter beställning. )
Packningssats ingår vid köp utav denna turbo.
Turbonummer / Originalnummer / Turbofakta :
Part Number | 53039880090 |
Previous Version | 5303-988-0090, 5303 988 0090 |
OE number | 504070186, 71785480, 71785482 |
Year | 2003-10- |
Description | Commercial |
Manufacturer Part Number | 53039700090, 5303-970-0090 |
CHRA | 53037100519 (5303-710-0519)(1302003919, 1000030110) |
Turbo Model | K03-2074CCB5.88KCAXD |
Engine | F1AE0481C |
Displacement | 2.3L, 2286 ccm |
KW | 81 |
RPM Max | 3900 |
Fuel | Diesel |
Angle α (compressor housing) | 315.5° |
Angle β (turbine housing) | 182.5° |
Bearing Housing | 53041510003 (53041500003, 53041500004, 53041500010, 53041500011, 53041500014, 53041510001)(Oil cooled)(1900011084) |
Turbine Wheel | 53031205037 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205014, 53031205017, 53031205023, 53031205025, 53031205027, 53031205029)(Ind. 45. mm, Exd. 40.3 mm, Trm 6.8, 11 Blades)(1302003435, 1100030031) |
Comp. Wheel | 53041232202 (53041232200)(Ind. 37.8 mm, Exd. 51. mm, Trm 6.4, 6+6 Blades, Superback)(1302003405, 1200016106) |
Back plate | 53041515716 (53031515716, 53041515712)(1302003305, 1300016042) |
Heat shield Number | 53031652000 (1302003340, 2030016011) |
Repair Kit | 53037110001 (1302003753, 5000040104) $69.00 NEW IN STOCK |
Turbine Housing | 53031009091 |
Compressor Cover | 53041015033 |
Turbine Housing AR | 5 |
Actuator | 50040720016 |
Settings Waste gate (pressure) | 1.400 bar |
Settings Waste gate (lifting rod) | 2.20 mm |
Gasket (turbine inlet) | 210634 |
Gasket (turbine outlet) | 210350 (Stainless Steel) |
Gasket Kit | 215174 (2090505296 |
Gasket (oil outlet) | 210317 |
Manufacturer | Borg Warner - 3K - Schwitzer |
Applications
2003-10 Iveco Commercial Ducato 2.3 TD with F1AE0481C Engine
2003-06 Fiat Ducato II 2.3 TD Engine F1AE0481C
