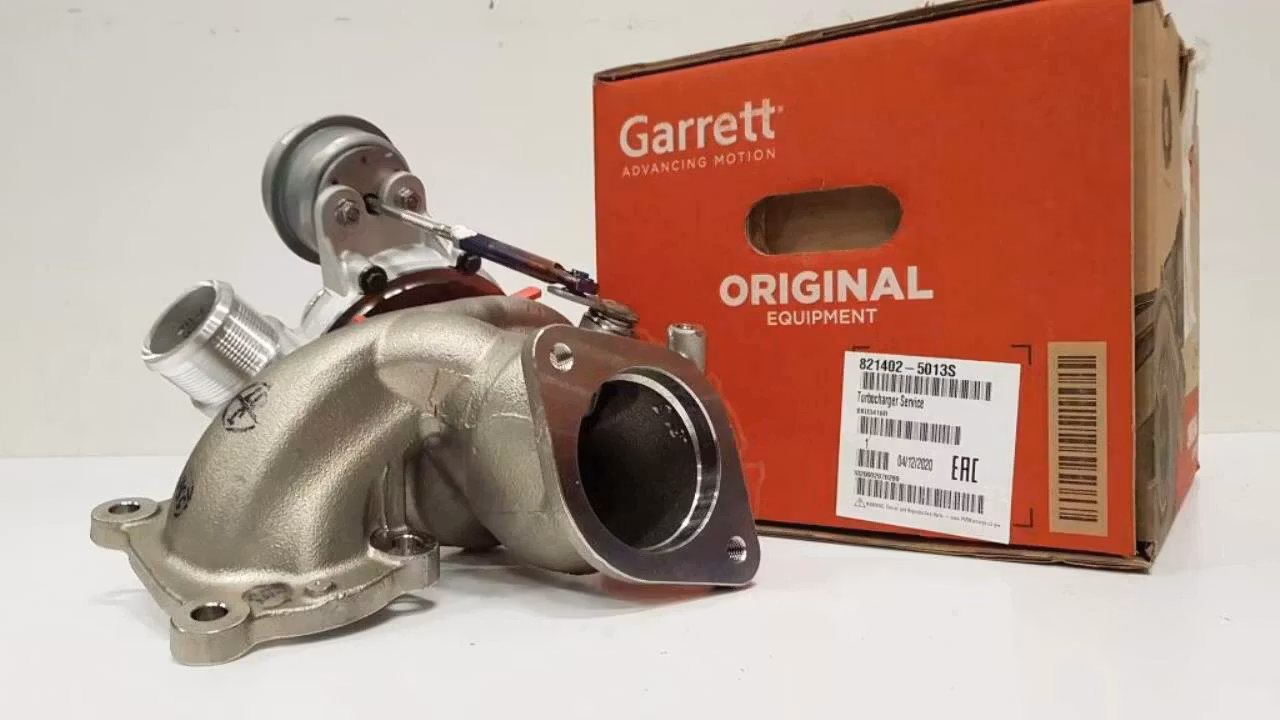

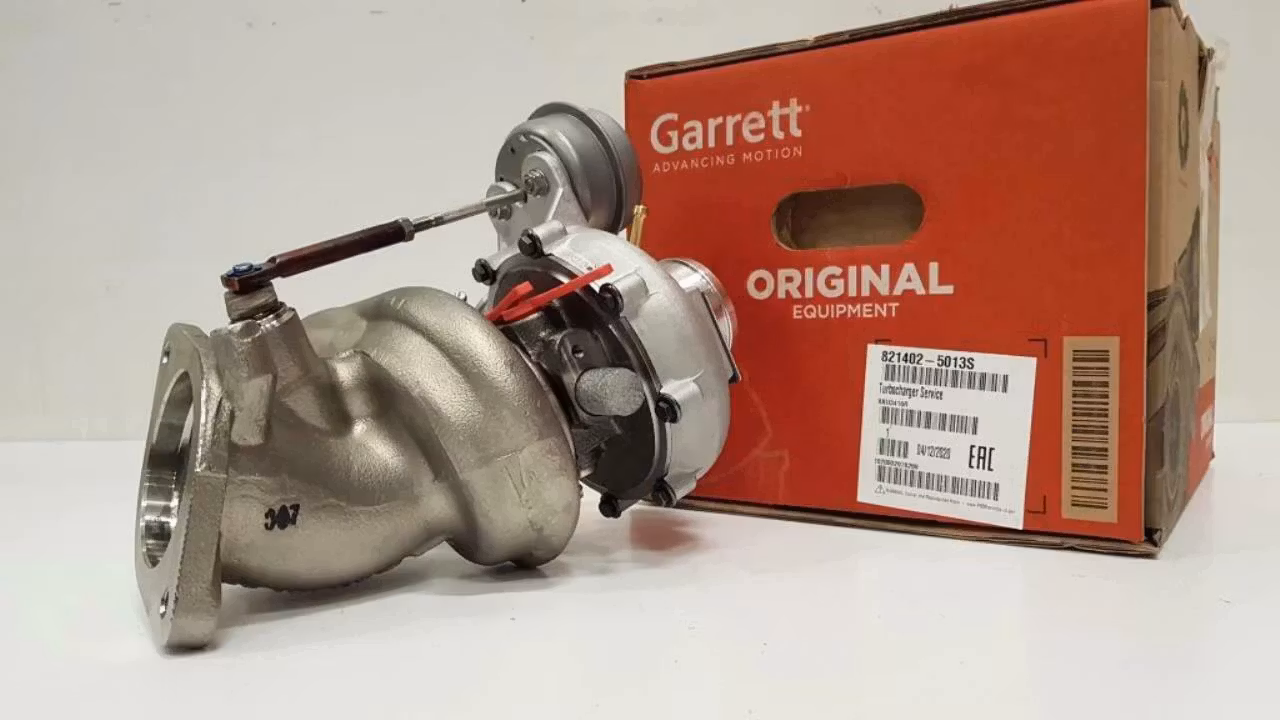

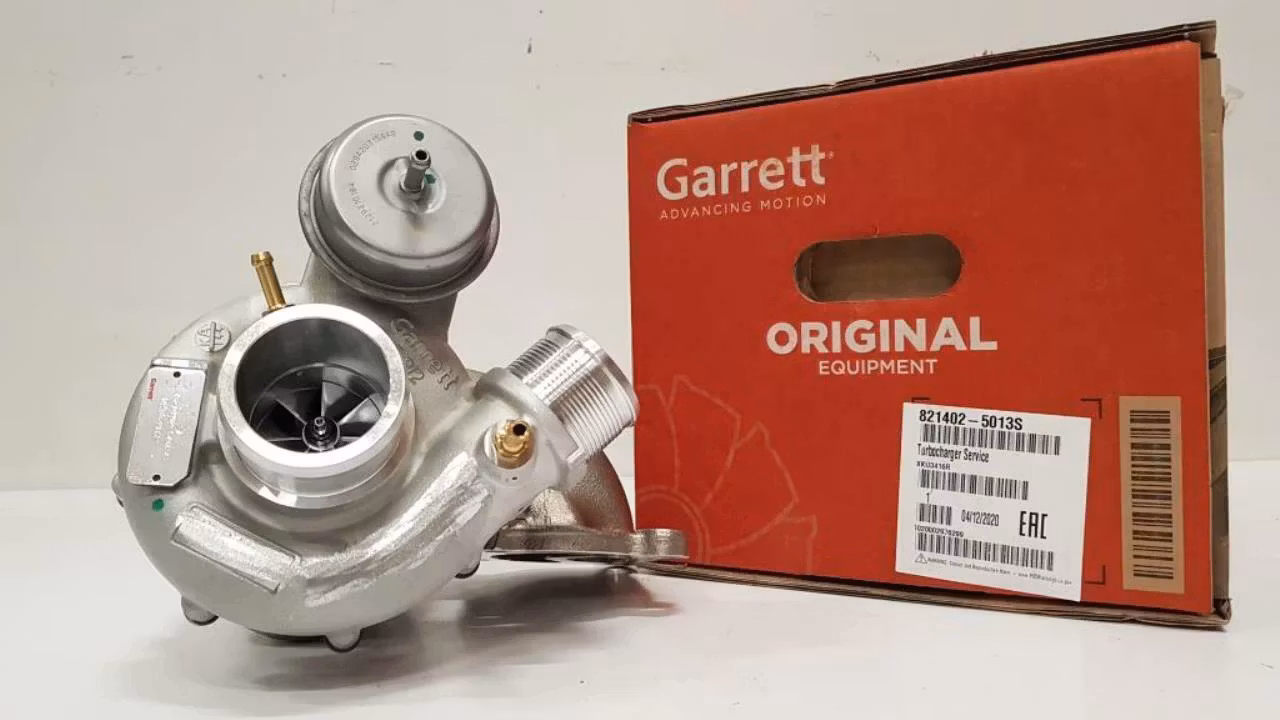

821402-5013S Garrett MGT2260SZ fabriksny original

  • 11 995 kr
  • 10 196 kr

821402-5013S Garrett MGT2260SZ fabriksny original- Fabriksny originalturbo.- 3 års garanti.Turbonummer / Originalnummer / Turbofakta : Part Number: 821402-5013&

I lager.
Article Number: 821402-5013S
Share

821402-5013S Garrett MGT2260SZ fabriksny original


- Fabriksny originalturbo.

- 3 års garanti.


Turbonummer / Originalnummer / Turbofakta :


Part Number: 821402-5013

 Interchangeable Number: 821402-0013, 821402-5013S, 821402-0005,  821402-5005, 821402-5005S, 821402-0006, 821402-5006, 821402-5006S,  821402-0007, 821402-5007, 821402-5007S, 821402-0010, 821402-5010,  821402-5010S

OEM Number: 2318260, FR3E-9G438-CA, FR3E9G438CA,  FR3E-9G438-CB, FR3E9G438CB, FR3E-9G438-CF, FR3E9G438CF, FR3E-9G438-CG,  FR3E9G438CG

Turbo Model: MGT2260SZ

Manufacturer: Garrett


Year: 2014-

Engine: EcoBoost, C23HD0D

Engine Manufacturer: Ford

Displacement: 2.3L, 4 Cylinders

Fuel: Gas

Power: 310/314 HP

Speed: 5500 RPM


Application:

2014- Ford Mustang with EcoBoost, C23HD0D Engine


 MGT2260SZ Garrett Twin Scroll Turbocharger 821402-5007S



Horsepower: 317 HP
Displacement: 2,3L



  • Hydrodynamic journal bearing
  • Cast Compressor Wheel
  • Pressure regulated Actuator
  • Water- and oil cooled
  • Original FR3E9G438CB from the Ford Mustang 2.3 EcoBoost



  Compressor side:
Inducer ø
46,45mm		Exducer ø
60,00mm		Trim
60		A/R
0,60

  Turbine side:
Inducer ø
50,00mm		Exducer ø
44,10mm		A/R
0,89
