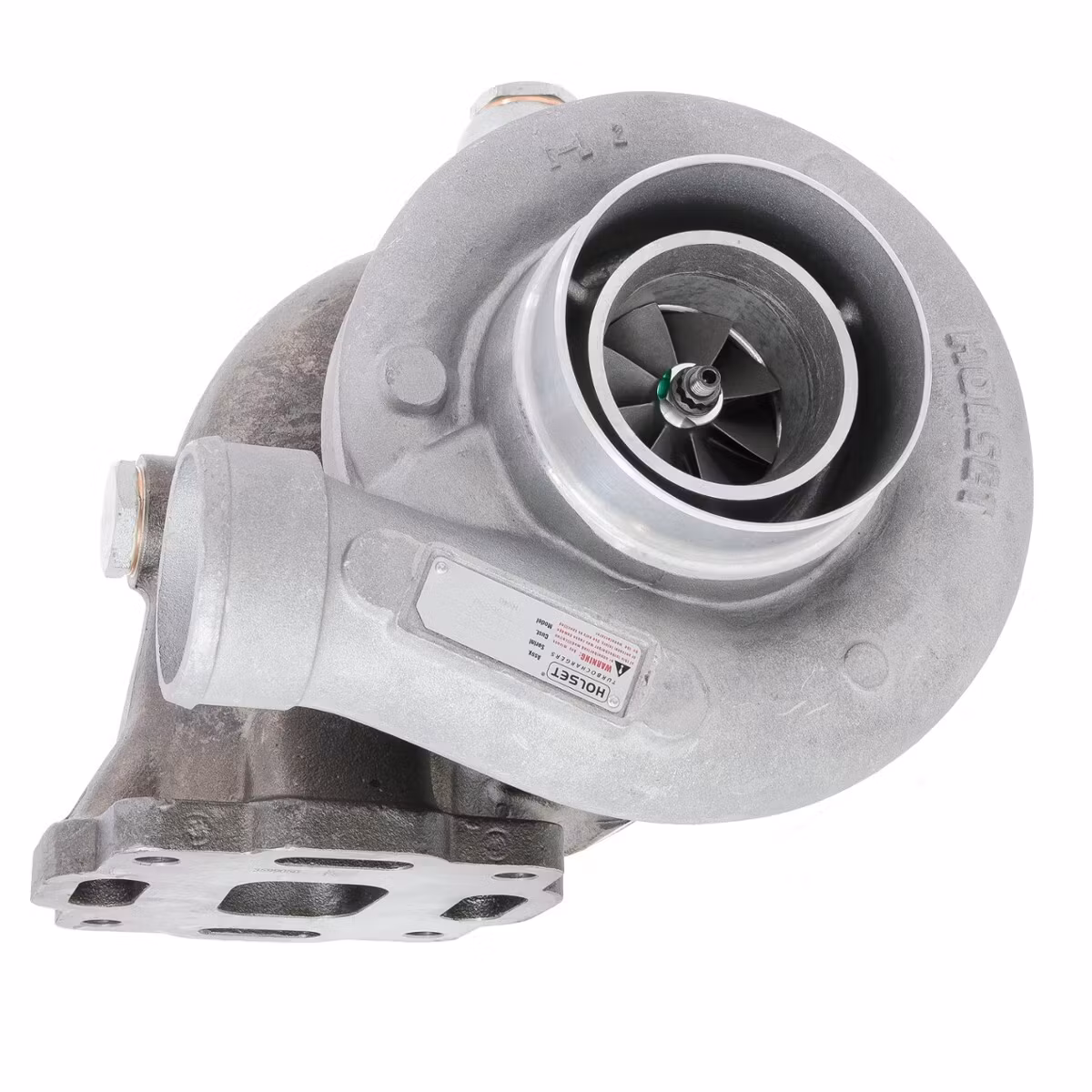

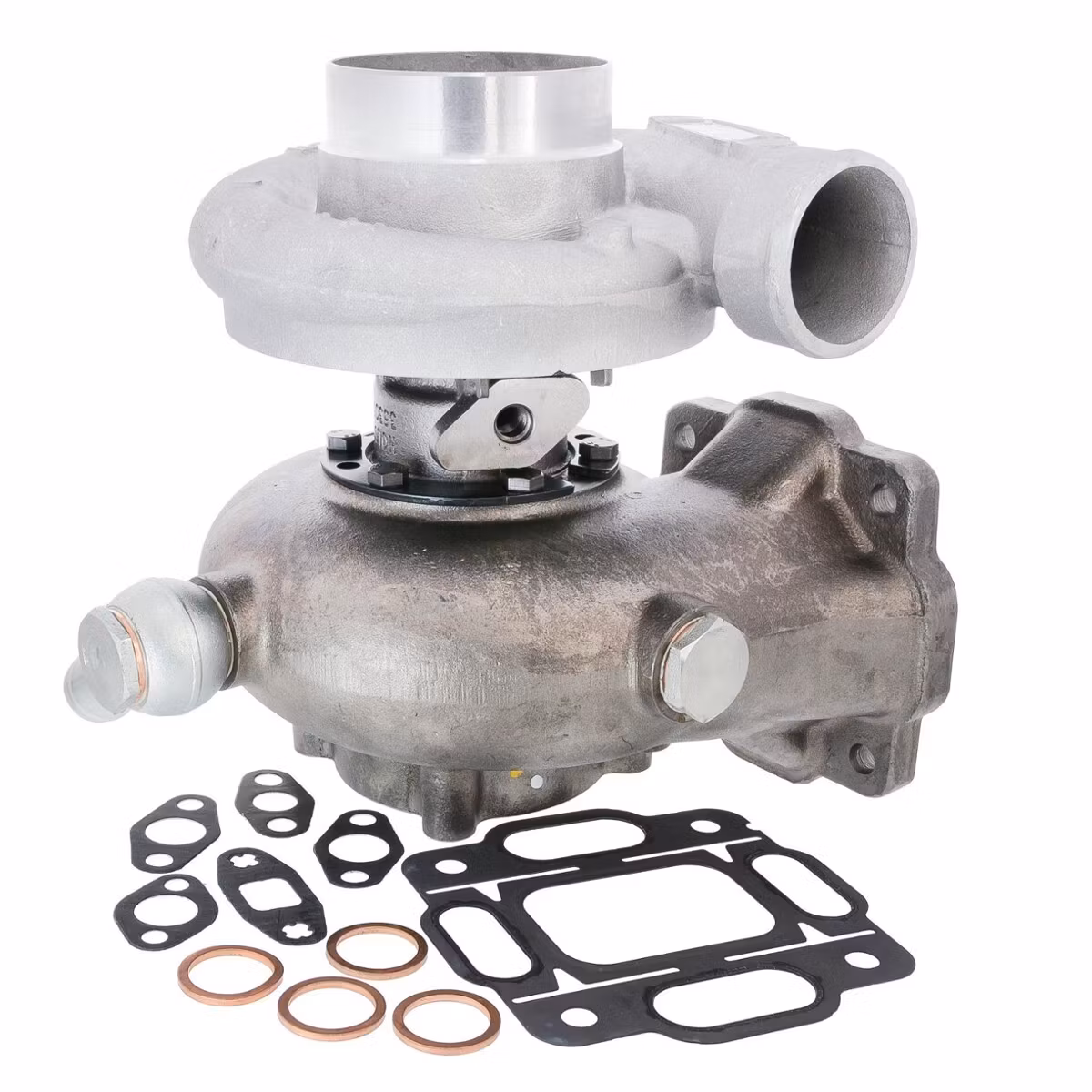

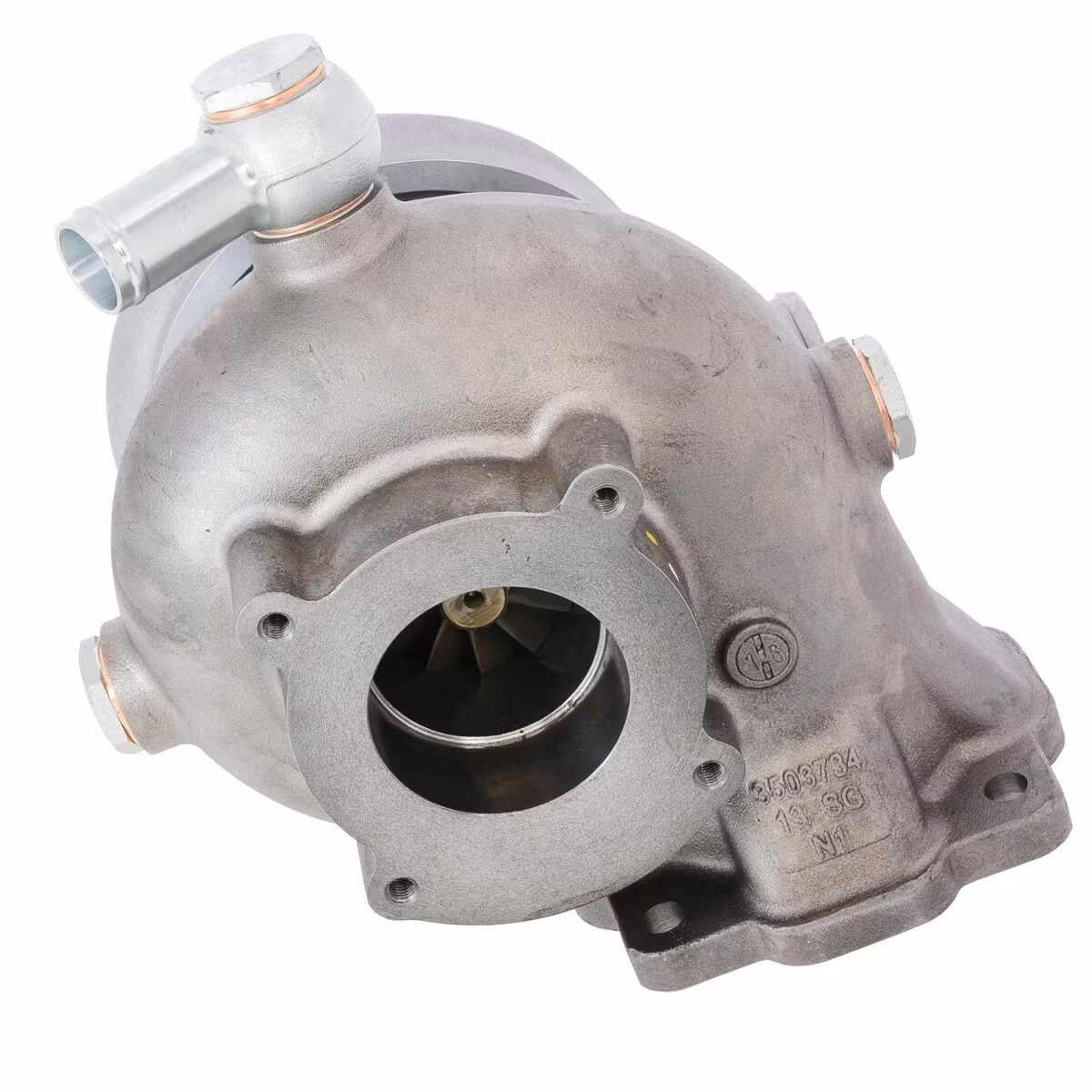

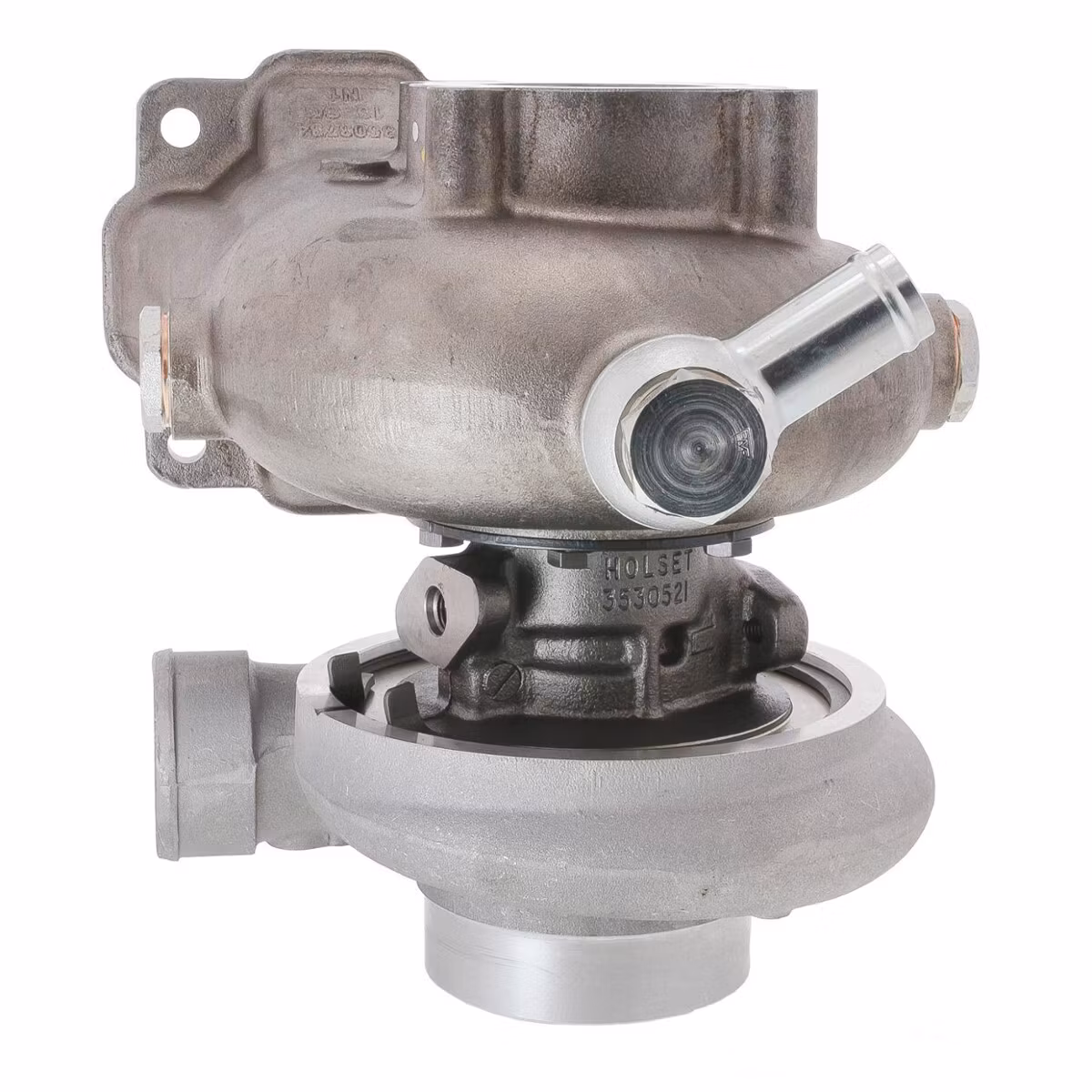

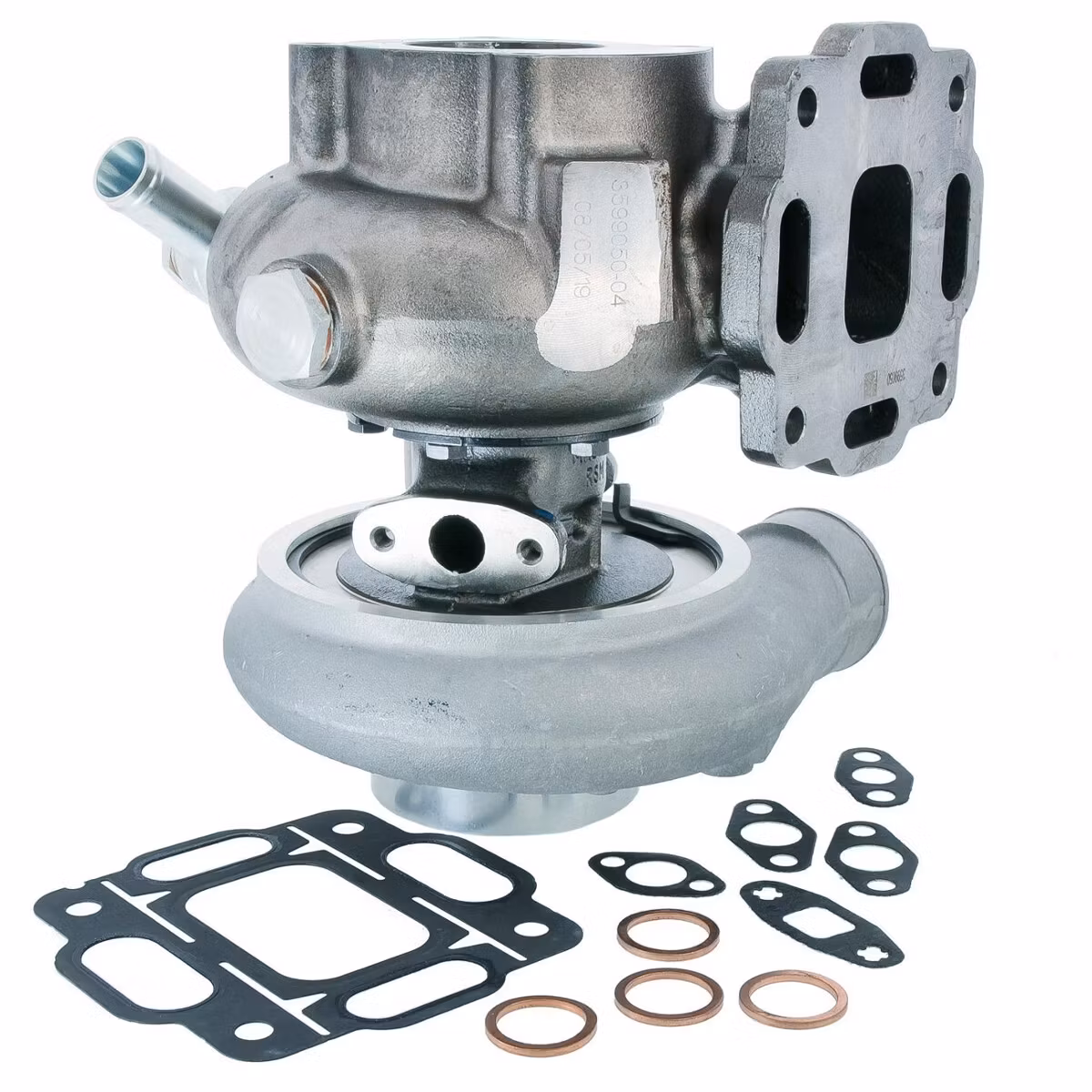

3786850H Holset HX40M Iveco Marine OEM : 8033172

  • 15 000 kr
  • 13 500 kr

3786850H Holset HX40M Iveco Marine OEM : 8033172 ( Beställningsvara 2-3 ) Fabriksny original Holset HX40M turbo.Turbonummer / Ersättningsnummer /Originalnu

I lager.
Article Number: 3786850H
Share

3786850H Holset HX40M Iveco Marine OEM : 8033172 ( Beställningsvara 2-3 )

Fabriksny original Holset HX40M turbo.
Turbonummer / Ersättningsnummer /Originalnummer :  3598309, 3599051, 3786850, 3786850H, 8033172

Turbonummer / Originalnummer / Turbofakta :

Part Number3599051
Previous Version3598309
OE number8033172
Year2002-
DescriptionMarine
Manufacturer Part Number3786850H
CHRA4027659 (4027659H) $550.48 NEW IN STOCK, MADE IN USA
Turbo ModelHX40M, HX40, HX40-L8274BN/J13S3
Engine Manufacturer Iveco
Engine N60 370, N60ENTM37.10, NEF 4 Cylinders
Fuel Diesel
Angle α (compressor housing)250°
Angle β (turbine housing)290°
Bearing Housing 3532632 (3599943, 4027754, 4035136, 3532631)(84.50 mm)(Oil Cooled)(1900011016) $85.00 NEW IN STOCK
Turbine Wheel3536624 (3525687, 353662400)(Ind. 75.92 mm, Exd. 62. mm, Trm 12.29, 12 Blades) $195.48 NEW IN STOCK
Comp. Wheel3599593 (359959300)(Ind. 56. mm, Exd. 82.04 mm, Trm 6.4, 8+8 Blades, Superback)(1200016162) $99.00 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $22.48 NEW IN STOCK
Heat shield Number3519302 (1152301340, 2030016031) $14.95 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Turbine HousingWater Cooled
Gasket (turbine inlet)210849 (8027510)(Stainless Steel)
Gasket (turbine outlet)210850 (Inox Steel)
 Gasket oil inlet 210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet) 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHOLSET


Applications


1990-03  Iveco Marine NEF  4 Cyl
