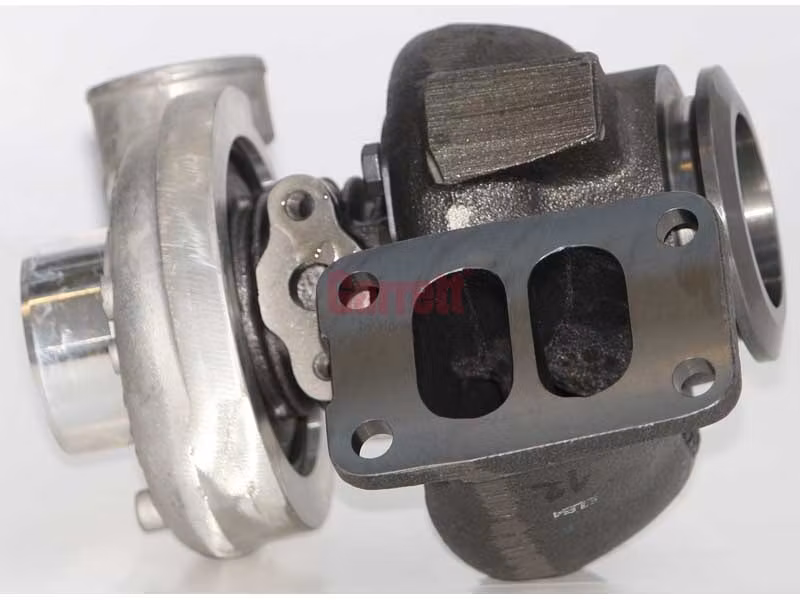

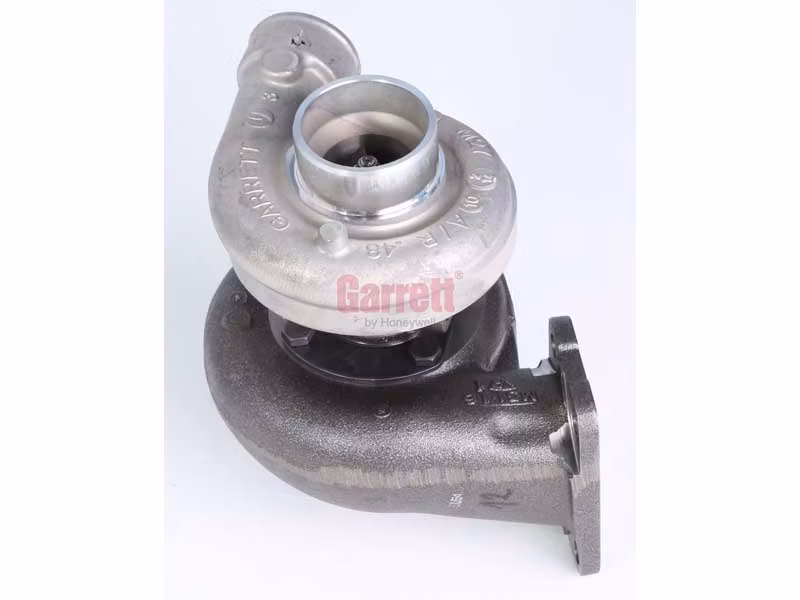

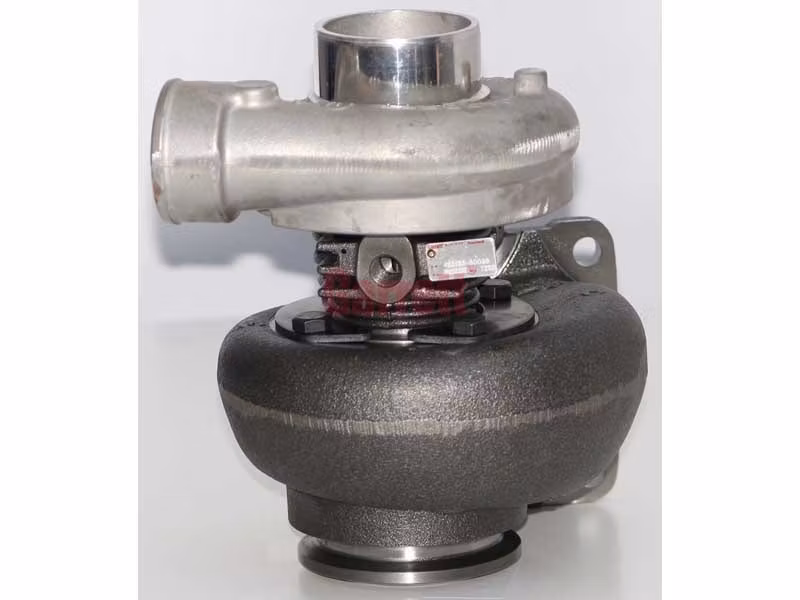

465153-5003S Garrett T250-01 fabriksny originalturbo.

  • 8 499 kr
  • 7 649 kr

465153-5003S Garrett T250-01 fabriksny originalturbo.- Fabriksny originalturbo ifrån Garrett.- 3 års garanti.- Monteringssats medföljer.Turbonummer / Originalnu

I lager.
Stock: 1
Article Number: 465153-5003S
Share

465153-5003S Garrett T250-01 fabriksny originalturbo.

- Fabriksny originalturbo ifrån Garrett.

- 3 års garanti.

- Monteringssats medföljer.

Turbonummer / Originalnummer / Turbofakta :

Part Number465153-5003S
Previous Version465153-5003, 465153-5003S, 465153-9003, 4651530003, 4651535003, 4651535003S, 4651539003
OE number83999247, 83999247EX, 83999247R, F0NN6K682BA
Description2200,  7840 Tractor
CHRA443854-0065 (443854-5065S)(81867227, F1NN6N684AA)(1000010349)
Turbo ModelT250-01
EngineP358, CNH
Engine ManufacturerNew Holland
KW 71/97 HP
Displacement 5000 ccm, 4 Cylinders
RPM 2200
Angle α (compressor housing)  336°
Angle β (turbine housing)  336°
Bearing Housing435349-0011 (435350-0006)(Oil Cooled)(1900011137) $68.40 NEW IN STOCK
Turbine Wheel435406-0006  (435406-0001, 435406-0004, 435406-0005, 435406-0006, 435922-0004,  435922-0005)(Ind. 53.01 mm, Exd. 46.22 mm, 10 Blades)(1100016004)
Comp. Wheel445347-0018 (Ind. 40.3 mm, Exd. 54.3 mm, Trm 4.82, 5+5 Blades, Superback)(1200016432)
Back plate 430735-0001 (432280-0001)(1800016012)
Heat shield Number4443594-0001 (2030016039)
Repair Kit709143-0001 (200423-0000, 707903-0002)(1100025761, 5000010031)
Turbine Housing413908-0017   (F1NN6N677AA)
Compressor Cover431022-0043   (F1NN6N661AA)
Turbine Housing AR1.16
Gasket exhaust manifold 409039-0000 (210022, 210022-0000, 2405022, 7C7431)(Stainless Steel, Dual Port) $13.52
Gasket (oil outlet) 413709-0001 (Paper) $5.11
Gasket Kit215303 (2090505476)   $16.15
ManufacturerHoneywell-Garrett


Applications


New Holland Agricultural 2200, 7840 Tractor with P358 CNH Engine
