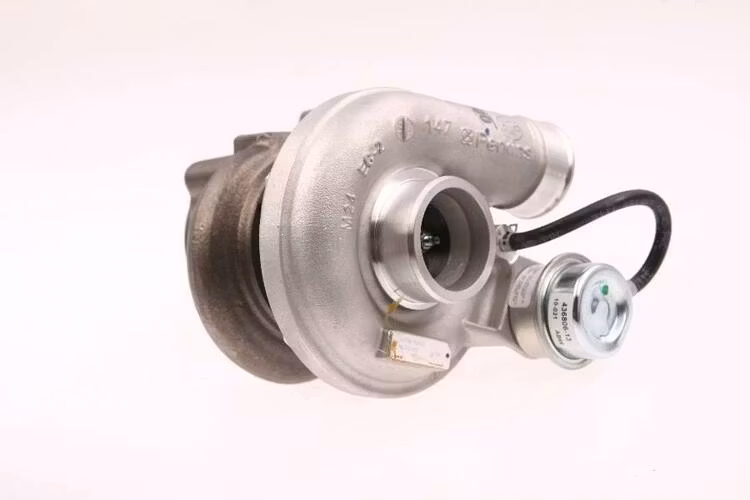

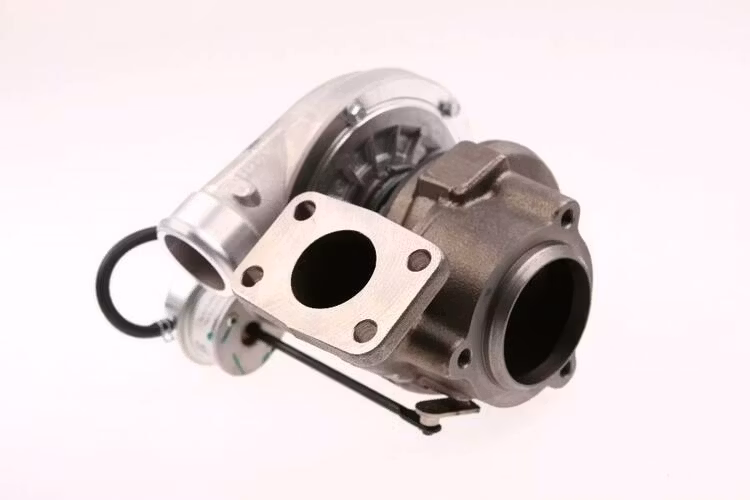

711736-5001S Renoverad Garrett bytesturbo : OEM : 2674A200 Motorkod : T4.40 ( Bytesturbo )
-
6 500 kr - 5 850 kr
711736-5001S Renoverad Garrett bytesturbo : OEM : 2674A200 Motorkod : T4.40 ( Bytesturbo )- Renoverad originalturbo med originaldelar.- Vi på Turboshop Sw
Stock:
2
Article Number:
711736-5001S-BT
711736-5001S Renoverad Garrett bytesturbo : OEM : 2674A200 Motorkod : T4.40 ( Bytesturbo )
- Renoverad originalturbo med originaldelar.
- Vi på Turboshop Sweden AB är officiellt servicecenter i Sverige för Garrett.
- Packningssats ingår vid köp utav denna turbo online.
Bytesturbo = Gamla turbon skall i retur efter bytet.
Originalnummer Perkins : : 2674A200
Motorkod : T4.40
Turbonummer / Turbofakta / Originalnummer :
Part Number | 711736-5001S |
Previous Version | 711736-0001, 711736-1 |
OE number | 2674A200 |
Year | 2003- |
Description | Truck |
CHRA | 433289-0185 (433289-5185S, 433289-0255)(1000010381, 1102025901) |
Turbo Model | GT2556S |
Engine | T4.40 |
Displacement | 4.4L, 4400 ccm, 4 Cylinders |
KW | 75 |
RPM Max | 2200 |
Fuel | Diesel |
Angle α (compressor housing) | 105º |
Angle β (turbine housing) | 185º |
Bearing Housing | 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling Type) |
Turbine Wheel | 436563-0003 (436563-0010)(Ind. 54. mm, Exd. 45.72 mm, 12 Blades) $49.62 |
Comp. Wheel | 436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56. mm, 6+6 Blades, Superback)(1102022408) |
Back plate | 721086-0001 |
Heat shield Number | 434686-0001 |
Repair Kit | 732252-0001 (1102015756) |
Turbine Housing | 711739-0001 |
Compressor Cover | 721260-0001 |
Turbine Housing AR | 0.52 |
Actuator | 436806-0013 |
Gasket (turbine inlet) | 210658 (INOX Steel) |
Gasket (oil outlet) | 210553 (210243)(Non Metallic) |
Manufacturer | Honeywell-Garrett |
Fabriksny originalturbo finns relaterad nedan.
