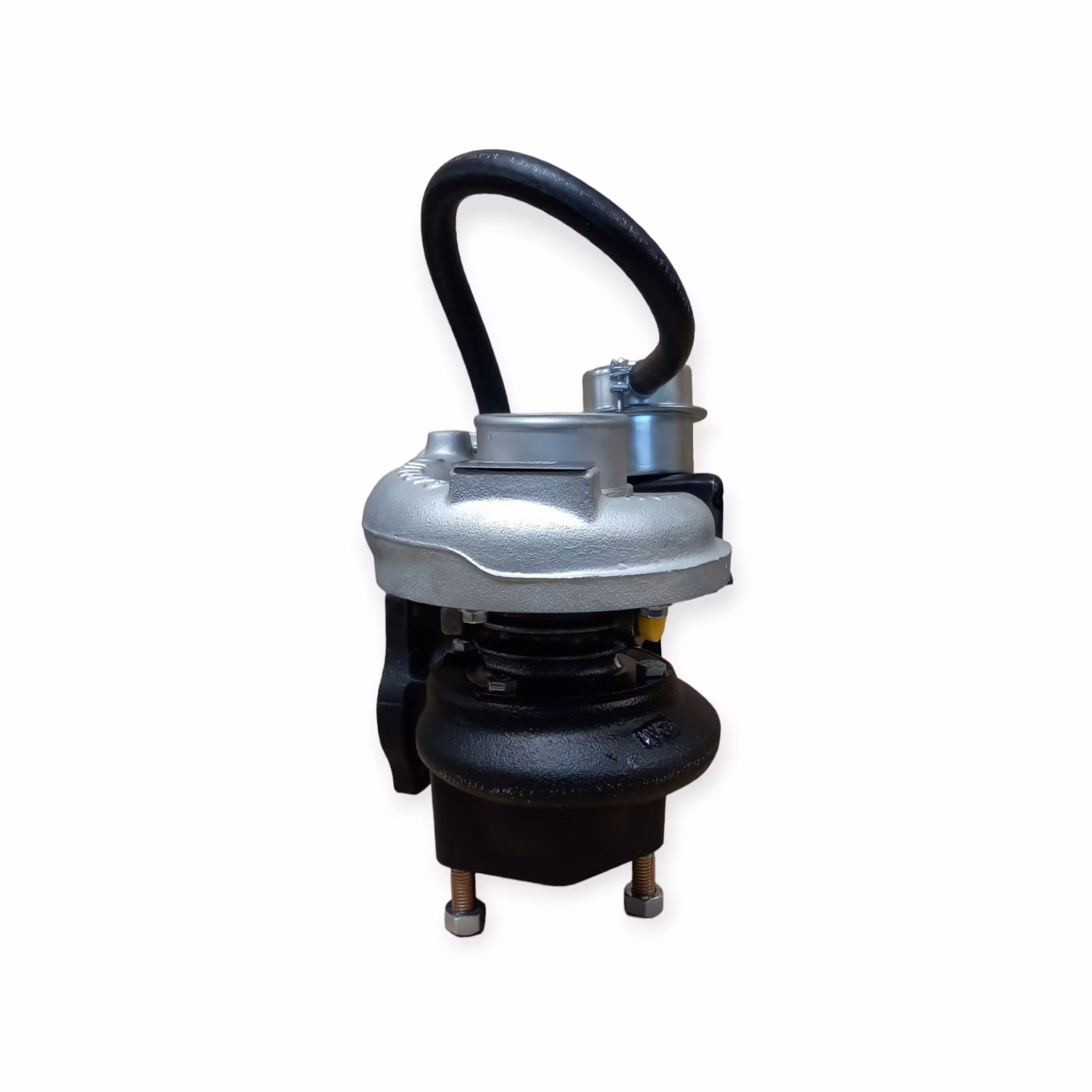

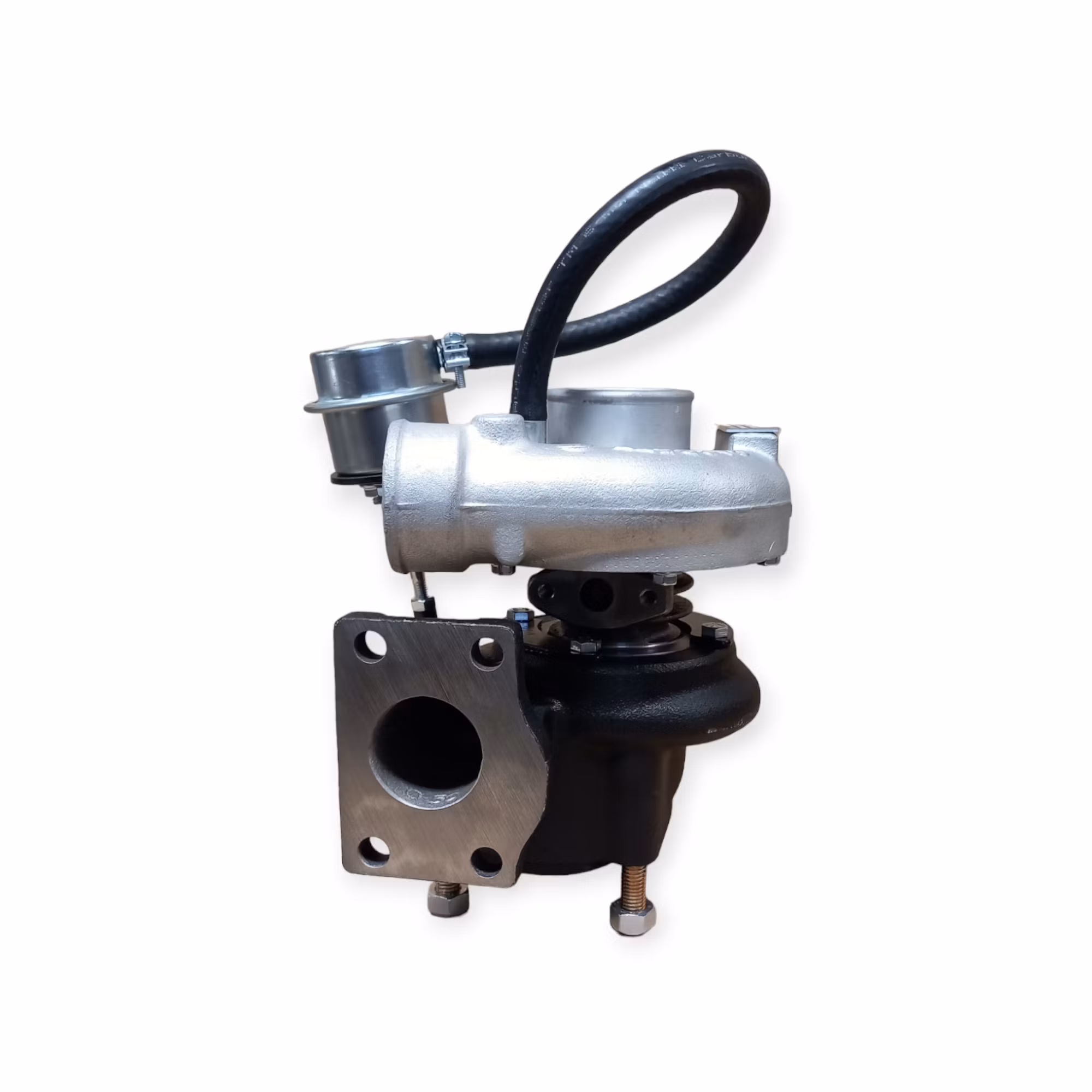

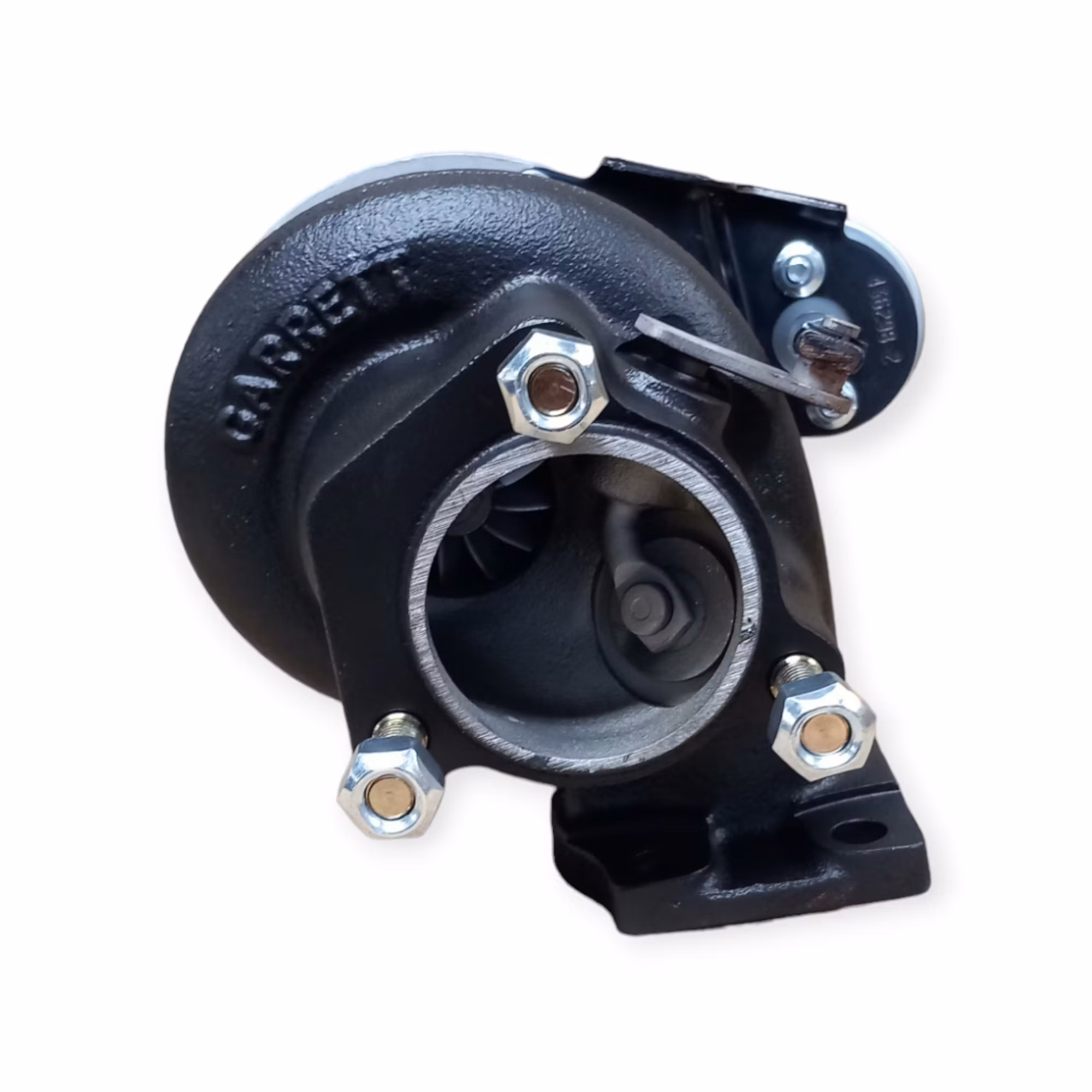

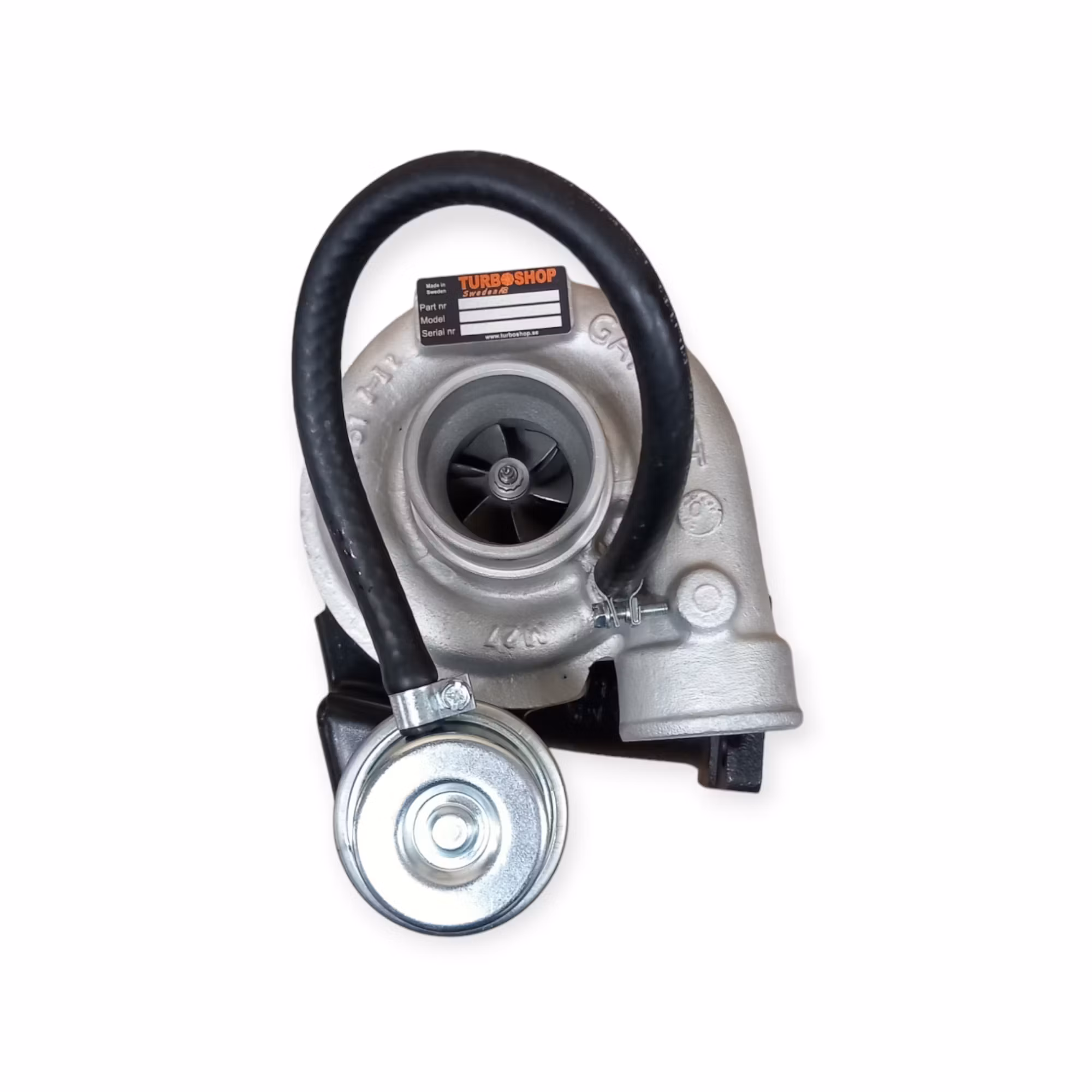

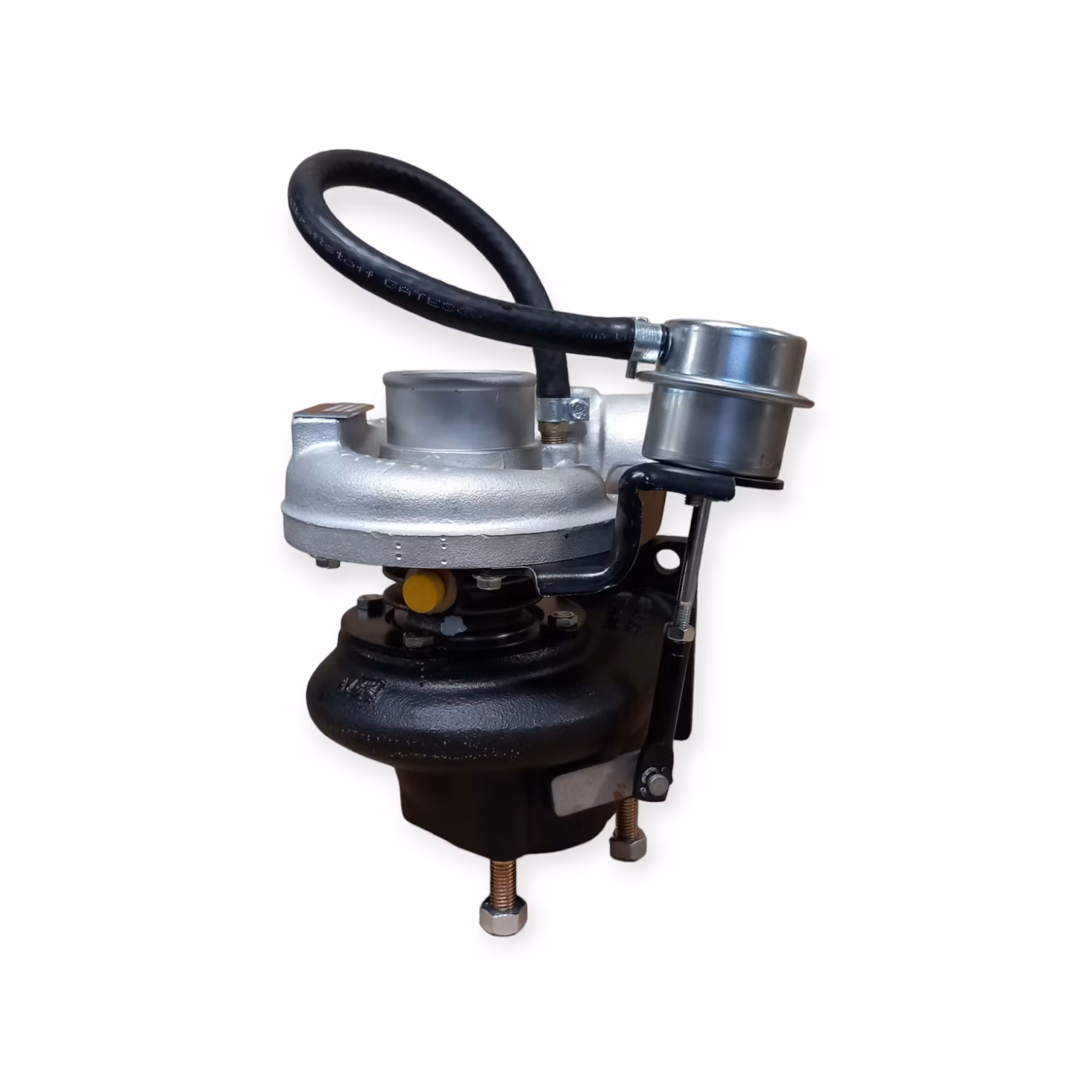

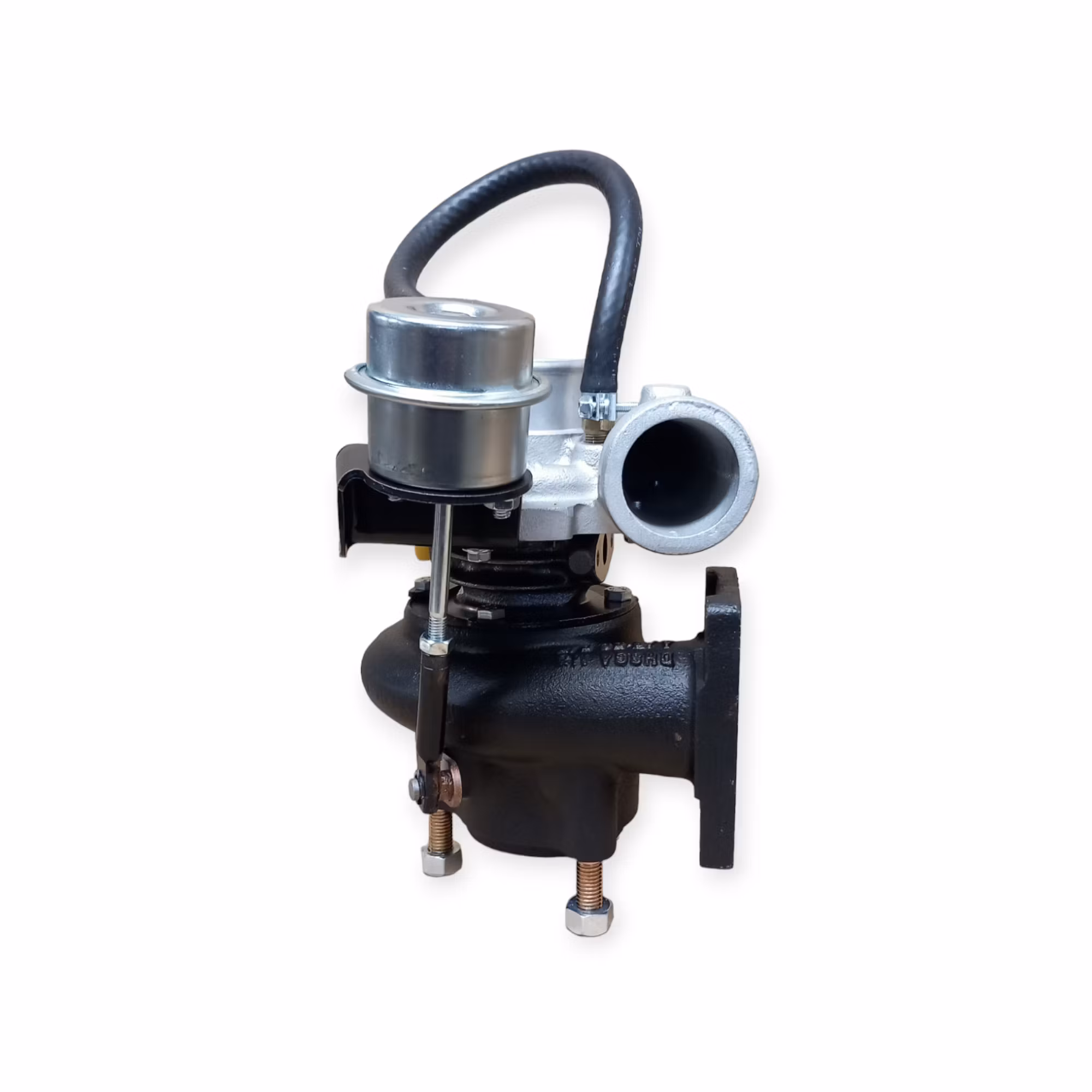

452222-5002S / 727262-5002S Garrett GT2052S Perkins / Masey ferguson ( Bytesturbo )

  • 7 000 kr

Populär bytesturbo på industriella sidan åter i lager ! 727262-5002S / 452222-5002S Garrett GT2052S Perkins / Masey ferguson ( Bytesturbo )Packningssats ingår v

I lager.
Stock: 1
Article Number: 452222-5002S-bytesturbo
Share

Populär bytesturbo på industriella sidan åter i lager !

727262-5002S / 452222-5002S Garrett GT2052S Perkins / Masey ferguson ( Bytesturbo )


Packningssats ingår vid köp utav denna bytesturbo.


Bytesturbo = gamla turbon skall i retur till oss.

Produkt fakta + OEM nummer / Turbonummer osv.

Part Number727262-5002S
Previous Version452222-0002, 452222-0003, 452222-0004, 727262-0002, 727262-0003, 727262-0002, 727262-0004
OE number2674A353, 2674A352, 2674A098, 2674A354, 2674A304
Year 96-02
DescriptionTractor, Off Highway
CHRA451298-0045 (451298-0024) (1102020440) : Finns att köpa hos oss ! för 2500 inkl moms.
Turbo Model GT2052S
Engine T4.40, T4.40 EPA Tier 1 Perkins
Displacement4.0L, 4000 ccm, 4 Cylinders
KW 68/105
RPM Max 2200
Fuel Diesel
Angle α (compressor housing)190°
Angle β (turbine housing)0°
Bearing Housing433275-0002 (435793-0002, 713782-0002) (1102015450)(Oil Cooled)
Turbine Wheel434715-0039 (434715-0007, 434715-0013, 434715-0027) (1102020440) (47.0 mm, Trm 72, A/R 0.50)
Comp. Wheel436131-0003  (436131-0021, 451584-0010, 705878-0017)(Ind. 36.75 mm, Exd. 52. mm, Trm  50, 6 Blades, Extended back disc type)
Back plate721085-0001  (434689-0002)(1102015316/1102015314)
Heat shield Number434302-0001 (434684-0001) (1102015343)
Repair Kit732252-0001 (1102015756)
Turbine Housing436383-0001
Compressor Cover436414-0007
Turbine Housing AR0.50
Actuator434133-0022
Gasket (turbine inlet)210658 (Inox Steel)
Gasket (oil outlet)210243 (Paper)
Manufacturer Honeywell-Garrett


Applications


1996- Massey Ferguson Tractor with T4.40 Engine

2002- Various Construction Equipment (Perkins) with T4.40 Engine
