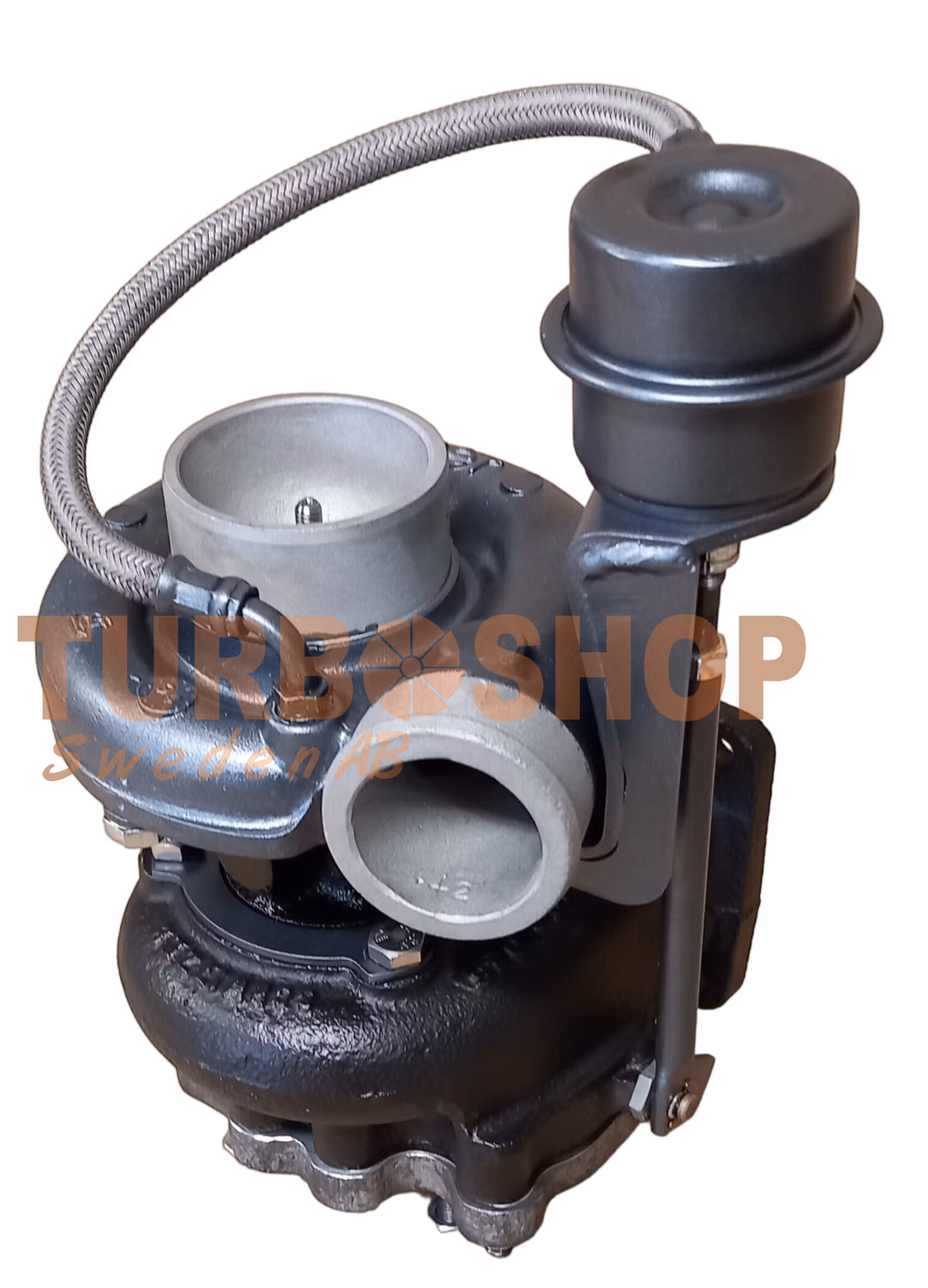

316170 / 313378 S1BG Valmet : 836740274, V836740274 ( Bytesturbo ) - Storsäljare på industriella sidan !
316170 / 313378 S1BG är en riktig klassiker ifrån BorgWarner.
- Renoverad originalturbo.
- 3 års garanti.
- Monteringssats ingår vid köp utav denna turbo.
Sitter på följande fordon : Valmet seria 6000 Valmet 6400; Valmet 6400LS; Valmet 6600; Valmet 6600E; Valmet 6800; Valmet 6800E
Packningssats ingår vid köp utav denna bytesturbo.
Bytesturbo = gamla turbon skall i retur.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 316170 |
| OE number | 836740274, V836740274 |
| Year | 1992-04 |
| Description | Tractor |
| Manufacturer Part Number | 313378 |
| CHRA | 312937 |
| Turbo Model | S1BG |
| Engine | 420DWI |
| Displacement | 4.4L, 4400 ccm |
| KW | 90/122 |
| Fuel | Diesel |
| Angle α (compressor housing) | 345º |
| Angle β (turbine housing) | 14° |
| Bearing Housing | 312762 |
| Turbine Wheel | 313699 (312759)(Ind. 45.13 mm, Exd. 51.48 mm, 9 Blades) |
| Comp. Wheel | 312765 (Ind. 39.16 mm, Exd. 52.89 mm, 6+6 Blades) |
| Back plate | 315910 (196872)(1252201300) |
| Heat shield Number | 194149 |
| Repair Kit | 318374 (1252201750) |
| Gasket Kit | 318421 $15.70 |
| Gasket (turbine inlet) | 312617 (409039-0001, 210190-0000, 132044) $13.20 |
| Gasket (oil outlet) | 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021) |
| Gasket (oil inlet) | 147837 (409036-0000, 210023-0000, 55739, 210023) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Applications
1992-04 Valmet Agricultural Tractor with 420DWI Engine
