Garrett G30-900 Turbocharger 1,01 A/R IWG 880704-5009S 550-900 HK

  • 24 800 kr

 Garrett G30-900 Turbocharger 1,01 A/R IWG 880704-5009S 550-900 HKDen nya moderna interna turbon som är kompakt samt flödar oerhört bra.Ny design på turbin

I lager.
Stock: 2
Article Number: 880704-5009S
Share

 Garrett G30-900 Turbocharger 1,01 A/R IWG 880704-5009S 550-900 HK


Den nya moderna interna turbon som är kompakt samt flödar oerhört bra.


Ny design på turbinhus som är både smidigt samt får den intern wastegaten att verkligen fungera.

Product information "Garrett G30-900 Turbocharger 1,01 A/R IWG 880704-5009S"

Horsepower: 550 - 900 HP
 Displacement: 2.0 - 3.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 1.01

Honeywell Garrett G-Series - The newest and most advanced generation turbocharger!
These very small turbocharger achieve extremely high performance with minimum space requirements.

  • Latest CFD-optimized, forged milled compressor wheel
  • High-Flow compressor housing with integrated easy plug speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Includes -4AN oil restrictor fitting with 1mm orifice
  • Four large water jacket ports
  • Twin piston rings at compressor and turbine site
  • MAR-M 1050°C turbine wheel
  • 1050°C Stainless Steel turbine housing
  • Water- and Oil cooled
  • Internal Wastegate incl. 1.0 bar Actuator
  • Delivery: Turbocharger, 2 X -6AN water fittings and two plugs, 1 X oil restrictor -4AN

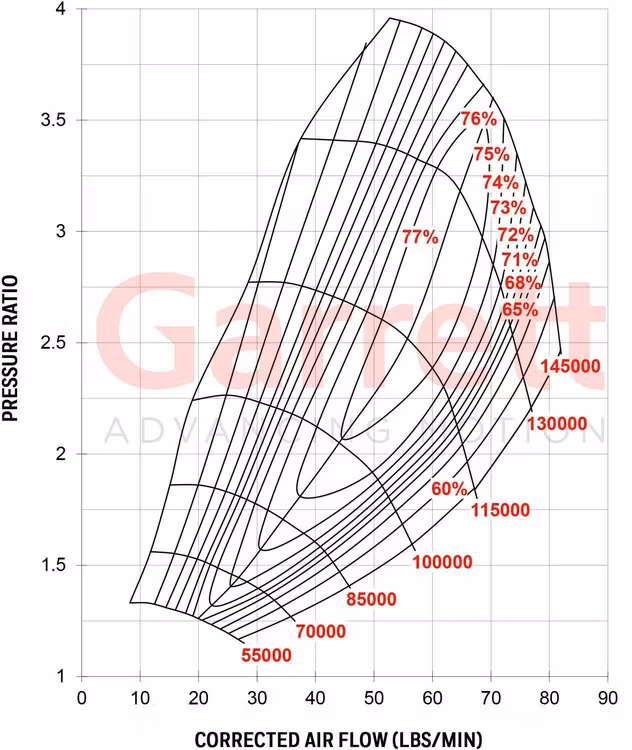

Compressor side:

It  uses the latest generation of CFD-designed compressor wheels. These  wheels have up to 15% more flow on the 60mm wheels and up to 30% more  flow on the 67mm wheels (compared to the GTX GEN II).
The optionally available speed sensor can now simply be plugged into the compressor housing and is sealed via an O-ring.

Center Housing:

The center section is attached to the exhaust housing over an V-band and can thus easily rotate 360° into any position.
 Four large water connection options allow high cooling water throughput  and easy installation of the supply and discharge lines via two  supplied -6AN adapters.
For ease of mounting the oil supply, a -4AN oil restrictor with a 1mm orifice is included.
The  newly developed compact 8mm high-speed ceramic cartridge is shorter,  thinner and lighter than its predecessors. The space thus obtained  allows for the first time the use of twin piston ring seals on the  compressor and turbine side, which significantly reduce any oil leaks  from the bearing housing.

Turbine side:

The  completely redesigned turbine wheel, made of the high-performance  material Mar-M, enables exhaust gas temperatures up to 1050° C. The flow  could also be increased by up to 15-20% compared to the GTX  turbocharger. And that with an efficiency up to 74%.
All G-30 turbine housings are made of stainless steel and temperature-resistant up to 1050° C.

   Compressor side:
Inducer ø
62.00mm
Exducer ø
76.00mm
Trim
65
A/R
0.72

  Turbine side:
Inducer ø
60.00mm
Exducer ø
55.00mm
Trim
84
A/R
1.01
