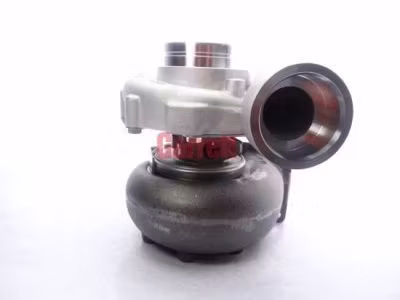

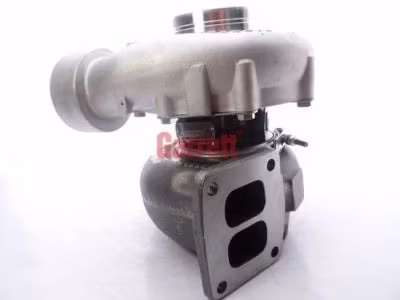

452174-5002S - Garrett GT4288N - Fabriksny originalturbo : 425677 Motorkod : TD102

  • 13 495 kr
  • 11 471 kr

452174-5002S - Garrett GT4288N - Fabriksny originalturbo OEM  : 425677 Motorkod : TD102- Fabriksny originalturbo ifrån Garrett motion.- 3 års garanti.- Mon

I lager.
Article Number: 452174-5002S
Share

452174-5002S - Garrett GT4288N - Fabriksny originalturbo OEM  : 425677 Motorkod : TD102
- Fabriksny originalturbo ifrån Garrett motion.

- 3 års garanti.

- Monteringssats som packningar / Pinnbultar /muttrar ingår vid köp utav denna turbo online.


Vi kan även erbjuda renovering utav denna turbo i vår moderna turboverkstad se relaterade produkter.

Turbonummer / Originalnummer / Turbofakta :

Part Number 452174-5002S
Previous Version 452174-0002
OE number 425677
Year 1995-
DescriptionVolvo B10 Coach, Transit Bus,  Truck
CHRA434251-0014 (434251-5014S)(100420001)(1000010454) $425.00 NEW IN STOCK, MADE IN USA
Turbo Model GT4288N
Engine TD102
Engine Manufacturer Volvo
Displacement9.6L, 9600 ccm,  6 Cylinders
FuelDiesel
KW345/360 HP
Bearing Housing410310-0004 (410310-0001)(Oil Cooled)(103130001, 1900011222) $66.00 NEW IN STOCK
Turbine Wheel436259-0001 (Ind. 82. mm, Exd. 68.1 mm, Trm 69, 11 Blades)(101100001, 1100016435) $137.80 NEW IN STOCK
Comp. Wheel 434354-0006  (434354-0008)(Ind. 63.45 mm, Exd. 87.00 mm, Trm 9.8, 6+6 Blades,  Superback)(102400003, 1200016131) $98.00 NEW IN STOCK
Back plate434256-0002 (449014-0005)(104190001, 1300016132) $38.00 NEW IN STOCK
Heat shield Number410366-0003 (410366-0004, 410366-0007)(106450003, 2030016005) $16.42 NEW IN STOCK
Repair Kit709153-0001 (1102042750, 5000010095, 109450002) $90.80 NEW IN STOCK
Turbine Housing 441183-0065
Compressor Cover434356-0031
Turbine Housing AR1.22
Gasket (turbine inlet)409123-0002 (310694)(Inox Steel) $14.81
Gasket (turbine outlet)210221 (Stainless Steel) $22.00
Gasket oil inlet210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) $4.38
Gasket (oil outlet) 210060 (311585, 148062, 2475013)  (Paper) $4.48
Gasket Kit215109 (2090505021)
ManufacturerHoneywell-Garrett


Applications

1995- Volvo B10 Coach, Transit Bus  Truck D10A with TD102 Engine
