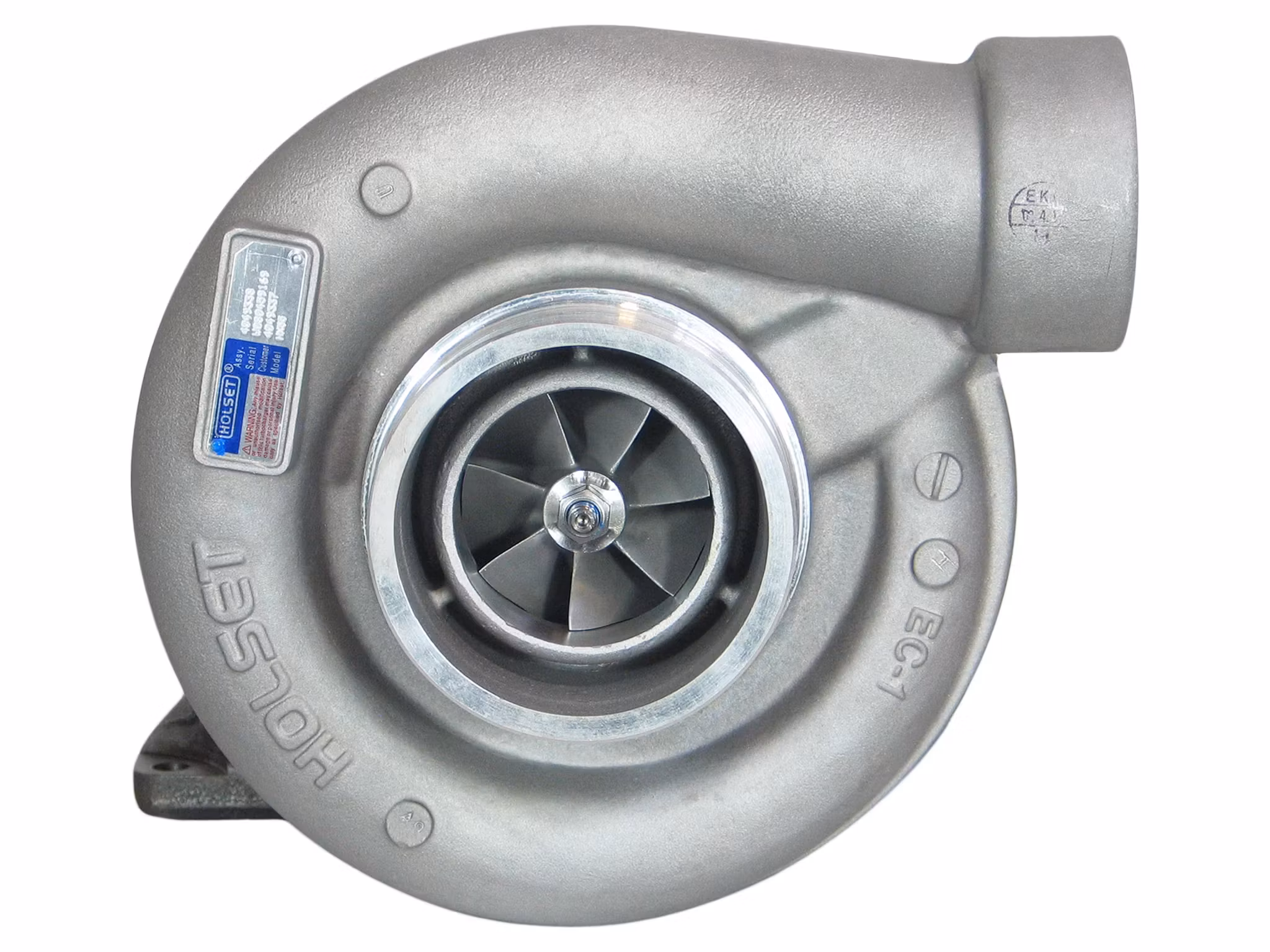

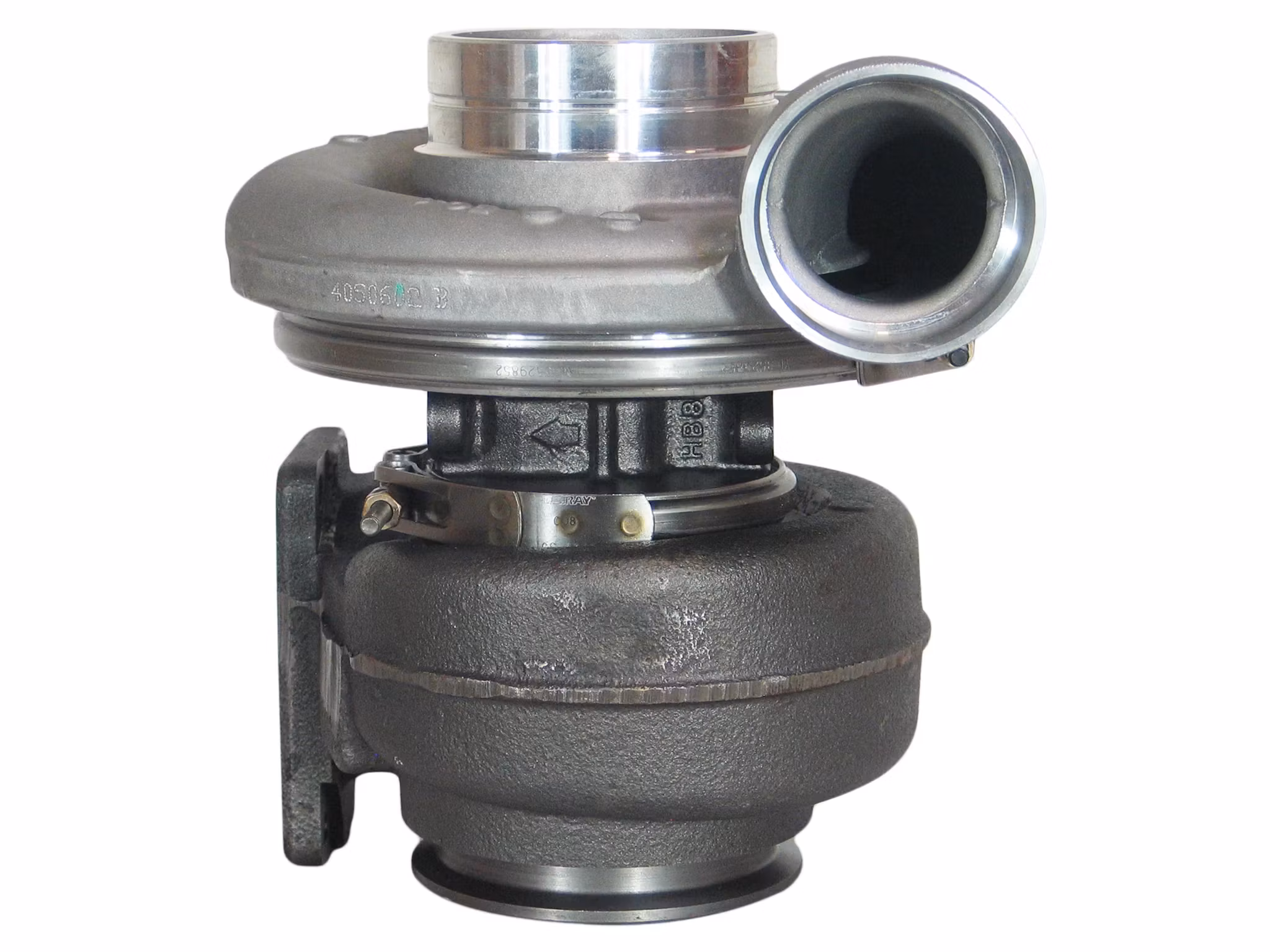

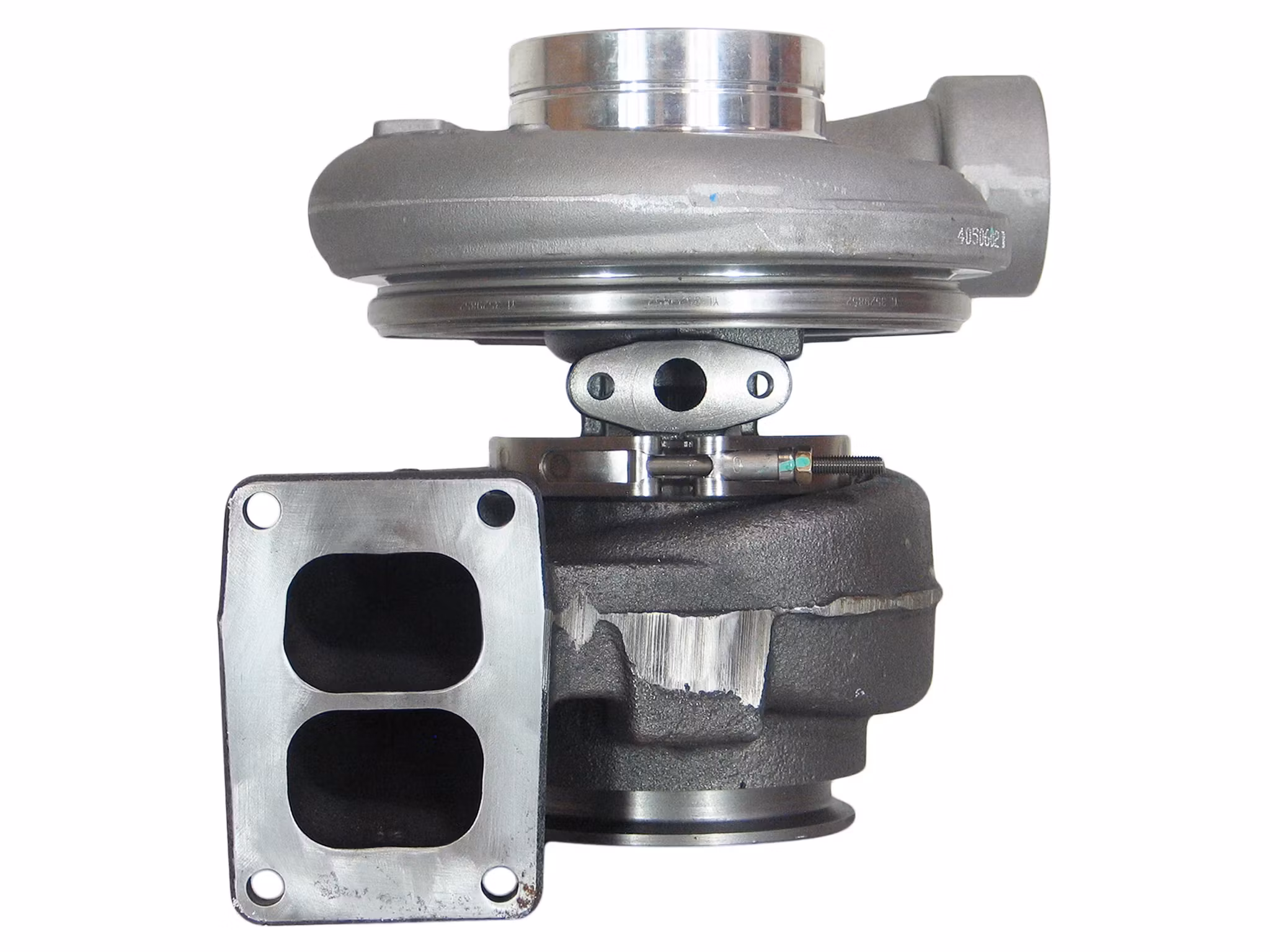

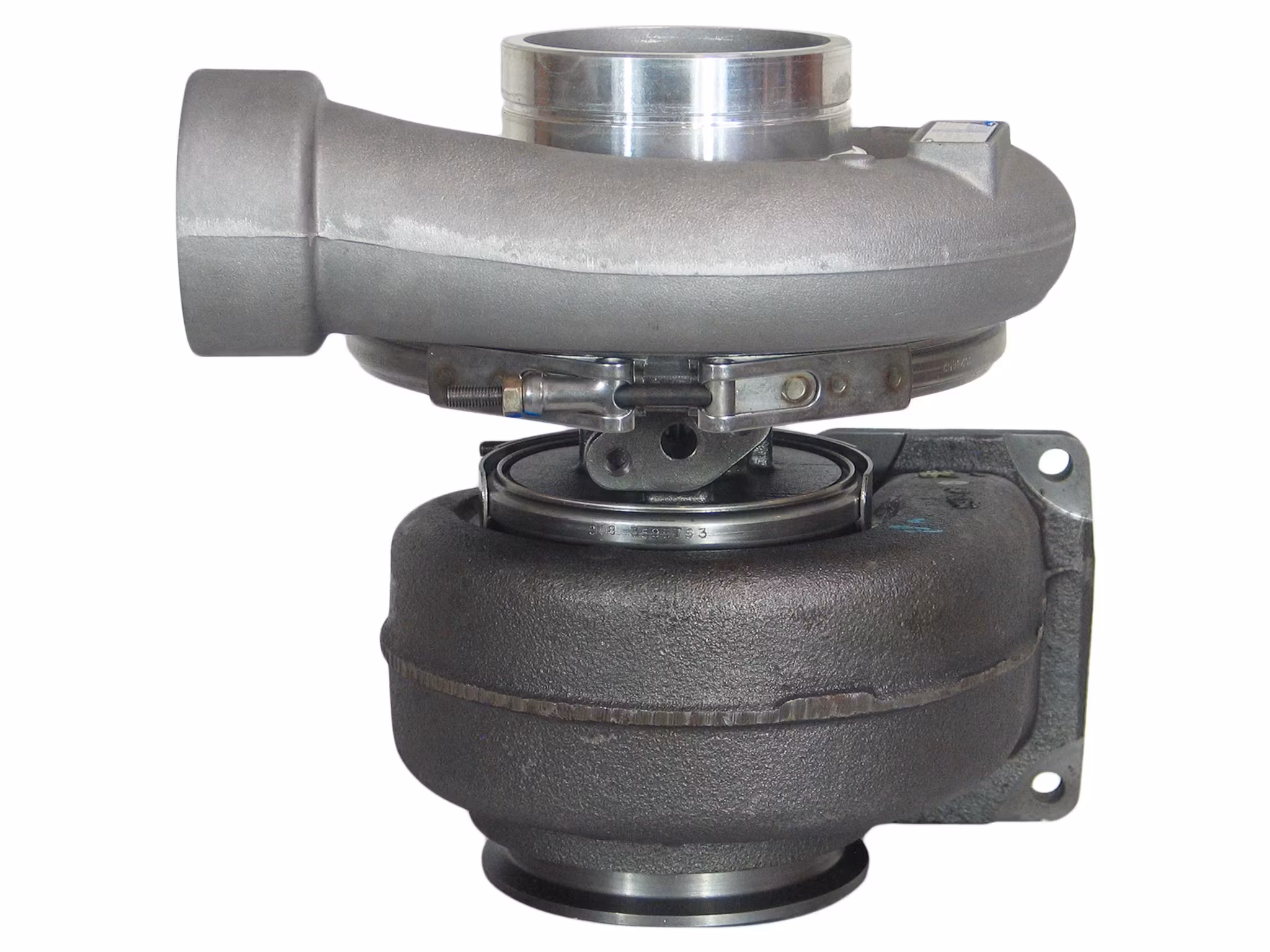

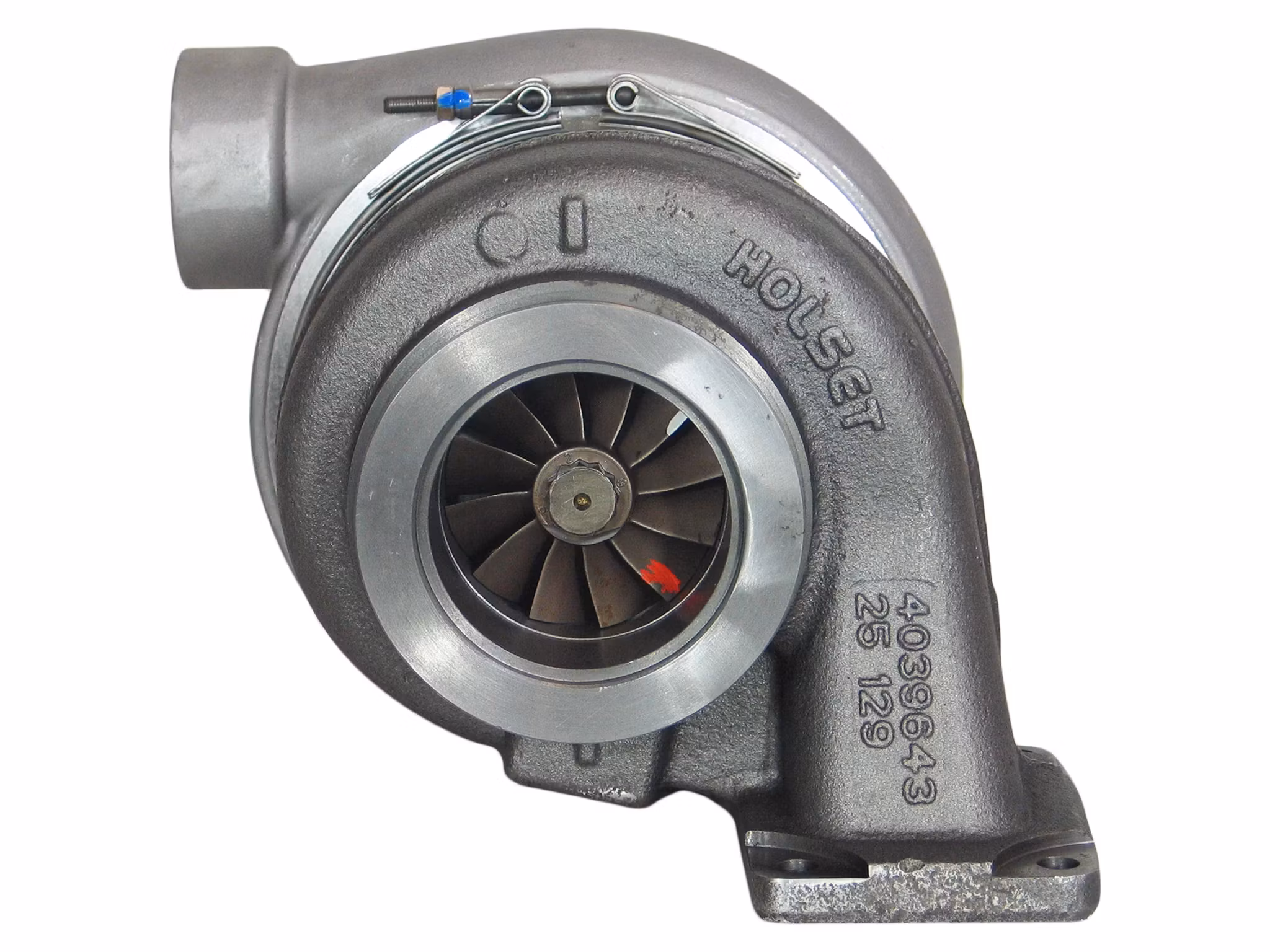

4049337H Holset HX55 fabriksny originalturbo.

  • 8 495 kr
  • 7 646 kr

4049337H Holset HX55 fabriksny originalturbo.- Fabriksny originalturbo- 3 års garanti.- Monteringssats i form utav Packningar avgas in + Olja ut / in medföljer

I lager.
Article Number: 4049337H
Share

4049337H Holset HX55 fabriksny originalturbo.

- Fabriksny originalturbo

- 3 års garanti.

- Monteringssats i form utav Packningar avgas in + Olja ut / in medföljer fritt.

Turbonummer / ersättningsnummer / Originalnummer :

Part Number 4049337
Previous Version4049338, 3533544, 3537840, 3537840-D, 3538716, 3538716-D,  3575237, 3591077-D,  4049338
OE number8113407, 3165219,  8148987, 425720, 1677725, 8112921, 8148873, 8112637, 4049337
Description Truck FH12 D12A, FH12 Truck, FM12 Truck
CHRA4027027 (4027248, 4032747)(1153055902, 1000020108)
Turbo ModelHX55-E9861E/T25VB15A, HX55
Engine D12C, D12A/C Euro-3
KW 338/430
Displacement 11.95L,  11950 ccm, 6  Cylinders
Fuel Diesel
Engine Manufacturer Volvo
Angle α (compressor housing)270°
Angle β (turbine housing) 180°
Bearing Housing 3590231 (4039258, 3598984)(Oil Cooled)(1900011334)
Turbine Wheel3533543 (4038182)(Ind. 85.95 mm, Exd. 80.01 mm, Trm 12.92, 12 Blades)(1153055435, 1100016168)
Comp. Wheel4041666 (3593629,  4040739, 4040740)(Ind. 65.12 mm, Exd. 97.66 mm, Trm 6.09, 7+7 Blades,  Superback)(1200016217)
Back plate 3528096 (1153055300, 1800016024)
Heat shield Number 3529846 (3533038)(1153055340, 2030016003)
Repair Kit3580762 (3575181)(1153055750, 5000020023)
Turbine Housing4039644
Compressor Cover4050602
Gasket (turbine inlet)409038-0000 (132040, 210017-0000, 52231083002)
Gasket oil inlet147837 (409036-0000, 210023-0000, 55739, 210023)
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 2475013)
Gasket Kit215090 (2090505445)
Substitutive 452164-5001S, 4037181-D
ManufacturerHOLSET


Applications


1993-95 Volvo Truck FH12 /FL12 with D12C Engine
