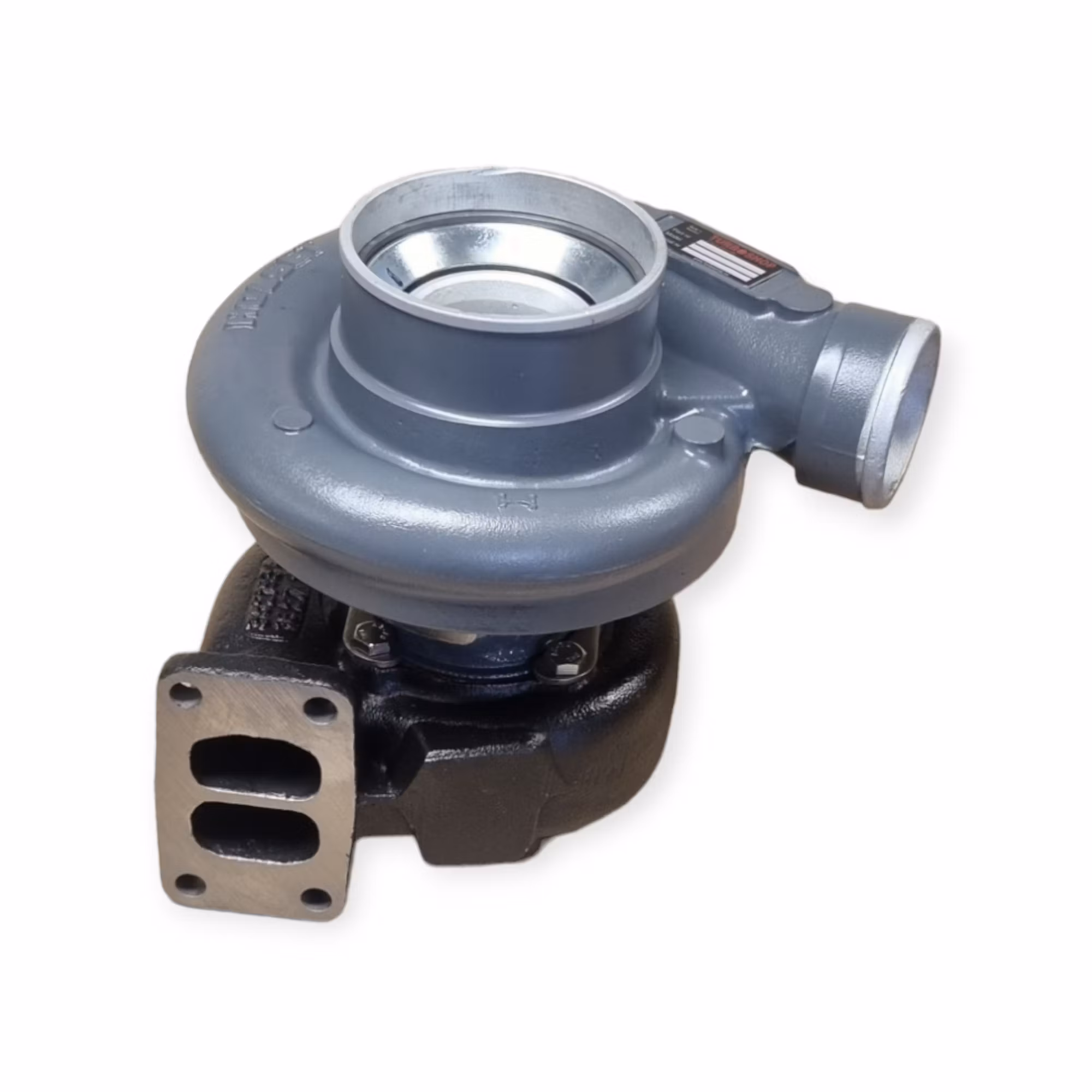

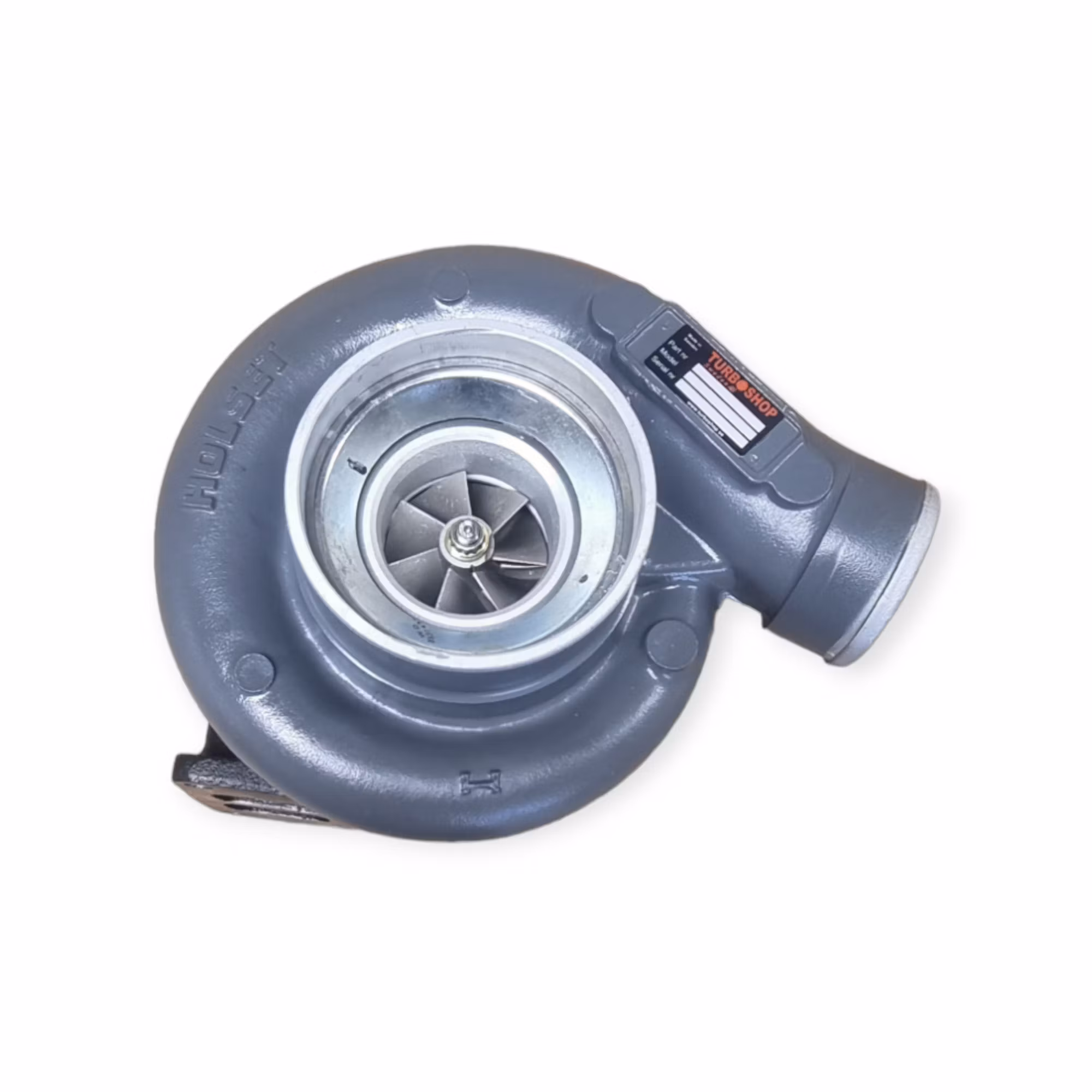

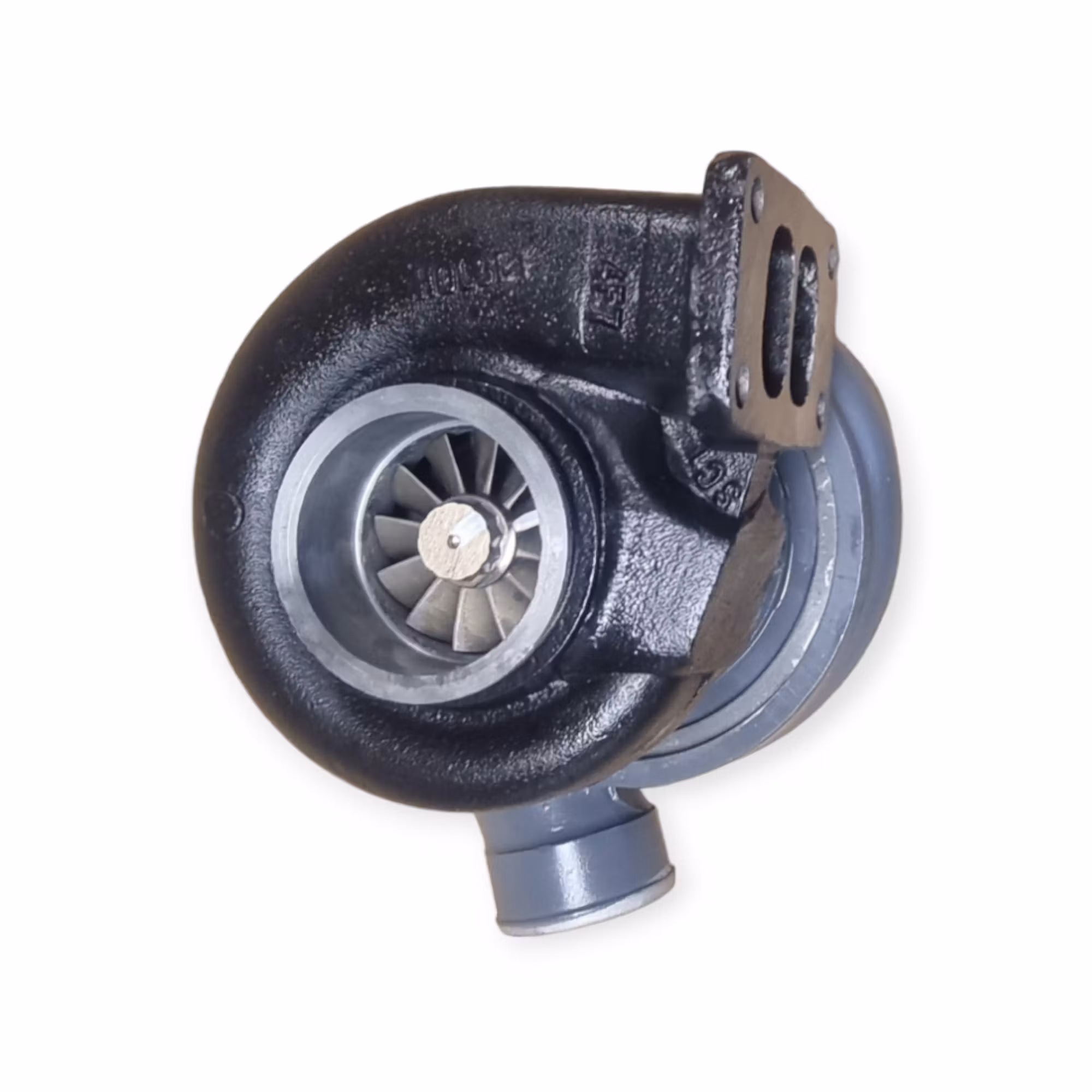

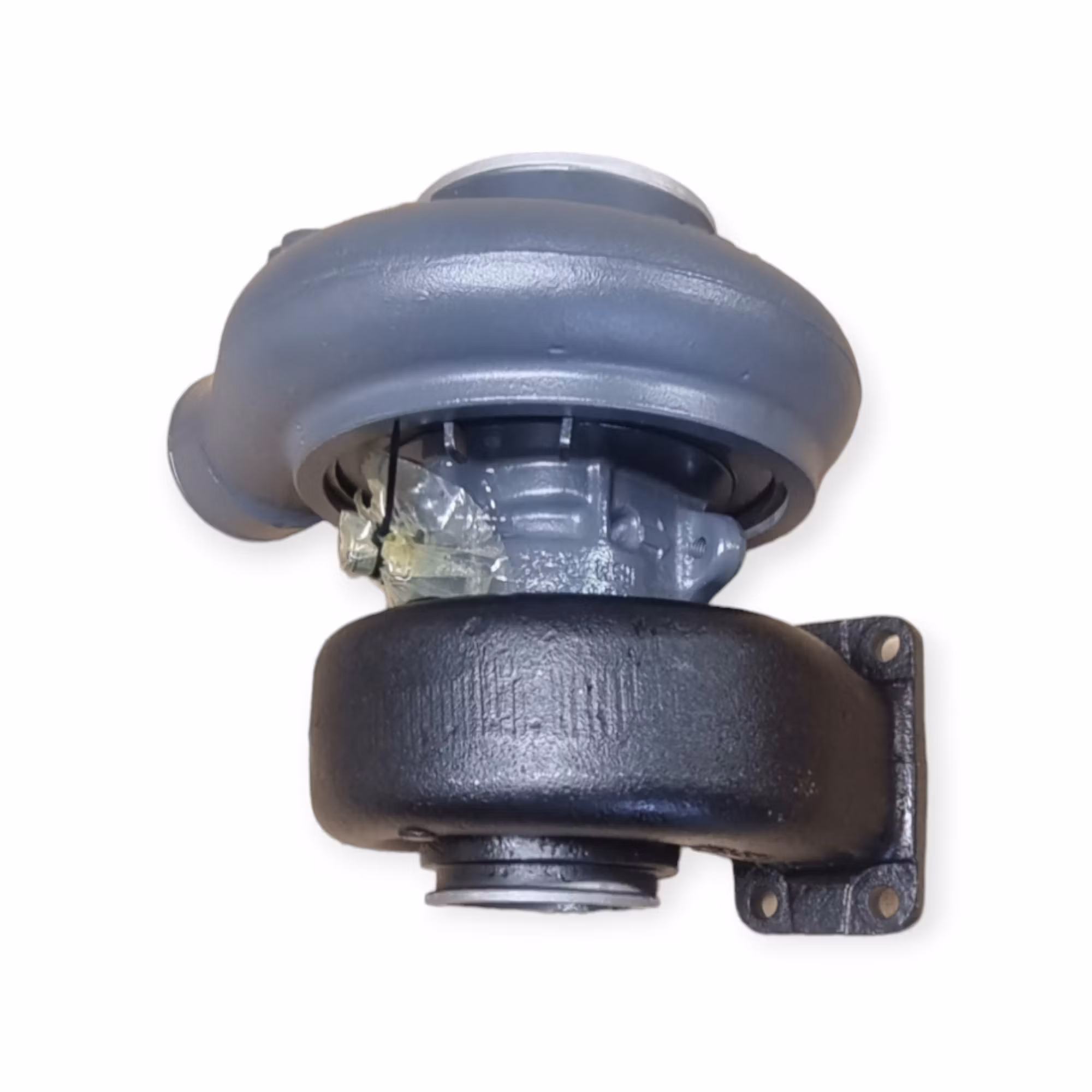

4040605 Holset HX35 renovering ( Renovering )

  • 6 995 kr

4040605 Holset HX35 renovering ( Renovering )- Renovering utav er befintliga turbo 4040605.Vi renoverar dagligen HX35 turbos utav alla olika slag här.Turbonumme

I lager.
Article Number: 2333
Share

4040605 Holset HX35 renovering ( Renovering )

- Renovering utav er befintliga turbo 4040605.

Vi renoverar dagligen HX35 turbos utav alla olika slag här.

Turbonummer / originalnummer / Turbofakta :

Part Number4040605
Previous versions3772651, 3779711, 4033369, 4033369H, 4040606, 4044101, 4047470
OE number504101887, 504176062, 504236456, 504369120
Year2004-07
DescriptionHatz Forklift,  Excavator,  Earth Moving, Fiat, Iveco Excavators, Telehandler
Manufacturer Part Number 4047470, 4044101, 4040606, 504236456, 504176062
CHRA4030891 (4030891H) $390.00  NEW IN STOCK, MADE IN USA
Turbo ModelHX35-A77J68GAG/A70Q86FE16DA, HX35
Engine Manufacturer Iveco
Angle α (compressor housing)220°
Angle β (turbine housing)360°
Bearing Housing4032032 (4027443, 4032218)(84.50 mm)(Oil Cooled)
Turbine Wheel3595832 (3519336)(Ind. 70.0 mm, Exd. 59.9 mm, Trm 10.82, 12 Blades)(1152301435)
Comp. Wheel3599650 (3599594)(Ind. 51.76 mm, Exd. 76.2 mm, Trm 5.15, 7+7 Blades, Superback)
Back plate3530923 (1154351300)
Heat shield Number3519304 (3519302)(1152301340)
Repair Kit4027448 (3575169)(1153035750)
Gasket Kit35455
ManufacturerHOLSET


Applications

2004-07 Iveco Earth Moving Excavator Iveco E265

2004-06 Iveco Various Iveco E265
