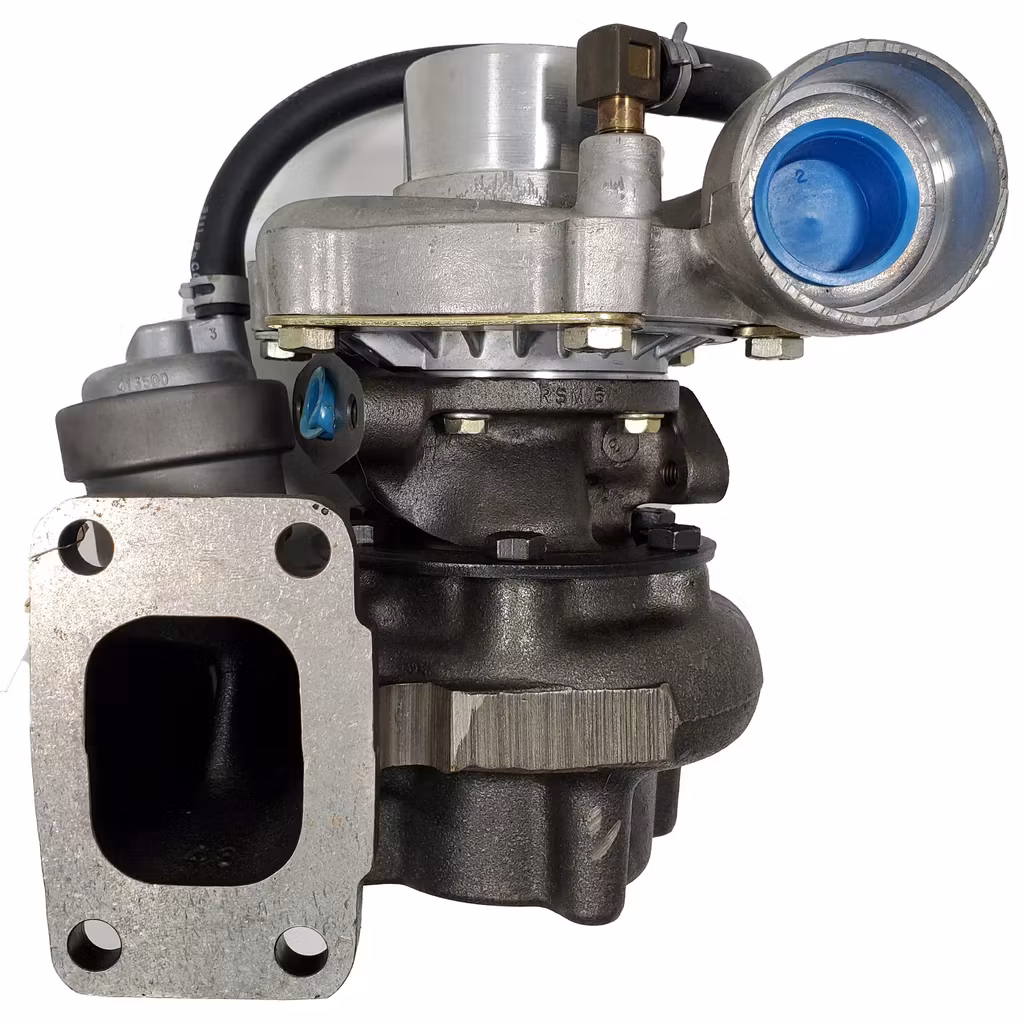

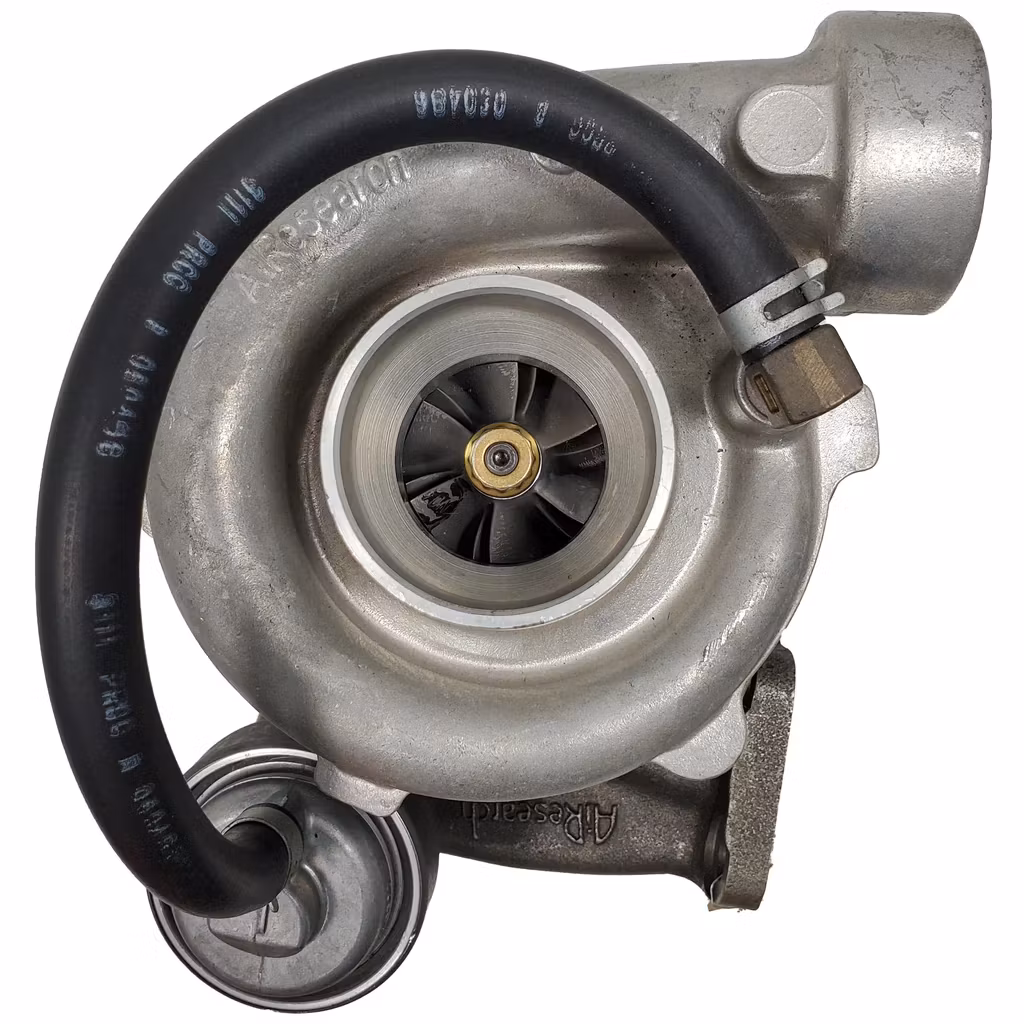

465228-5003S Garrett TA0301 renovering
Renovering utav er befintliga turbo till en unik modell som sedan en längre tid utgått ifrån fabrik.
Finns även möjlighet till uppgradering på kompressorsidan om det önskas i samband med renovering.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 465228-5003S |
| Previous Version | 465228-0003 |
| OE number | 0010966499, A0010966499 |
| Description | MBZ 300TD, 300SD, 300CD, 300D DSL, Coupe, Kombi |
| CHRA | 409172-0020 (409172-5020S, 409853-0001, 409172-0044) $350.00 |
| Turbo Model | TA0301 |
| Displacement | 3.0L, 3000 ccm, 5 Cylinders |
| Fuel | Diesel |
| Chassis | 123130/480, 123133/480, 123150/480, 123153/480, 123190/480, 123193/480, 126120/480, 123130/67K, 123133/67K, 123150/67K, 123153/67K, 123190/67K, 123193/67K, 126120/67K |
| Models | 300 CD 75-80, 300 CD TURBO-DIESEL USA 82-85, 300 CD USA 81-81, 300 D 75-80, 300 D 81-81, 300 D TURBO DIESEL USA 82-85, 300 D USA 81-81, 300 SD 79-80, 300 SD USA 81-85, 300 TD 75-79, 300 TD 80-81, 300 TD TURBO DIESEL 75-80, 300 TD TURBO DIESEL 81-85, 300 TD TURBO DIESEL USA 81-85, 300 TD USA 80-81 |
| Engine | OM 617.951, 61795, 617.951, 617.952 |
| Angle α (compressor housing) | 277.5° |
| Angle β (turbine housing) | 293° |
| Bearing Housing | 430027-0025 (430027-0022, 430027-0048) (186879, 186881)(1100030450)(Oil Cooled) |
| Turbine Wheel | 451310-0003 (451310-0006)(Ind. 48.5 mm, Exd. 65. mm, Trm 56, 11 Blades)(1100030436, 1100030438) |
| Comp. Wheel | 409096-0008 (409096-0014, 409096-0001) (103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback, 6+6 Blades) (1100030401) |
| Back plate | 409629-0003 (409629-0006, 409629-0004, 409629-0001) (1100030300) $38.00 NEW IN STOCK |
| Heat shield Number | 409627-0000 (103121-0000)(1100030340) |
| Repair Kit | 468139-0000 (318377, 166587)(1252102750)(Dynamic) $69.50 NEW IN STOCK |
| Turbine Housing | 400677-0816/409992-0003 |
| Compressor Cover | 409589-0018 |
| Turbine Housing AR | 0.48 |
| Actuator | 409249-0001/409144-0001/400690-0000 NEW IN STOCK |
| Settings Waste gate (pressure) | 1.00-1.05 bar |
| Settings Waste gate (lift rod) | 3.8 mm |
| Gasket (turbine inlet) | 409039-0001 (210190-0000, 132044, 312617)(Stainless Steel, Single Port) $9.99 |
| Gasket (turbine inlet) | 210315 (Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48 |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) (Paper) $3.32 |
| Gasket Valve Actuator | 409262-0001 |
| LISTED | $2214.40 |
| Interchanges With | 466246-0001 |
| Manufacturer | Honeywell-Garrett |
Applications
1982-85 Mercedes 300 CD TURBODIESEL Coupe Engine OM 617.952
1982-85 Mercedes 300 D TURBODIESEL Sedan Engine OM 617.952
1979-85 Mercedes 300 SD Sedan Engine OM 617.952
1975-85 Mercedes 300 TD TURBODIESEL Wagon Engine OM 617.952
1981-85 Mercedes Benz Coupe, Kombi Engine OM 617.952
