740902-0095 Garrett G30 INT WG turbinehousing A/R 1,01

  • 6 495 kr
  • 5 846 kr

740902-0095 Garrett G30 INT WG turbinehousing A/R 1,01  Garrett Turbine Housing A/R 1,01 that fits all G30 turbos as G30-660 / G30-770 / G30-900 all s

I lager.
Lagersaldo: 6
Artikelnummer: 740902-0095
Dela

740902-0095 Garrett G30 INT WG turbinehousing A/R 1,01

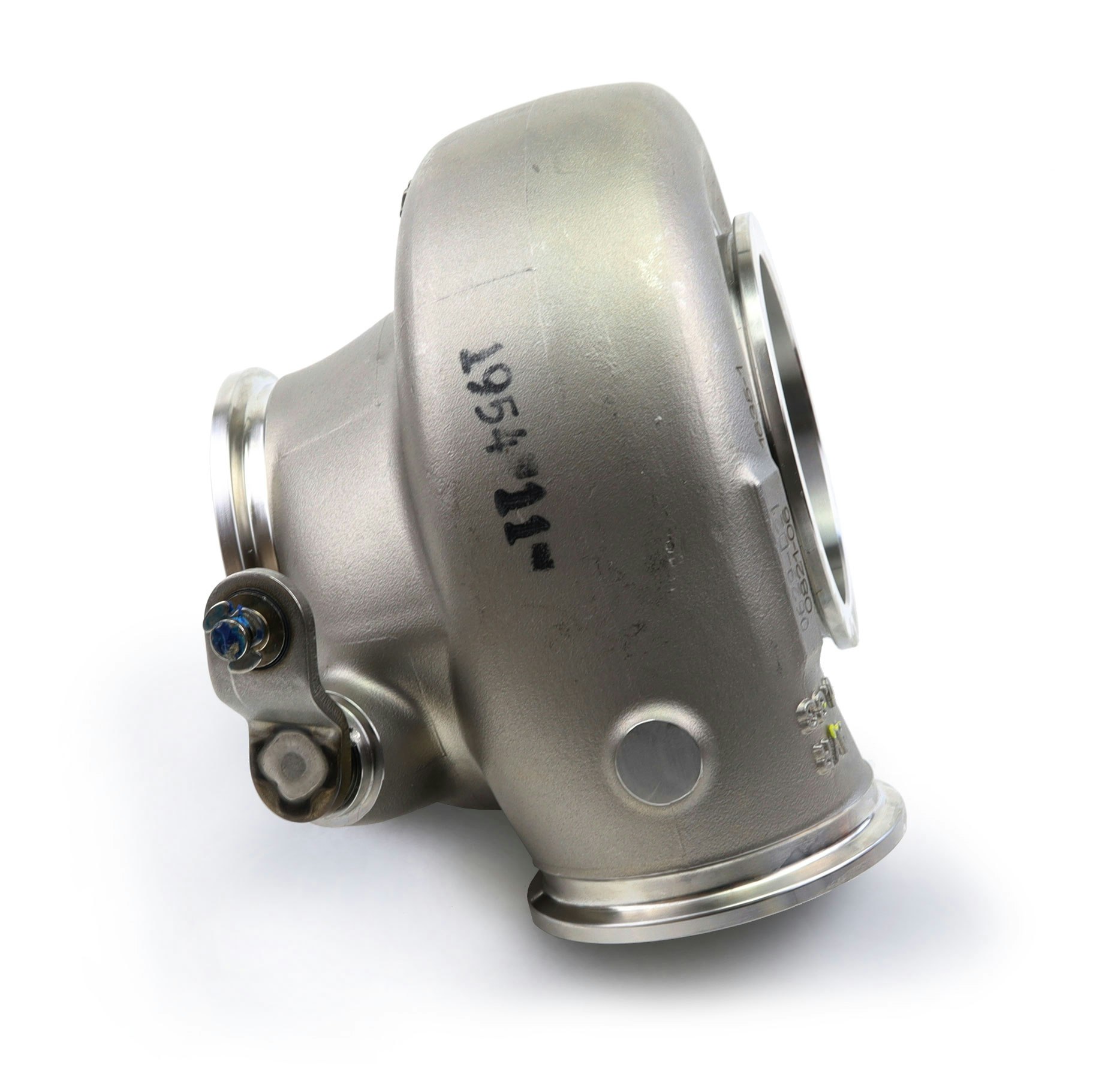

Garrett Turbine Housing A/R 1,01 that fits all G30 turbos as G30-660 / G30-770 / G30-900 all supercores + assembly kit for wastegate is listed below.


G30 supercores that this turbinehousing fits :

G30-660 : 880693-5001S

G30-770 : 880693-5002S

G30-900 : 880693-5003S

  • G30-Series
  • Rotation: Standard (Clockwise)
  • 1,01 A/R
  • 84 Trim
  • V-Band Inlet
  • V-Band Outlet
  • Internal Wastegate
  • Material: Stainless Steel 1050°C

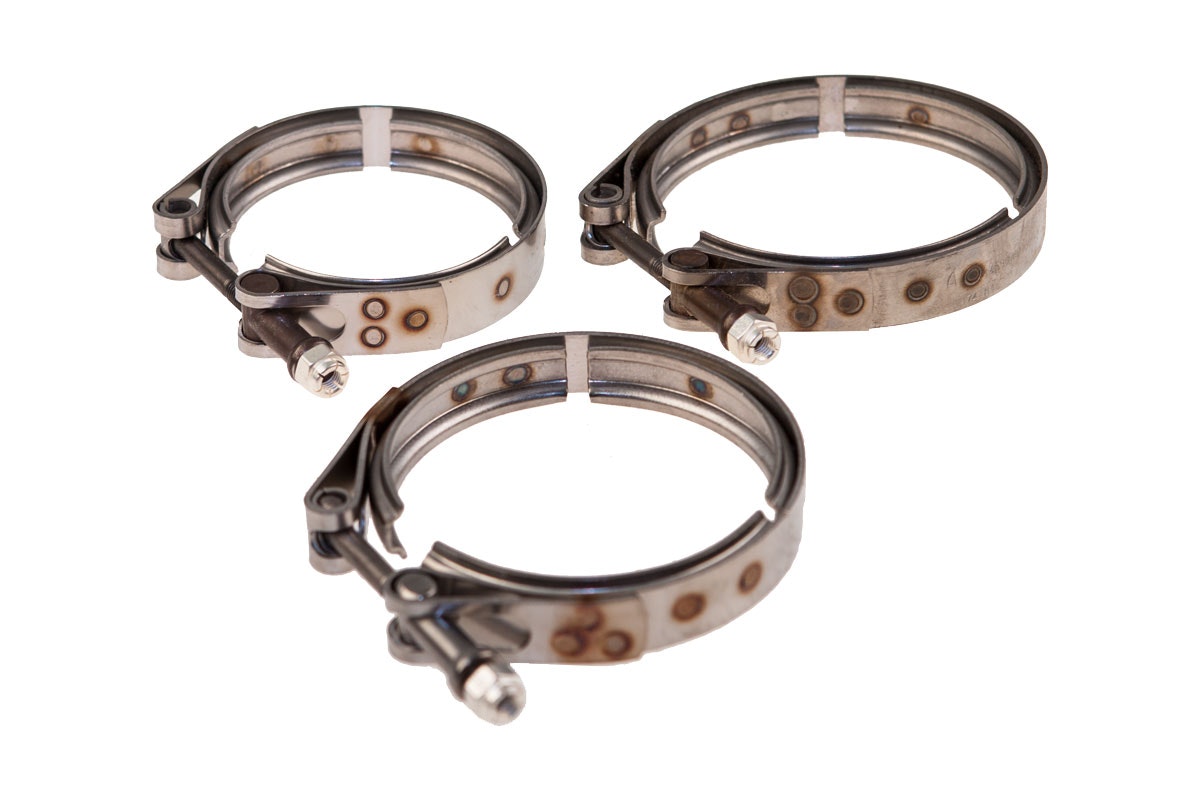

  • Delivery inclusive V-Bands
  • 740902-0095



With  the turbine housings for the Garrett turbochargers, you can put  together the turbo yourself according to your calculations. This is  useful if you want to adapt the turbo for a different displacement with  different A/R values, for example. Housings with other flanges can also  be installed. The turbine housing can be easily removed by loosening the  V-band clamp.



Determine the A/R value correctly:



The  A/R value determines the exhaust gas throughput of the turbine housing  and is therefore largely responsible for the performance of the  turbocharger and engine. Basically, the lower the A/R value, the earlier  the turbocharger responds, but on the other hand, the exhaust gas back  pressure increases and the maximum output decreases.



Vi på Turboshop Sweden AB har många års erfarenhet utav turboval samt vi hjälper er gärna välja lämplig turbo samt turbinhus här.

Maila [email protected] Motorfakta / Bränsle / Ändamål / effektmål osv..
