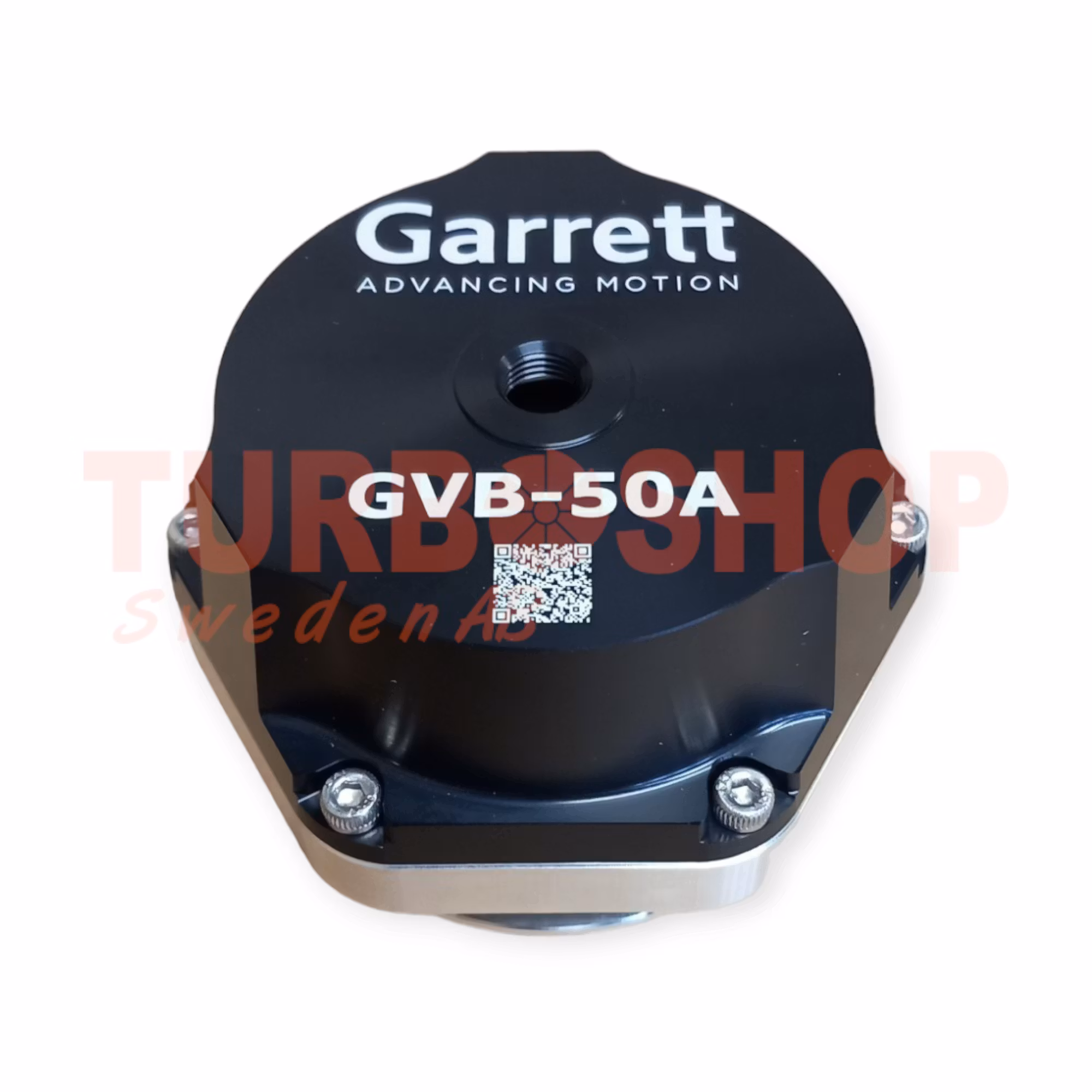

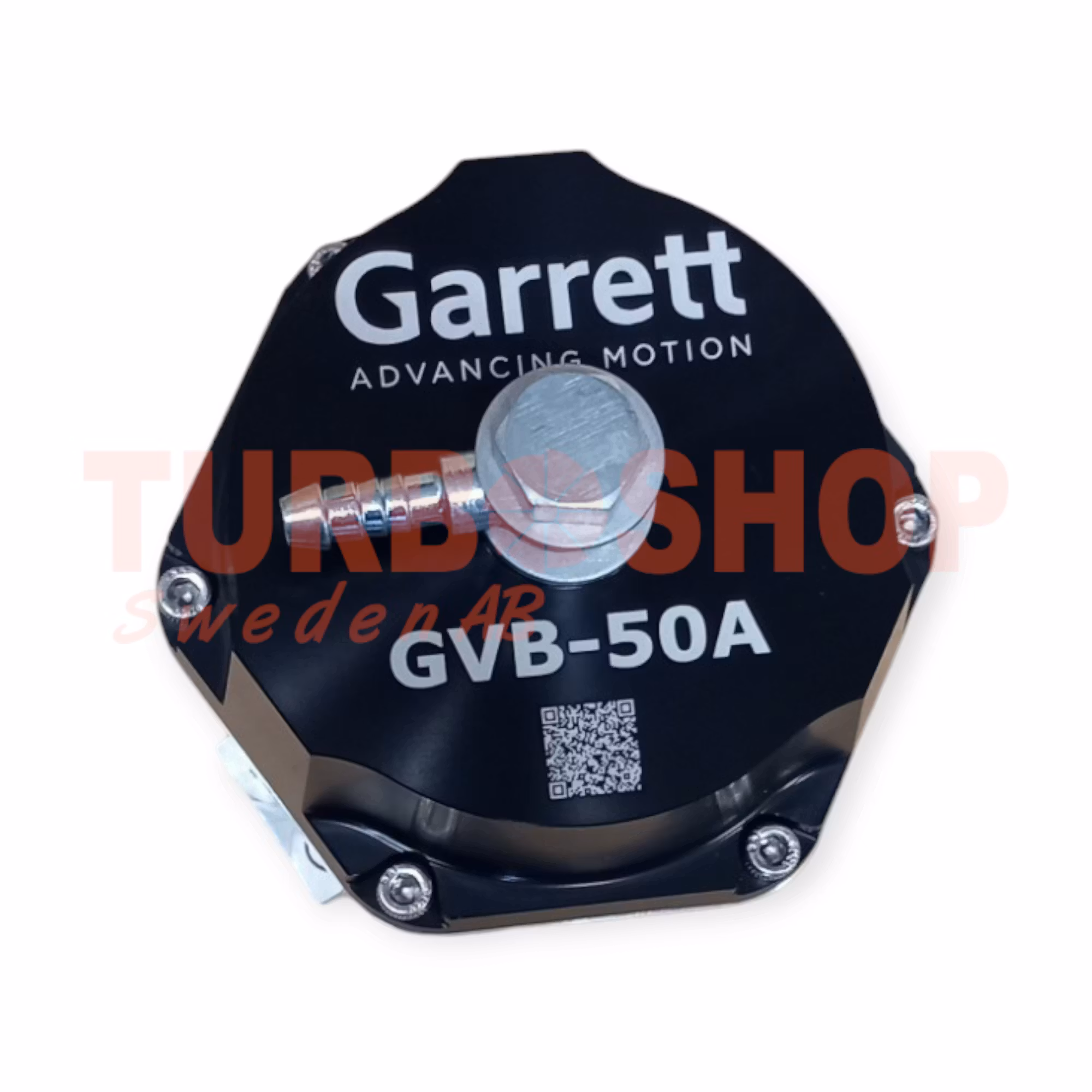

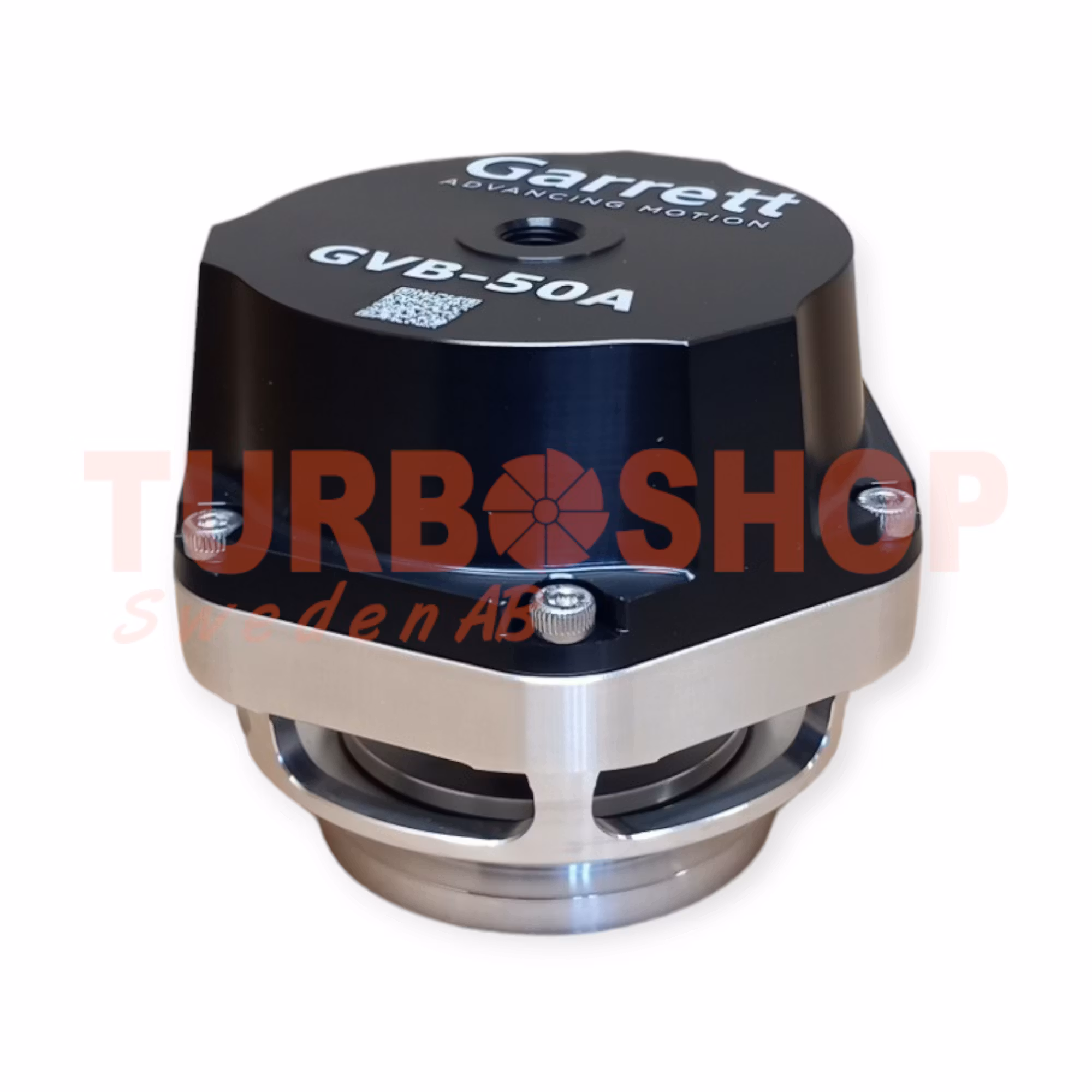

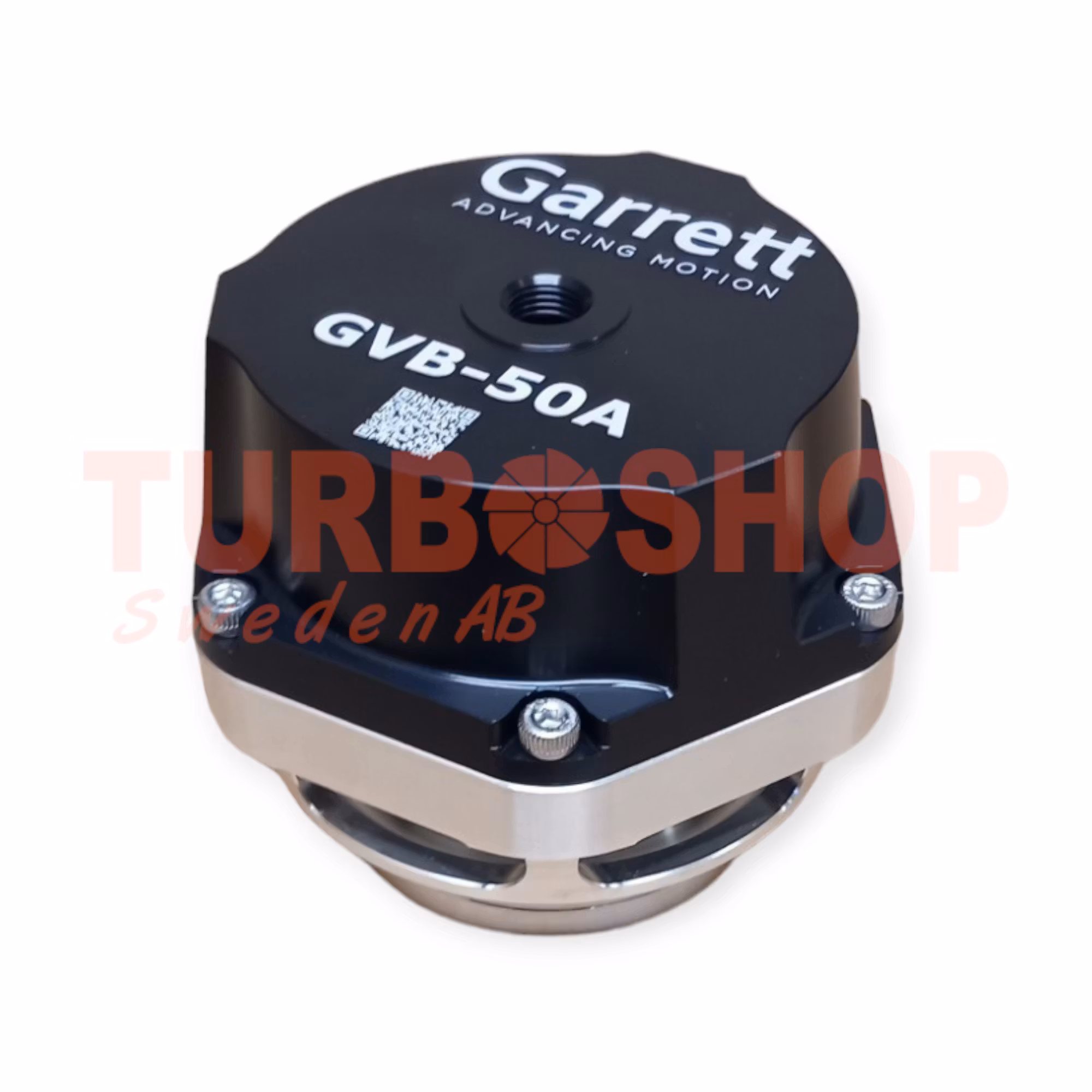

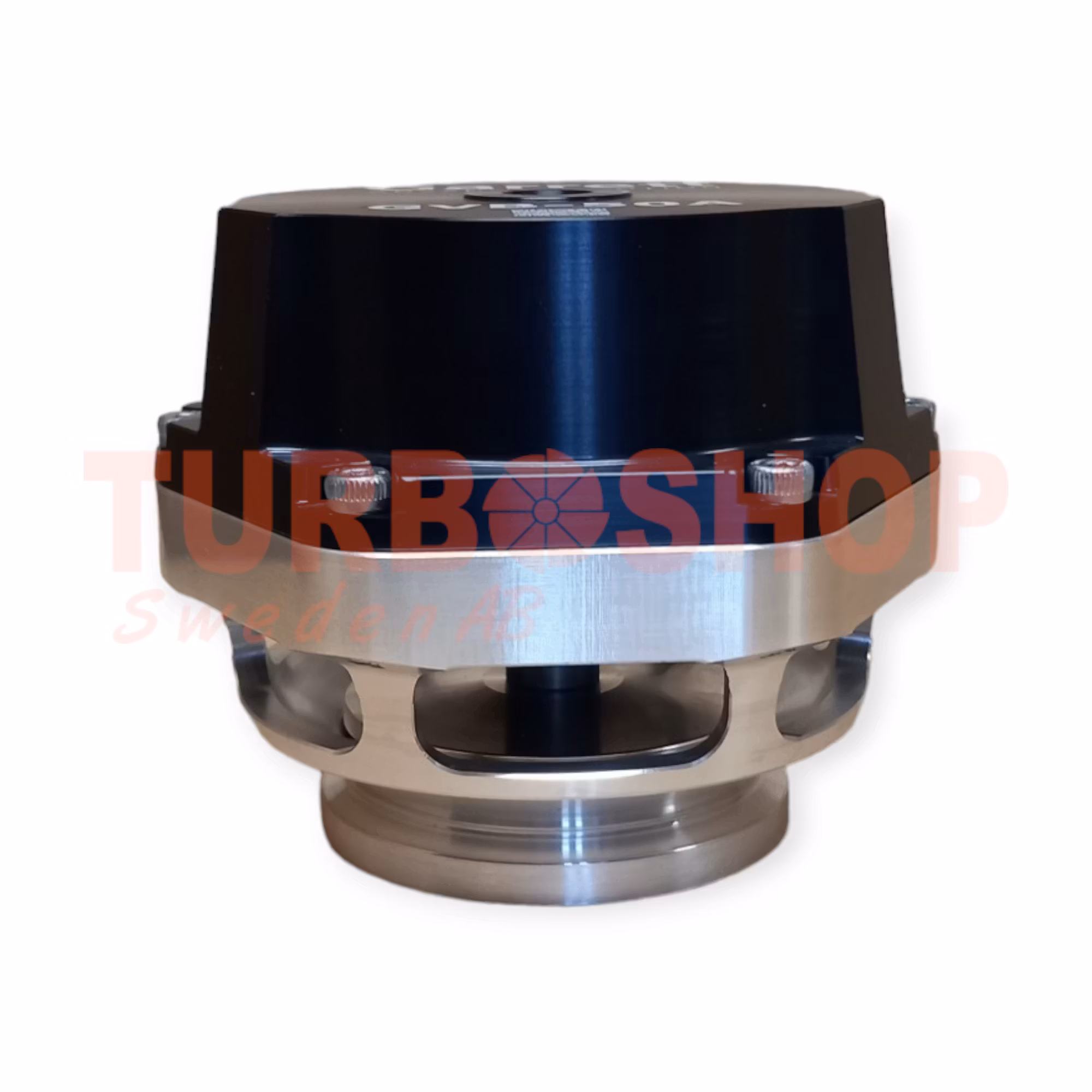

914956-0003 GVB-50A Garrett 50MM Blow off / Dumpvalve / Dumpventil ( Svart )

GARRETT VENT | BLOW-OFF Valves with high flow for high performance engines

Garrett Vent | Blow-Off Valves were developed by the same engineers who designed the G-Series turbochargers and GVW wastegates.

GVB-50 is a high flow BOV with a 50mm valve available in four eye-catching colour combinations.

You have the choice between a BOV with venting to atmosphere (VTA) and one with recirculation (RCV).

Features:

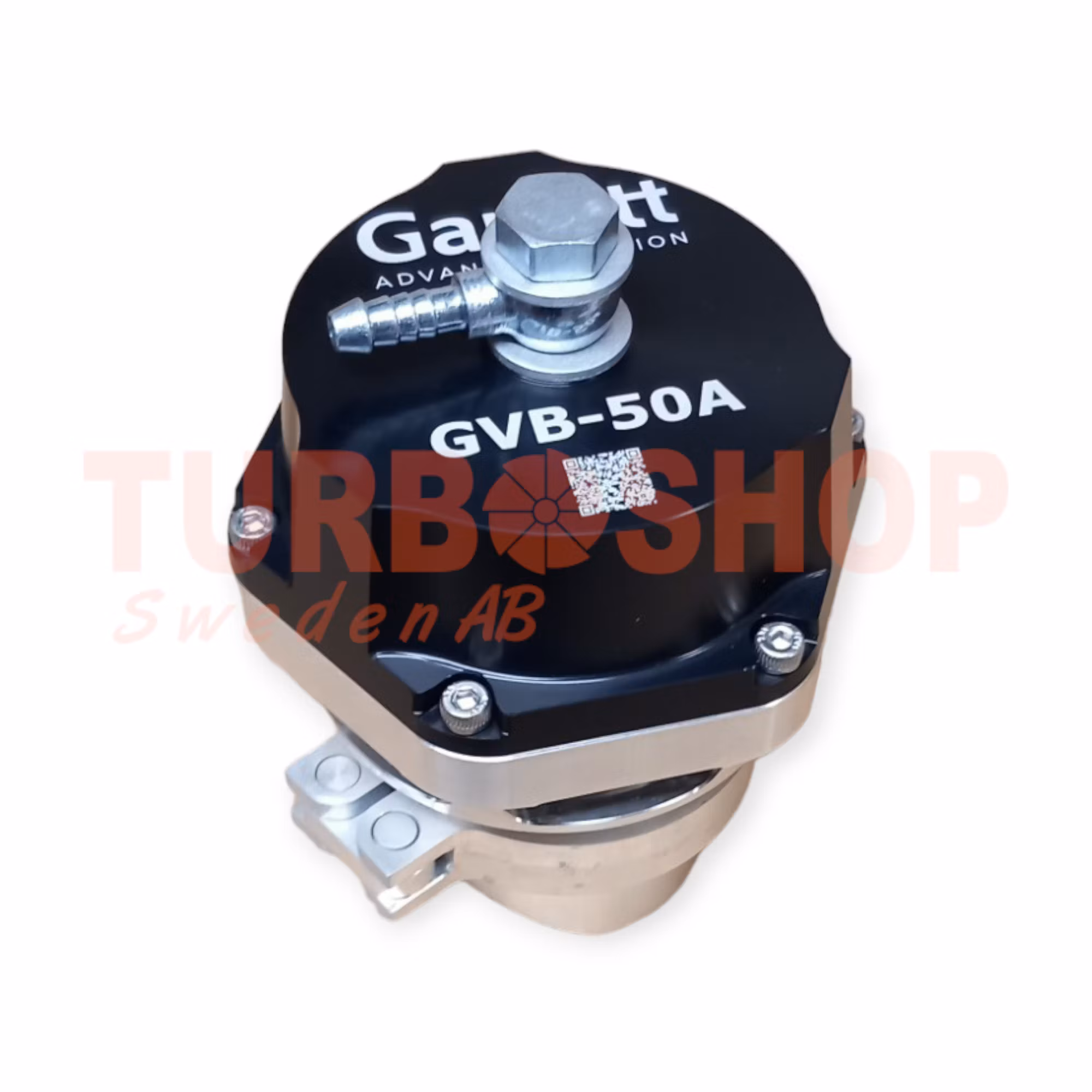

• GVB-50A - Vent to atmosphere

• GVB-50R - Recirculation

• CFD-tested for maximum flow and thermal efficiency

• Replaceable components to extend service life

• Robust construction for easy membrane replacement

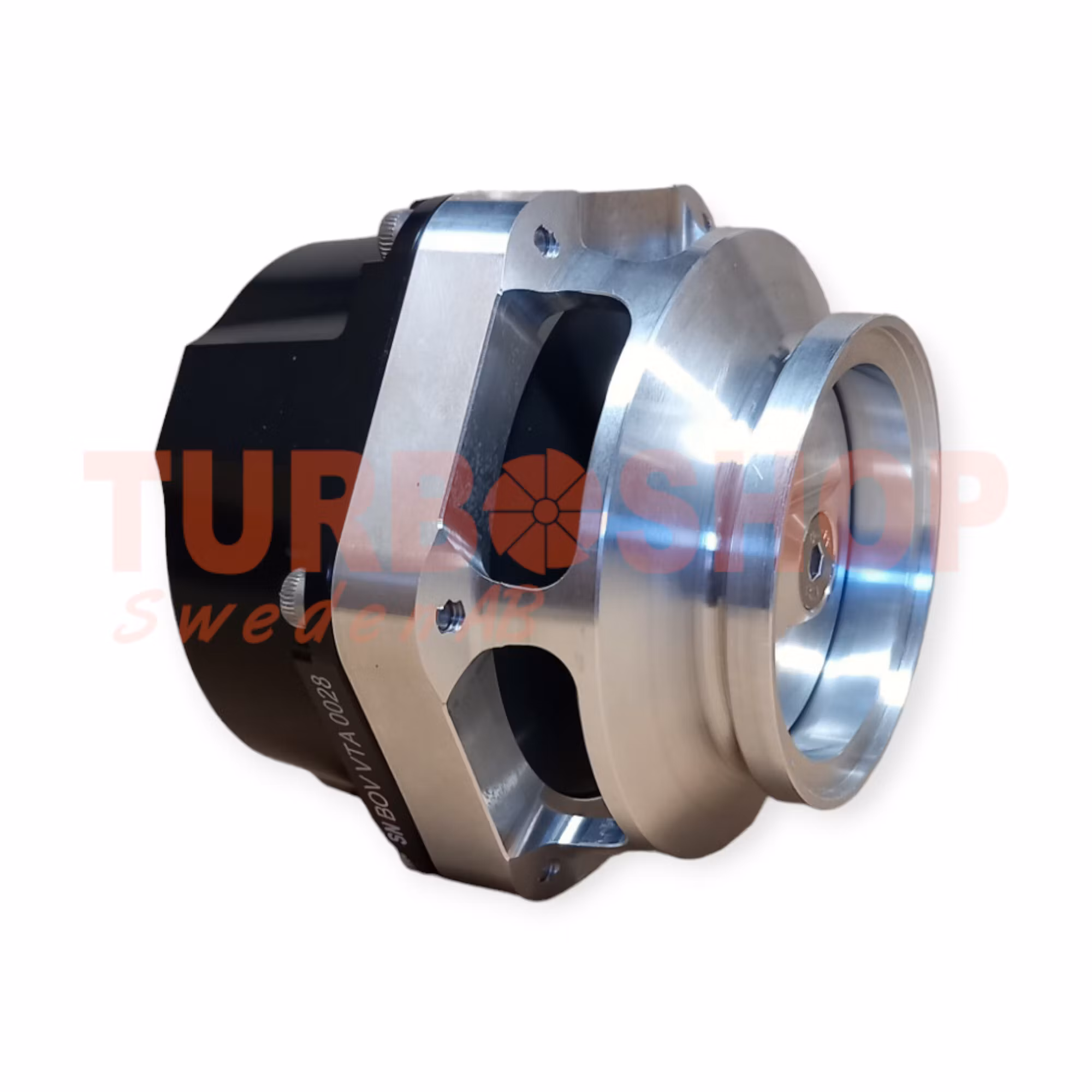

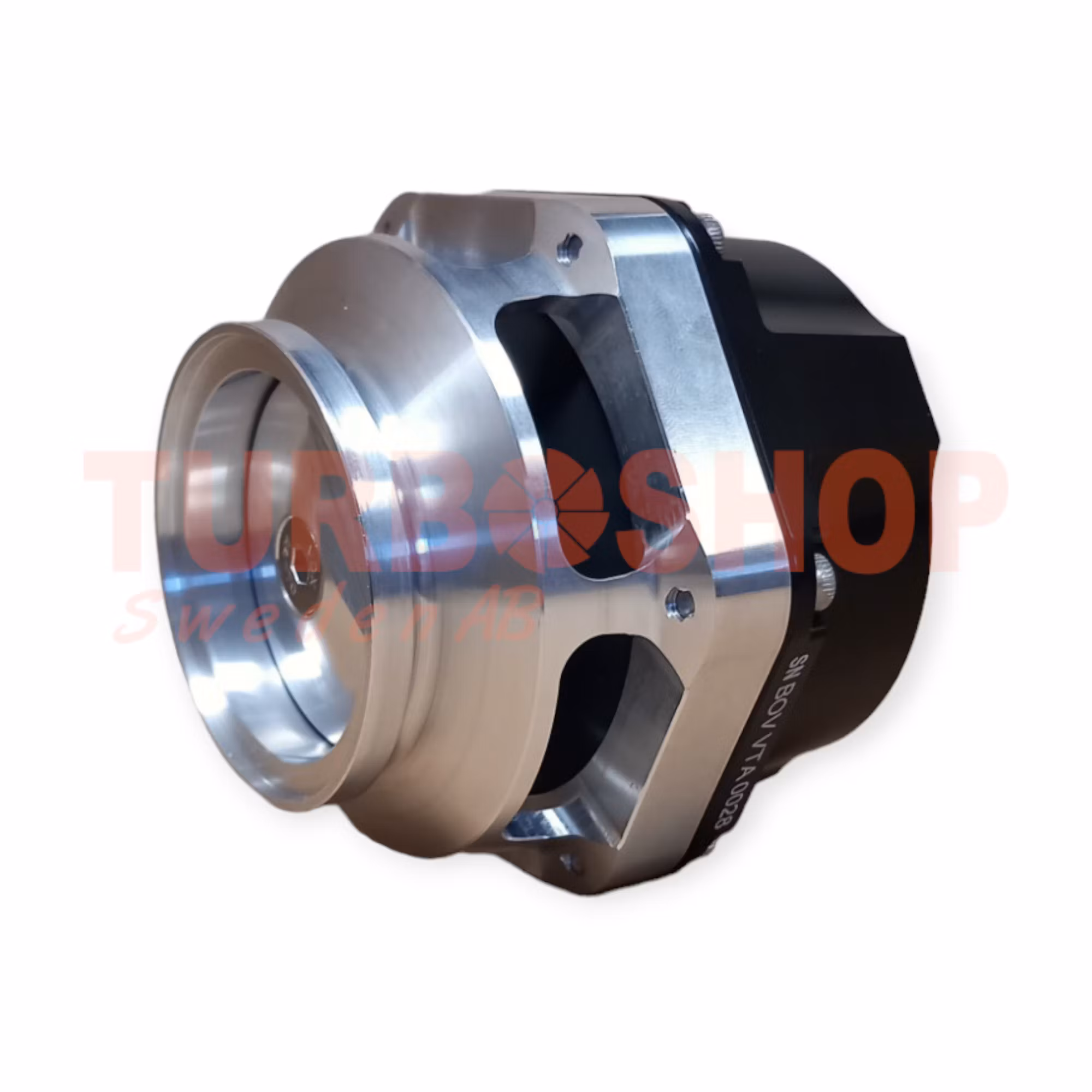

• 6061 anodised aluminium BOV cover and fully machined billet housing

• Maximum flow 350 CFM | .21kg/s for GVB-50R

• Four outlet adapters for the return valve are available separately

• Base pressure 0.7 Bar | 10 PSI (blue and white spring installed)

• Configurable spring settings: 0.2 Bar | 3 PSI - 0.9 Bar | 13 PSI

• Welded aluminium alloy flange

• Garrett BOV contains five springs that allow fine tuning of the pressure setting

• Springs: 17/7 PH stainless steel

• Coated stem and bushing for reduced friction and wear resistance

• High temperature resistant elastomer diaphragm reinforced with Nomex

• Fittings and fastening elements made of stainless steel

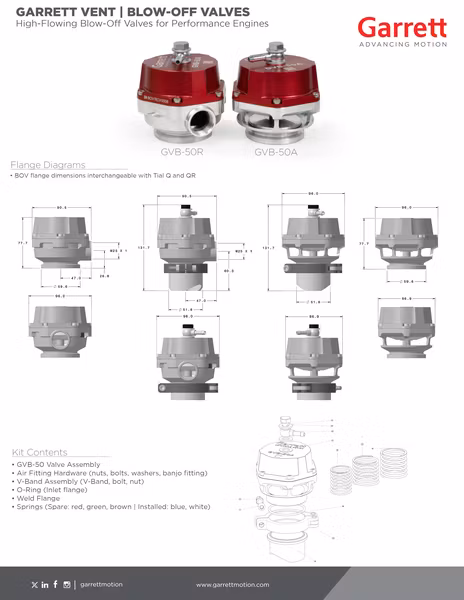

• BOV flange dimensions as for TIAL Q or QR valves

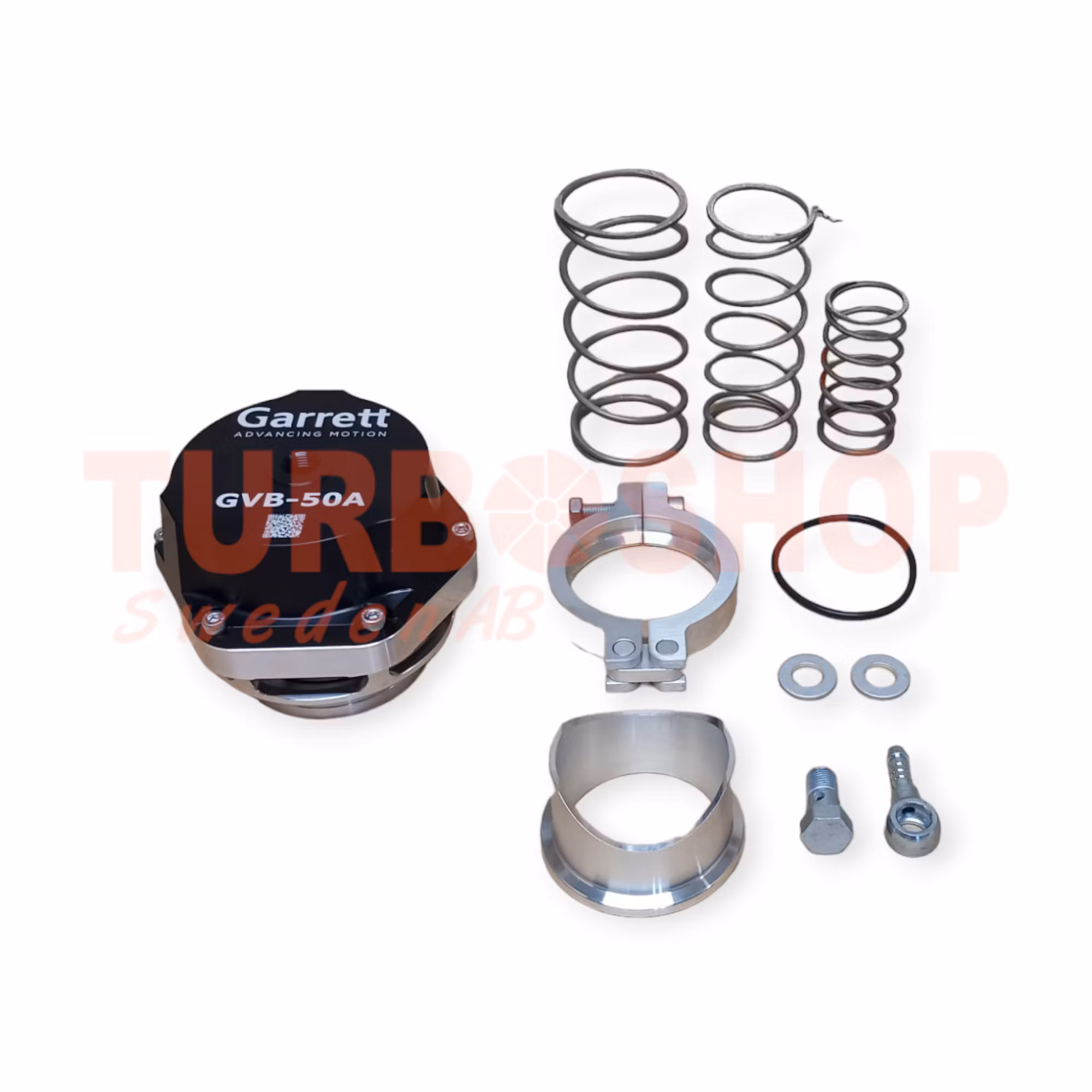

GVB-50 Blow Off Valves include all of the following parts:


• Air connection parts (nuts, bolts, washers)

• V-band set (V-band, screw, nut)

• O-ring (inlet flange)

• Welding flange

• Springs (replacement: red, green, brown | installed: blue, white)
