880547-5023S Garrett G47-1550 76|109MM ( Nyhet )

  • 38 000 kr
  • 34 200 kr

880547-5023S Garrett G47-1650 76|109MM ( Nyhet ) ( Beställningsvara 1-6 veckor )Fördelar + information om nya G47-1550 :         &

I lager.
Artikelnummer: 880547-5023S
Dela

880547-5023S Garrett G47-1650 76|109MM ( Nyhet ) ( Beställningsvara 1-6 veckor )

Fördelar + information om nya G47-1550 :



• Outline interchangeable with GTX Gen II turbos
• Supports up to 1550 flywheel horsepower
• 76mm | comp ind | 109mm comp exd
• High flow, high efficiency GTX Gen II comp aero
• G-Series turbine wheel aero increases performance compared to GTX47 Gen II
• Flow: up to 20% more
• Spool: up to +9% (estimated by flow, efficiency, and inertia)
• One-piece lightweight aluminum center hsg/backplate
• Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

G47-1550 Part Number: 880547-5023S

WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use  of this product above max turbocharger speed is at the owner’s risk, and  can result in damage and premature failure. To protect the turbocharger  from overspeed when operating, a speed sensor can be installed into the  compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your  vehicle’s modifications and tuning/calibration. The horsepower numbers  represented above are calculated based strictly on choke flow of the  compressor map (total turbo capability), which represents the potential  flywheel horsepower.

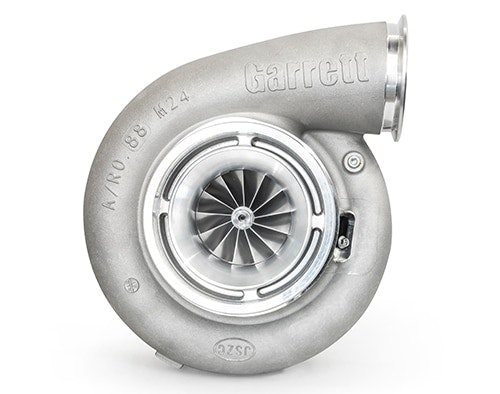

G-Series G47-1550 76mm

The latest Garrett technologies featuring many advanced features.



Turbine Kits: G47PNA/RInletOutletWastegateDivided

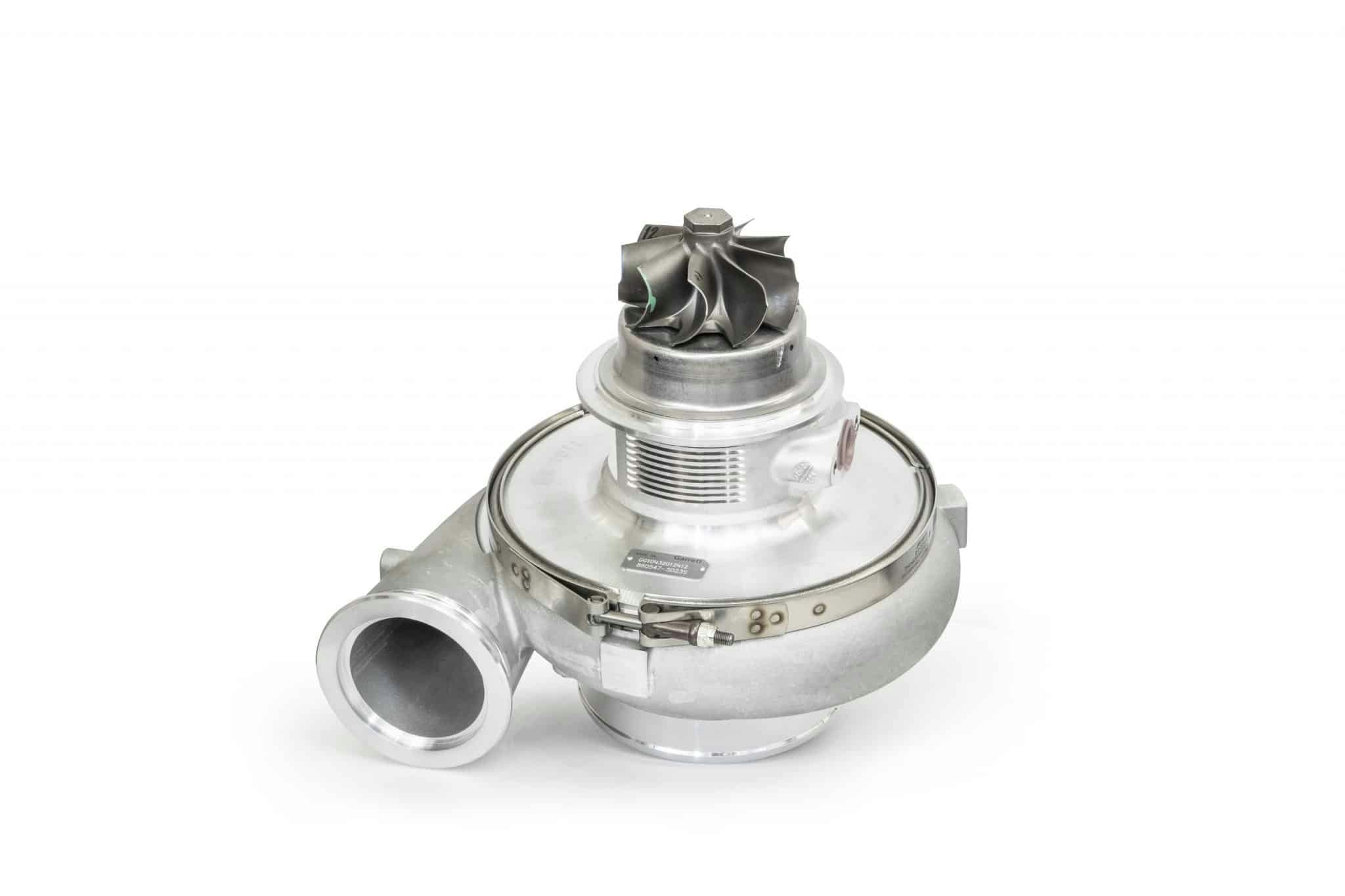

SupercorePN




HP: 825-1550              Disp: 2.5L-10.0L76mm109mm490.8893mm88mm90
G47-1550        CompressorTurbine
InducerExducerTrimA/RInducerExducerTrim
Standard Rotation880547-5023S




Interchangeable with G-Series G47 supercores 761208-00750.96T6V-BandFree FloatN
761208-00761.08T6V-BandFree FloatN
761208-00771.23T6V-BandFree FloatN
761208-00781.39T6V-bandFree FloatN

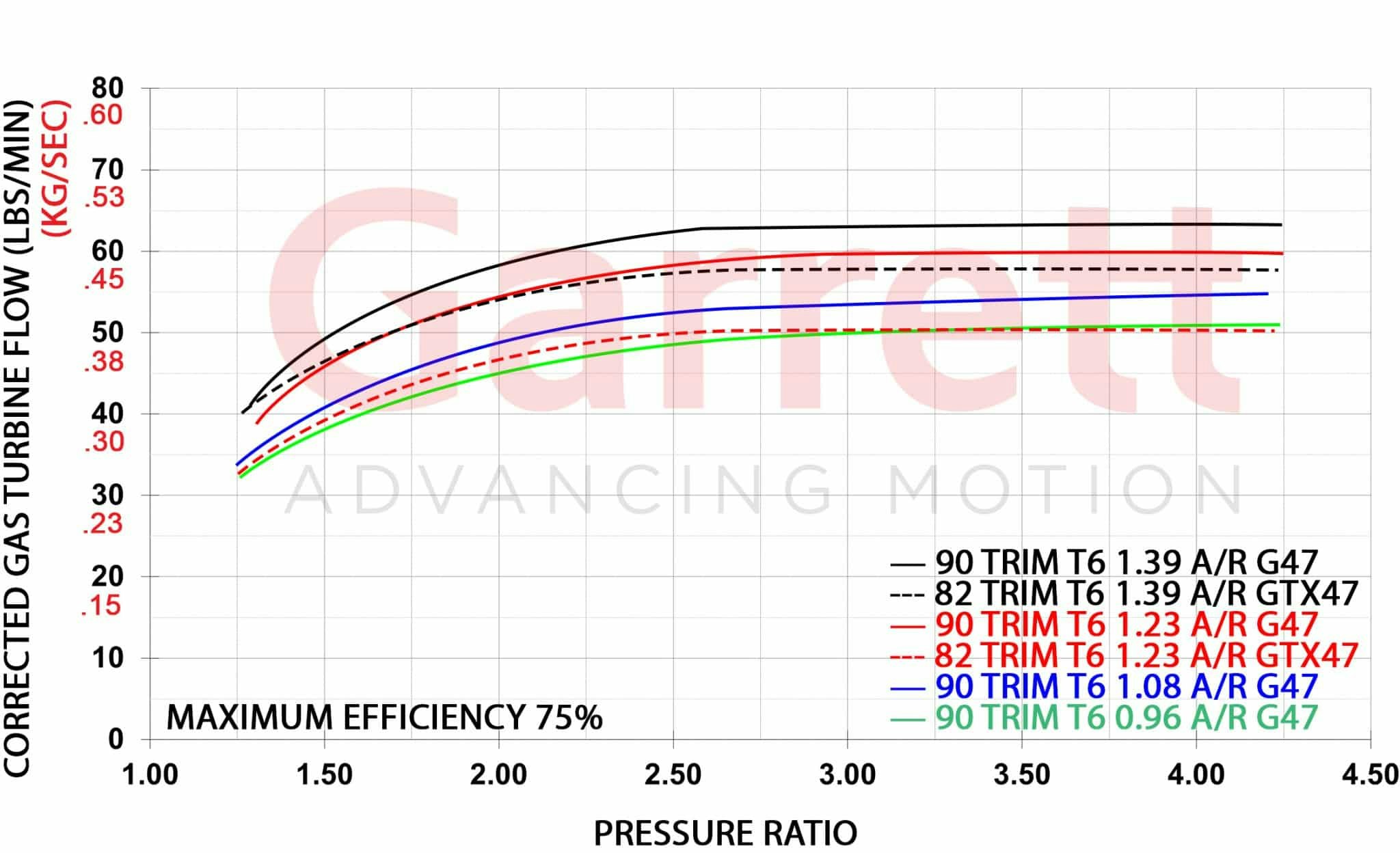

Compressor Map & Exhaust Flow Chart



The latest Garrett technologies featuring many advanced features.

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       G-Series G47 Configurations

G Series G47 is available in 4 total configurations. 76mm 109mm |  80mm 109mm | 80mm 120mm | 88mm 120mm compressor measurements. You can  click the hyperlinks to go directly to those product pages. All G-Series  G47 models are interchangeable meaning the supercore can be swapped  into any turbine housing out without having to reconfigure any other  turbo kit parts.









G47 Turbine Housing Kits

G-Series G47 turbine housing kits are available in four A/R. 0.96 A/R  | 1.08 A/R | 1.23 A/R | 1.39 A/R stainless steel housings with T6 inlet  flange. The 1.39 A/R T6 turbine housing flows 64 LBS/MIN of air which  is a 20% increase over the GTX47 turbine wheel.
