880547-5001S Garrett G55-1850 85MM ( Supercore )

Nya värstingen ifrån Garrett är här ! ( Nylanserad produkt så levtiden kan vara något längre än normallt på denna varan,Maila gärna in till kundservice för exakt besked kan vara allt ifrån 2-3 dagar till 2-5 månader )

Produktfakta / Fördelar ifrån tillverkaren :

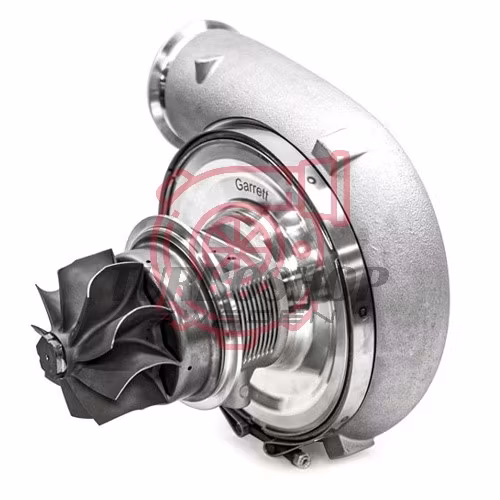

G55-1850 85mm  Supercore, G55 Turbo without turbine housing.

Partnumber : 880547-5001S

Garrett G55 turbochargers are engineered for extreme horsepower applications like Radial vs The World and X275 Drag Racing. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G55 from its predecessor.

Turbine Stage: The newly engineered turbine wheel with  optimized G Series aerodynamics increases flow up to 15% more (Compared to GTX Gen II, see graph below). Larger 106mm  turbine exducer (+4mm compared to GTX55). G55 is offered with two  stainless steel V-band turbine housings in 1.24 A/R and 1.40 A/R.  The  open T6 turbine housing is also available in 4 different A/R sizes:  1.00, 1.12, 1.24, and 1.40.

Center Housing: One-piece aluminum center housing reduces supercore weight. The center housing is air cooled, features a 16mm dual ceramic ball bearing for premium rotor dynamics, and retains the oil inlet and outlet specifications from previous GTX designs.

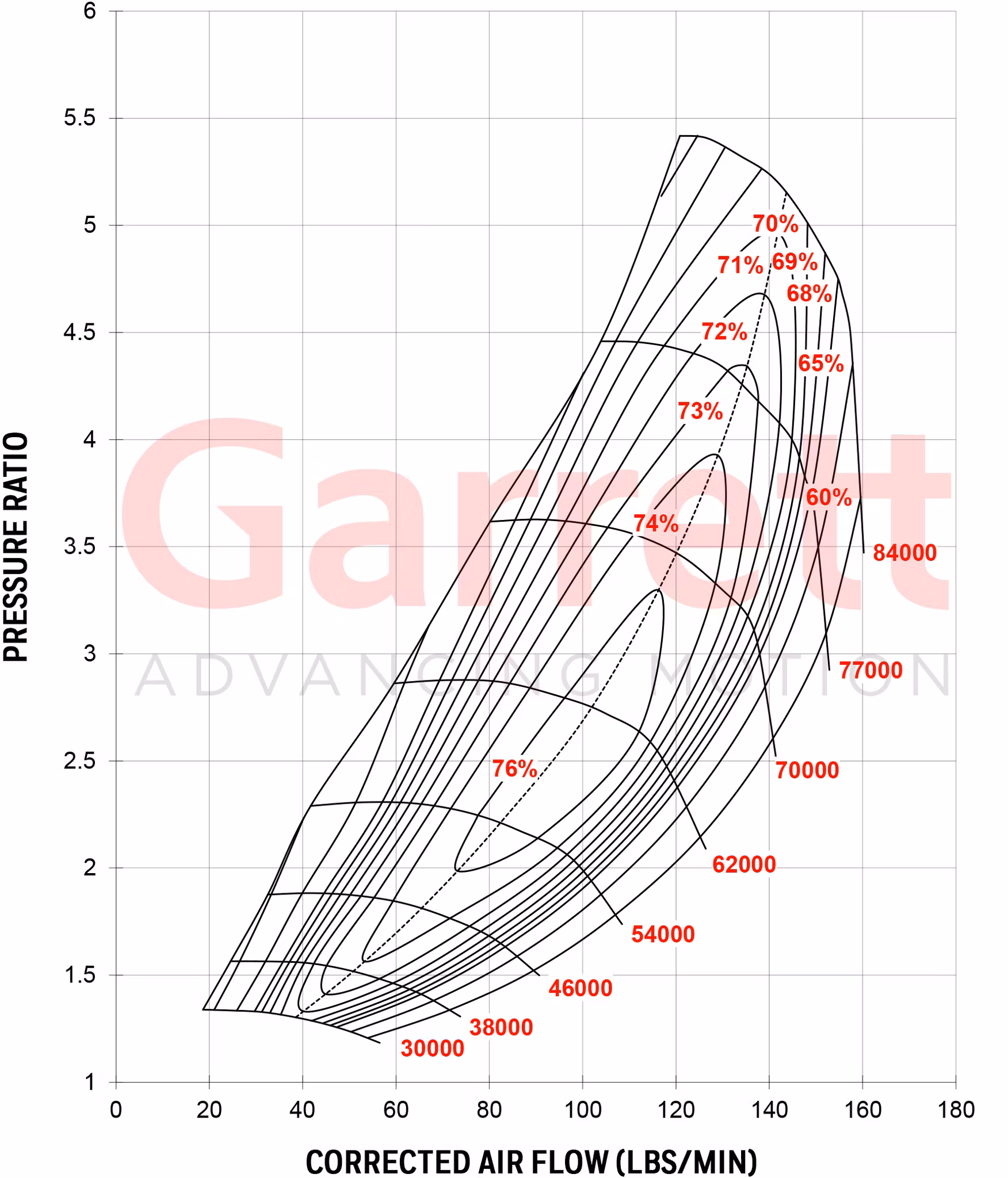

Compressor Stage: Garrett G55 compressor stages are offered in 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, and 106mm inducer sizes each with their own horsepower ratings indicated in the model name.

Product DescriptionFeatures:

• Supports nearly 3000 horsepower with amazing boost response
• 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, 106mm compressor options
• 106mm turbine exducer (+4mm compared to GTX55)

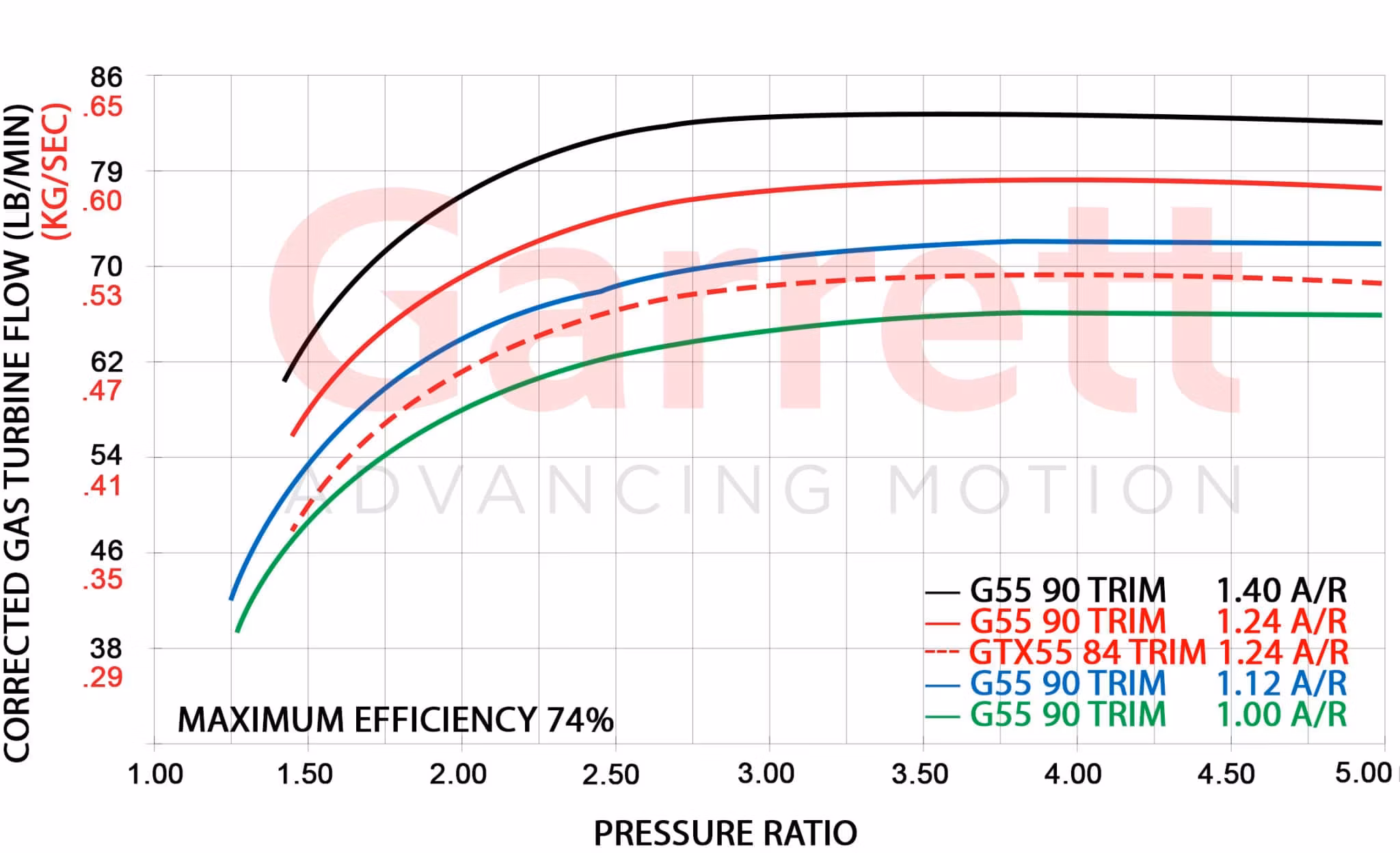

• 15% more turbine flow (compared to GTX) see graph below
• One-piece aluminum center housing
• 16mm dual ceramic ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
