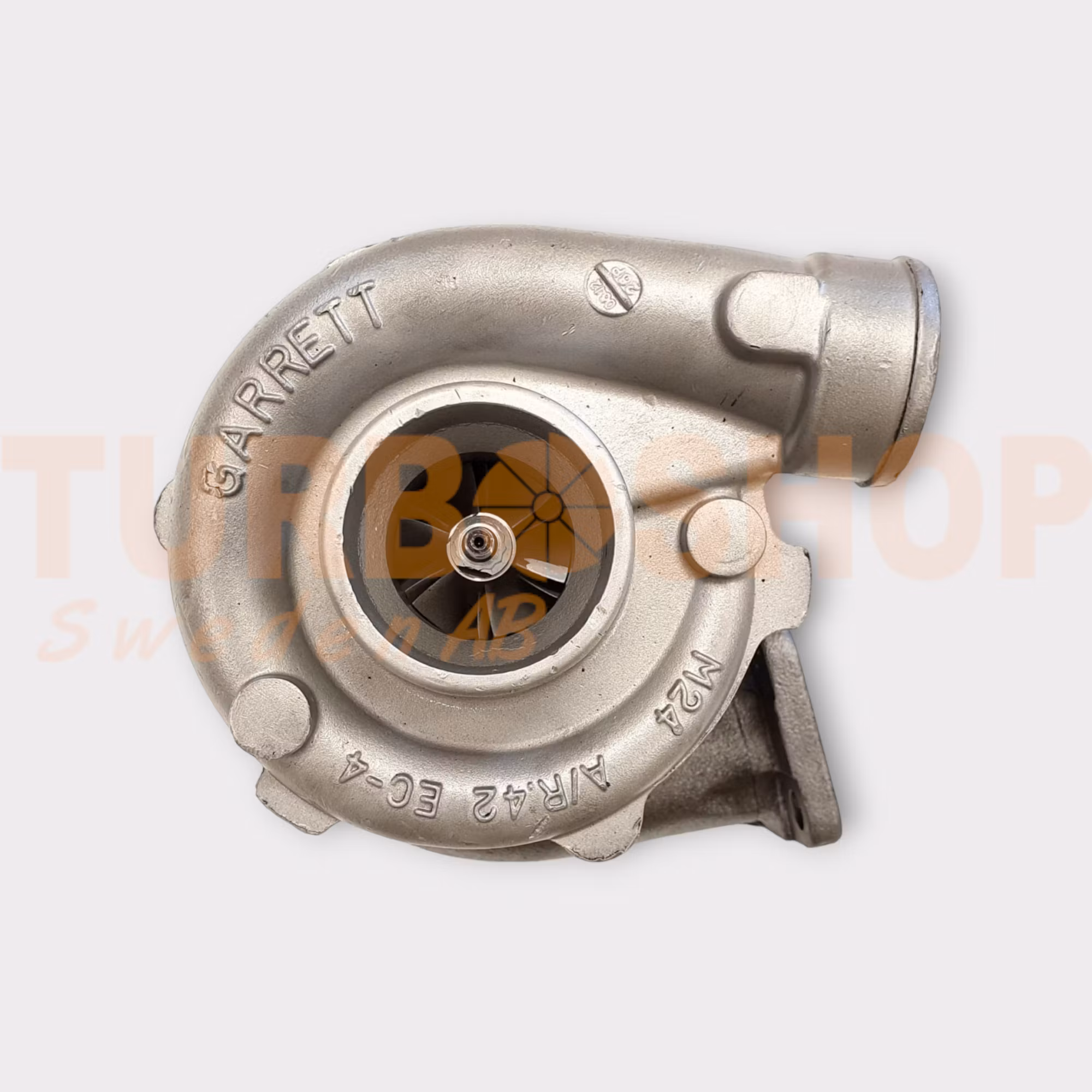

465778-5018S Garrett TA3107 ( Bytesturbo )

  • 7 495 kr

465778-5018S Garrett TA3107 ( Bytesturbo )- Renoverad originalturbo med Garrett delar i vår egna turboverkstad.- 3 års garanti.- Monteringssats medföljer vid kö

I lager.
Artikelnummer: 465778-5018S-BT
Dela

465778-5018S Garrett TA3107 ( Bytesturbo )

- Renoverad originalturbo med Garrett delar i vår egna turboverkstad.

- 3 års garanti.

- Monteringssats medföljer vid köp utav denna turbo online.


Turbonummer / originalnummer / Turbofakta :

Part Number465778-5018S
Previous Version465778-0018, 465778-18
OE number2674398, 02/101820, 7W2584
DescriptionAgricultural
CHRA409172-0046 (409172-9046S, 409172-0016, 409172-0037, 409172-0026, 409172-0045) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model TA3107
EngineT4.236
Displacement3.9L, 3900 ccm, 4 Cylinders
KW64
RPM Max2200
FuelDiesel
Caterpillar7W2573, 7W-2573
Engine Type AA018742, A018893,  A018895, A018902, A018912, A018913, A018937, A018981, A018991, A018999,  A019000, A019018, A019032, A019090, A019138, A019150, A019151, A019155,  A019160, A019192, A019223, A019250, A019251, A019252, A019282, A019375,  A019395, A019454, A019526, A019549, A019550, A019560, A019568, A019591,  A019595, A019610, A019611, A019623, A019626, A019627, A019660, A019669,  A019672, A019696, A019697, A019709, A019721, A019764, A019771, A019772,  A019779, A019790, A019800, A019824, A019846, A019856, A019871, A019876,  A019882, A019892, A019946, A019976, A019981, A019986, A020002, A020039,  A020053, A020055, A020057, A020070, A020075, A020168, A020172, A020202,  A020221, A020222, A020223, A020236, A020237, A020264, A020273, A020279,  A020280, A020294, A020298, A020311, A020318, A020319, A020350, A020356,  A020387, A020421, A020454, A020462, A020471, A020475, A020486, A020491,  A020508, A020512, A020548, A020558, A020566, A020600, A020608, A020617,  A020627, A020651, A020678, A020681, A020692, A020733, A020740, A020741,  A020742, A020756, A020757, A020758, A020763, A020790, A020795, A020797,  A020829, A020830, A020831, A020832, A020833, A020834, A020835, A020836,  A020839, A020853, A020859, A020869, A020872, A020879, A020888, A020889,  A020912, A020920, A020921, A020922, A020926, A020927, A020944, A020951,  A020974, A020981, A021001, A021031, A021033, A021044, A021045, A021046,  A021069, A021091, A021108, A021109, A021113, A021146, A021152, A021193,  A021226, A021242, A021256, A021266, A021271, A021282, A021294, A021305,  A021320, A021358, A021373, A021374, A021384, A021399, A021400, A021401,  A021407, A021408, A021409, A021425, A021427, A021429, A021431, A021437,  A021444, A021445, A021447, A021455, A021469, A021473, A021475, A021490,  A021509, A021510, A021525, A021542, A021569, A021571, A021572, A021573,  A021583, A021612, A021616, A021617, A021619, A021660, A021671, A021673,  A021674, A021676, A021677, A021690, A021714, A021722, A021728, A021743,  A021744, A021748, A021752, A021762, A021773, A021774, A021775, A021776,  A021777, A021778, A021779, A021784, A021792, A021806, A021828, A021835,  A021837, A021841, A021867, A021868, A021872, A021873, A021874, A021876,  A021884, A021886, A021892, A021902, A021915, A021921, A021922, A021928,  A021929, A021931, A021934, A021948, A021954, A021962, A021971, A021978,  A021985, A021986, A021993, A022008, A022014, A022020, A022053, A022054,  A022057, A022065, A022071, A022073, A022099, A022114, A022120, A022121,  A022136, A022151, A022165, A022166, A022172, A022175, A022181, A022207,  A022215, A022218, A022219, A022223, A022245, A022250, A022271, A022283,  A022307, A022308, A022320, A022321, A022338, A022349, A022384, A022396,  A022406, A022413, A022431, A022434, A022435, A022436, A022437, A022443,  A022447, A022459, A022464, A022467, A022490, A022521, A022522, A022524,  A022552, A022566, A022575, A022599, A022605, A022608, A022609, A022612,  A022618, A022638, A022646, A022647, A022650, A022655, A022661, A022668,  A022669, A022684, A022708, A022712, A022715, A022731, A022742, A022745,  A022762, A022771, A022779, A022784, A022785, A022790, A022791, A022808,  A022810, A022811, A022812, A022813, A022821, A022854, A022855, A022857,  A022862, A022863, A022879, A022888, A022890, A022895, A022900, A022912,  A022913, A022914, A022915, A022917, A022918, A022919, A022920, A022921,  A022922, A022926, A022927, A022942, A022947, A022954, A022957, A022962,  A022963, A022980, A022981, A022989, A022990, A022991, A022997, A022999,  A023001, A023003, A023008, A023012, A023013, A023014, A023022, A023030,  A023047, A023073, A023079, A023080, A023083, A023084, A023085, A023096,  A023099, A023105, A023108, A023118, A023126, A023130, A023149, A023153,  A023157, A023195, A023197, A023202, A023207, A023215, A023223, A023224,  A023234, A023241, A023250, A023256, A023260, A023261, A023268, A023269,  A023278, A023283, A023284, A023287, A023291, A023305, A023311, A023312,  A023325, A023330, A023334, A023342, A023357, A023360, A023361, A023368,  A023369, A023371, A023392, A023394, A023396, A023404, A023407, A023421,  A023430, A023443, A023452, A023453, A023455, A023463, A023466, A023467,  A023472, A023481, A023482, A023485, A023491, A023493, A023504, A023509,  A023523, A023528, A023529, A023530, A023540, A023544, A023557, A023562,  A023576, A023577, A023585, A023598, A023616, A023625, A023694, A023695,  A023696, A023720, A023728, A023734, A023742, A023753, A023806, A023838,  A023842, A023843, A023844, A023857, A023869, A023873, A023877, A023880,  A023881, A023888, A023890, A023894, A023902, A023906, A023921, A023929,  A023932, A023936, A023944, A023948, A023954, A023955, A023971, A023973,  A023982, A023983, A023988, A023997, A023999, A024003, A024008, A024011,  A024013, A024021, A024023, A024028, A024030, A024033, A024042, A024043,  A024044, A024046, A024050, A024052, A024057, A024058, A024059, A024070,  A024071, A024074, A024076, A024079, A024083, A024093, A024102, A024105,  A024117, A024125, A024126, A024129, A024140, A024147, A024148, A024168,  A024173, A024183, A024192, A024196, A024202, A024204, A024216, A024219,  A024222, A024226, A024234, A024235, A024236, A024267, A024268, A024274,  A024283, A024288, A024298, A024299, A024302, A024307, A024309, A024313,  A024314, A024315, A024317, A024330, A024341, A024342, A024348, A024353,  A024355, A024362, A024373, A024375, A024376, A024385, A024393, A024394,  A024399, A024407, A024416, A024427, A024431, A024436, A024437, A024443,  A024455, A024462, A024464, A024472, A024477, A024478, A024482, A024487,  A024497, A024498, A024503, A024512, A024520, A024525, A024526
Engine Type LJ LJ30105,  LJ30106, LJ30138, LJ30840, LJ30841, LJ30842, LJ30843, LJ30844, LJ30845,  LJ30846, LJ30847, LJ30848, LJ31217, LJ31229, LJ31231, LJ33438, LJ33459,  LJ33467, LJ33474, LJ33475, LJ33476, LJ33494, LJ33497, LJ33518, LJ33539,  LJ33578, LJ33583, LJ33590, LJ33603, LJ33613, LJ33614, LJ33619, LJ33633,  LJ33638, LJ33644, LJ33645, LJ33646, LJ33657, LJ33658, LJ33661, LJ33664,  LJ33677, LJ33684, LJ33685, LJ33693, LJ33695, LJ33698, LJ33713, LJ33714,  LJ33715, LJ33716, LJ33718, LJ33719, LJ33725, LJ33726, LJ33727, LJ33728,  LJ33734, LJ33735, LJ33736, LJ33741, LJ33751, LJ33752, LJ33758, LJ33766,  LJ33767, LJ33768, LJ33769, LJ33770, LJ33777, LJ33779, LJ33796, LJ33802,  LJ33803, LJ33809, LJ33815, LJ33818, LJ33827, LJ33828, LJ33829, LJ33836,  LJ33837, LJ33839, LJ33842, LJ33847, LJ33848, LJ33849, LJ33850, LJ33852,  LJ33853, LJ33854, LJ33859, LJ35066, LJ50079, LJ50079LX, LJ50117,  LJ50182, LJ50183, LJ50183LX, LJ50194, LJ50198, LJ50201, LJ50211,  LJ50223, LJ50224, LJ50227, LJ50230, LJ50231, LJ50231LX, LJ50244,  LJ50252, LJ50272, LJ50274, LJ50308, LJ50309, LJ50373, LJ50506, LJ70128,  LJ70153, LJ70166, LJ70167, LJ70168, LJ70170, LJ70187, LJ70332, LJ80192,  LJ80193, LJ80194, LJ80197, LJ80200, LJ80232, LJ80270, LJ80273,  LJ80273LX, LJ80296, LJ80302, LJ80317, LJ80335, LJ80335LX, LJ80337,  LJ80354, LJ80367, LJ80381, LJ80382, LJ80392, LJ80393, LJ80395,  LJ80395LX, LJ80404, LJ80415, LJ80429, LJ80460, LJ80472, LJ80487,  LJ80607, LJ80995, LJ9A240
TeleHandlerRT60, RT50, RT50SA
Asphalt CompactorAP-800, AP-800B, 10 FT, 8 FT, WE-601B
Paving CompactorCP-433B, CS-431B, CS-433B
Wheel Excavator212
NSN2950013729372
SN 1XF00001-UP, 5DC00001-UP, 1BF00001-00224, 1BF00225-UP, 1MG00001-UP, 1BF00225-UP, 4XG00001-UP, 7EC00001-UP
Angle α (compressor housing)180°
Angle β (turbine housing)108°
Bearing Housing430027-0022/430027-0025/430027-0029 (186879, 186881, 194230) (1100030450)  $55.20 (Oil Cooled) NEW IN STOCK
Turbine Wheel451310-0006/451310-0003 (314647)(Ind. 65. mm, Exd. 48.5 mm, Tr 56, 11 Blades) (1100030438) $97.20  NEW IN STOCK
Comp. Wheel409096-0008/409096-0001 (197611, 103016-0000) (Ind. 60. mm, Exd. 40.5 mm, Trm 45, 6 Blades)(1100030401) $49.40  NEW IN STOCK
Back plate409629-0004/409629-0006/409629-0001 (197340) (1100030300) $27.00  NEW IN STOCK
Heat shield Number 409627-0000 (103121-0000, 311131) $14.80  NEW IN STOCK
Repair Kit468139-0000 (1100030750)(Dynamic) $69.50  NEW IN STOCK
Turbine Housing441295-0032  (311374)
Compressor Cover409115-0127 (311629)
Turbine Housing AR0.82
Gasket (turbine inlet)409039-0000 (2405022) (Stainless Steel) $13.52
Gasket oil inlet210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
NOTE2674398 Replaces 2674374,  2674374 Replaces 2674390, 2674390, 2674373
NOTEComplete replacement turbo. Internal parts not interchangeable
Substitute465778-5016S, 465778-0016
ManufacturerHoneywell-Garrett
ConditionRebuilt




Applications

1982- Perkins Agricultural with T4.236 Engine


Vi har även fabriksny originalturbo som ni finner relaterad nedan.

Turbonummer / ersättningsnummer Garrett :

465778-0001GARRETT
465778-0002GARRETT
465778-0003GARRETT
465778-0004GARRETT
465778-0005GARRETT
465778-0006GARRETT
465778-0007 GARRETT
465778-0008GARRETT
465778-0009GARRETT
465778-0010GARRETT
465778-0011GARRETT
465778-0013GARRETT
465778-0014GARRETT
465778-0015GARRETT
465778-0016GARRETT
465778-0017 GARRETT
465778-0018GARRETT
465778-0019GARRETT
465778-0020GARRETT
465778-0021GARRETT
465778-5001SGARRETT
465778-5002SGARRETT
465778-5003SGARRETT
465778-5004SGARRETT
465778-5005SGARRETT
465778-5006SGARRETT
465778-5007SGARRETT
465778-5008SGARRETT
465778-5009SGARRETT
465778-5010SGARRETT
465778-5011SGARRETT
465778-5013SGARRETT
465778-5014SGARRETT
465778-5015SGARRETT
465778-5016SGARRETT
465778-5017SGARRETT
465778-5018SGARRETT
465778-5019SGARRETT
465778-5020SGARRETT
465778-5021SGARRETT


Originalnummer Perkins / Caterpillar :

2674371PERKINS / CATERPILLAR
2674372PERKINS / CATERPILLAR
2674373PERKINS / CATERPILLAR
2674374PERKINS / CATERPILLAR
2674397PERKINS / CATERPILLAR
2674397PPERKINS / CATERPILLAR
2674398PERKINS / CATERPILLAR
2674398PPERKINS / CATERPILLAR
3228752R92PERKINS / CATERPILLAR
3228752EXLPERKINS / CATERPILLAR
2674396PERKINS / CATERPILLAR
2674396PPERKINS / CATERPILLAR
2674A123PERKINS / CATERPILLAR
2674384PERKINS / CATERPILLAR
2674390PERKINS / CATERPILLAR
2674383PERKINS / CATERPILLAR
2674A118PERKINS / CATERPILLAR
3228752R91PERKINS / CATERPILLAR
4880592PERKINS / CATERPILLAR
4881091PERKINS / CATERPILLAR
4881432PERKINS / CATERPILLAR
02/101815PERKINS / CATERPILLAR
2101815PERKINS / CATERPILLAR
2674197PERKINS / CATERPILLAR
7C3446PERKINS / CATERPILLAR
7C-3446PERKINS / CATERPILLAR
2101820PERKINS / CATERPILLAR
02/101820PERKINS / CATERPILLAR
02101820PERKINS / CATERPILLAR
2101256PERKINS / CATERPILLAR
02/101256PERKINS / CATERPILLAR
02101256PERKINS / CATERPILLAR
2674A124PERKINS / CATERPILLAR
2674124PERKINS / CATERPILLAR
1806908X91PERKINS / CATERPILLAR
1806908PERKINS / CATERPILLAR
11033559PERKINS / CATERPILLAR
