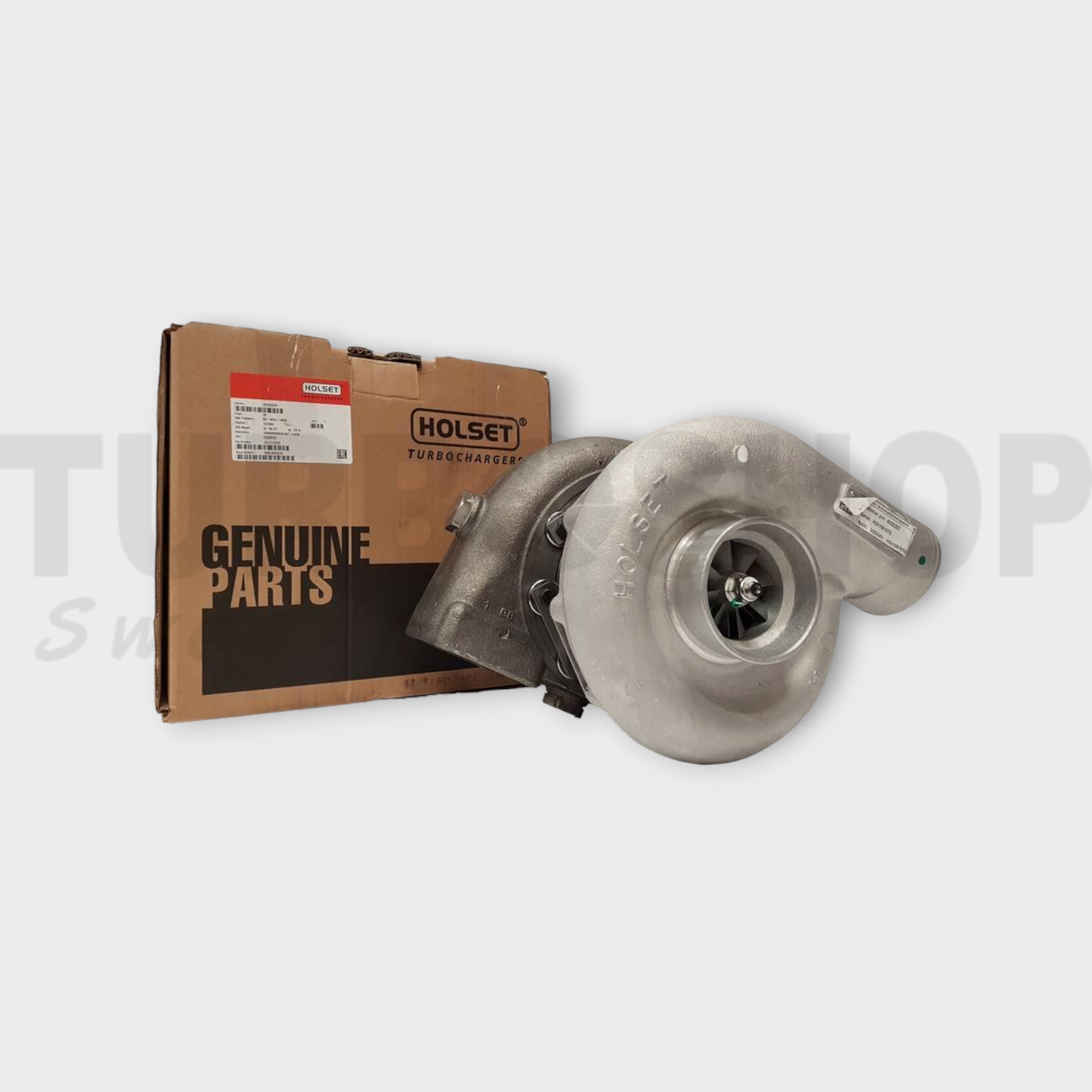

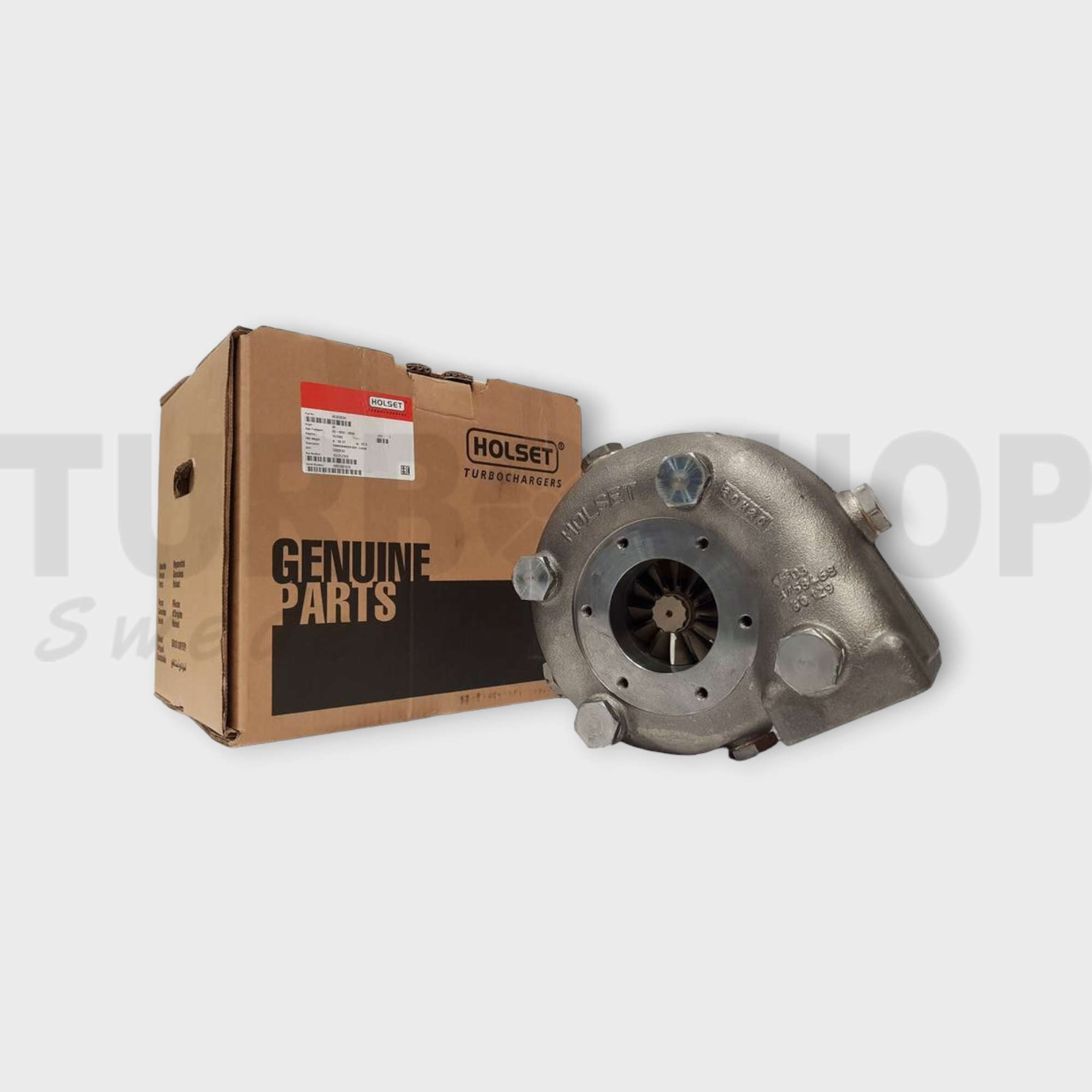

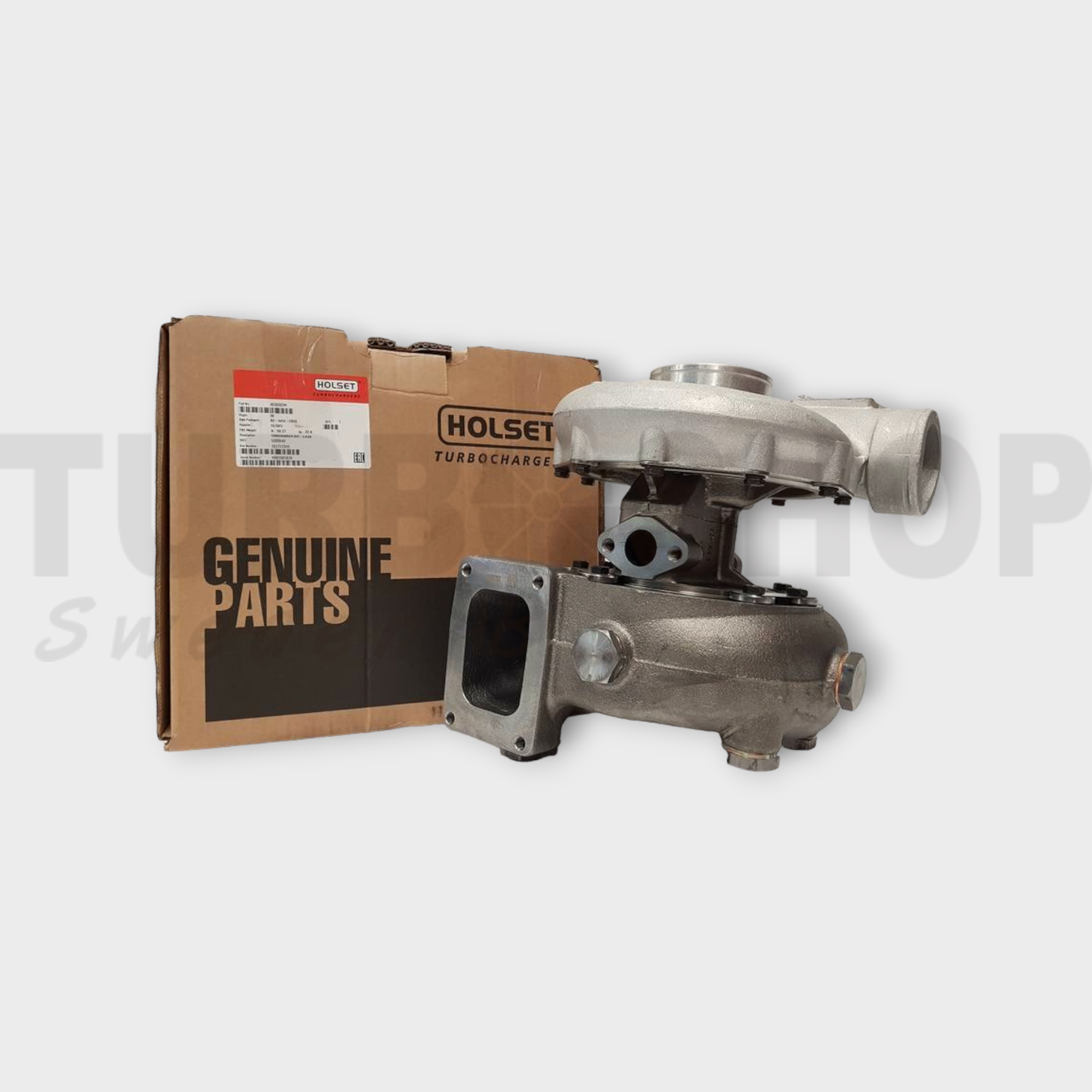

3503776 / 3591972 / 3502573 / 4032323H Holset 4LGK - Renovering utav din befintliga turbo - TAMD122A
-
9 995 kr - 8 496 kr
4032323H Holset 4LGK - Renovering utav din befintliga turbo.- Renovering utav originalturbo till TAMD122A.- Renoveras utav erfarna turbotekniker med origi
Lagersaldo:
1
Artikelnummer:
4032323-R
4032323H Holset 4LGK - Renovering utav din befintliga turbo.
- Renovering utav originalturbo till TAMD122A.
- Renoveras utav erfarna turbotekniker med originaldelar.
- Vi på Turboshop Sweden AB är Holset master distributör för Sverige,Norge,Danmark och hjälper gärna till.
Turbonummer / Originalnummer / Turbofakta :
Part Number | 3503776 |
Previous Part Number | 3591972, 3502573, 4032323H |
OE number | 846241, 396-45920, 39645920, 3802018 |
Description | Volvo-Penta Marine Sea, TCL Gen Set, Lister |
CHRA | 3519047 (3519047H) $1870.69 IN STOCK |
Turbo Model | 4LGK809A/7.0, 4LGK267/3.00W |
Engine | TAMD 122A, TMD 122A, TAMD 120B, TAMD120B, MMD122A |
Fuel | Diesel |
Angle α (compressor housing) | 83° |
Angle β (turbine housing) | 114° |
Bearing Housing | 3502572 (Oil-cooled) $392.95 NEW IN STOCK |
Turbine Wheel | 3502817 (186649, 3502499, 57175, 183466, 52321202130, 53361202117)(Ind. 80.91 mm, Exd. 96.6 mm, 12 Blades)(1152303436) $285.14 NEW IN STOCK |
Comp. Wheel | 3503703 (Ind. 64.5 mm, Exd. 101.96 mm, Trm 5.8, 8+8 Blades, Billet) $263.10 NEW IN STOCK |
Back plate | 3759618 (3500710, 59618, 166084, 168084, 183472, 143144-0000)(1150704300, 1800016039) $18.43 NEW IN STOCK |
Heat shield Number | 61343 (3761343) $99.10 |
Repair Kit | 3545661 (3545662)(843424)(1150040750) $69.00 NEW IN STOCK |
Turbine Housing (Water-Cooled) | 62253 $1351.59 |
Compressor Cover | 3502384 $292.41 |
Turbine Housing AR | 3.00 |
Gasket oil inlet | 409038-0001 (132040, 7M7273) $13.20 |
Gasket (oil outlet) | 210018 (129120)(Paper) $3.22 |
Gasket (turbine inlet) | 210019 (409266-0004, 210019-0000, 201049, 409266-0003) $3.22 |
Gasket Kit | (2090505397) |
Manufacturer | HOLSET |
Applications
1989-09 Volvo-Penta Marine with TMD 122A, TAMD 120B Engine
1989-09 Volvo-Truck with TMD 122A, TAMD 120B Engine
