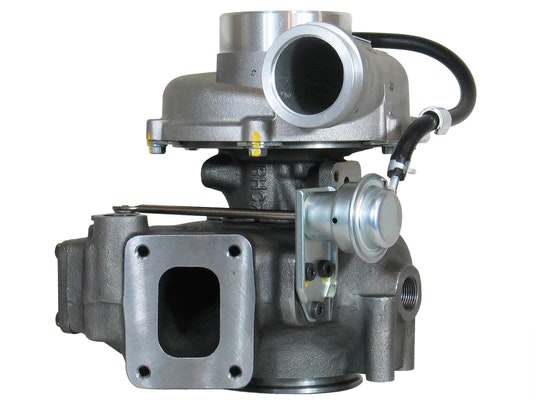

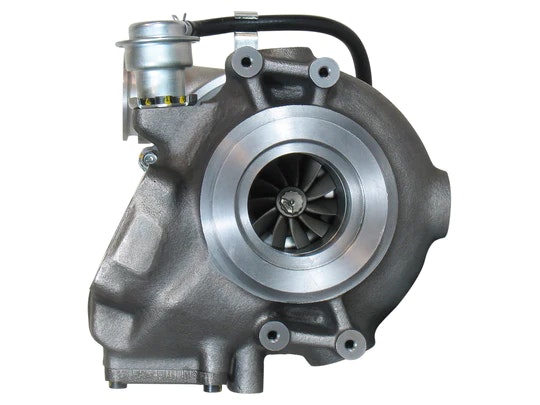

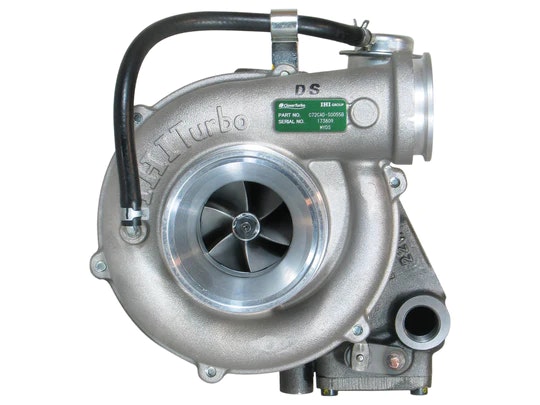

MYDS IHI RHBC7W fabriksny originalturbo Yanmar : 6LY2A-STP

  • 28 995 kr
  • 24 646 kr

MYDS IHI RHBC7W fabriksny originalturbo Yanmar : 6LY2A-STPIHI fabriksny RHBC7W originalturbo.Samma turbo som säljs i originalhandeln.Turbonummer / Originalnumme

I lager.
Artikelnummer: MYDS
Dela

MYDS IHI RHBC7W fabriksny originalturbo Yanmar : 6LY2A-STP

IHI fabriksny RHBC7W originalturbo.
Samma turbo som säljs i originalhandeln.

Turbonummer / Originalnummer / Turbofakta :

Part Number VA290055
Previous Part NumberVB290055, VC290055, VD290055
V-SPEC.MYDS
OE number119575-18020, 1-19575-18020,  1-19575-1802-0, 11957518020,  C72CAD-S0055B, C72CADS0055B
DescriptionMarine
Manufacturer Part NumberYanmar
CHRA(C72CAD-S0055C, C72CADS0055C) $1255.80  NEW IN STOCK
Turbo ModelRHC7W-12307P22NWBRB6235SUCZ
Engine6LY2A-STP, 6LY2ASTP
Engine Manufacturer Yanmar
Displacement58.13L,  5813 ccm
Power440 HP
FuelDiesel
Angle α (compressor housing) 65°
Angle β (turbine housing) 90°
Bearing HousingNE973420 (Oil Cooled) $293.52 NEW IN STOCK
Turbine WheelNH172002 (Ind. 66.27 mm, Exd. 73. mm, 12 Blades)
Comp. WheelNH175702 (Ind. 60.6 mm, Exd. 81.98 mm, Trm 4.88, 6+6 Blades, Superback) $275.90 NEW IN STOCK
Back plateNN172500 $188.50 NEW IN STOCK
Repair KitNH179874 (509T-526) $129.00 NEW IN STOCK
Turbine Housing (Water Cooled)NE977160
Compressor CoverNE974250
Turbine Housing AR22
Installation Kit$79.00
Gasket (turbine Outlet)128300-13230
Gasket (oil outlet)210161 (128300-1323)(Gasket paper) $2.00
ManufacturerIHI
ConditionRebuilt


Applications


Yanmar Marine with 6LY2A-STP Engine
