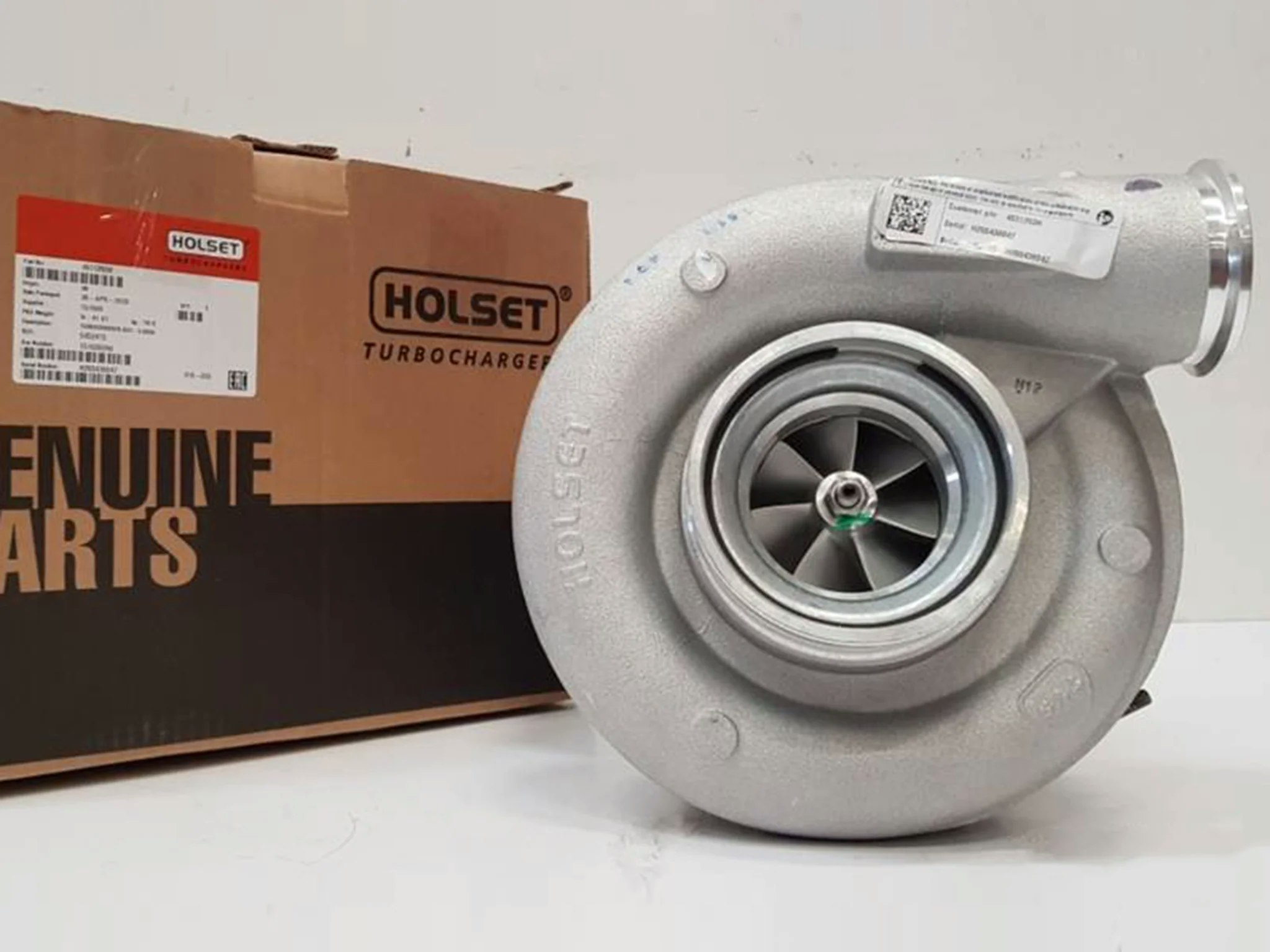

4031293H Holset HX55 Fabriksny originalturbo

  • 12 995 kr
  • 11 046 kr

4031293H Holset HX55 Fabriksny originalturbo. ( Beställningsvara 2-3 dagar ) Detta är en fabriksny originalturbo samma som ifrån originalhandeln.Turbonumme

I lager.
Artikelnummer: 4031293H
Dela

4031293H Holset HX55 Fabriksny originalturbo. ( Beställningsvara 2-3 dagar )
Detta är en fabriksny originalturbo samma som ifrån originalhandeln.

Turbonummer / Originalnummer / Turbofakta :

Part Number4037344-D
Previous Part Numbers3587945, 3792500, 4031293, 4031293H, 4037340, 4037342, 4037344, 4041615, 4044351
OE number11423084, 11423338, 11423083, 11423085, 9011423684
Description Volvo Dump Truck (Off-Highway) Volvo D12 , Industrial  Vehicle
CHRA4027894(4027894H)(1000020173T) $400.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX55-D98K66RAV/B86N84PU19QX ,  HX55
Engine D12
Engine Manufacturer Volvo
Displacement12.1L,  1200 ccm
FuelDiesel
Angle α (compressor housing)317.5º
Angle β (turbine housing)270º
Bearing Housing3590231 (4039258)(Oil Cooled)(1153055451, 190001125B)
Turbine Wheel4030008 (Ind. 86. mm, Exd. 72. mm, Trm 12.26, 12 Blades)(1100016125B) $148.00 NEW IN STOCK
Comp. Wheel4036558 (Ind. 64.99 mm, Exd. 99. mm, Trm 5.79, 7+7 Blades, Superback)(1200016217T)
Back plate3528096 (352809600)(1153055300, 1800016024)
Heat shield Number3533038 (3529846)(1153052340)
Repair Kit3580762 (3575181)(1153055750, 5000020023)
Turbine Housing4038060
Compressor Cover4038841
Gasket (turbine inlet)409123-0002 (Inox Steel) $14.37
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38
Gasket (oil outlet)210060  (409267-0003, 409267-0002, 129120, 1S4810, 201048, 3709738, 3500682,  3519763, 210060-0000, 51914, 148062, 311585)(1900000025) $3.48
ManufacturerHOLSET


Applications


Volvo Truck with D12 Engine
