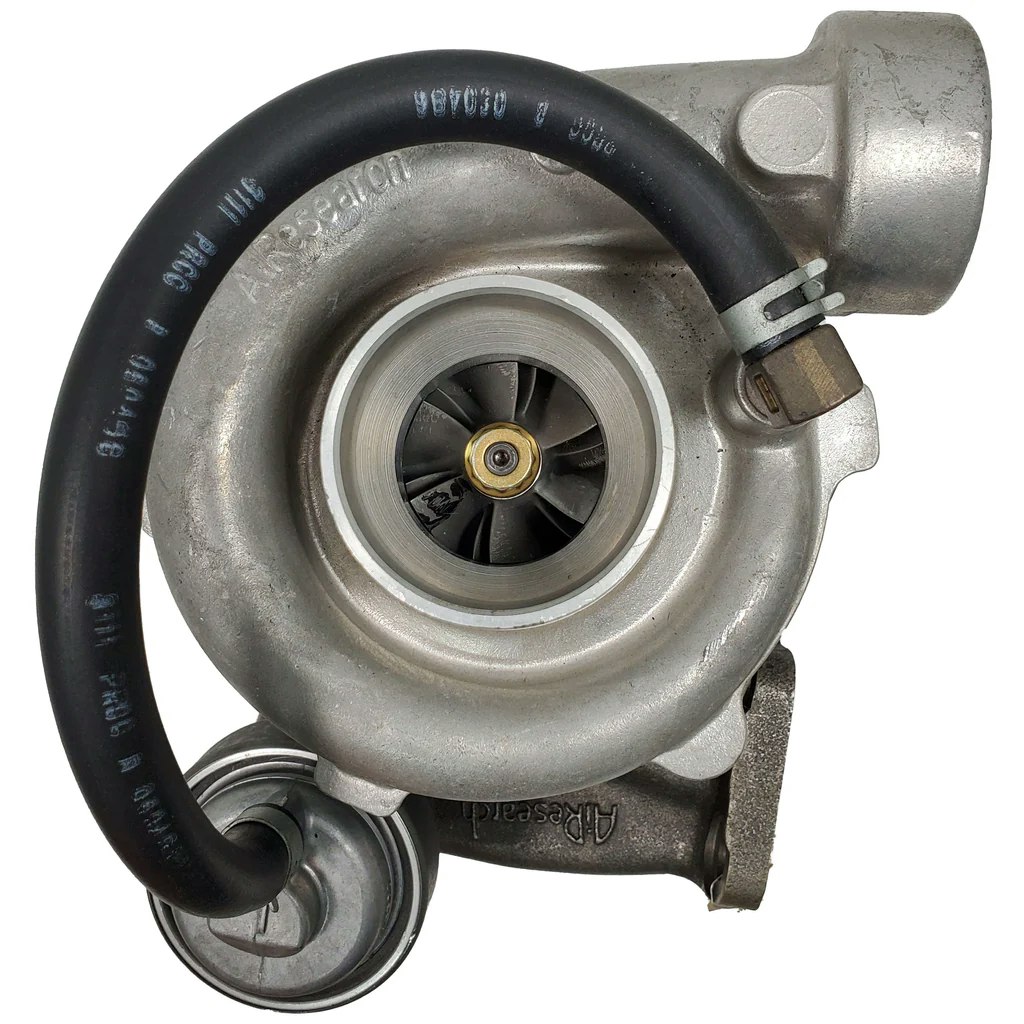

465228-5003S Garrett TA0301 fabriksny originalturbo
Fabriksny original turbo mycket unik då denna är väldigt svår att få tag på.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 465228-5003S |
| Previous Version | 465228-0003 |
| OE number | 0010966499, A0010966499 |
| Description | MBZ 300TD, 300SD, 300CD, 300D DSL, Coupe, Kombi |
| CHRA | 409172-0020 (409172-5020S, 409853-0001, 409172-0044) $350.00 |
| Turbo Model | TA0301 |
| Displacement | 3.0L, 3000 ccm, 5 Cylinders |
| Fuel | Diesel |
| Chassis | 123130/480, 123133/480, 123150/480, 123153/480, 123190/480, 123193/480, 126120/480, 123130/67K, 123133/67K, 123150/67K, 123153/67K, 123190/67K, 123193/67K, 126120/67K |
| Models | 300 CD 75-80, 300 CD TURBO-DIESEL USA 82-85, 300 CD USA 81-81, 300 D 75-80, 300 D 81-81, 300 D TURBO DIESEL USA 82-85, 300 D USA 81-81, 300 SD 79-80, 300 SD USA 81-85, 300 TD 75-79, 300 TD 80-81, 300 TD TURBO DIESEL 75-80, 300 TD TURBO DIESEL 81-85, 300 TD TURBO DIESEL USA 81-85, 300 TD USA 80-81 |
| Engine | OM 617.951, 61795, 617.951, 617.952 |
| Angle α (compressor housing) | 277.5° |
| Angle β (turbine housing) | 293° |
| Bearing Housing | 430027-0025 (430027-0022, 430027-0048) (186879, 186881)(1100030450)(Oil Cooled) |
| Turbine Wheel | 451310-0003 (451310-0006)(Ind. 48.5 mm, Exd. 65. mm, Trm 56, 11 Blades)(1100030436, 1100030438) |
| Comp. Wheel | 409096-0008 (409096-0014, 409096-0001) (103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback, 6+6 Blades) (1100030401) |
| Back plate | 409629-0003 (409629-0006, 409629-0004, 409629-0001) (1100030300) $38.00 NEW IN STOCK |
| Heat shield Number | 409627-0000 (103121-0000)(1100030340) |
| Repair Kit | 468139-0000 (318377, 166587)(1252102750)(Dynamic) $69.50 NEW IN STOCK |
| Turbine Housing | 400677-0816/409992-0003 |
| Compressor Cover | 409589-0018 |
| Turbine Housing AR | 0.48 |
| Actuator | 409249-0001/409144-0001/400690-0000 NEW IN STOCK |
| Settings Waste gate (pressure) | 1.00-1.05 bar |
| Settings Waste gate (lift rod) | 3.8 mm |
| Gasket (turbine inlet) | 409039-0001 (210190-0000, 132044, 312617)(Stainless Steel, Single Port) $9.99 |
| Gasket (turbine inlet) | 210315 (Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48 |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) (Paper) $3.32 |
| Gasket Valve Actuator | 409262-0001 |
| LISTED | $2214.40 |
| Interchanges With | 466246-0001 |
| Manufacturer | Honeywell-Garrett |
Applications
1982-85 Mercedes 300 CD TURBODIESEL Coupe Engine OM 617.952
1982-85 Mercedes 300 D TURBODIESEL Sedan Engine OM 617.952
1979-85 Mercedes 300 SD Sedan Engine OM 617.952
1975-85 Mercedes 300 TD TURBODIESEL Wagon Engine OM 617.952
1981-85 Mercedes Benz Coupe, Kombi Engine OM 617.952
