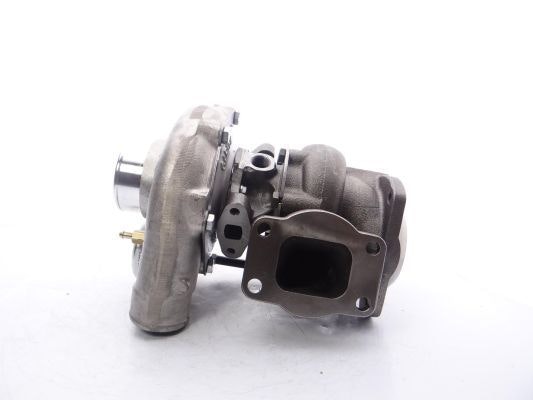

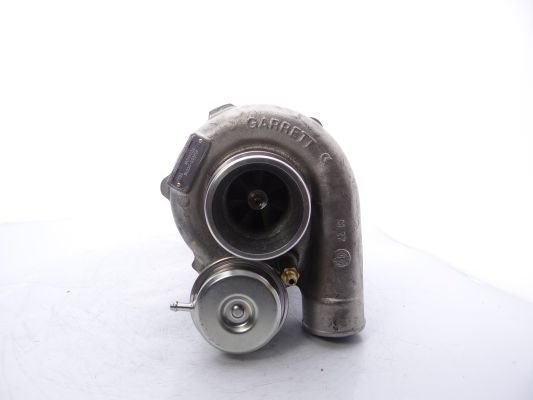

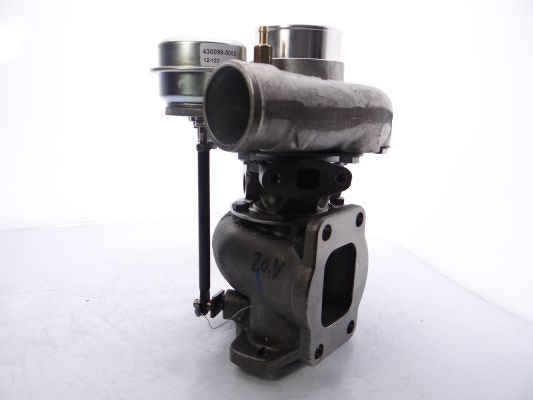

466944-5001S Garrett TB0355 - Renovering utav din befintliga turbo.

  • 6 995 kr

466944-5001S Garrett TB0355 - Renovering utav din befintliga turbo.- Renovering utav din befintliga turbo.- Denna turbo har sedan många år utgått ifrån produkti

I lager.
Artikelnummer: 466944-5001S-R
Dela

466944-5001S Garrett TB0355 - Renovering utav din befintliga turbo.

- Renovering utav din befintliga turbo.

- Denna turbo har sedan många år utgått ifrån produktion och vi hjälper er gärna med renovering utav eran turbo.

- Vi kan även uppgradera denna turbo med större kompressordel samt förstärkta lager om så önskas.


Originalnummer :

  • V86SF6K690AA
  • 1638483



Turbonummer / Originalnummer / Turbofakta :



Part Number466944-5001S
Previous Version 466944-0001, 466944-1
OE number V865F6K690AA, 1638483
Year 1986-91
Description Escort IV 1.6L Turbo RS (GAF,AWF,ABFT)
CHRA409853-0053 (409853-5053S) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelTB0355
EngineLNB, LNB/1.6LCVH
Displacement1.6L, 1597 ccm,  4 Cylinders
Fuel 132 HP
KWGas
Angle α (compressor housing)160°
Angle β (turbine housing)270°
Bearing Housing430027-0025/430027-0039 (Water Cooled) (1100030460) $55.20 NEW IN STOCK
Turbine Wheel451311-0014/451311-0003 (Ind. 59.0 mm, Exd. 48.35 mm, Trm 67, 11 Blades) (1100030435) $169.60 NEW IN STOCK
Comp. Wheel409096-0008/409096-0014  (197611, 103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback,  6+6 Blades) (1100030401) $60.40 NEW IN STOCK
Back plate409629-0001/409629-0003/409629-0006/409629-0004 (1100030300) $38.00 NEW IN STOCK
Heat shield409639-0000/409627-0000 (103121-0000) $14.80 NEW IN STOCK
Repair Kit707897-0001 (1100030750)(Dynamic) $69.50 NEW IN STOCK
Turbine Housing 430394-0011
Compressor Cover409589-0082/409115-0093
Turbine Housing AR0.36
Actuator430099-0022
Settings Waste gate (pressure)0.28-0.31 bar
Settings Waste gate (lift shaft)0.38 mm
Gasket (turbine inlet)409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) $9.99
Gasket oil inlet 210023  (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) (Paper)  $4.48
Gasket (oil outlet)210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496) (1900000027) (Paper) $4.48
ManufacturerHoneywell-Garrett


Applications


1986-91 Escort IV 1,6 Turbo RS (GAF,AWF,ABFT) with LNB Engine
