452059-5001S 1991-96 Ford EscortCosworth TB3403 Turbo

  • 17 000 kr
  • 15 300 kr

452059-5001S  1991-96 Ford EscortCosworth TB3403 TurboFabriksny Ford Cosworth originalturbo.Vanligt fel på dessa är att dom spricker i avgashuset.Turbonumm

I lager.
Artikelnummer: 452059-5001S
Dela

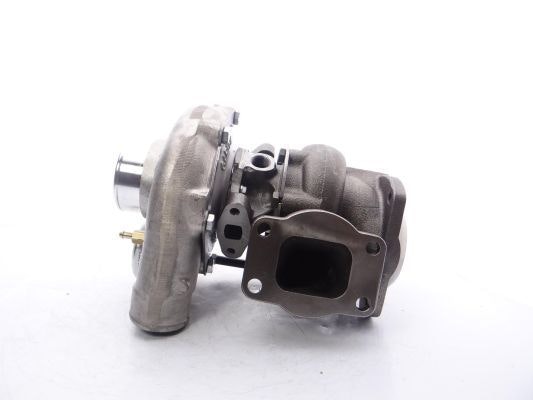

452059-5001S  1991-96 Ford EscortCosworth TB3403 Turbo
Fabriksny Ford Cosworth originalturbo.
Vanligt fel på dessa är att dom spricker i avgashuset.

Turbonummer / Turbofakta :

Part Number452059-5001S
Previous Version452059-0001
OE numberYB1195/2, YB1195D, 6844118, V92HF6K682AA, V92HF-6K682-AA, YB1195/07
Year1991-96
DescriptionEscort, Escort V RS Cosworth 4x4 (GAL)
CHRA409853-0093 (409853-5093S) $395.00  IN STOCK, MADE IN USA
Turbo ModelTB3403
EngineYBTN5F, N5F,, YBT N5E/F/td>
Displacement2.0L, 1994 ccm,  4 Cylinders, 16 Valves
Model Type ABL
TypeRS
SeriesMK V
FuelGas
KW162/220 HP
RPM 6000
Angle α (compressor housing71°
Angle β (turbine housing)320°
Bearing Housing430027-0039 (430027-0025)(Water Cooled) (1100030460) $55.20 NEW IN STOCK
Turbine Wheel451311-0014 (451311-0003)(Ind. 59.0 mm, Exd. 48.35 mm, Trm 67, 11 Blades) (1100030435) $169.60 NEW IN STOCK
Comp. Wheel441341-0002 (Ind. 47.65 mm, Exd. 69. mm, Trm 46, 7+7 Blades) (1100030410) $54.32 NEW IN STOCK
Back plate409629-0017 $66.00 NEW IN STOCK
Heat shield409639-0000 (409627-0000) (103121-0000) $14.80 NEW IN STOCK
Repair Kit707897-0001 (1100030750)(Dynamic) $69.50 NEW IN STOCK
Turbine Housing413746-0005
Compressor Cover409589-0316 (434157-0001)
Turbine Housing AR0.63
Actuator430099-0062
Settings Waste gate (pressure)0.410-0.480 bar
Settings Waste gate (lift shaft)0.38 mm
Gasket (turbine inlet)409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) $9.99
Gasket (turbine outlet)210242 (Steel) $11.00
Gasket (oil outlet)210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496) (1900000027) (Paper) $4.48
Gasket oil inlet210023  (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) (Paper)  $4.48
Manufacturer Honeywell-Garrett


Applications


1991-96  Ford Escort Corsworth With  YBTN5F, N5F Engine
