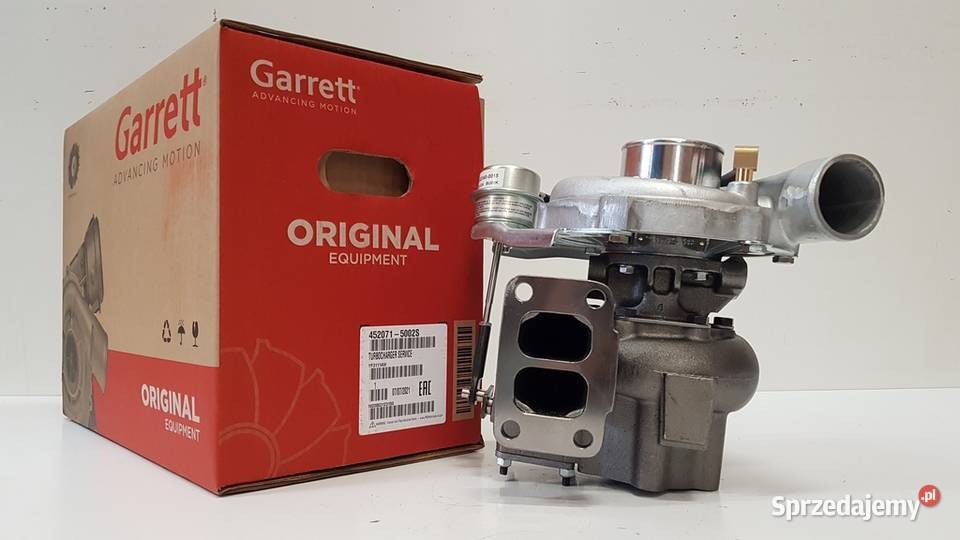

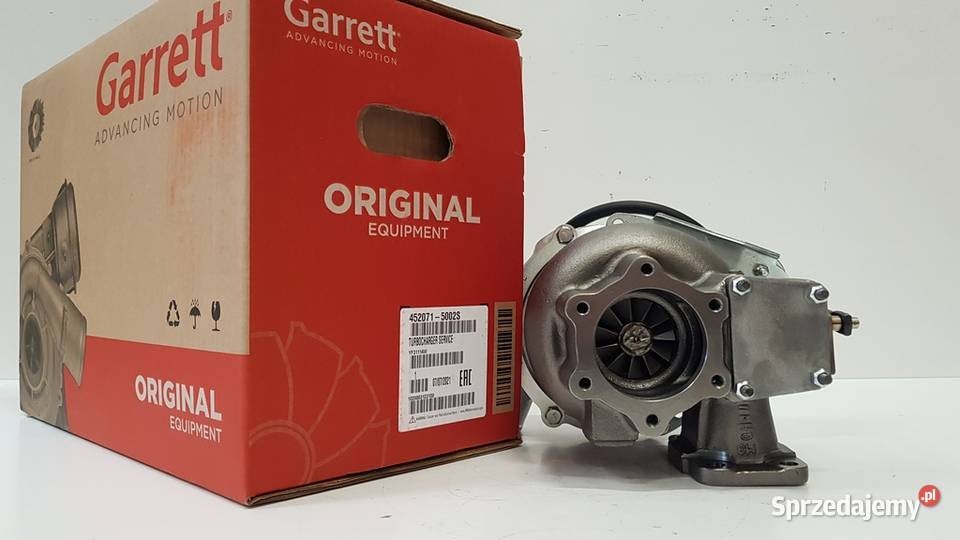

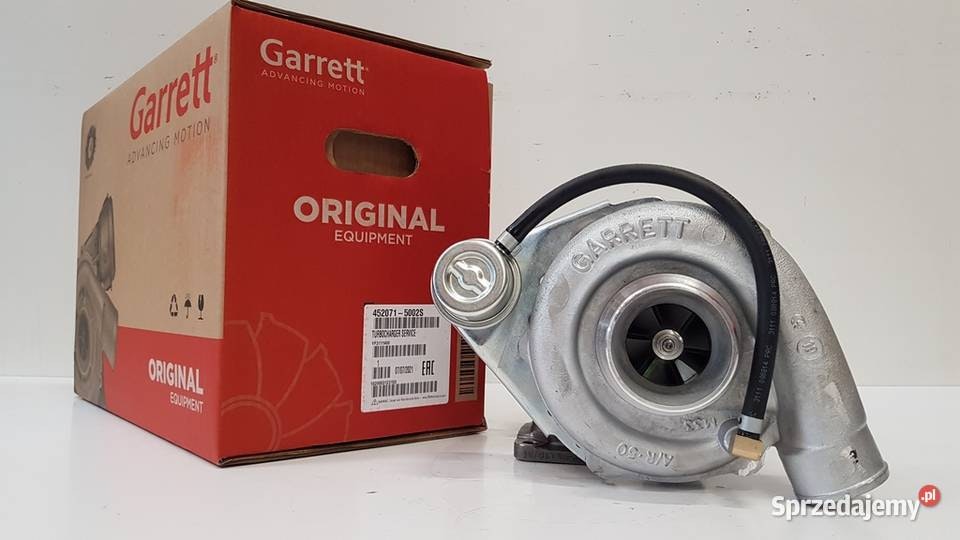

452071-5002S Garrett TBP412 fabriksny originalturbo : SAB33068

  • 11 995 kr
  • 10 196 kr

452071-5002S Garrett TBP412 fabriksny originalturbo : SAB33068- Fabriksny originalturbo.- 3 års garanti.- Monteringssats medföljer vid köp utav denna online.Vi

I lager.
Artikelnummer: 3037
Dela

452071-5002S Garrett TBP412 fabriksny originalturbo : SAB33068

- Fabriksny originalturbo.

- 3 års garanti.

- Monteringssats medföljer vid köp utav denna online.


Vi kan även renovera denna turbo i vår modern turboverkstad.


Turbonummer / ersättningsnummer Garrett : 452071-0002 452071-5002S 452071-2

 Originalnummer Perkins :  - SAB33068

: Perkins Industrial Silnik: T6.60 210T, T6.60


Turbonummer / Orginalnummer / Turbofakta :

Part Number452071-5002S
Previous Version452071-0002, 452071-2
OE numberSAB33068
DescriptionIndustrial, Marine
CHRA447450-0046 (447450-5046S) $450.00  NEW IN STOCK, MADE IN USA
Turbo ModelTBP412
EngineT6.60 210T, T6.60, M22Ti
FuelDiesel
Angle a (compressor housing)295º
Angle ß (turbine housing)90º
Bearing Housing430027-0022  (312379, 407285-0027, 407285-0038, 407285-0064, 430027-0025,  430027-0048)(1100030450, 1900011104B)(Oil Cooled) $55.20 NEW IN STOCK
Turbine Wheel446905-0006  (407276-0017, 407276-0020, 410188-0004, 451309-0001)(Ind. 52.30 mm, Exd.  73. mm, Trm 81, 11 Blades) $179.00 NEW IN STOCK
Comp. Wheel442293-0006 (1810440C1)(Ind. 47.4 mm, Exd. 75. mm, Trm 40, 6+6 Blades) $95.00 NEW IN STOCK
Back plate 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040)(ME078204)(1300016006) $21.00 NEW IN STOCK
Heat shield Number409299-0001 (311607, 409299-0000) $15.00 NEW IN STOCK
Repair Kit468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041) $69.50  NEW IN STOCK
Turbine Housing413889-0002
Compressor Cover409589-0354 (445069-0008)
Turbine Housing AR0.70
Actuator432340-0015
Settings Waste gate adjustment (pressure)1.170-1.270  bar
Settings Waste gate (lift shaft)1.00 mm
Gasket (turbine Outlet)409196-0001 (210226) $17.71
Gasket oil inlet210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) (Paper)  $4.48
Gasket (turbine outlet)210021  (210023-0000, 147837, 210023, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500) $4.48
ManufacturerHoneywell-Garrett


Applications

1992- Perkins Marine, Industrial Engine  T6.60 210T


Vi på Turboshop Sweden AB renoverar även ofta detta aggregat och har stor kunskap om vanliga fel.
