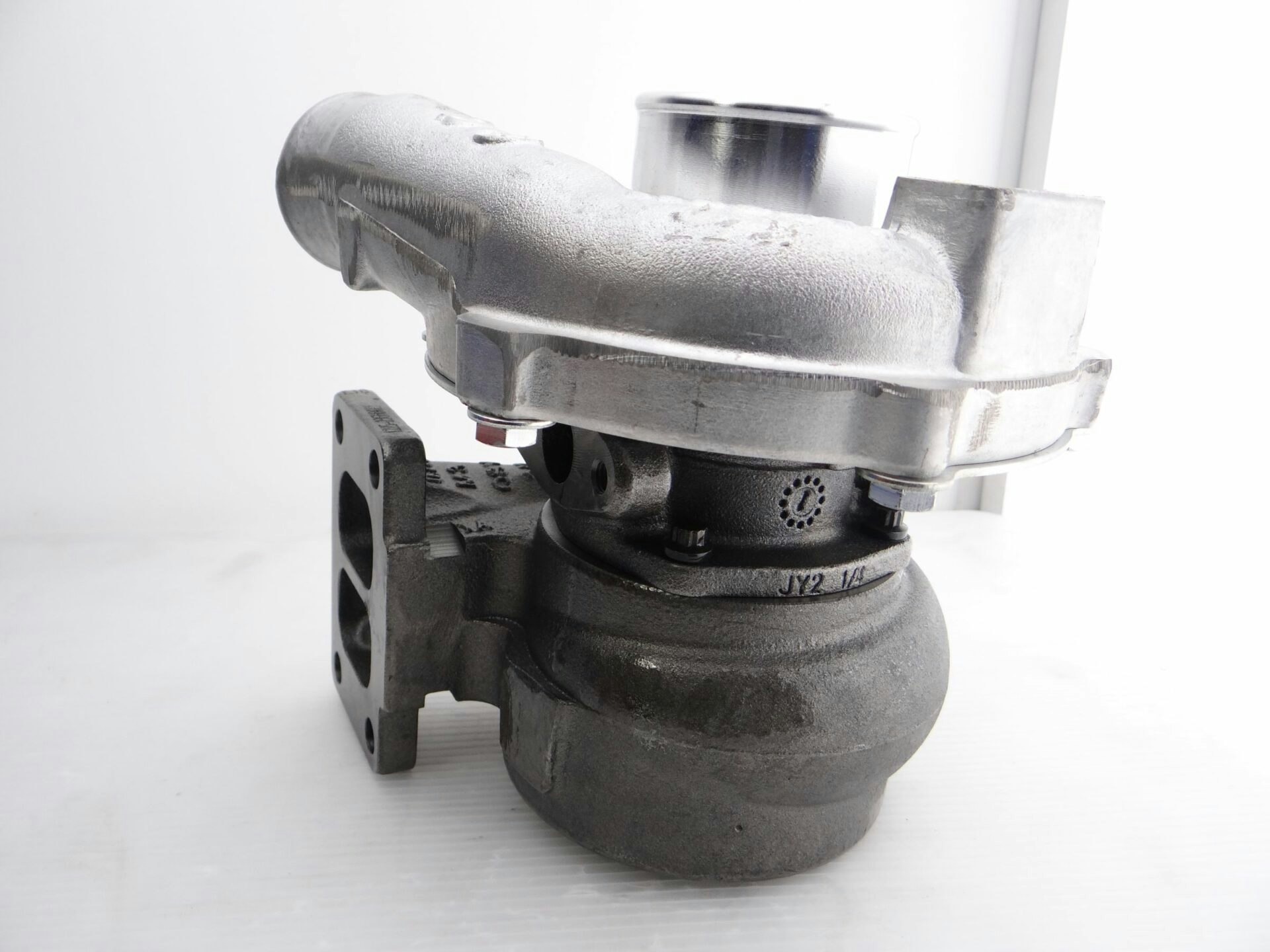

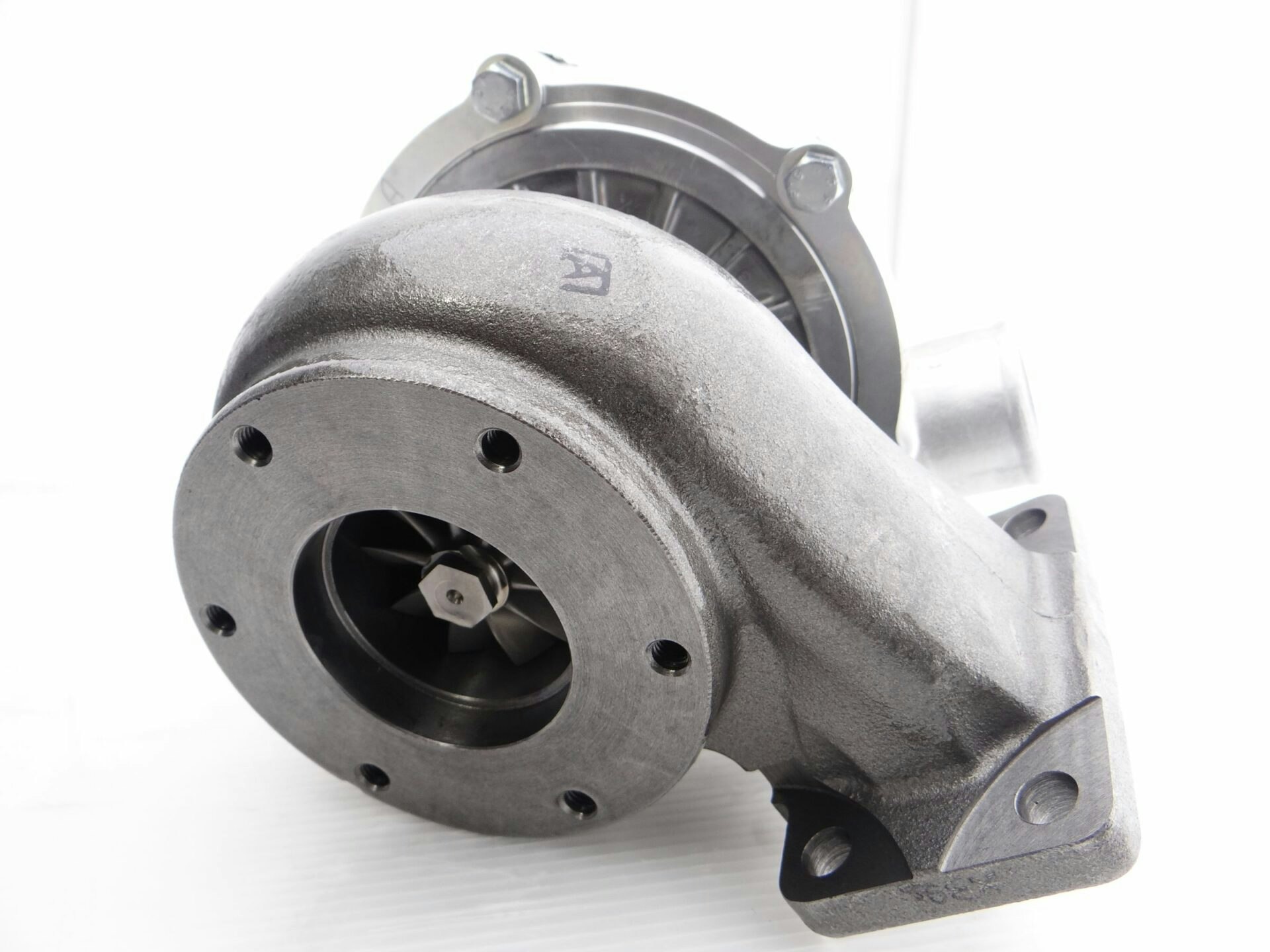

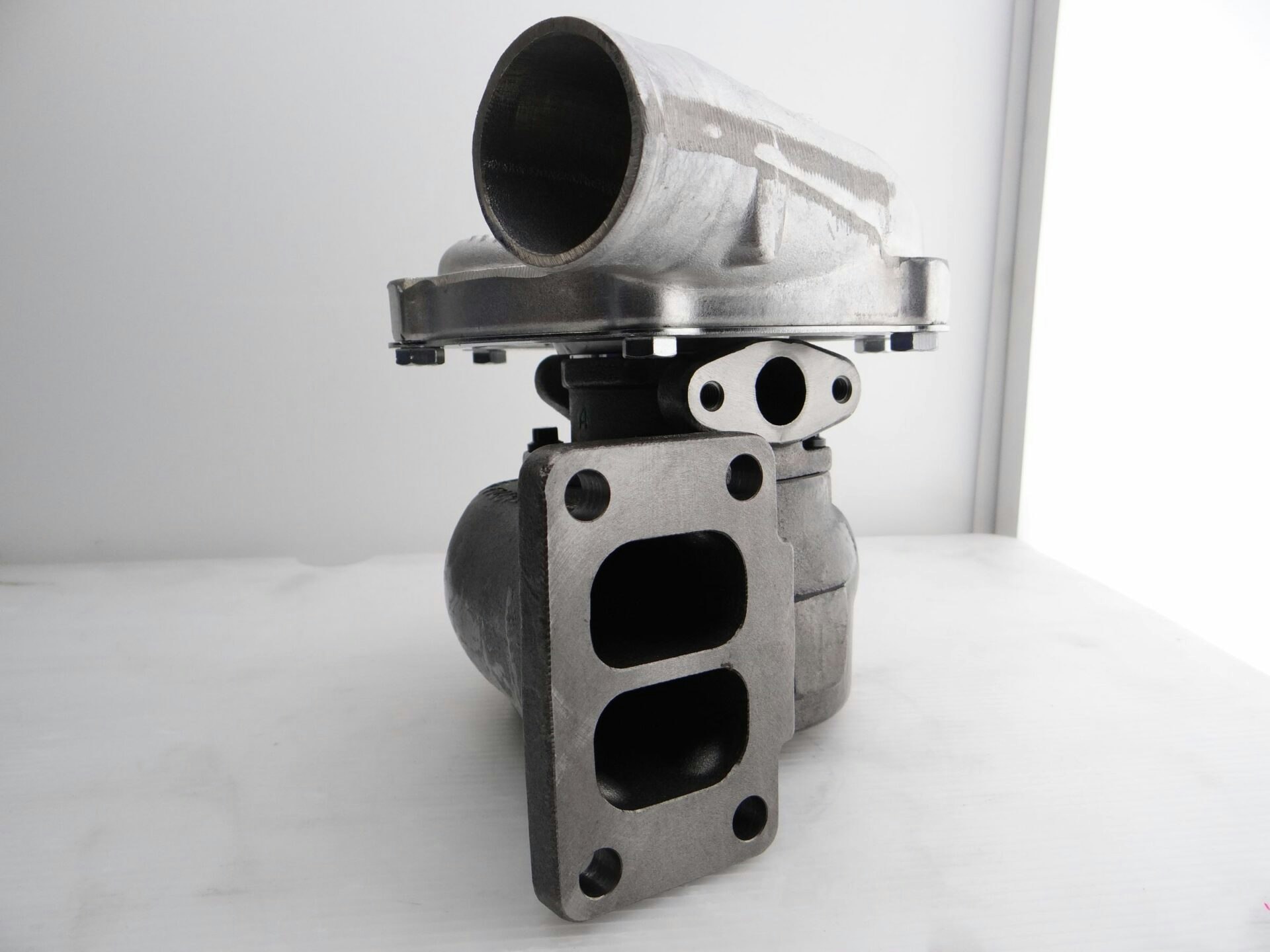

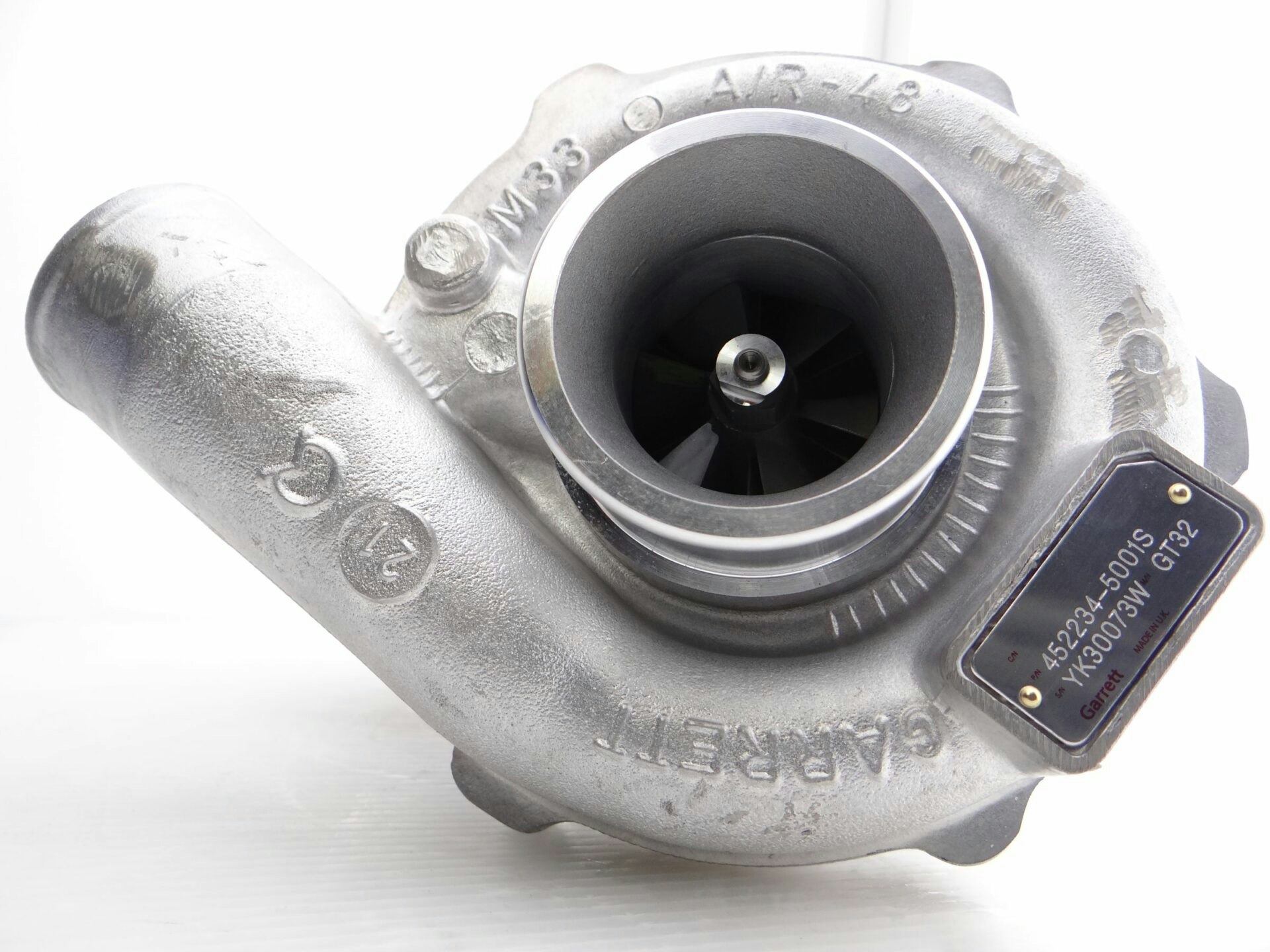

452234-5001S Garrett GT3271 OEM nummer : 2674A090 ( Bytesturbo )

  • 7 995 kr

452234-5001S Garrett GT3271 OEM nummer :  2674A090 ( Bytesturbo )- Bytesturbo fabriksny alternativt renoverad med originaldelar i vår verkstad.- 3 års gara

I lager.
Artikelnummer: 452234-5001S-BT
Dela

452234-5001S Garrett GT3271 OEM nummer :  2674A090 ( Bytesturbo )

- Bytesturbo fabriksny alternativt renoverad med originaldelar i vår verkstad.

- 3 års garanti.

- Få turbon först returnera sedan gamla turbon enkelt med vår kundtjänst inom 3 månader.

Turbonummer / Originalnummer / Turbofakta :

Part Number452234-5001S
Previous Version452234-0001,  452234-5001, 452234-5002, 452234-5002S, 452234-9001, 452234-9002,  4522340001, 4522340002, 4522345001, 4522345002, 4522345002S, 4522349001,  4522349002,
OE number02201570, 166-2881, 1662881, 2-201570,  2201570, 2674A090, 2674A091, 4222178M91, 500356, U2674A090, U2674A091
DescriptionTruck Engine & Power Units
CHRA436058-0004 (436058-5004S)(1000010391) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelGT3267
EngineT6.60
Displacement 5980 ccm, 6  Cylinders
 KW122/165
Angle α (compressor housing 196°
Angle β (turbine housing) 0°
Bearing Housing447535-0003 (Oil Cooled)(1900011181) $85.00 NEW IN STOCK
Turbine Wheel434444-0007 (Ind. 64. mm, Exd. 54.7 mm, Trm 73, 10 Blades)(1100016325)  $125.00 NEW IN STOCK
Comp. Wheel434437-0005 (Ind. 46.20 mm, Exd. 67. mm, Trm 4.69, 6+6 Blades, Superback)(1200016458)  $49.00 NEW IN STOCK
Back plate436040-0004 (1300016139) $23.76 NEW IN STOCK
Heat shield Number447553-0006 (2030016048B) $12.80 NEW IN STOCK
Repair Kit709147-0001 (1102032750, 5000010173) $127.00 NEW IN STOCK
Turbine Housing451225-0028/451225-0023
Compressor Cover436237-0013
Turbine Housing AR0.78
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006) $13.52
Gasket (turbine outlet)210226 (2405066)(Stainless Steel) $29.00
Gasket oil inlet 210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)  $4.48
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(2475013)(Paper) $4.48
Gasket Kit 215096 (1900100300, 2090505315, JTC11319, XJTC11319) $28.63
ManufacturerHoneywell-Garrett


Applications


Perkins Truck with T6.60 Engine
