3523646 / 3523647 H2A Holset renoverad turbo ( Bytesturbo )

  • 8 500 kr
  • 7 650 kr

3523646 / 3523647 H2A Holset renoverad turbo ( Bytesturbo )Packningssats ingår vid köp utav denna bytesturbo.Riktig storsäljare på industri / Lantrbrukssidan ho

I lager.
Artikelnummer: 3523647-BT
Dela

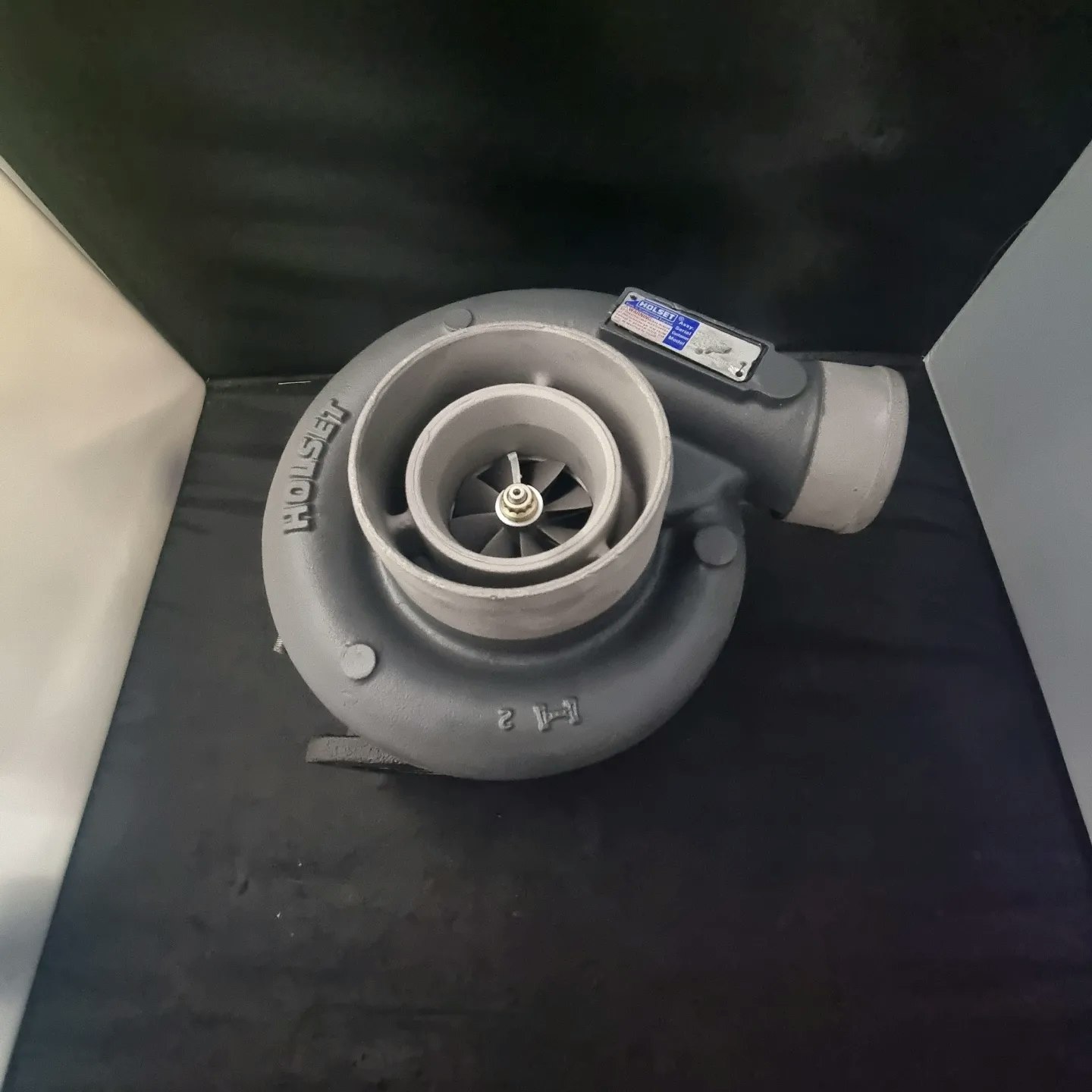

3523646 / 3523647 H2A Holset renoverad turbo ( Bytesturbo )

Packningssats ingår vid köp utav denna bytesturbo.

Riktig storsäljare på industri / Lantrbrukssidan hos oss.

Vi har alltid delar på lager samt försöker även ha bytesturbos på lager här.


Turbonummer / Turbofakta / Originalnummer :

Part Number3523646
Previous versions186626, 186626R, 310183, 310183R, 3523647, 3802049, 4033263, 4033263H
OE number4663911, 4663912, 466395, 466466, 466730, 466876,  466877, 5001742, 500848556, 500848557, 847057, 847856, 847857, 848556,  9000848556, 9000848557
DescriptionVolvo Penta, VCE Truck
CHRA3575016 (3524053, 4027384, 3524053H, 3575016H)
Turbo ModelH2A-8243AB/H16JA8, H2A
EngineTD70G, TD70E, TD71GG, TD61GG, TD70, TD61FG
Engine ManufacturerVolvo
KW155
Angle α (compressor housing)360°
Angle β (turbine housing)360°
Bearing Housing3502500 (3520574, 3530591, 3530592)(Oil Cooled)(1152301450)
Turbine Wheel3519892 (3535359, 3522879)(Ind. 75.92 mm, Exd. 64. mm, Trm 10.41, 12 Blades, LH)(1152301436)
Comp. Wheel3599639 (Ind. 50. mm, Exd. 82. mm, Trm 5.94, 8+8 Blades)
Seal Plate3522801
Heat shield Number3519302 (3527184)(1152301561)
Repair Kit4027309 (3545652, 3802007, 3802089, 3802147, 3908148, 3802149, 4027309)(1152301750)
Turbine Housing3523278
Compressor Cover3522385
Gasket (turbine inlet)409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (turbine outlet)210226 (2405066)(Stainless Steel)
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739,  3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001,  52231586500)(1900000037)
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Alternatives409840-0001, 409840-0002, 409840-0003, 409840-0004, 409840-0005, 409840-0006, 409840-0007, 186626
ManufacturerHOLSET



Applications

1988-04 >Volvo Truck with TD70G, TD70E, TD71GG, TD61GG, TD70, TD61FG Engine

1988-04 Volvo Penta Truck with TD70G, TD70E, TD71GG, TD61GG, TD70, TD61FG Engine
