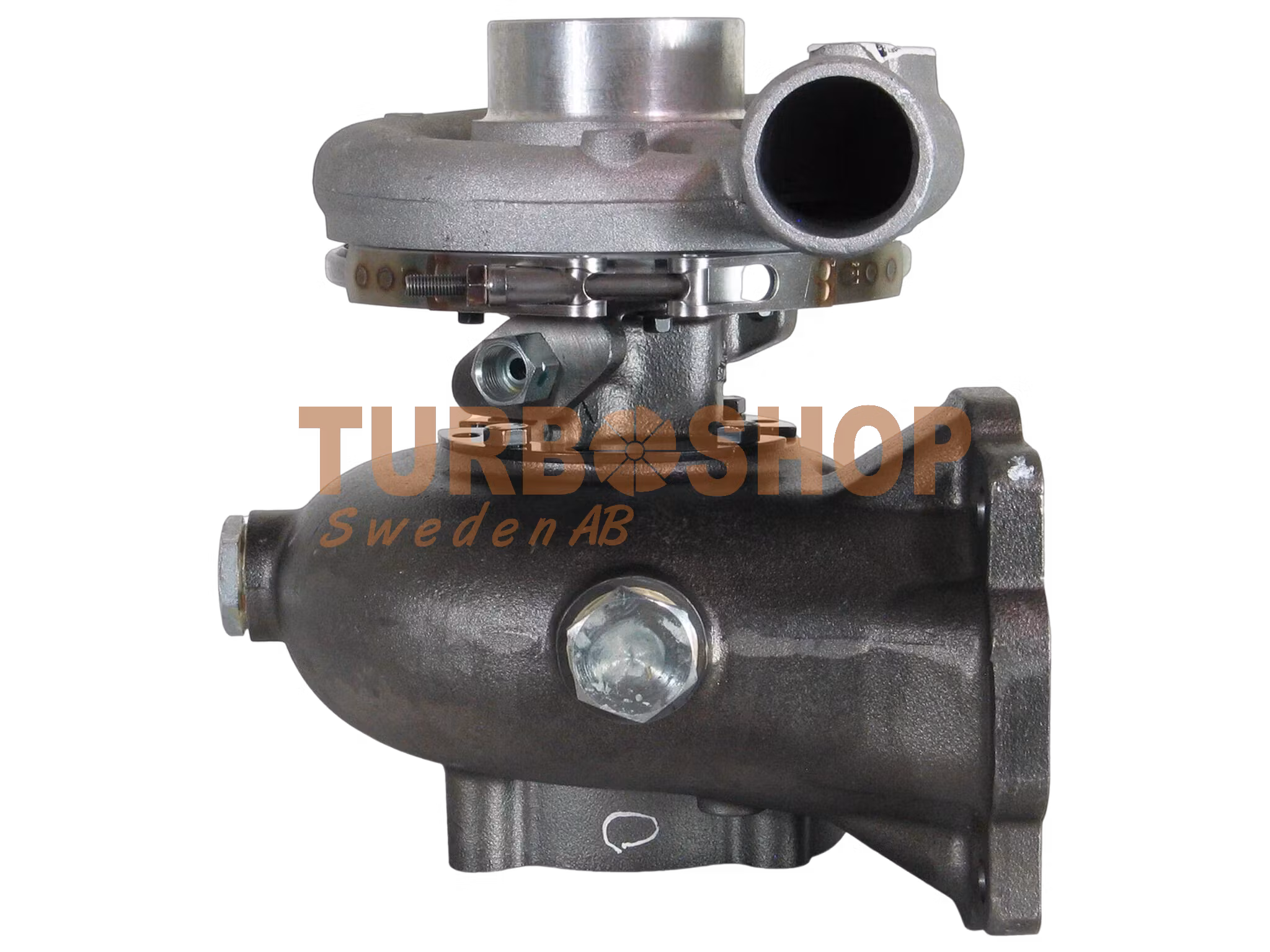

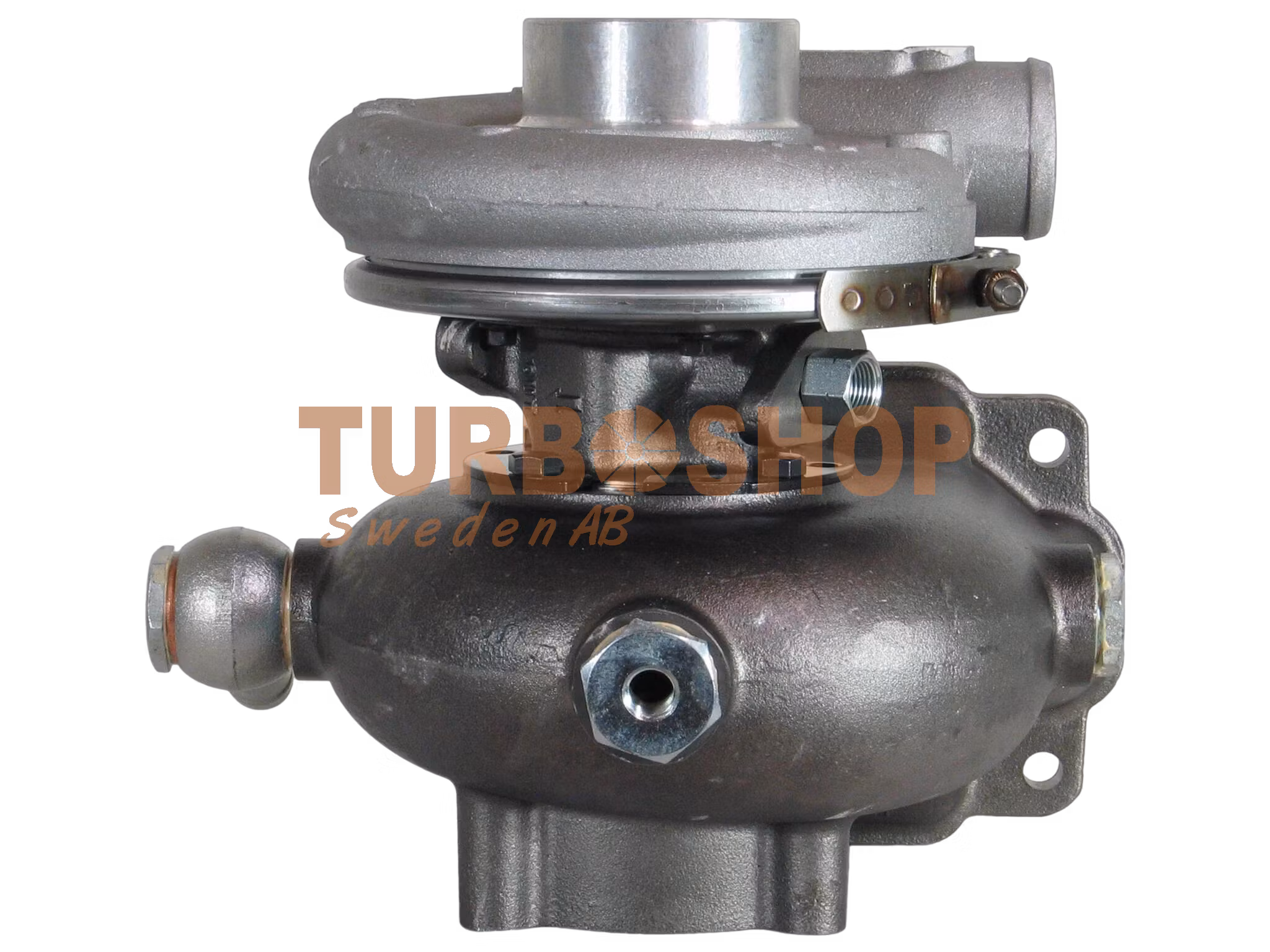

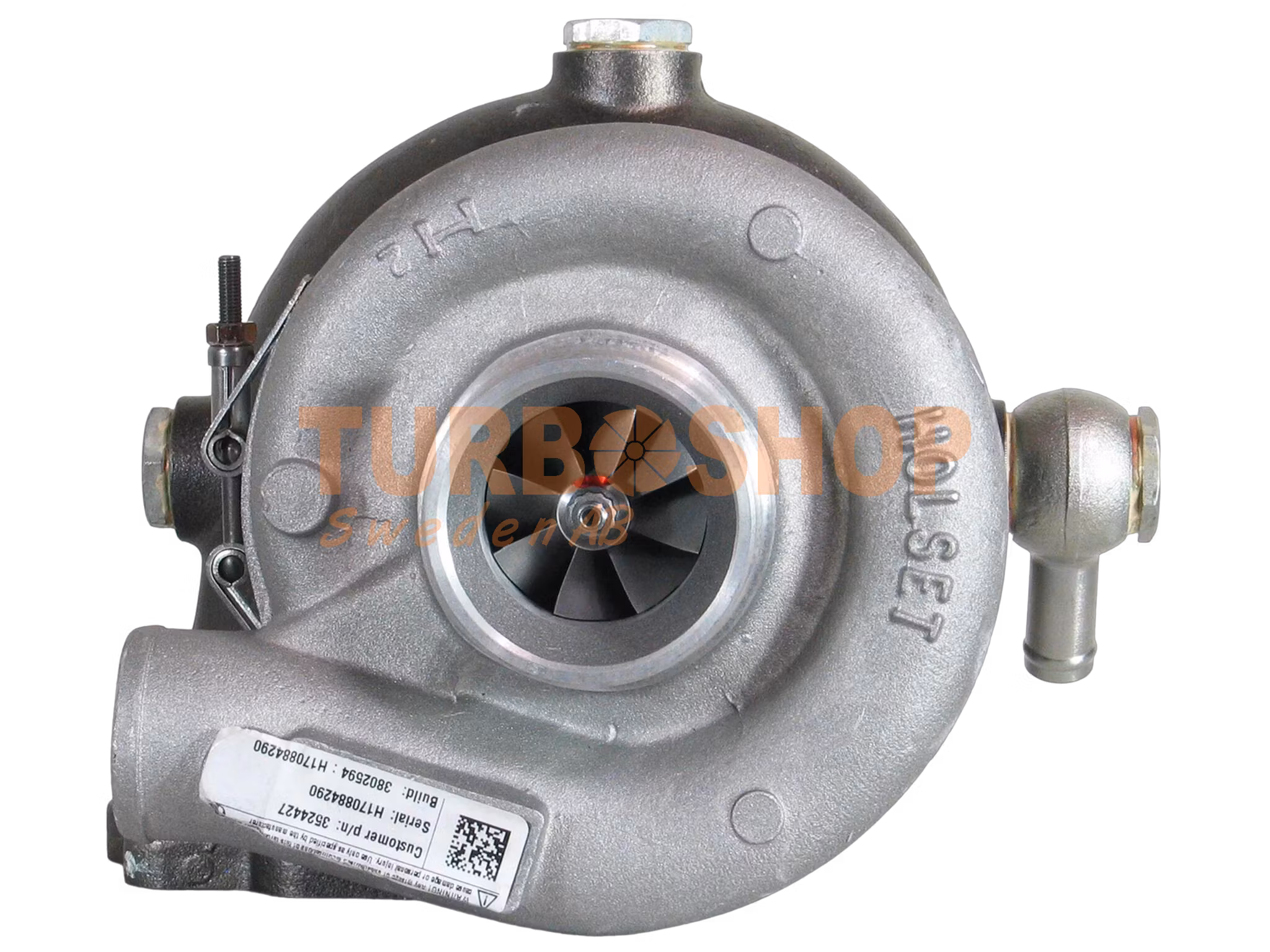

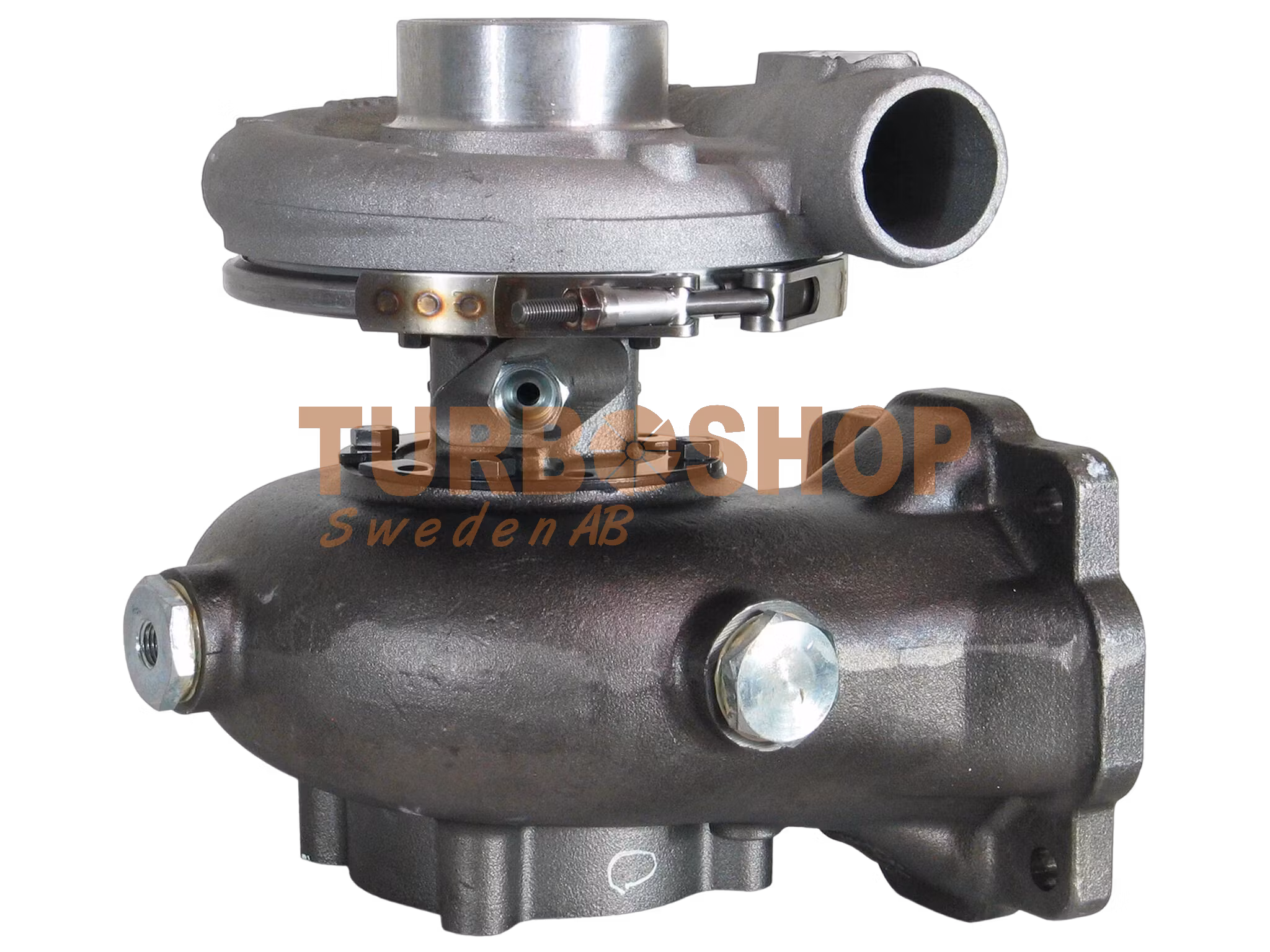

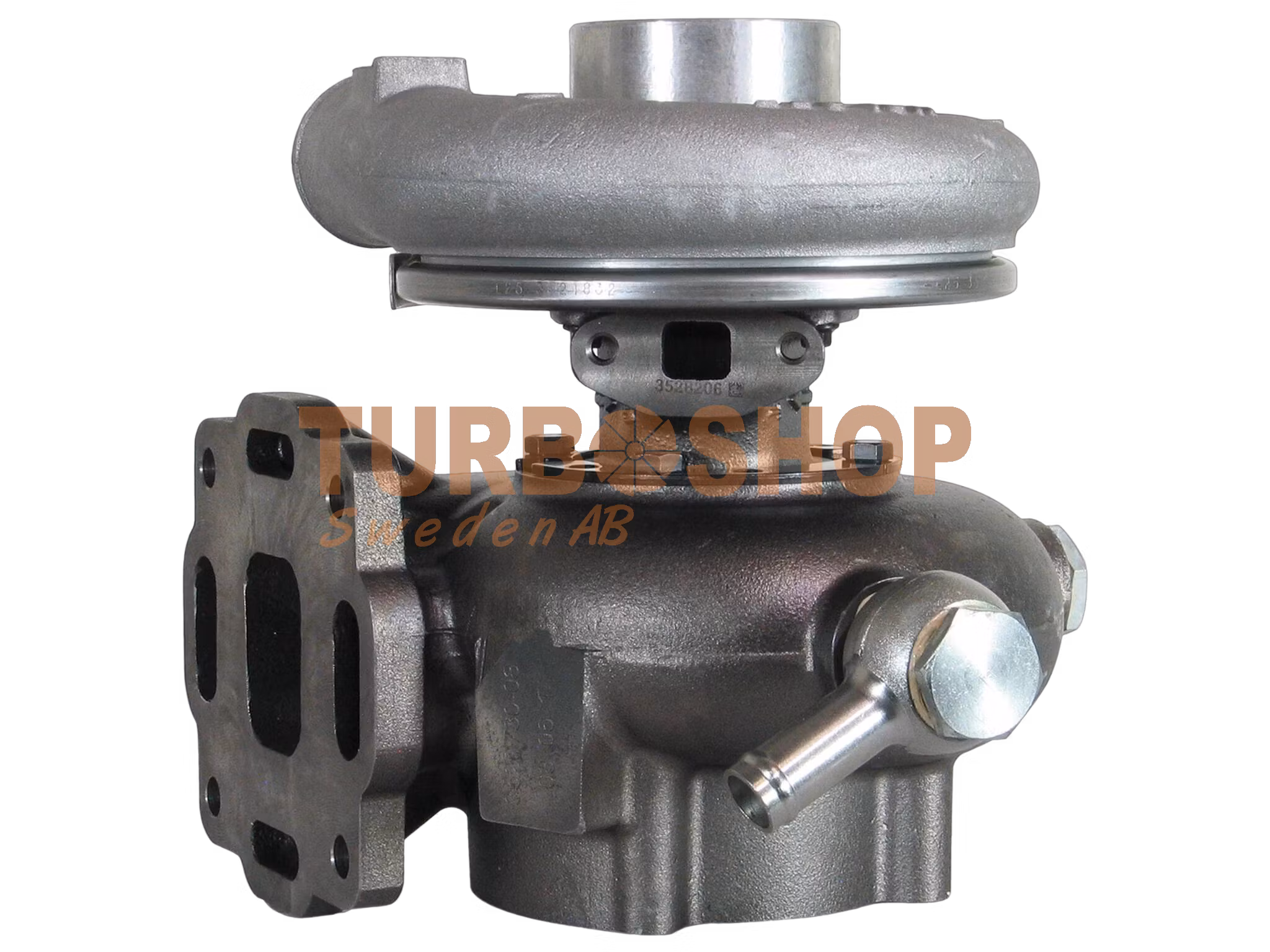

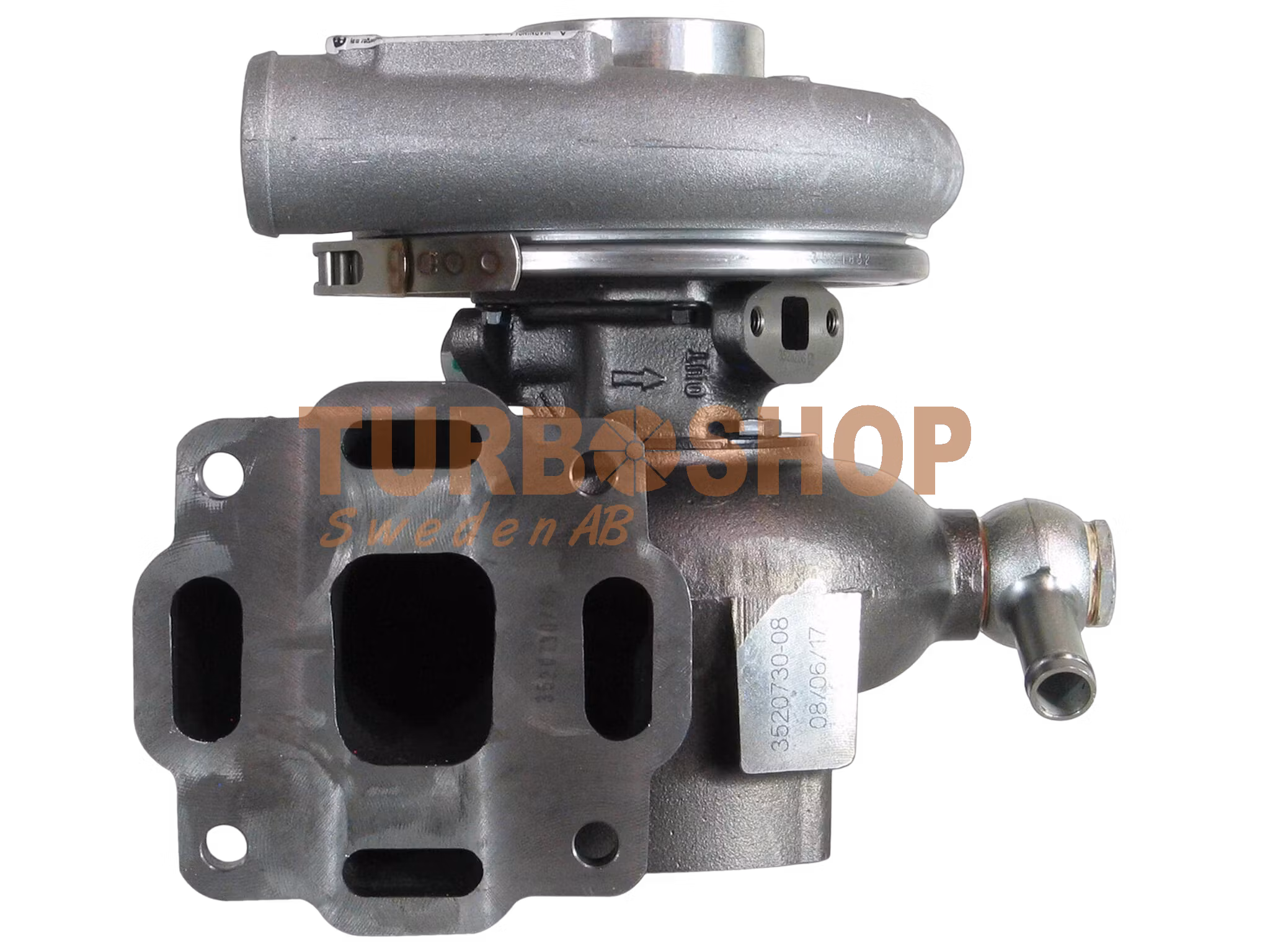

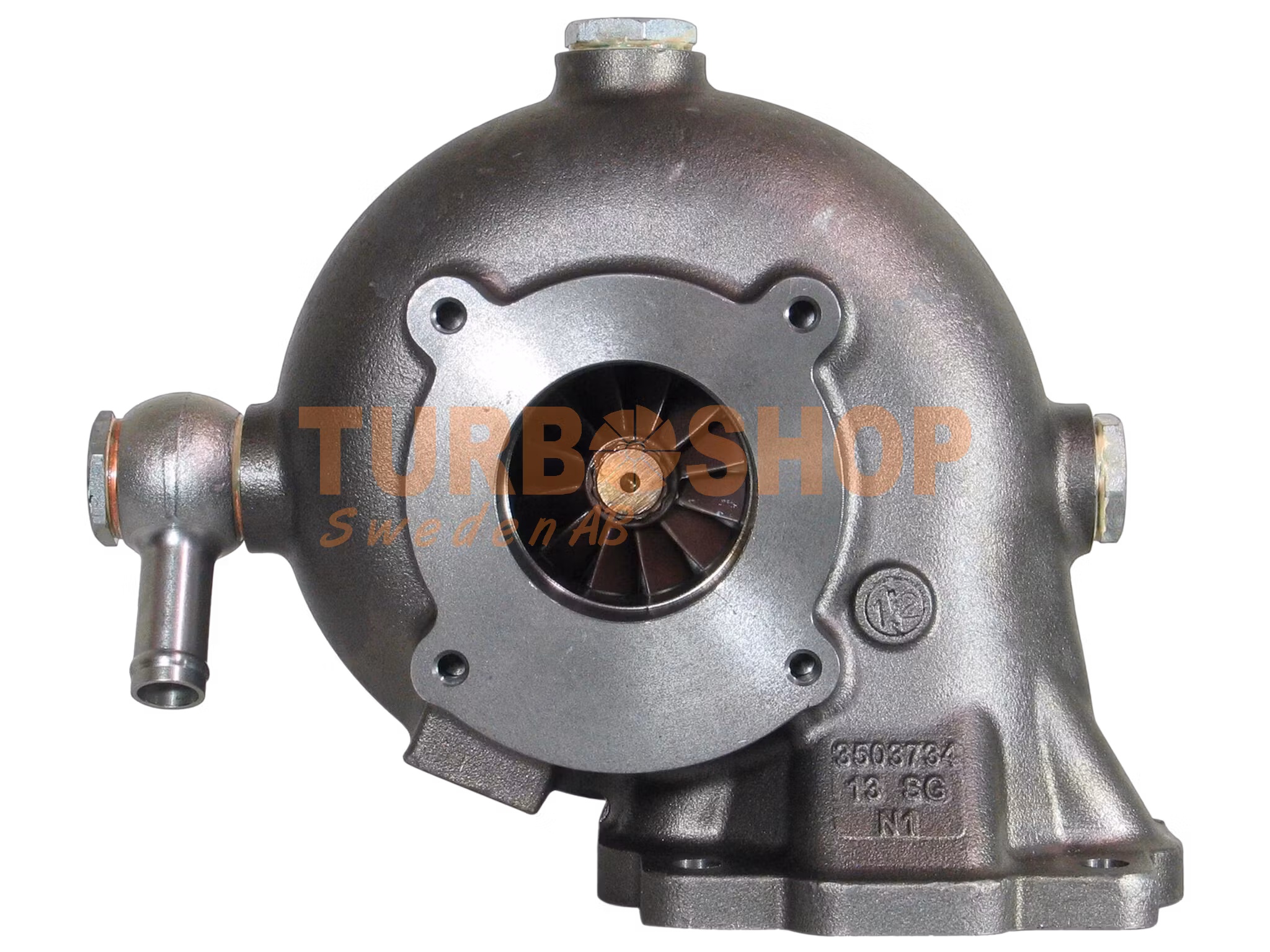

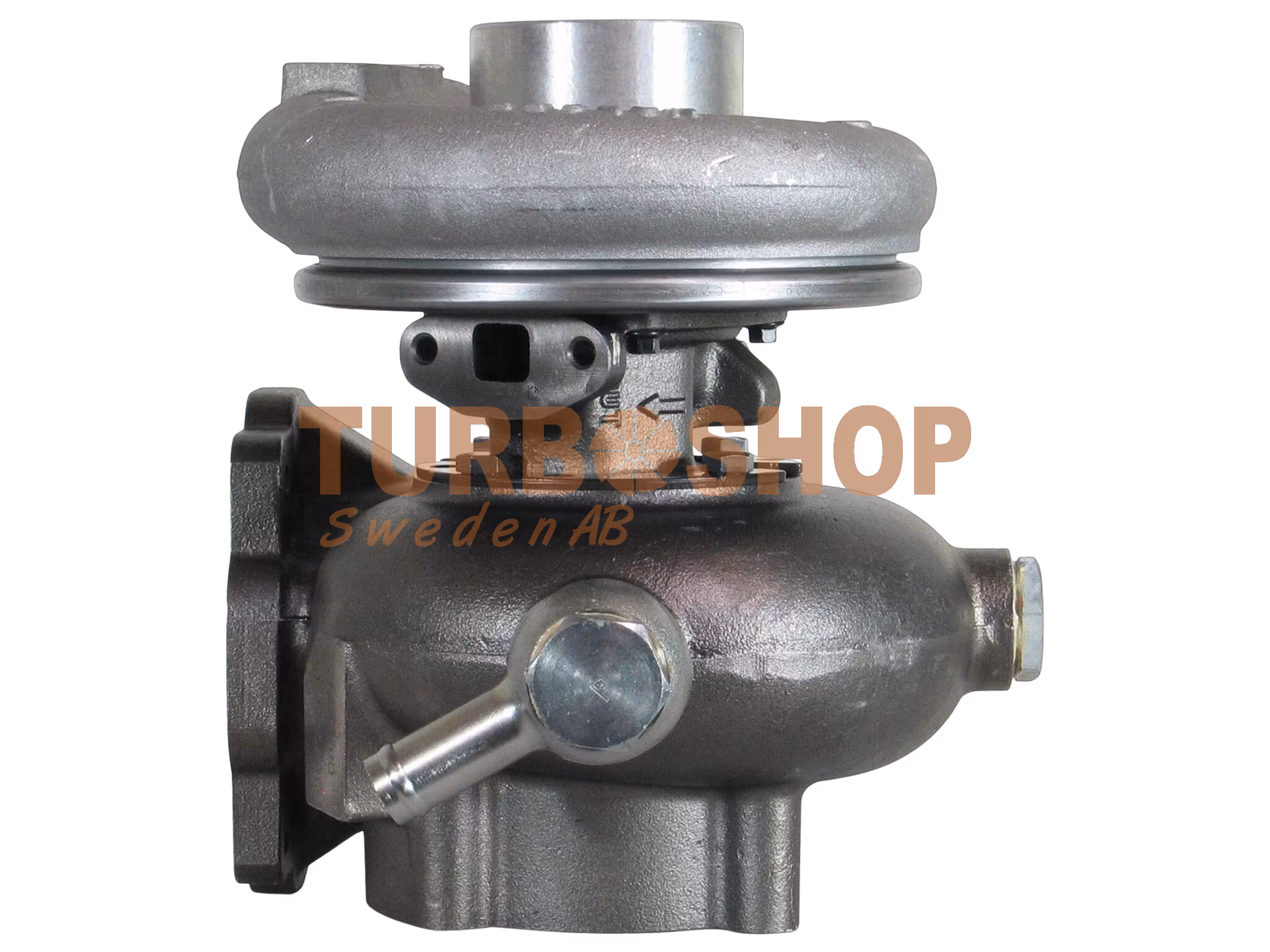

3524427 Holset H1C Marin Turbo Variabel Cummins 4BT 6BT 5.9 L

Fabriksny Holset H1C Marin Variabel Cummins 4BT 6BT 5.9 L ( Beställningsvara 2-5 dagar )

Turbonummer / Originalnummer / Turbofakta :

Ersättningsnr: 352442700, 3524427H, 3528761, 3531034H, 3532207,  3533732, 3534373, 3534374H, 3538723, 3538780, 3539466, 3539467H,  3539472, 3539473H, 3802297H, 3802297NX, 3802297RX, 3802589, 3802589NX,  3802589RX, 3802594NX, 3802594RX, 3802870NX, 3802870RX, 3802911NX,  3802911RX, 3897539, 3897540

OEM Number: 3524427, 3528762, 3531034,  3533733, 3533734, 3534374, 3535434, 3535435, 3538760, 3538781, 3539467,  3539473, 3802297, 3802594, 3802870, 3802911

Turbo Modell: H1C-8253AF/J13S11, H1C

Tillverkare: Holset

Årsmodell: 1985-
Motor: 4BT, 6BT
Motortillverkare: Cummins, CDC
Motorvolym: 5.9L, 59080 ccm
Bränsle: Diesel

Angle α (Compressor Housing): 199.5/241°
Angle β (Turbine Housing): 360/301°
Back Plate: 3522801 (1300016005)
Bearing Housing: 3530591 (3500591, 3530592)(Oil Inlet)(1152301450, 1900011017)
CHRA: 3537827 (353782700, 3523754)(1000020184)
Compressor Cover: 3522389
Compressor Wheel: 3599638 (3537155, 359963800)(Ind. 51.99 mm, Exd. 82.95 mm, Trim 10.3, 8+8 Blades)(1152301400, 1200016054)
Gasket (Oil Inlet): 210850 (392196100)(Inox Steel)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine)

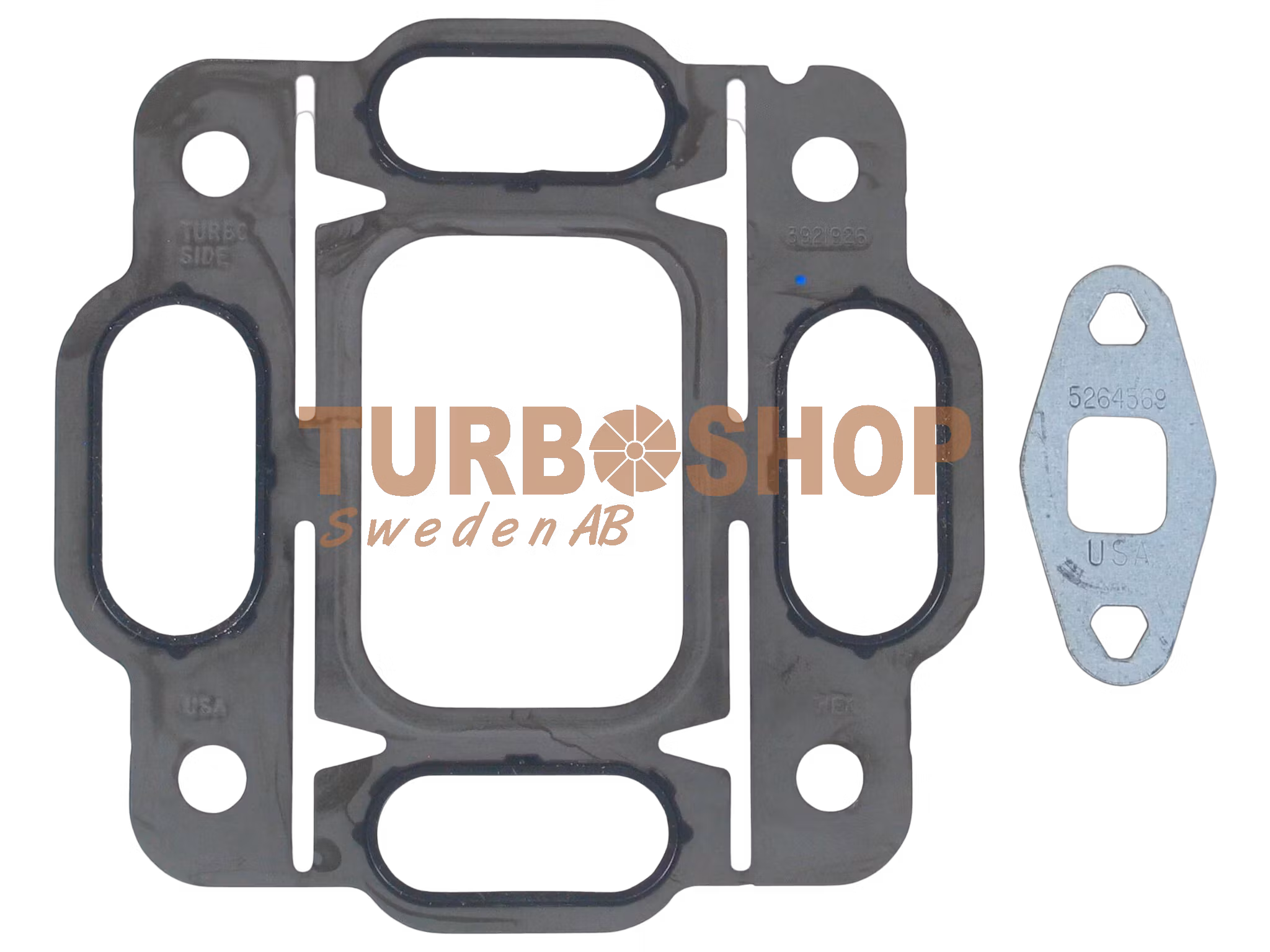

Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519302 (1152301340, 2030016031)
Plugs: 3503677
Repair Kit: 4027309 (3545652, 3802148)(1152301750, 5000020014)
Rotor Assembly: 3523755 (352375500)
Turbine Housing (Water Cooled): 3524425
Turbine Housing: 3519934

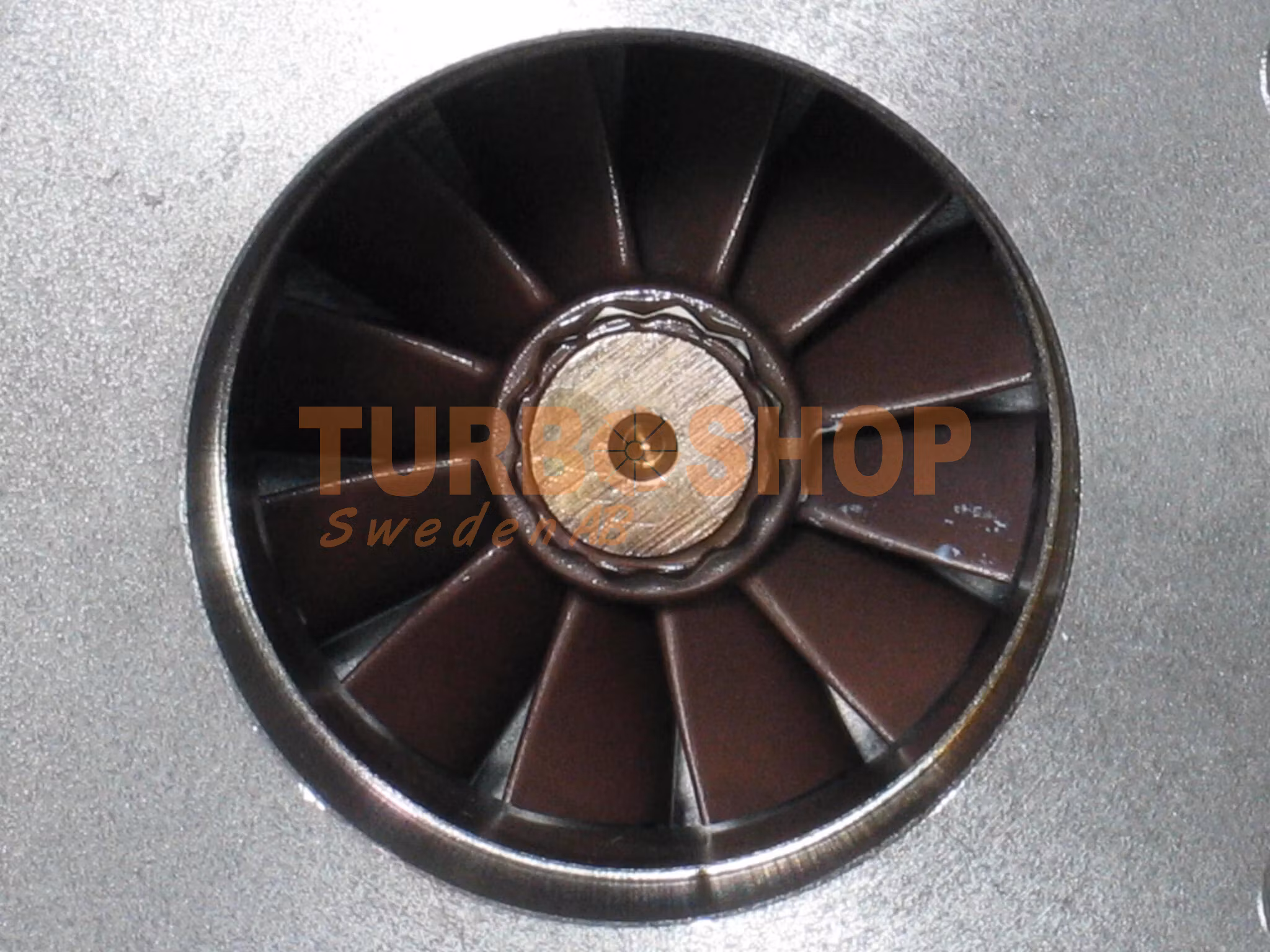

Turbine Wheel: 3519336 (3595832)(Ind. 70 mm, Exd. 60 mm, Trim 11, 12 Blades)(1152301435, 1100030005)

Application: 1985- Marine, Various with Cummins 4BT, 6BT Engine
