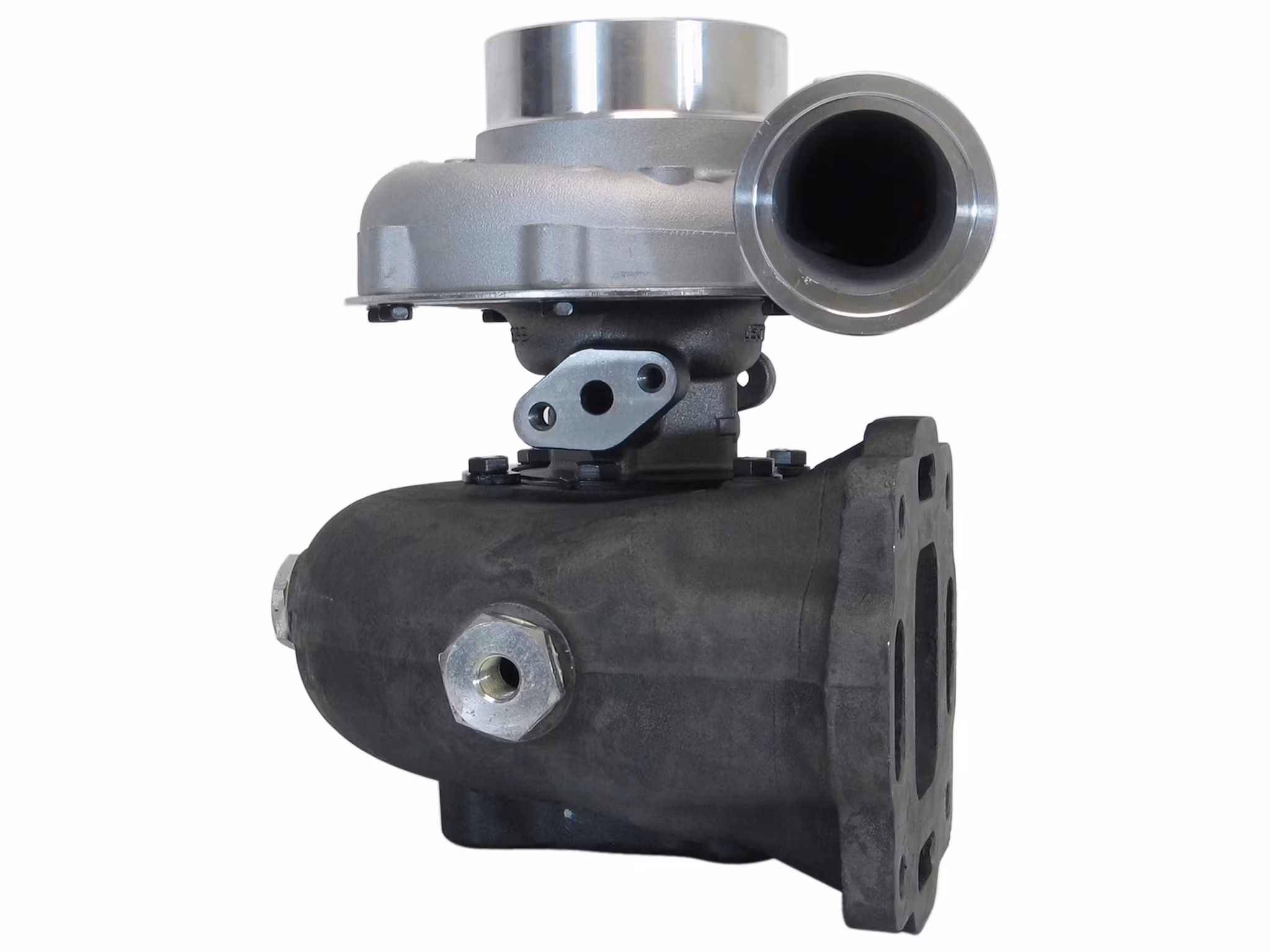

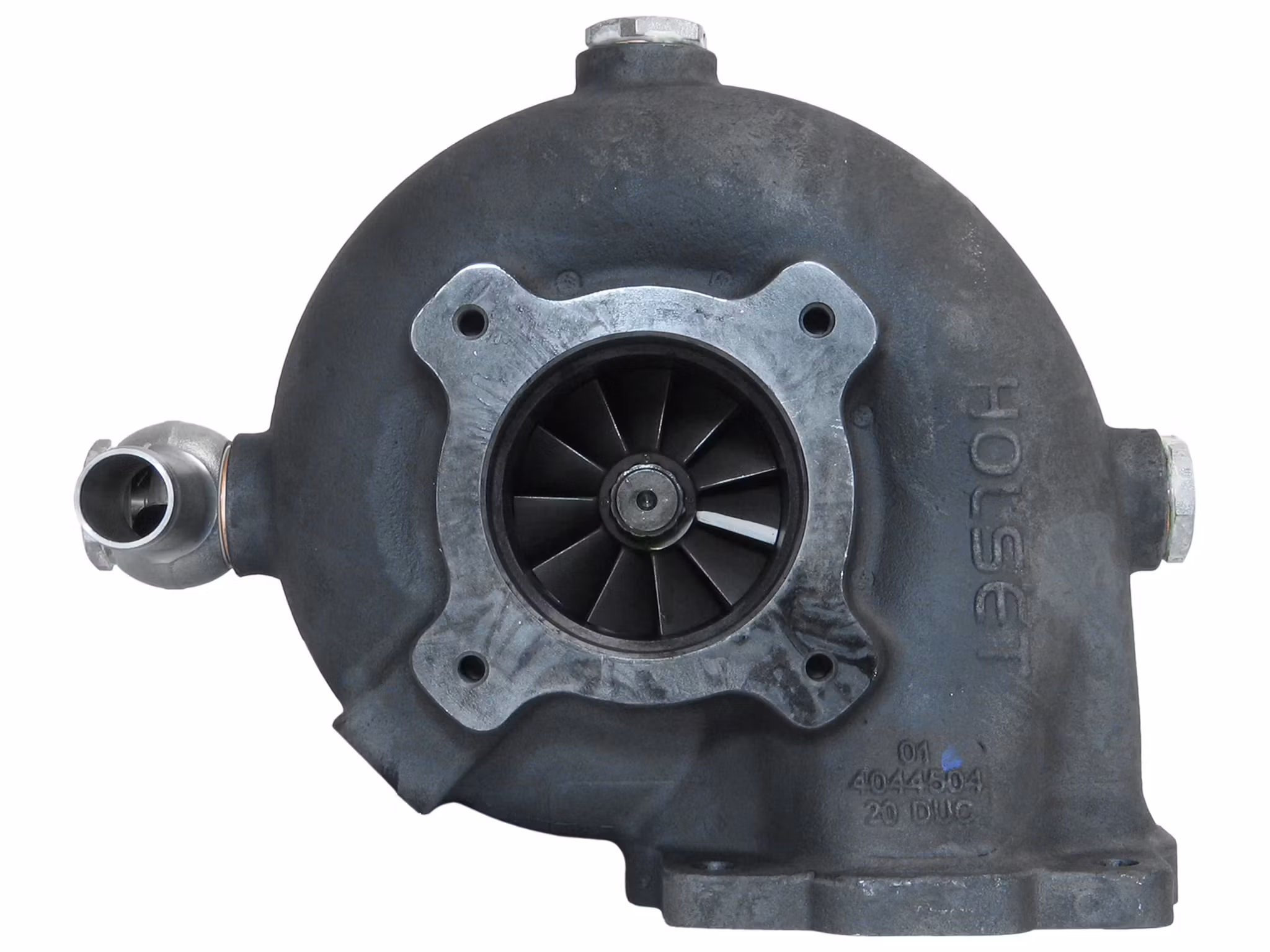

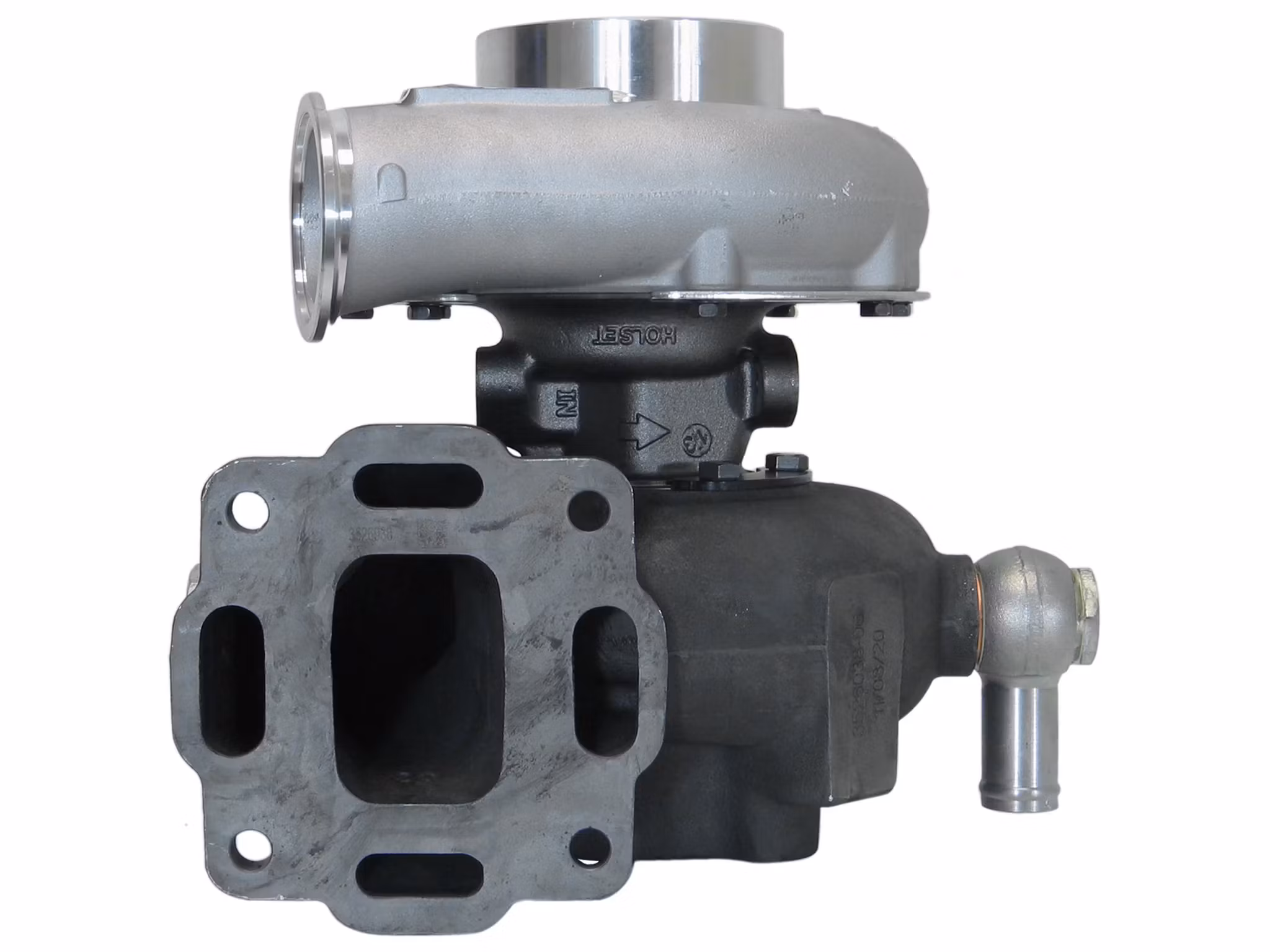

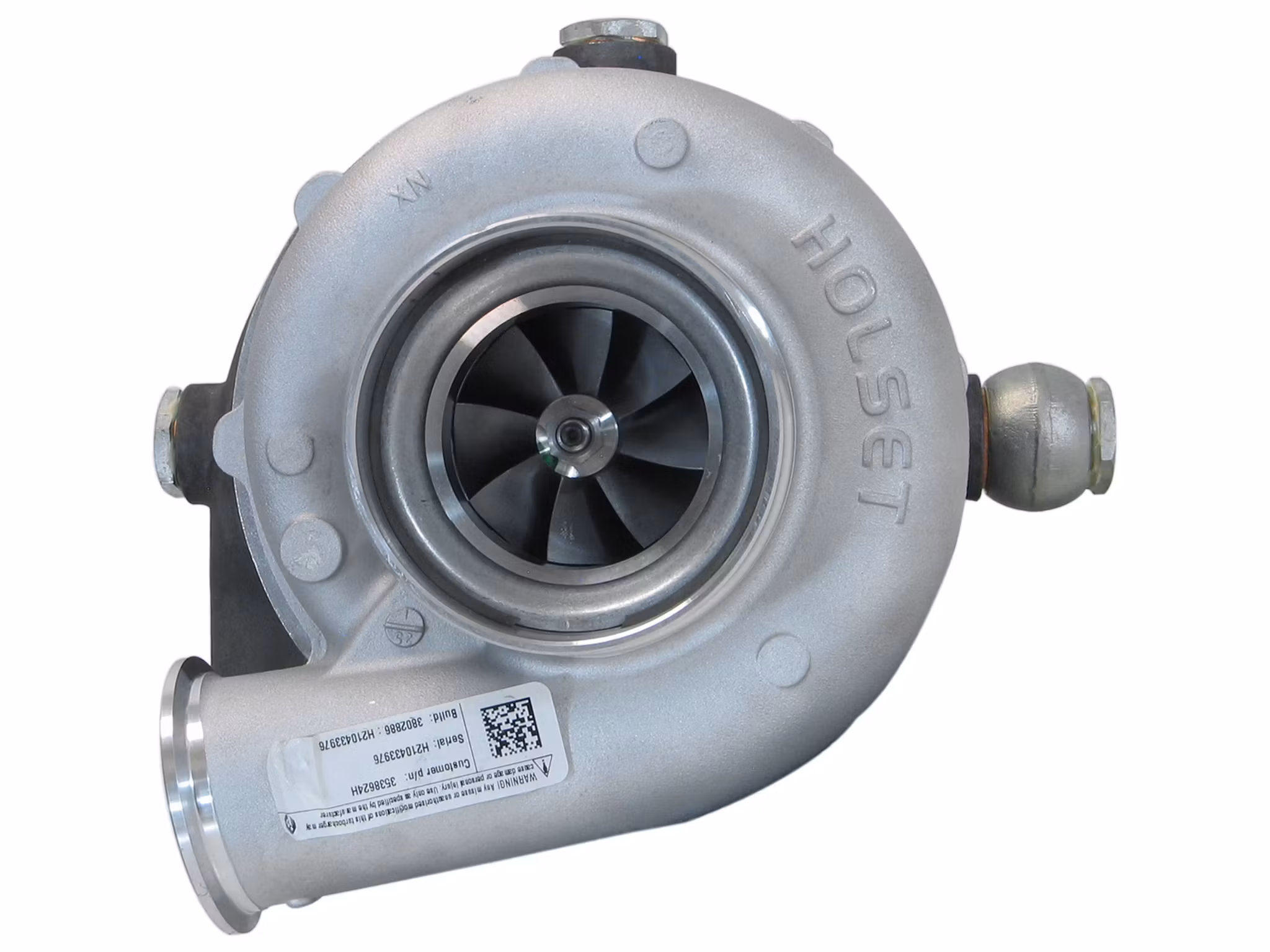

3538624H fabriksny Holset H2D Turbo Marine Cummins 6CTA 8.3L Diesel 3538623 3538624H

  • 24 999 kr
  • 22 499 kr

3538624H fabriksny Holset H2D Turbo Marine Cummins 6CTA 8.3L Diesel 3538623 3538624HFabriksny originalturbo ifrån tillverkaren Holset / Cummins.Vi renoverar äve

I lager.
Article Number: 3538624H
Share

3538624H fabriksny Holset H2D Turbo Marine Cummins 6CTA 8.3L Diesel 3538623 3538624H


Fabriksny originalturbo ifrån tillverkaren Holset / Cummins.


Vi renoverar även denna turbon väldigt ofta i vår verkstad här om möjlighet finns för det.


Turbonummer / Turbofakta / Originalnummer :

Part Number: 3538623

Interchangeable Number: 3538624H

OEM Number: 3538624, 3802886, 3802886NX, 3802886RX

Turbo Model: H2D-9361BA/HA20S3, H2D, H2DM

Manufacturer: Holset


Year: 1996-08

Engine: 6CTA, M2

Engine Manufacturer: Cummins

Displacement: 8.3L, 8300 ccm

Fuel: Diesel

Power: 316 kW/430 HP


Angle α (Compressor Housing): 258°

Angle β (Turbine Housing): 270°

Back Plate: 62564 (167543, 3562564)(1253300300)

Bearing Housing: 3525199 (352519900)(Oil Cooled)

CHRA: 3545751 (3545751H)

Compressor Cover: 3525664 (3526038)

Compressor Wheel: 3524997 (Ind. 64 mm, Exd. 94 mm, 7+7 Blades)

Gasket Kit: 3545769

Heat Shield: 3529846 (3533038)(1153052340)

Repair Kit: 3545653 (1152302750)

Turbine Housing (Water Cooled): 3538622

Turbine Wheel: 3522232 (Ind. 85.95 mm, Exd. 72 mm, 11 Blades)(1152302435)


Application:

1996-08 Marine with Cummins 6CTA Engine
