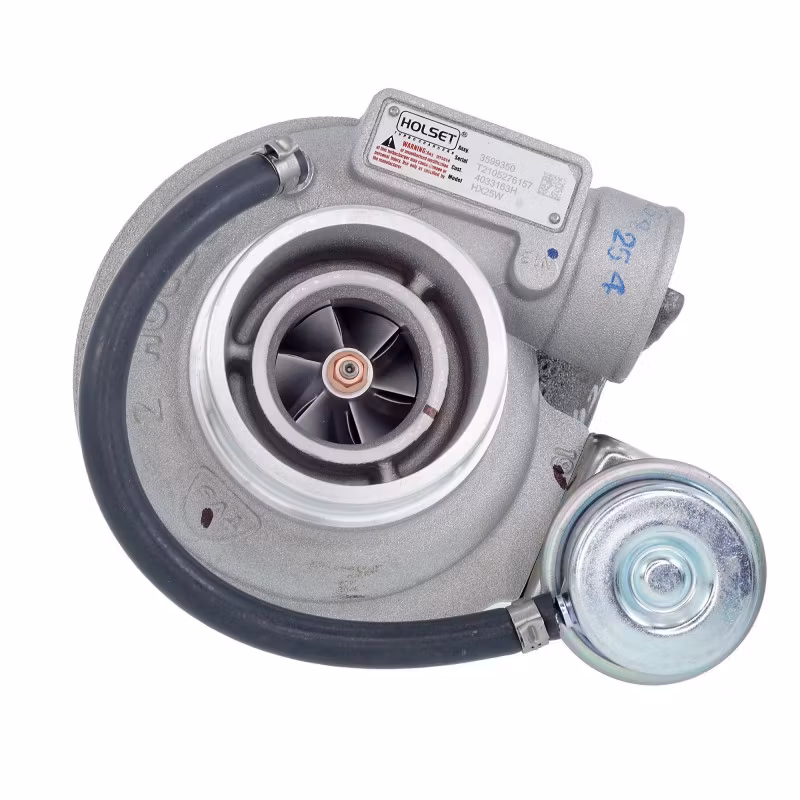

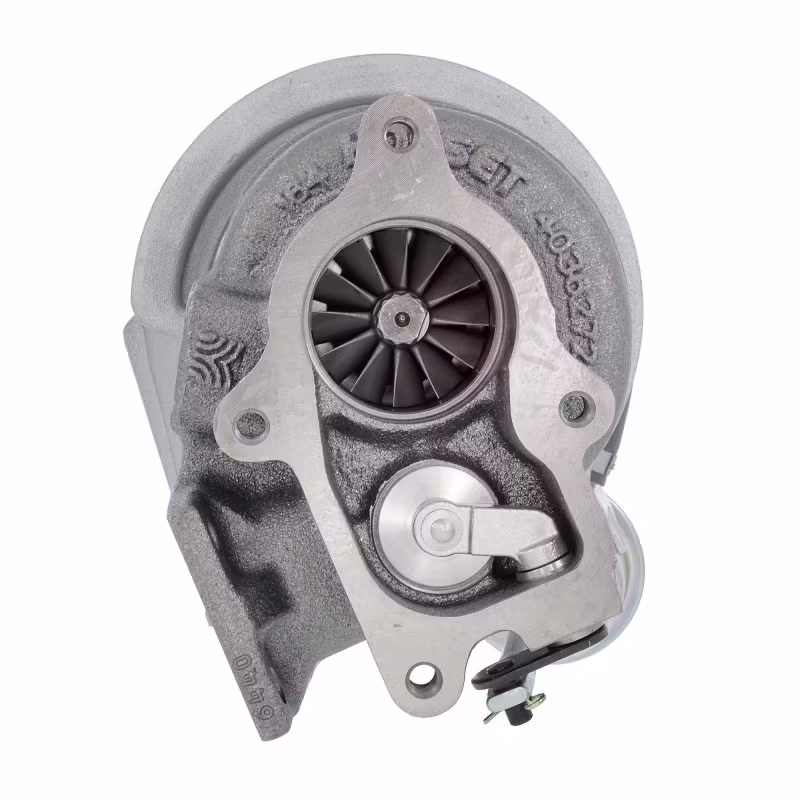

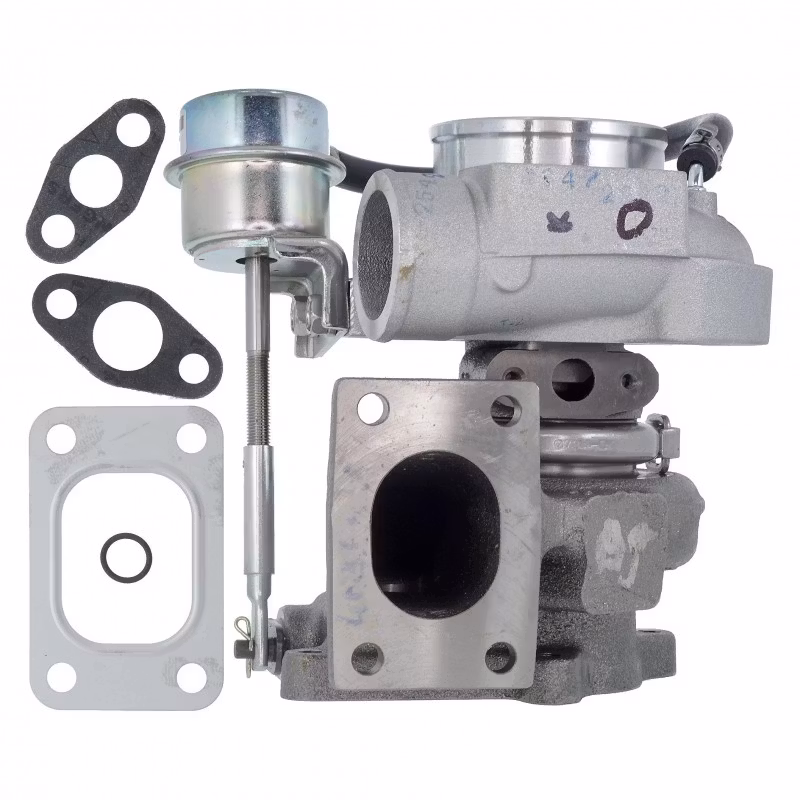

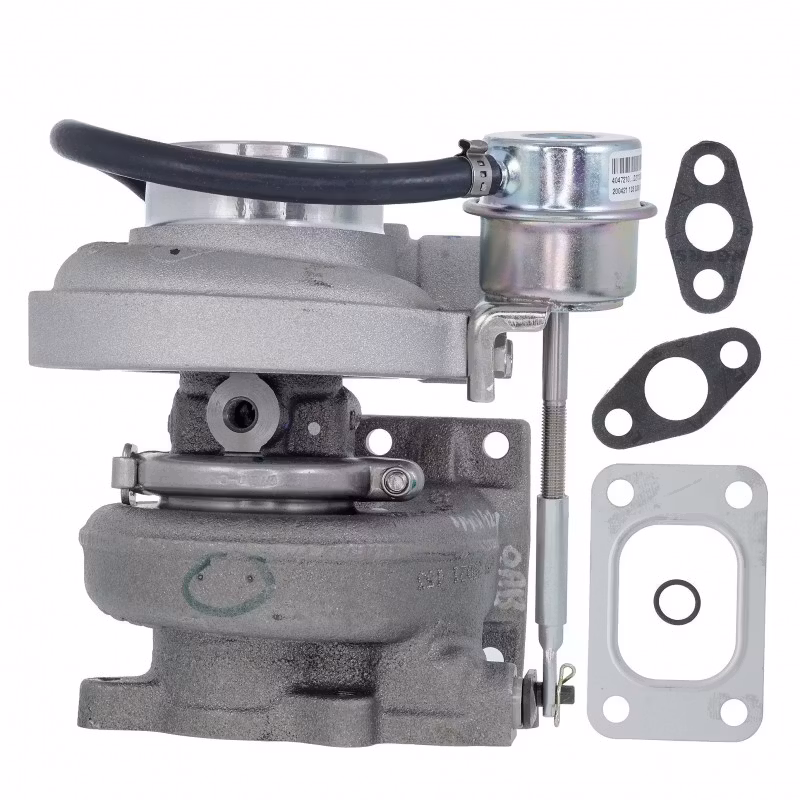

4033163H HX25W Holset Iveco / New Holland 4 cylindrig 2VTC ( Beställningsvara 1-3 dagars levtid )
Originalnummer Iveco / New Holland / Holset:
3599350 3599351
504061374 2852068 4042194 4033163
Sitter i följande fordon :
New Holand : LB95B LB110
Iveco : Iveco / Iveco - Cdc / Generator
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 3599350,4033163H |
| Previous Part Number | 3599351 |
| OE number | 2852068, 504061374 |
| Manufacturer Number | 4042194, 3599351 |
| CHRA | 3539071 (1153025901) $298.00 NEW IN STOCK, MADE IN USA |
| Engine | 4CYL2VTC, 2V TC |
| Description | Generator |
| Engine Manufacturer | Iveco |
| Displacement | 3.9L, 3900 ccm, 4 Cylinders |
| KW | 99 |
| Turbo Model | HX25W, HX25W-TB11K/AO85BXL |
| Angle α (compressor housing) | 175º |
| Angle β (turbine housing) | 360º |
| Bearing Housing | 49189-26400 (1153025450)(Oil Cooled) |
| Turbine Wheel | 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435) |
| Comp. Wheel | (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 blades, Superback)(1153025400) |
| Back plate | 49135-00044 (1153025300) (S/Back) |
| Heat shield Number | 49183-19300 (11530253408) |
| Repair Kit | (1153025751) |
| Turbine Housing | 4036441 |
| Compressor Cover | 3599254 |
| Actuator | 3599951 |
| Gasket (turbine inlet) | 210218 (Stainless Steel) |
| Gasket turbine outlet | 210889 (Stainless Steel) |
| Gasket oil outlet | 210243 (Gasket paper) |
| HOLSET |
Applications
2002-07 Iveco BHL Industrial Generator With 4CYL2VTC Engine
2002-07 CDC, Iveco Various With 2V TC Engine
