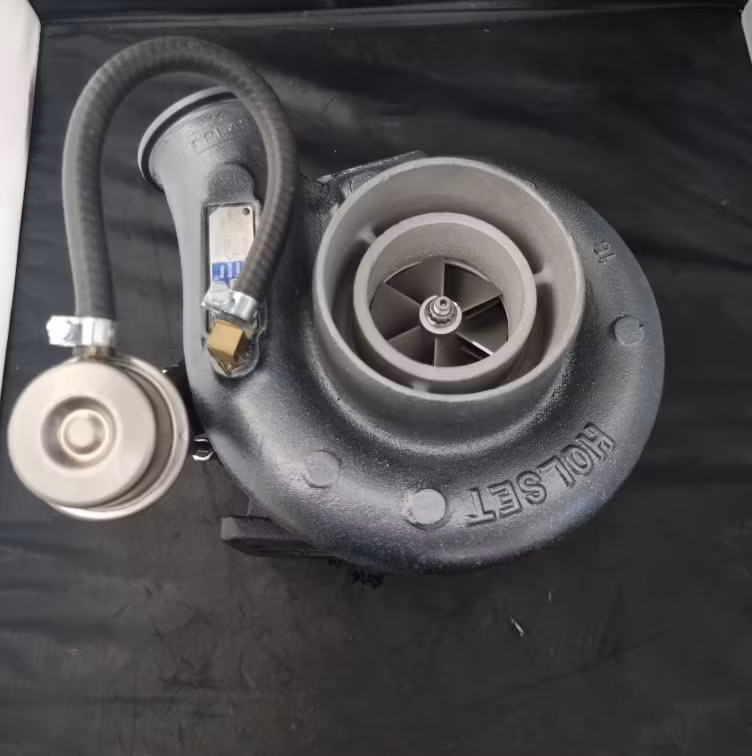

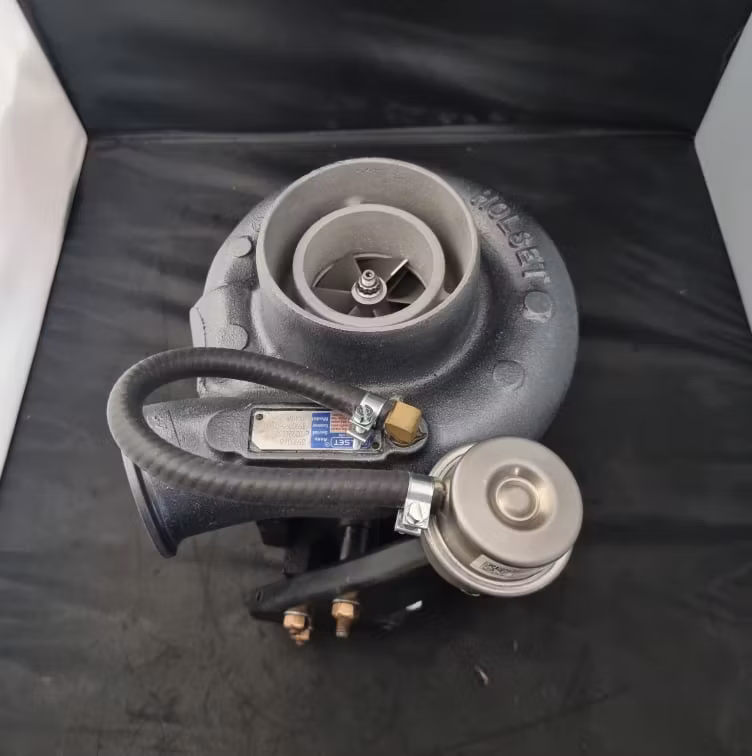

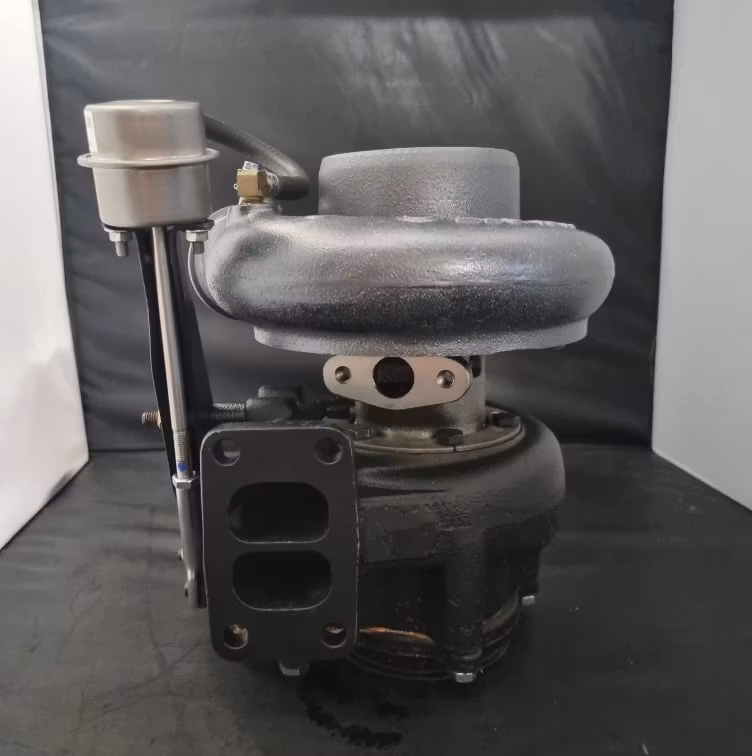

3590348 / 4044185 Holset HX40W Cummins ( Bytesturbo )

  • 9 000 kr
  • 8 100 kr

3590348 / 4044185 Holset HX40W Cummins ( Bytesturbo ) - Åter i lager ! Packningar ingår vid köp utav denna turbo.Bytesturbo = gamla turbon skall i retur hä

I lager.
Stock: 1
Article Number: 3590348-bytesturbo
Share

3590348 / 4044185 Holset HX40W Cummins ( Bytesturbo ) - Åter i lager !
Packningar ingår vid köp utav denna turbo.

Bytesturbo = gamla turbon skall i retur här.

Produkt beskrivning + ersättare + Oem nummer osv. :

Part Number4044185
Previous Version3590348, 3590395, 3596415H, 3596425, 3596426, 3596429, 3596430, 3597788
OE number3800426, 380042600, 3800426RX,  87403719, FJR800426, J800426, JC590348, JR800426
DescriptionCummins Freightliner, Industrial, Truck, Bus, ISC Encore Engine, CNH 4WD TRACTOR
Manufacturer Part Number4036978, 4044185, 4044186, 4044972, 4044973, 4044974, 4044975, 4044976, 4044977
CHRA4030911 (4030911H) $350.00 NEW IN STOCK, MADE IN USA
Turbo Model HX40W
Engine6C QSC,  QCS 8.3L, 6CTAA, 6C, QSC8.3 Tier-2
Engine Manufacturer Cummins
Displacement 6 Cylinders
FuelDiesel
Angle α (compressor housing)345/300/225/30/299/285°
Angle β (turbine housing) 15/222°
Bearing Housing 3537112 (3593878, 4038197)(Oil Cooled)
Turbine Wheel3522879 (3519892, 3535359)(Ind. 75.92 mm, Exd. 64. mm, Trm 10.41, 12 Blades)
Comp. Wheel4035651 (3599550, 4035651H)(Ind. 60. mm, Exd. 86. mm, Trm 6.93, 6+6 Blades, Superback)
Back plate3596448
Heat shield Number3519304 (3519302)(1152301340)
Repair Kit3575169 (1153035750)
Actuator4030123
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 2475013)
Gasket Kit3545575 (3545576)
ManufacturerHOLSET


Applications


2006-09 Cummins 4WD Tractor, Agricultural  Truck with QSC8.3 Tier- Engine

2006-09 Cummins  Agricultural Engine with 6C QSC Engine

2006-09 Cummins Bus Fleet with 6C ISC ENCORE Engine
