Garrett G-Smart Module FIXA

Transmit turbo speed and boost via bluetooth directly to your mobile device.

Track  your turbo’s performance in real-time with the Garrett G-Smart Module.  Transmit turbo speed and boost via Bluetooth with the free G-Smart  application. This important data will allow users to see if they are  operating the turbocharger within its recommended RPM limits to optimize  durability and performance. The Garrett G-Smart Module is your  turbocharger’s ultimate companion, guiding you towards unparalleled  performance.

Analyze Turbo Speed and Boost Pressure:

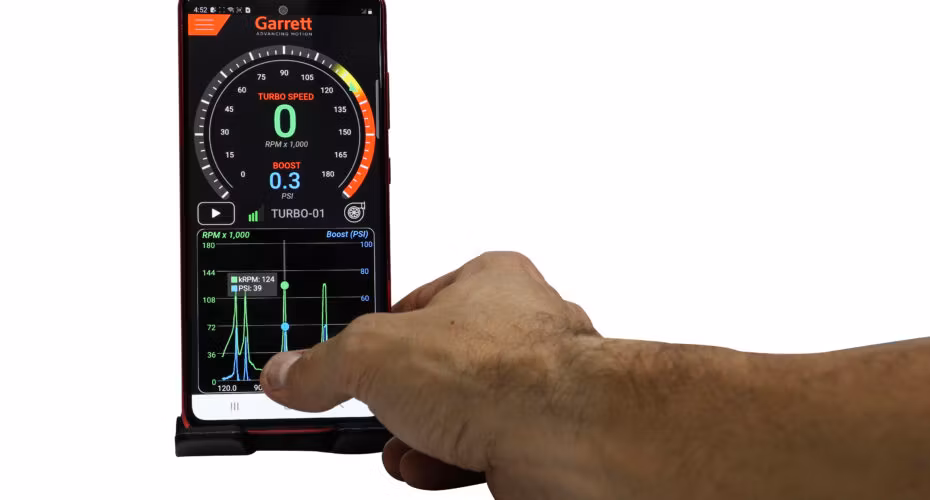

With  the device paired and the car running, the mobile device screen will  light up with live turbo speed and boost pressure (if connected) in a  dynamic gauge and graphical format. The gauge display features a  constant live data feed and has a marker that freezes on peak turbo  speed. The graph plot length can display up to 120 seconds of live data.  The live data feed can be paused allowing users to review data points  within the plot length with a touch of the screen. Users can connect the  analog output to an external data logger/ECU for complete data logging.

Diagnostics Data:

The G-Smart App stores some historical data for review.
• Minimum and maximum turbo RPM
• Minimum and maximum Boost
• Module Temperature
• Module Voltage
• 5 most recent overspeed occurrences

Features:

• Bluetooth operation transmits data to the G-Smart application
• Modern display with live turbo speed and boost pressure
• Gauge sweep transitions color (G,Y,R) signaling max-rated turbo speed
• Marker on gauge sweep indicates peak turbo speed
• Display up to 120 seconds of turbo speed and boost data
• Easy installation and configuration
• Min/Max turbo speed and boost pressure stored in app
• Compatibility with both Android and iOS devices

Display Settings:

The G-Smart App display can be adjusted to your preferences
• Adjust the plot length up to 120 seconds
• Min/Max Turbo Speed display range
• Min/Max Boost Pressure display range

 Sensor Settings:

The G-Smart App is easy to configure.
• Preloaded Garrett turbo part numbers with max rated turbo speed and blade count
• Preloaded Boost pressure sensors with voltage calibrations
• Adjust for PSI or BAR
• Custom “User Inputs” can be created for non-Garrett manufactured turbochargers that use the same style speed sensors
