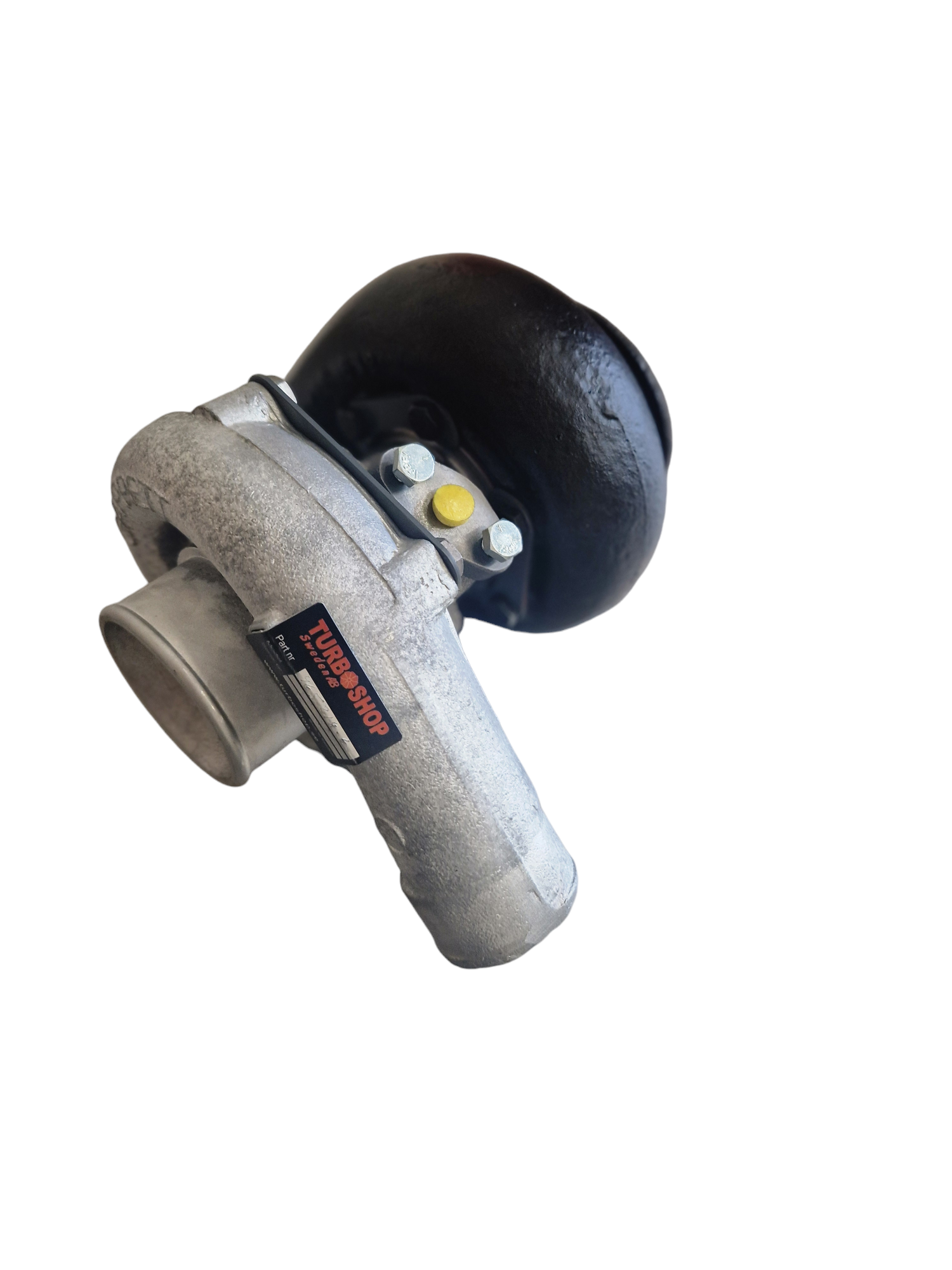

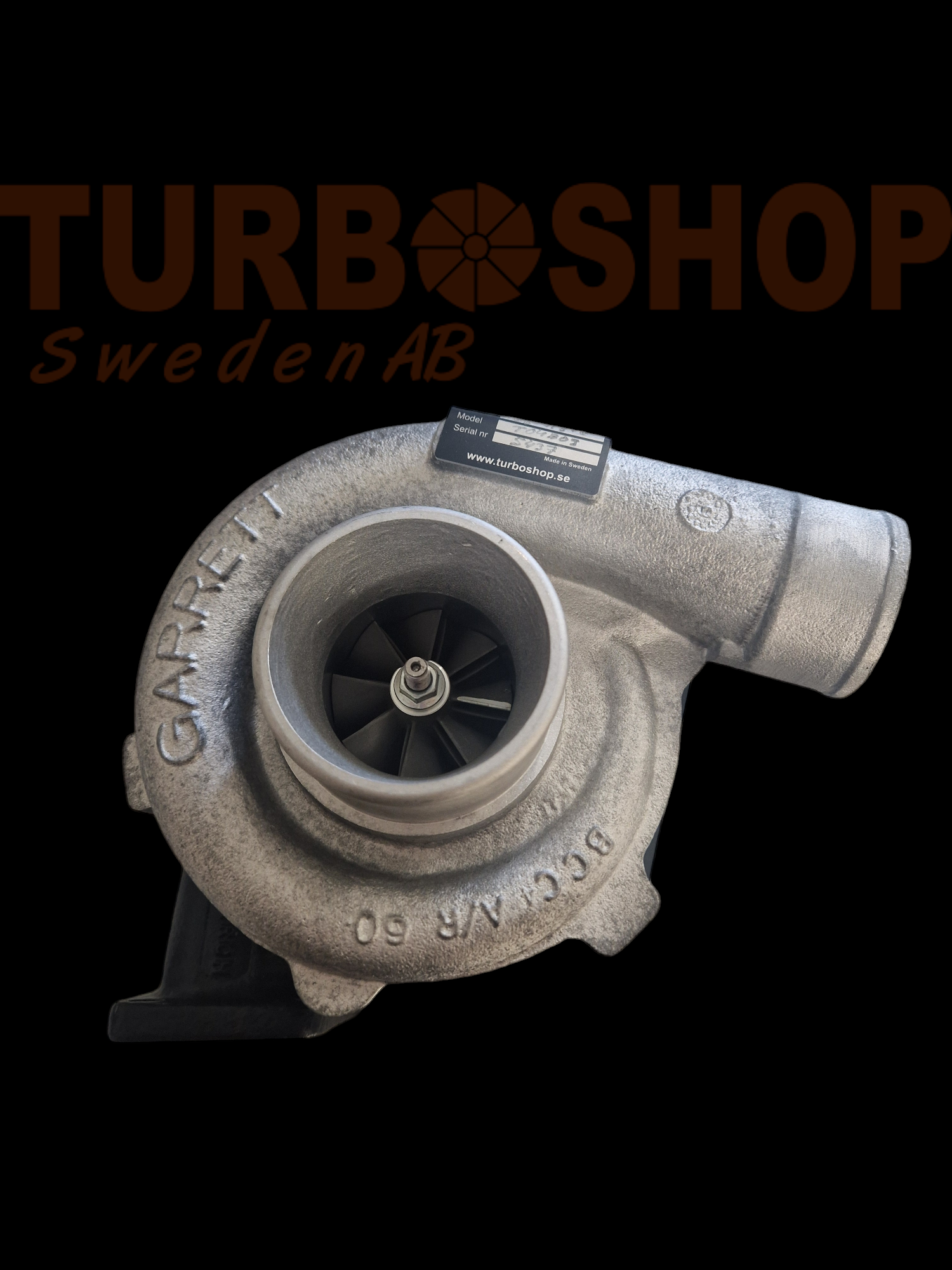

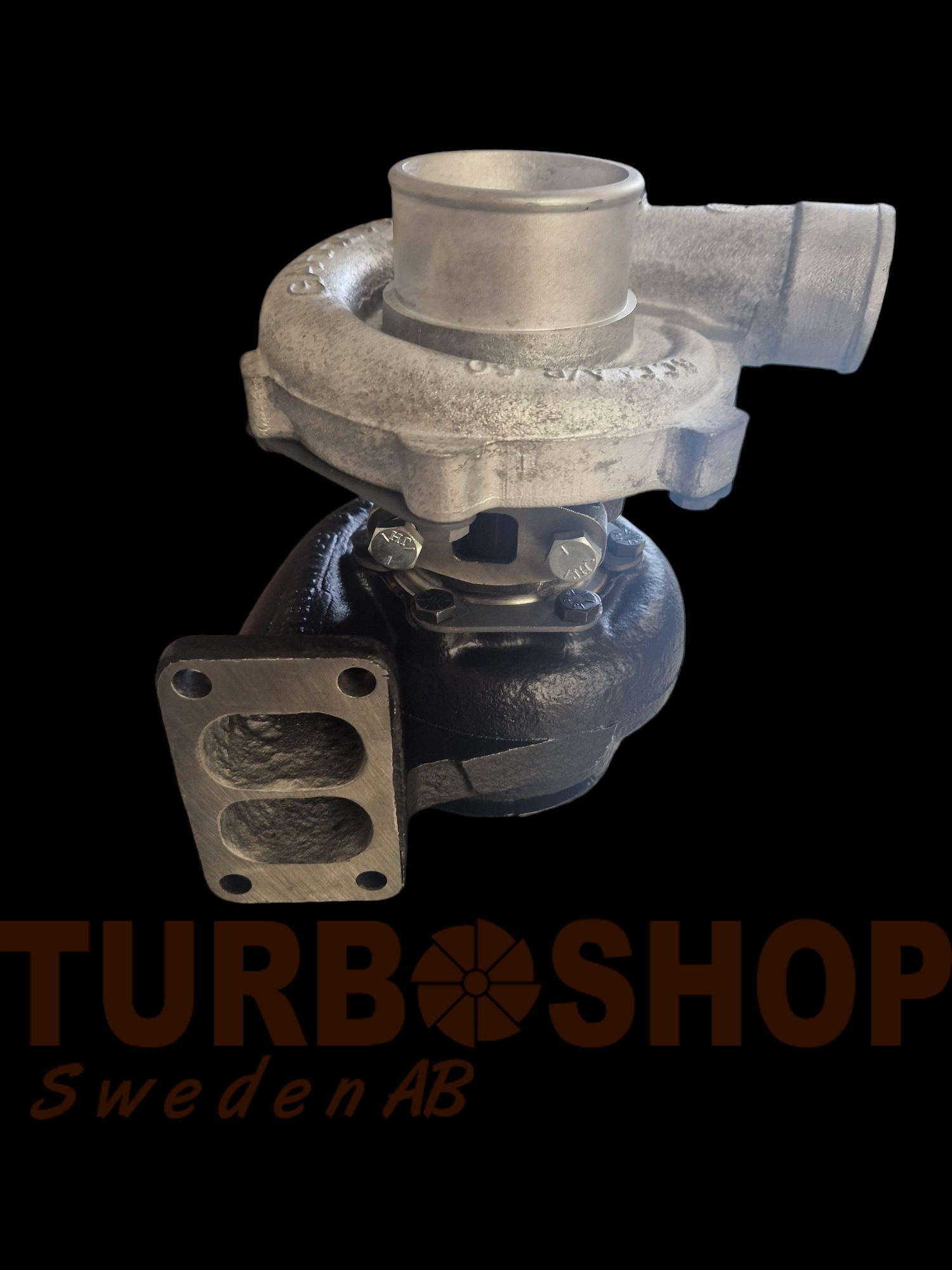

465218-5006S Garrett T04B09 - Renovering utav din befintliga turbo.

  • 7 495 kr

465218-5006S Garrett T04B09 - Renovering utav din befintliga turbo.- Renovering utav din turbo utav erfarna turbotekniker.- Vi har samtliga delar på lager för s

I lager.
Artikelnummer: 465218-5006S-R
Dela

465218-5006S Garrett T04B09 - Renovering utav din befintliga turbo.

- Renovering utav din turbo utav erfarna turbotekniker.

- Vi har samtliga delar på lager för snabb levtid och normallt sett renoveras denna turbo på 1-2 dagar efter den anlänt till vår verkstad.

Turbonummer / Originalnummer / Turbofakta :

Part Number 465218-5006S
Previous Version 465218-0004, 465218-0006, 465218-4, 465218-6
OE number E2NN6K682BB, E2NN6K682BC , 81868484
DescriptionAG Tractor TW15/20/30/35
CHRA408105-0350 (408105-5350S) $550.00 NEW IN STOCK
Turbo Model T04B09
Engine401DT, 401
Engine ManufacturerFNH
FuelDiesel
Angle a (compressor housing) 340º
Angle ß (turbine housing) 350º
Bearing Housing430027-0035 (D7NN6N762A, 186880, 186882, 407285-0018, 430027-0031, 430027-0051)(Oil Cooled)(1900011376) $64.00 NEW IN STOCK
Turbine Wheel451309-0002  (317640, D8NN6N678A)(407276-0005, 410188-0002, 410188-0005, 410188-0014,  446249-0004, 446905-0001)(L.H.T)(Ind. 74.29 mm, Exd. 58.29 mm, Trm  10.16, 11 Blades)(1100030024) $105.00 NEW IN STOCK
Comp. Wheel409179-0031  (409179-0019, 311789, 310193)(XN438638)(Ind. 47.62 mm, Exd. 69.97 mm,  Trm 6.32, 8+8 Blades, Flatback) $40.88 NEW IN STOCK
Back plate408045-0051  (D7NN6N764A, 5149542, 311708, 310010, 4N6863)(104244-0000, USE  408045-0034, 408045-0051, 408045-0006, 408206-0002)(1100040360,  1300016009) $38.66 NEW IN STOCK
Heat shield Number409299-0001 (311607, 407565-0000)(D7NN6N763A)(311943, 7N0012, 3524773B)(2030016025) $15.70 NEW IN STOCK
Repair Kit468100-0000 (3524796, 168984, 310063, 188006-0000)(1100040760, 5000010041) $69.60 NEW IN STOCK

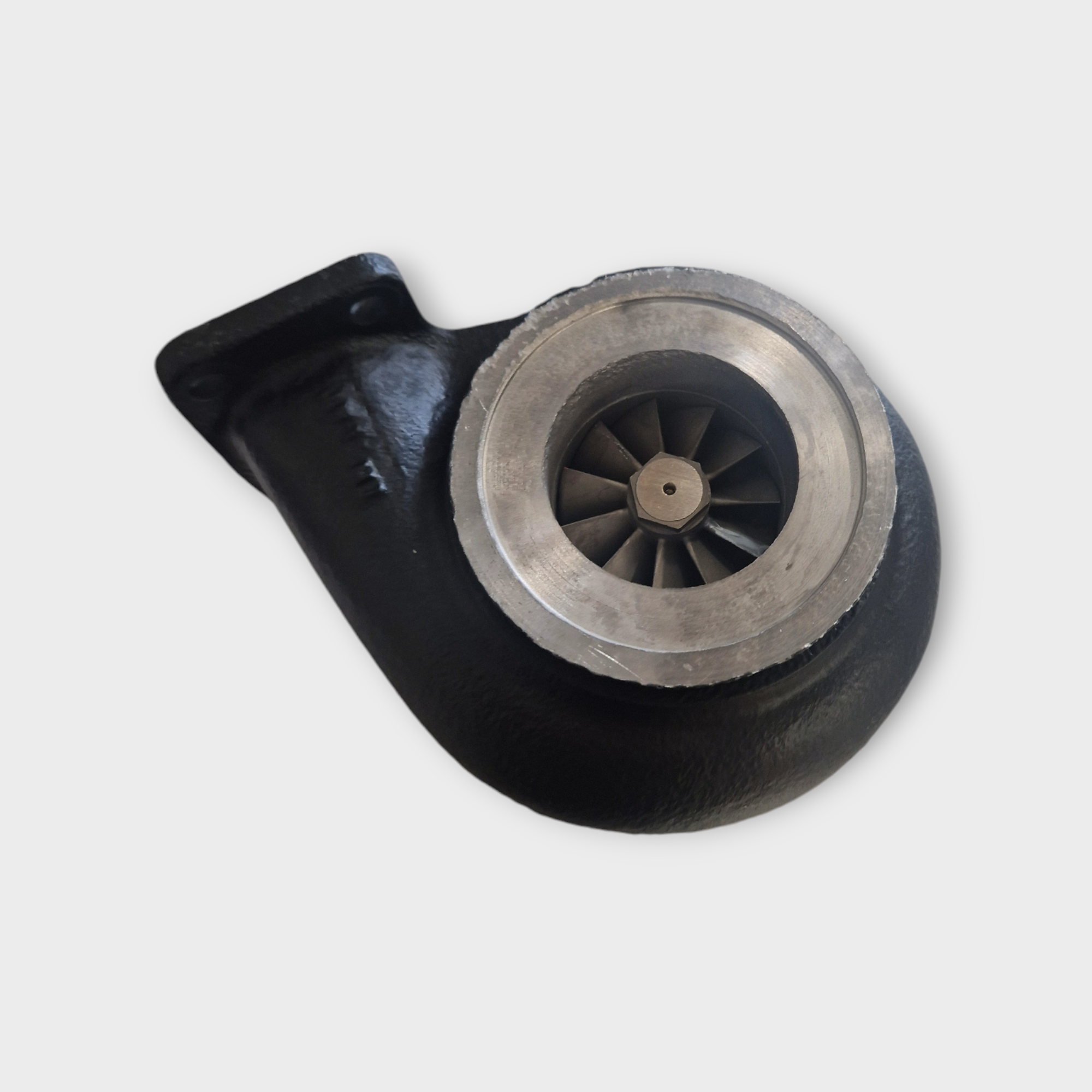

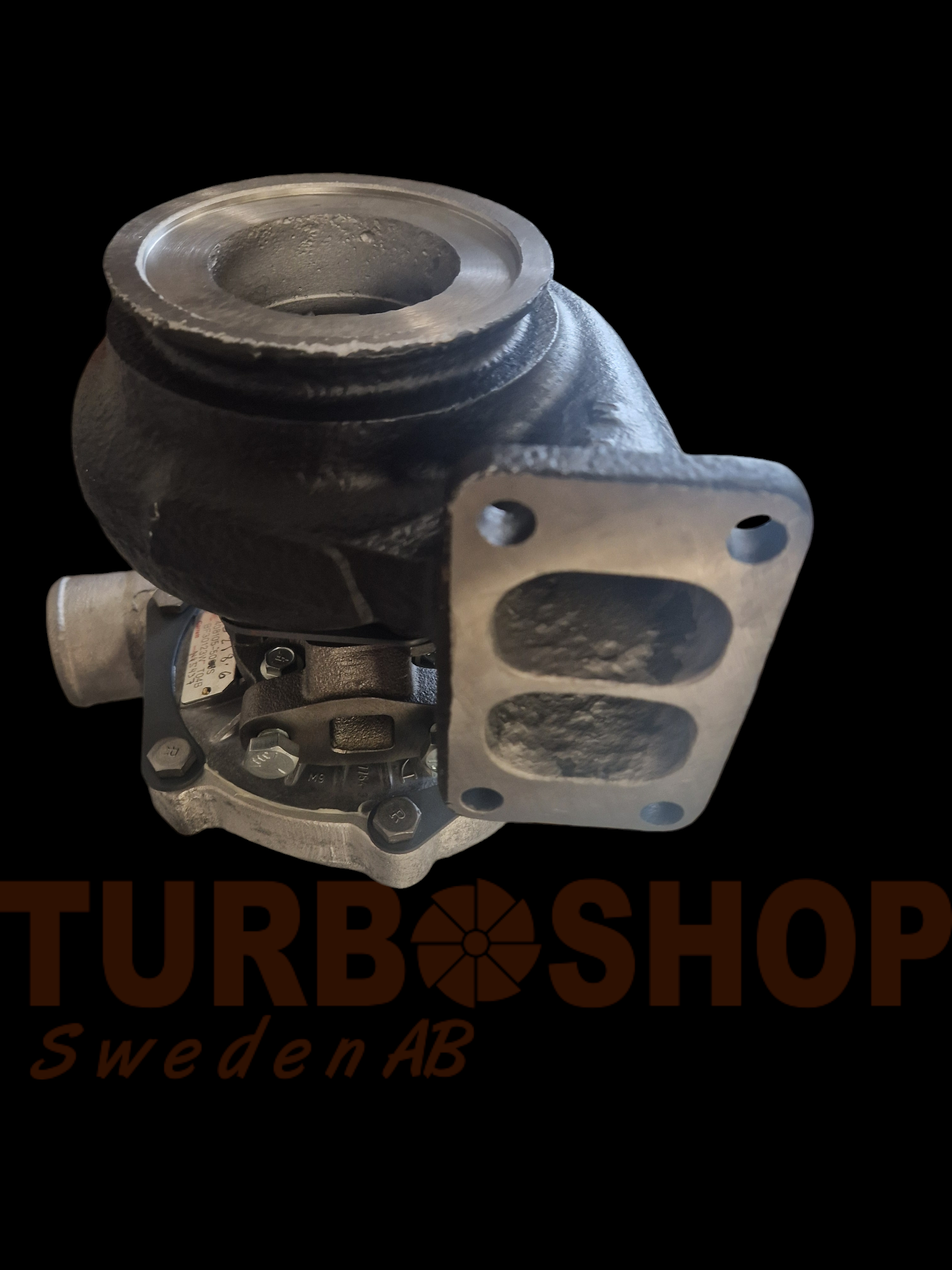

Turbine Housing409568-0025 (D8NN6N677BA)
Compressor Cover408173-0075
Turbine Housing AR0.84
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022, E3ZE9L461AA)(Inox Steel)(1900000006) $13.52
Gasket (oil outlet)210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket (oil inlet)210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)  $4.48
Gasket Kit215068 (2090505044)
ManufacturerHoneywell-Garrett


Applications


1982- New Holland, Perkins Agricultural TW15/20/30/35 with 401DT, 401 Engine
