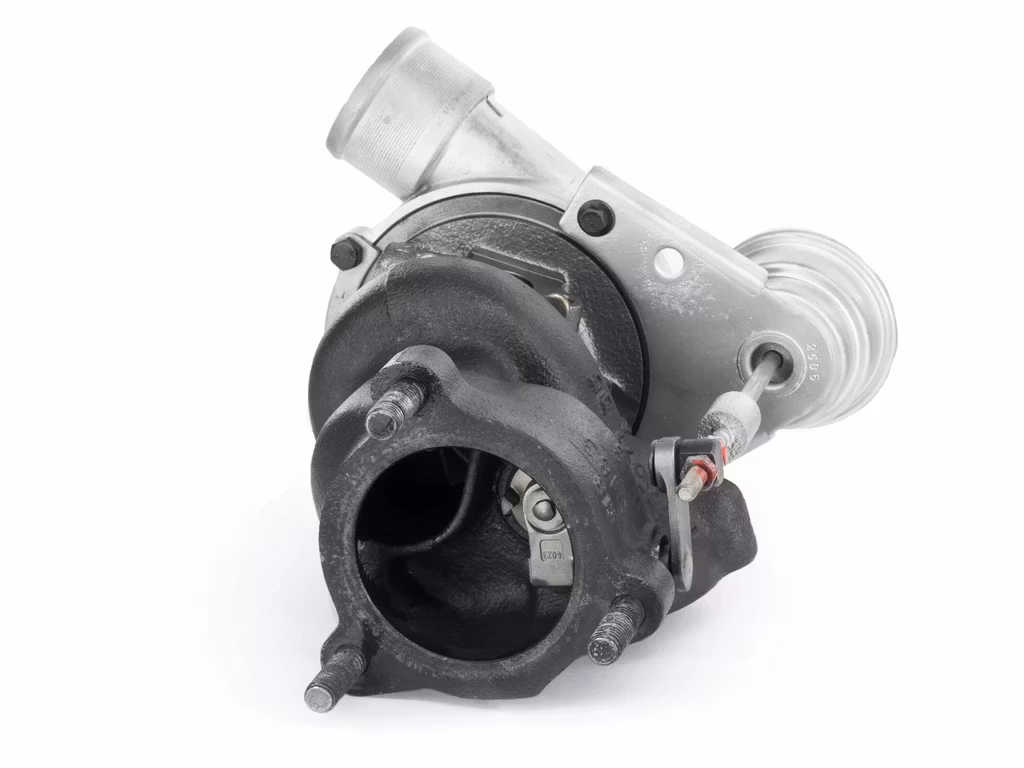

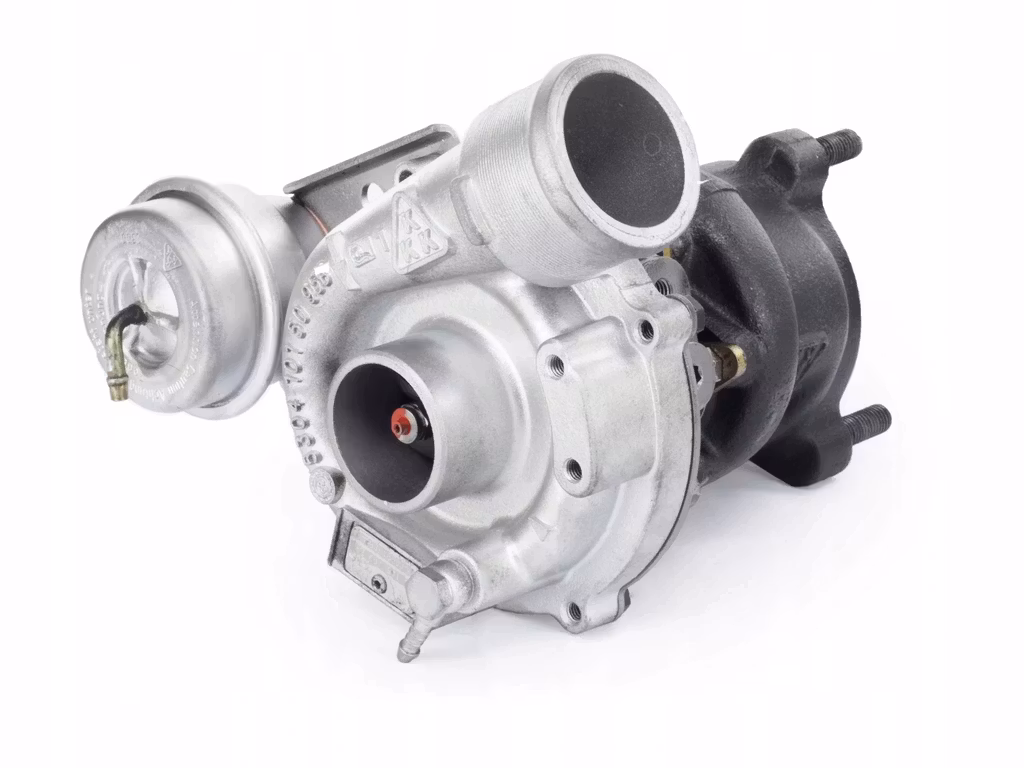

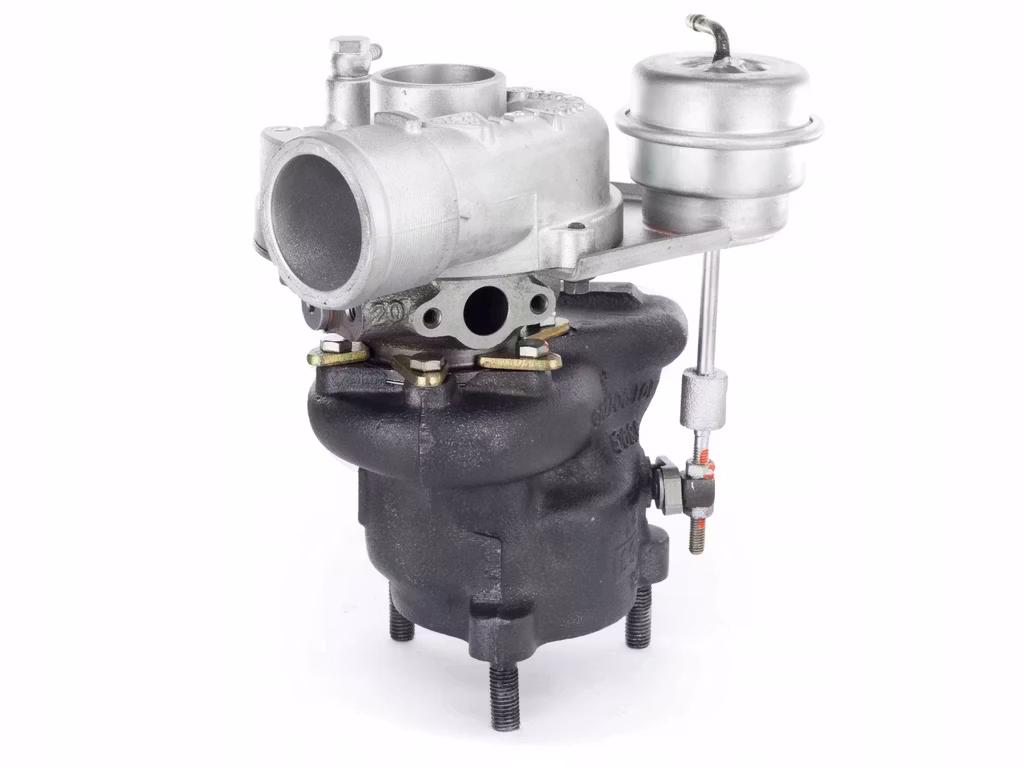

53039880073 Audi A4 2 K03-073 Turbo ( Bytesturbo )
Populär renoverad bytesturbo till Audi A4.
53039880073 Audi A4 2 K03-073 Turbo ( Bytesturbo ) ( Beställningsvara 1-3 dagars levtid )
Packningssats ingår vid köp utav denna turbo.
Bytesturbo = gamla turbon skall i retur till oss här.
Motorkod : BEX , AVJ
Originalnummer : 06B145703B , 06B145703BX , 06B145703BV
Turbonummer :53039880073 , 53039700073 , 5303 988 0073
Turbofakta / Turbonummer / Originalnummer :
| Part Number | 53039880073 | ||
| Previous Version | 5303-988-0073, 5303 988 0073 | ||
| OE number | 06B145703B , 06B145703BX , 06B145703BV | ||
| Year | 1998-08 | ||
| Description | Audi A4 (B6) quattro | ||
| Manufacturer Part Number | 53039700073 | ||
| CHRA | 53037100521 (5303-710-0521) (1302003916) | ||
| Turbo Model | K03-(1302003916) | ||
| Engine | 1,8-5V langs/along | ||
| Engine Code | BEX, AVJ | ||
| Displacement | 1.8L (B6) 1781 ccm, 4 Cylinders | ||
| KW | 140/190 HP | ||
| RPM Max | 5700 | ||
| Fuel | Gasoline | ||
| Bearing Housing | 53041500017/53041500015/53041500029/530415000006/53041500009 (1302003460, 1302004462) (W/Cooled) | ||
| Turbine Wheel | 53031205037/53031205023 (53031205008, 53031205010 )(Ind. 45. mm, Exd. 40.5 mm, 11 Blades)(1302003435) | ||
| Comp. Wheel | 53041232029 (Ind. 38.1 mm, Exd. 51. mm, Trm 56, 6+6 Blades, Superback) (1302003404) | ||
| Back plate | 53041515712/53041515712A (1302003304) | ||
| Heat shield Number | 53031652000 (1302003340) $9.88 (Recessed Top) | ||
| Repair Kit | 53037110001 (1302003751) | ||
| Turbine Housing AR | 5 | ||
| Manufacturer | Borg Warner - 3K - Schwitzer |
Applications
2002-12 Audi A4 with 1,8-5V langs/along Engine
2002-04 Audi A4 1,8T (B6) Engine BEX / AVJ
