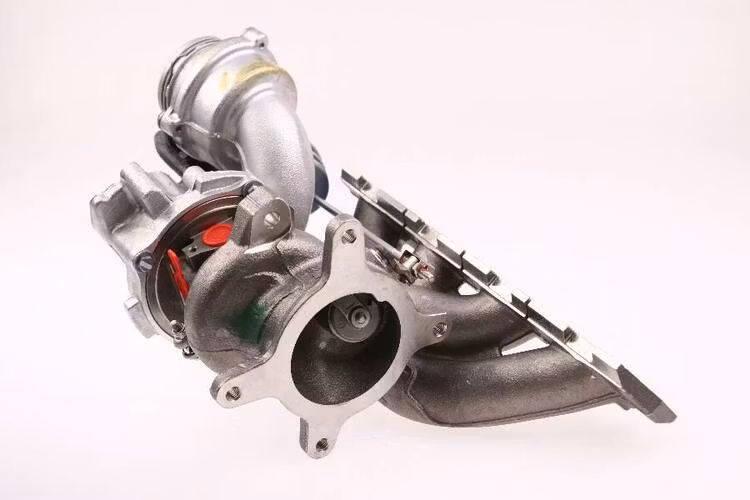

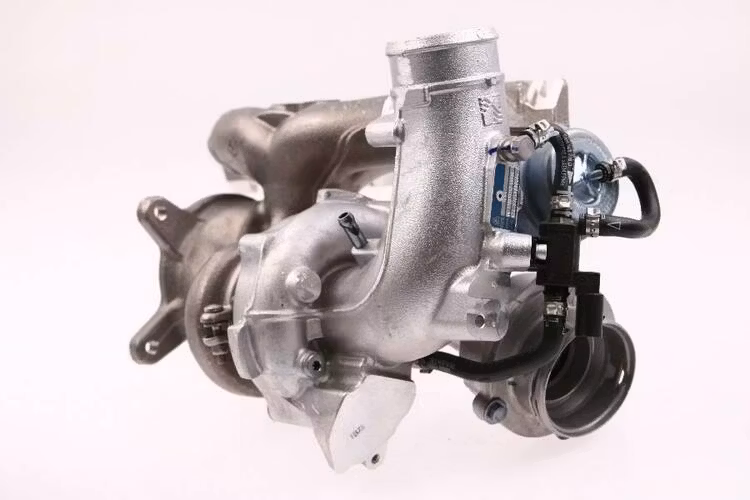

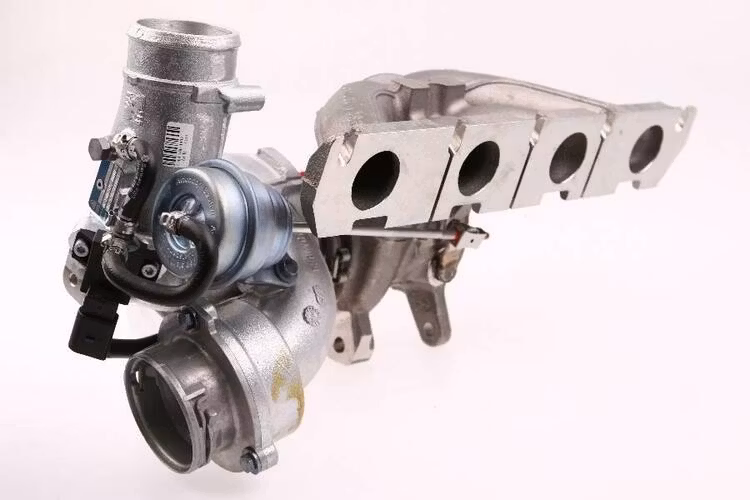

53049880064 Borgwarner K04 renoverad 2.0L TFSI ( Bytesturbo )

  • 803.48 EUR
  • 723.13 EUR

53049880064  Borgwarner K04 renoverad 2.0L TFSI ( Bytesturbo )2003-2010 Audi, Seat, Volkswagen K04 Turbo 53049880064 renoverad bytesturbo 2.0L TFSI ( Bytes

I lager.
Lagersaldo: 1
Varenummer: 53049880064BT
Del

53049880064  Borgwarner K04 renoverad 2.0L TFSI ( Bytesturbo )

2003-2010 Audi, Seat, Volkswagen K04 Turbo 53049880064 renoverad bytesturbo 2.0L TFSI ( Bytesturbo )

Finns även nedan som fabriksny  samt man kan skicka in för renovering .

Turbonummer / Originalnumme / Turbofakta :

Artikelnummer
53049880064
Ersättare
5304-988-0064,  5304 988 0064,53049700064,5304-970-0064
Original nummer
06F145702C, 06F-145-702-C, 06F-145-702-CX, 06F-145-702-D, 06F145702C, 06F145702CX, 06F145702D
Årsmodeller
2003-2010
DescriptionAudi S3, TT, Seat Leon,  Volkswagen Golf
Tillverkarens artikelnummer53049700064, 5304-970-0064, 5304 970 0064
CHRA / Centrumkärna53047100518 (5304-710-0518)(1302-004-918 : Finns nedan !
Turbo ModelK04-2283DXBAA6.88GCAXM
Motorkod :
2.0L TFSI quer/transversal
Displacement2.0L, 1984 ccm, 4 Cylinders
Hästkrafter :
195/265/206/280 HK
RPM Max6800
Bränsle
Bensin
Bearing Housing53041500067 (53041500070)(water-cooled)(1302004463, 1900011235H)
Turbine Wheel53041206511  (53041202100, 53041202101, 53041205004, 53041205008, 53041205010,  53041205015, 53041205018, 53041206503, 53041206506)(Ind. 50.01 mm, Exd.  44.55 mm, Trm 6.3, 12 Blades)(1302004446, 1100-016-133)
Comp. Wheel53061232014 (Ind. 46.39 mm, Exd. 59.43 mm, Trm 4.64, 6+6 Blades, Superback)(1302-004-404, 1200016598T)
Compressor back plate (O-ring type)53041515721 (1302003308)
Heat Plate 53041652009 (1302004345, 2030016064)
Repair Kit53047110000 (1303-050-754)
Turbine Housing  with manifold53041009514
Compressor Cover53041004903 (53041004907)
Turbine Housing AR
Actuator58251104227
Silencer53041830001 (53041830002)
Frequency valve (Electronic)59001170401
Packningssats
215312 (2090010097M)  Finns nedan !
NOTEIntercooler, Integrated manifold, Water Cooled bearing housing
Tillverkare
Borg Warner - 3K - Schwitzer,  BWTS DE


Passar följande bilmodeller :

2003-10 Audi S3  with 2.0L TFSI quer, transversal Engine

2003-10 Audi TT'S with 2.0L TFSI quer, transversal Engine

2003- Audi S3 2.0L TFSI (8P/PA) Engine  BHZ

2003- Audi TT S 2.0L TFSI (8J) Engine  BHZ

2003- Seat Leon 2.0L TFSI Cupra Engine  BWJ, CDLD

2003- Volkswagen Golf V 2.0L TFSI Engine BYD
