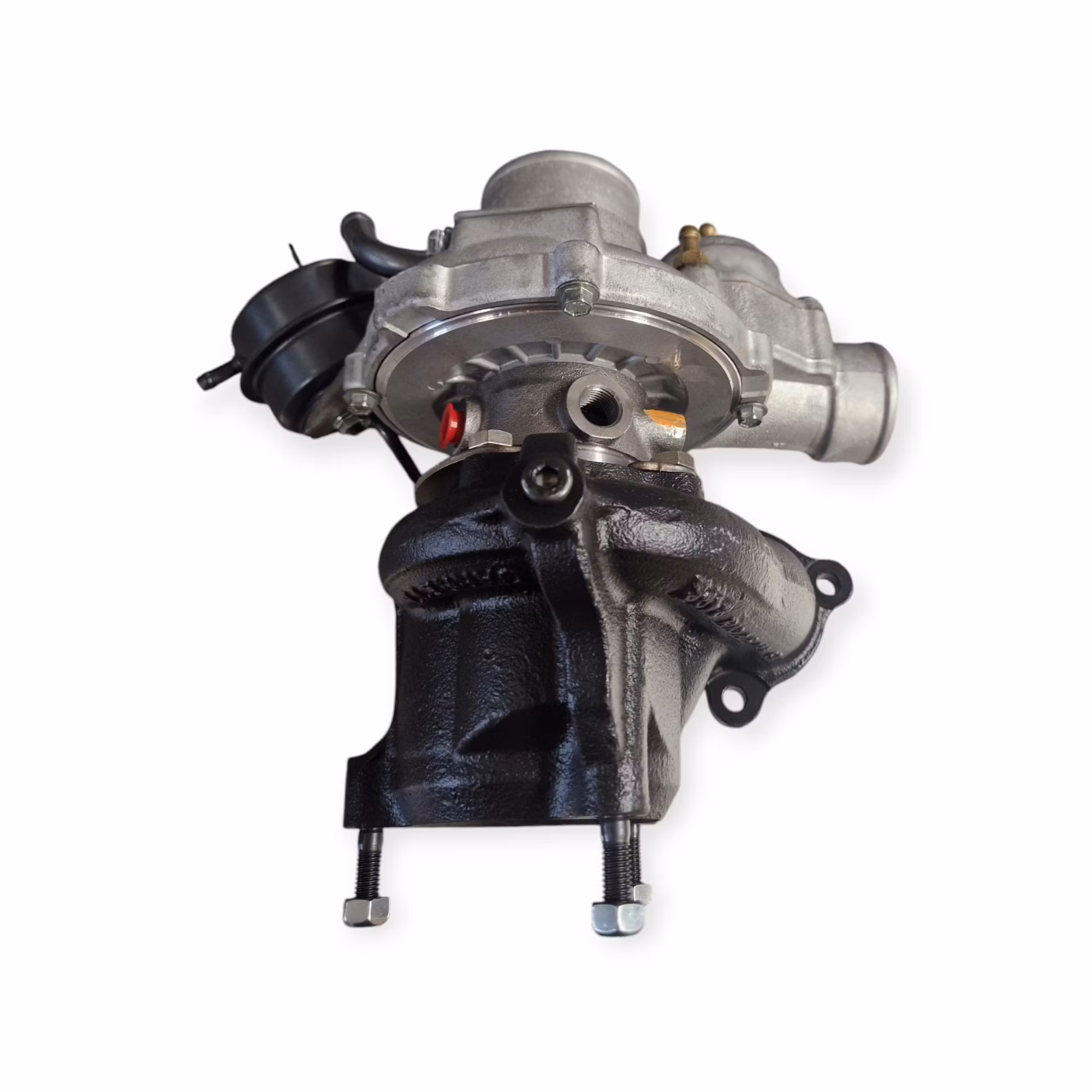

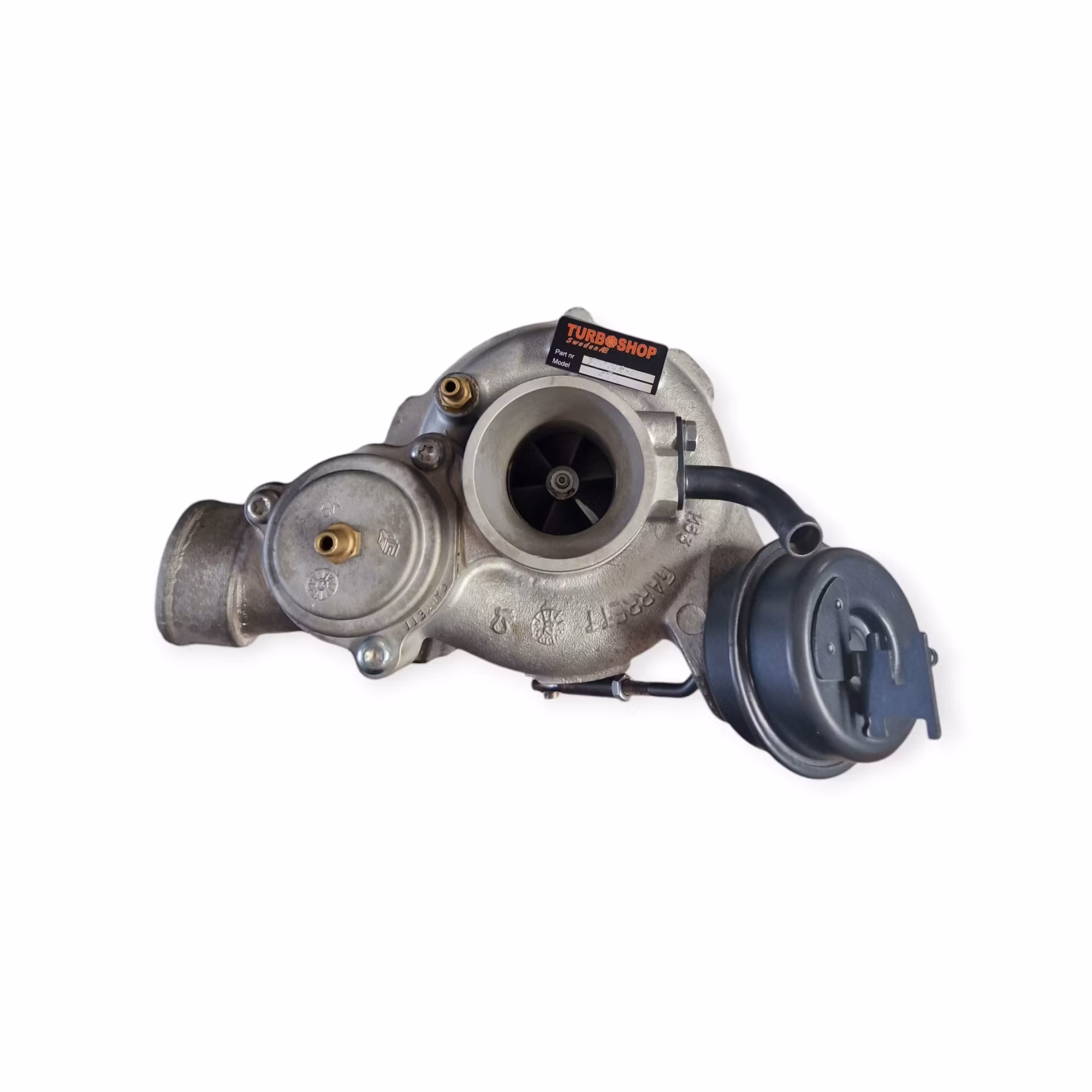

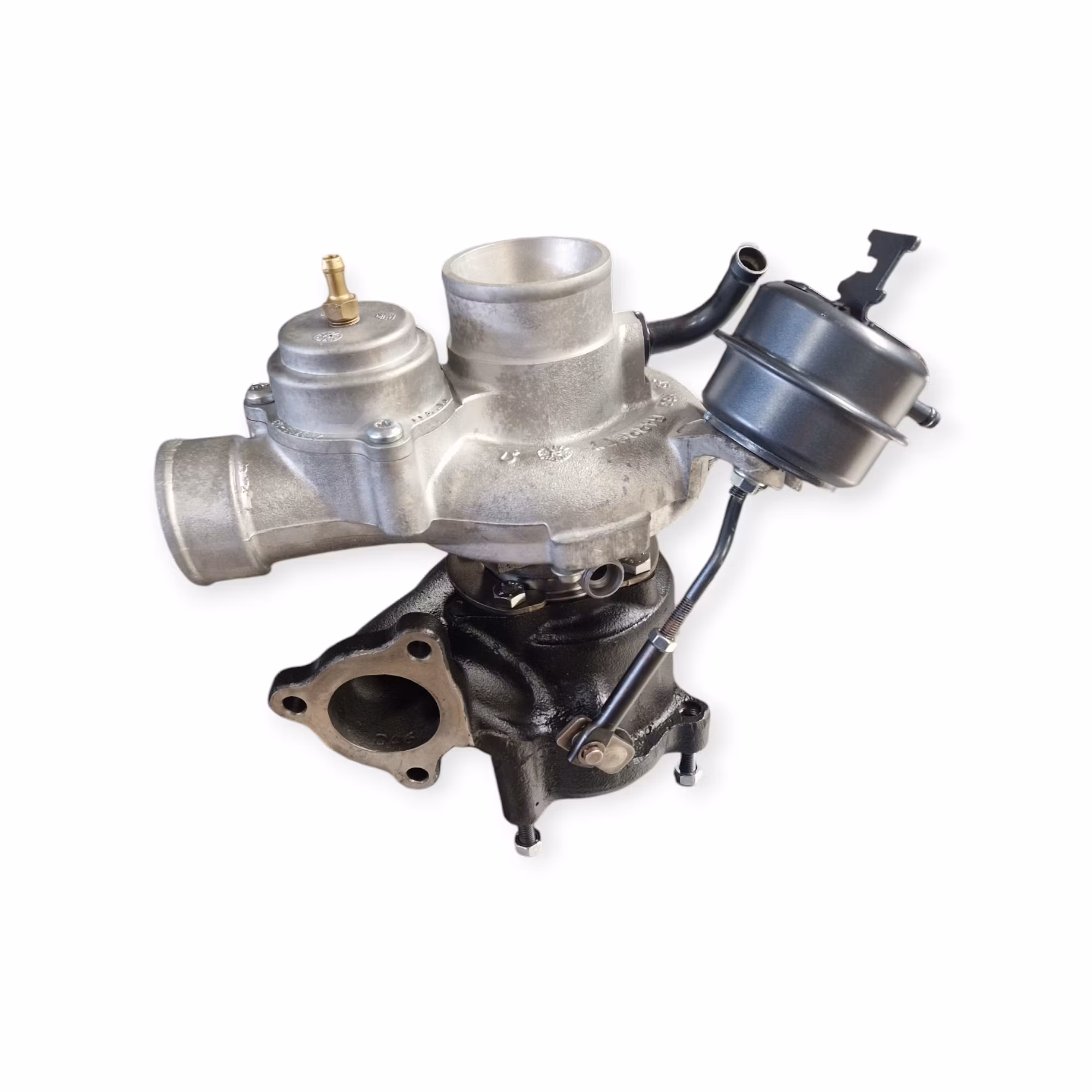

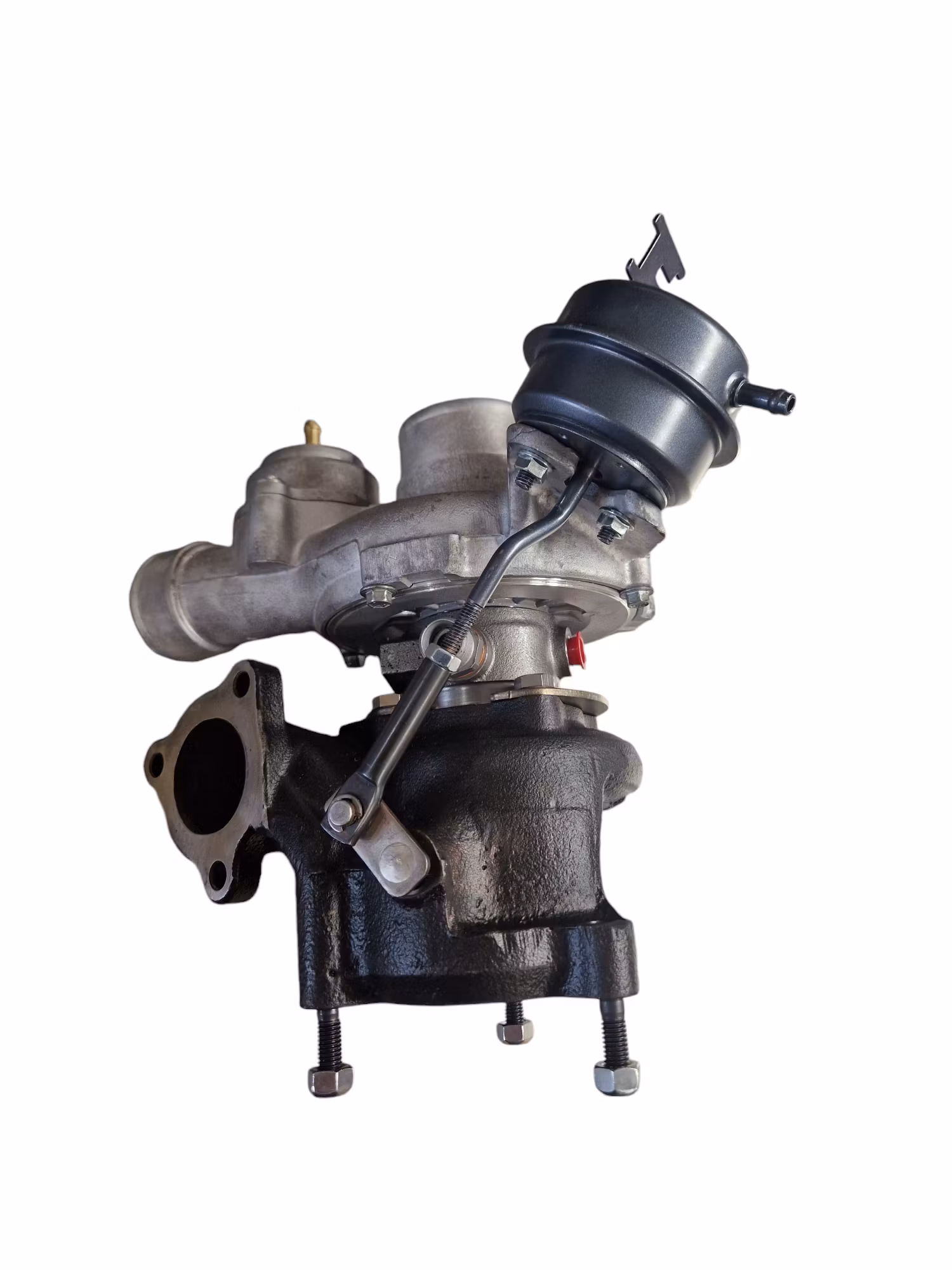

720168-5011S Saab / Opel Bytesturbo GT2052ELS Original nummer :12755106,55562671 Motorkoder :B207E,B207L,Z20NET
-
434.38 EUR - 369.22 EUR
720168-5011S Saab / Opel Bytesturbo GT2052ELS Original nummer :12755106,55562671 Motorkoder :B207E,B207L,Z20NET.- Renoverad originalturbo i vår egna turboverkst
Lagersaldo:
2
Varenummer:
720168-5011S-BT
720168-5011S Saab / Opel Bytesturbo GT2052ELS Original nummer :12755106,55562671 Motorkoder :B207E,B207L,Z20NET.
- Renoverad originalturbo i vår egna turboverkstad utav erfarna turbotekniker.
- 3 års garanti.
Väldigt populär turbo till Saab / Opel här.
Monteringssats ingår vid köp utav denna bytesturbo.
Turbonummer / Turbofakta / Originalnummer :
Part Number: 720168-5011S
Interchangeable Number: 720168-0011, 720168-5011, 720168-0001, 720168-5001, 720168-5001S
OEM Number: 12755106, 55562671
Turbo Model: GT20, GT2052ELS, GT2052LS
Year: 2002-
Engine: L850, Z20NET
Engine Manufacturer: Saab
Displacement: 2.0L, 1998 ccm, 4 Cylinders
Fuel: Gasoline
Power: 130 kW/175 HP
Speed: 5500 RPM
Angle α (Compressor Housing): 185°
Angle ß (Turbine Housing): 294°
Actuator: 712921-0016
Back Plate: 701335-0003 (766035-0002, 766035-0008)(1102015302)
Bearing Housing: 434578-0015/713782-0014/702372-0007 (1102015463)
CHRA: 433352-0052/433352-0088 (1102020902 : Finner du här : 433352-5052S
Compressor Cover: 413663-0039/413663-0142
Compressor Wheel: 436131-0005/729612-0005 (Ind. 38.6 mm, Exd. 52 mm, 6+6 Blades, Super Back)(1102015406)
Cooling: Oil
Diaphragm (Recirculation Valve): 432441-0003
Flange: T2
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet): 210830 (Inox Steel)
Heat Shield: 443768-0003 (702486-0011)(1102015340)
Repair Kit: 732252-0001 (1102015756)
Thrust Kit: 732248-0003 (1102015762)
Turbine Housing A/R: 0.46
Turbine Housing: 720167-0013
Turbine Wheel: 434715-0028/434715-0072 (Ind. 47 mm, Exd. 38.5 mm, 12 Blades)(1102020443)
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 0.435-0.475 bar
Viktigt : Denna ersätter ej TDO4-11T / 49377-06620 / 49377-06610 / 49377-06600 . 720168-5011s har : Vattenanslutningar på olika sidor.
Application:
2002- Opel Signum with L850 Engine
2002- Saab 9-3, 9-3 II, 9-5 with L850 Engine
2002- Vauxhall Signum, Vectra with L850 Engine
2003-05 Vauxhall Vectra, Vectra C with Z20NET Engine
2003-08 Opel Signum, Vectra, Vectra C with Z20NET Engine
2003-09 Vauxhall Signum, Vectra, Vectra C with Z20NET Engine
Bytesturbo = Gamla turbon skall i retur till oss här.
