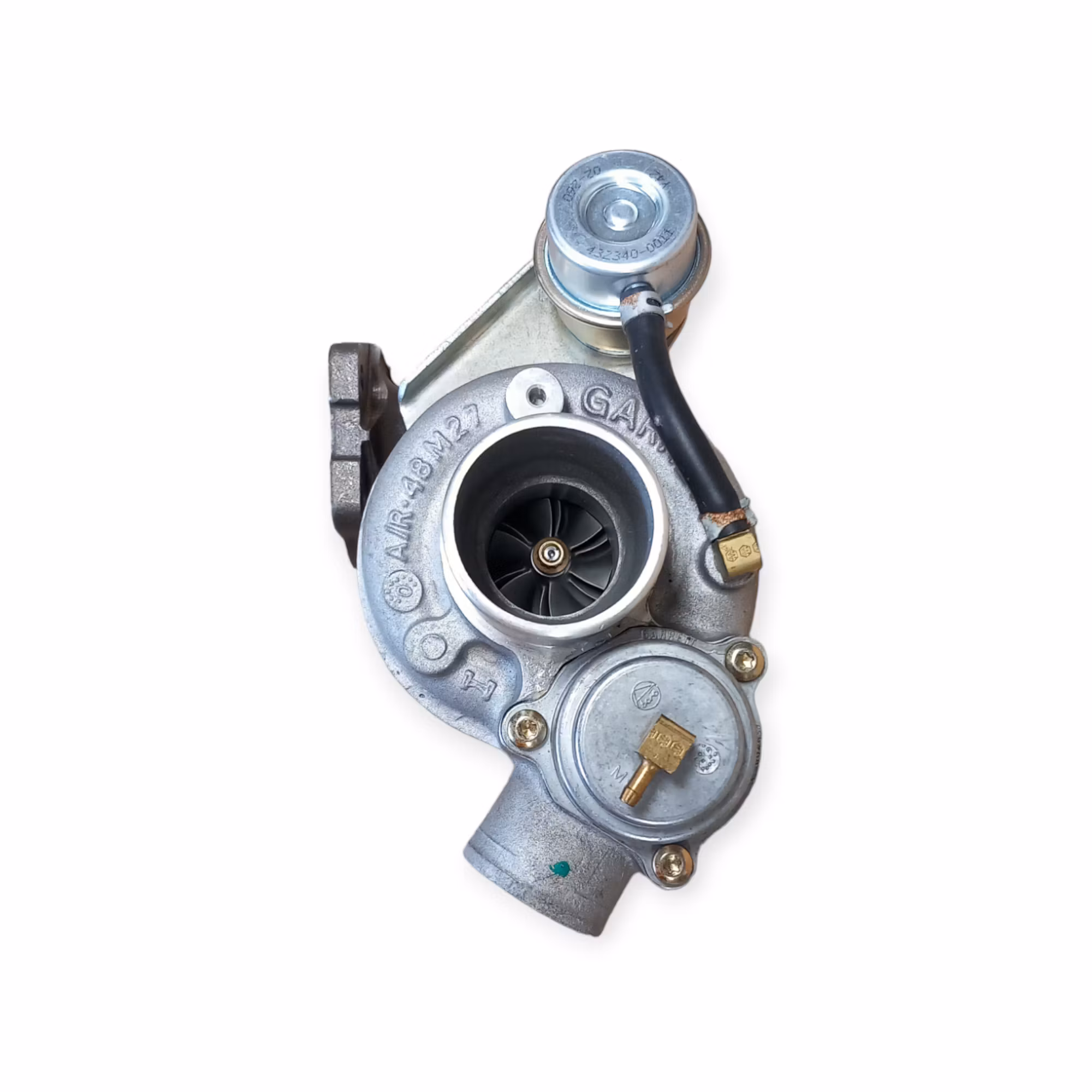

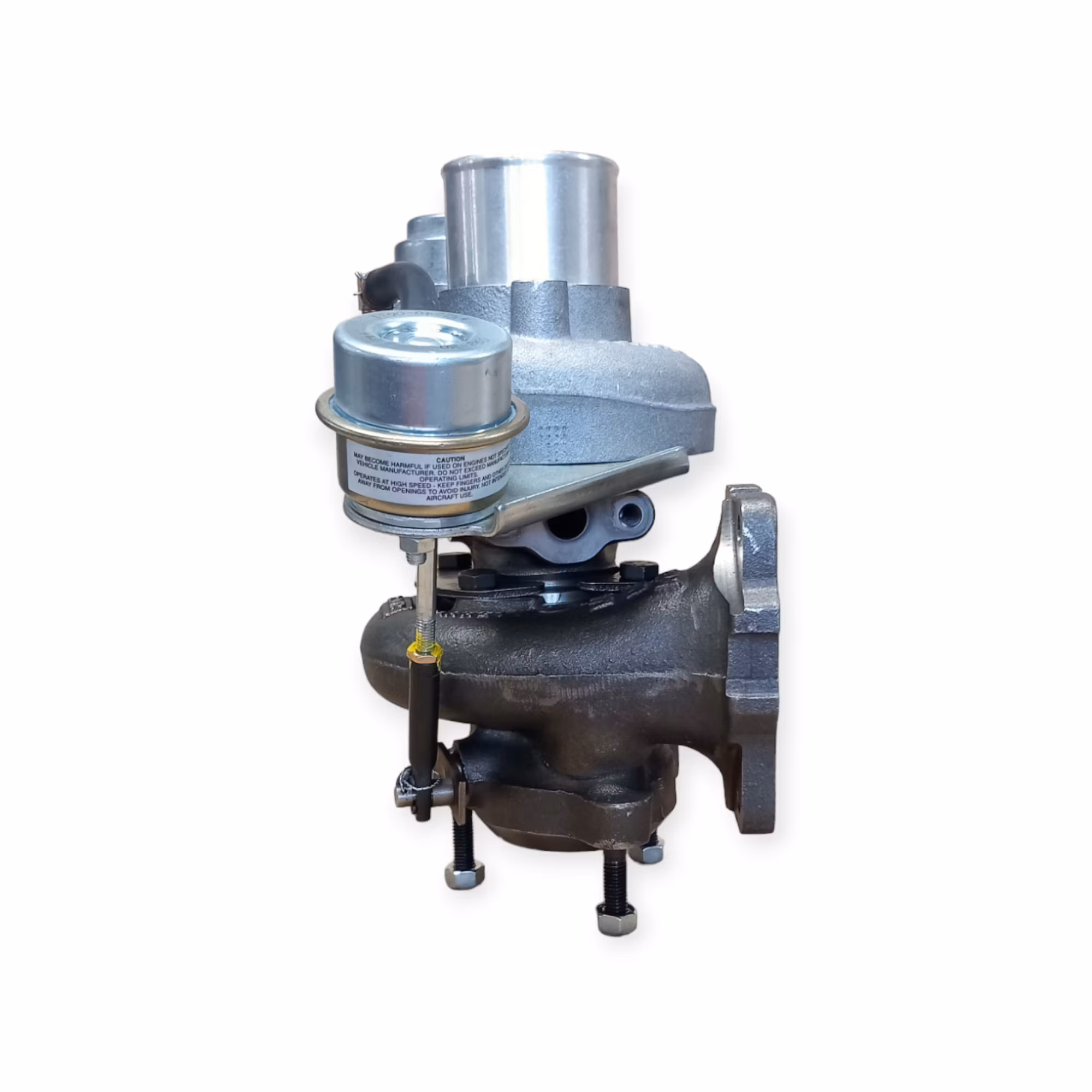

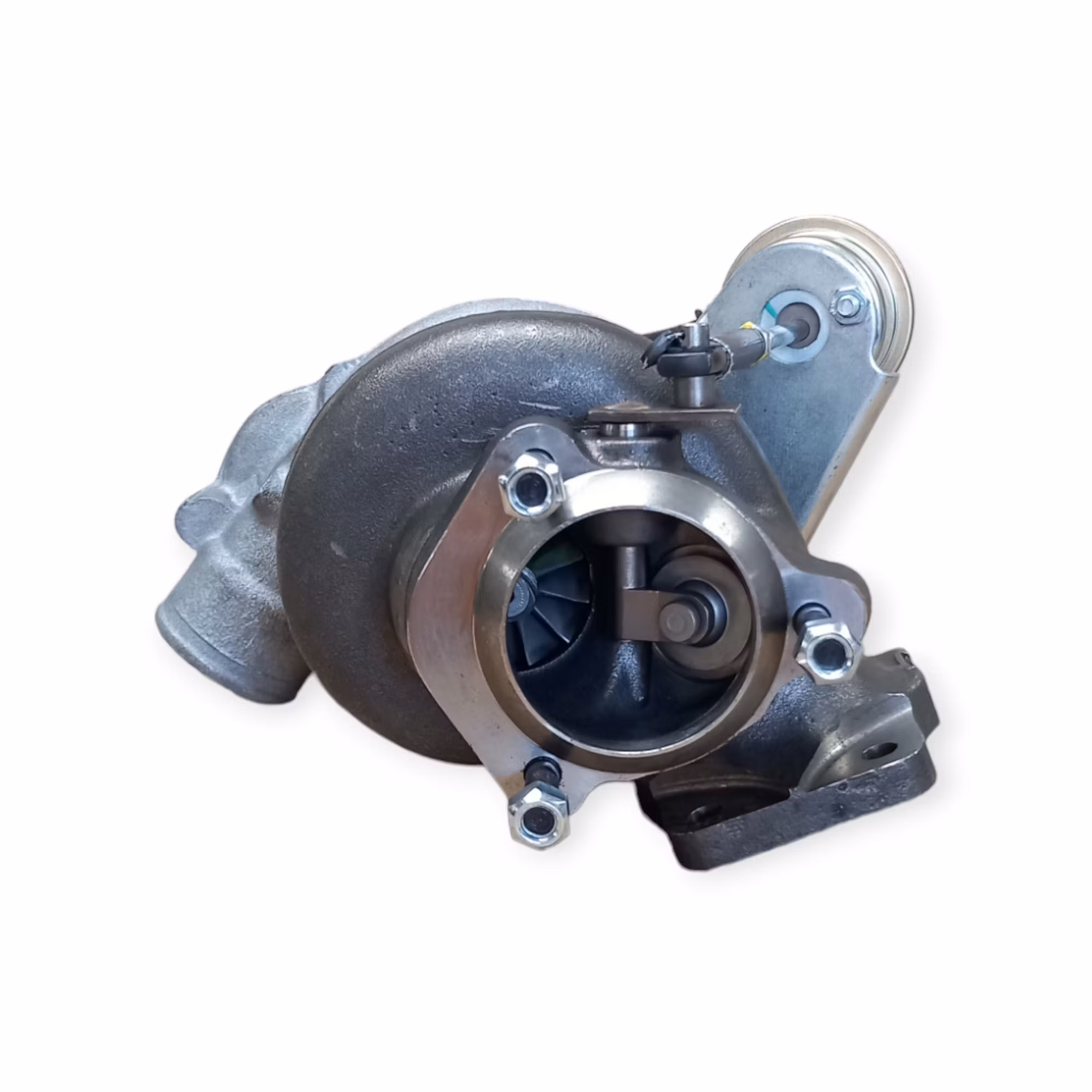

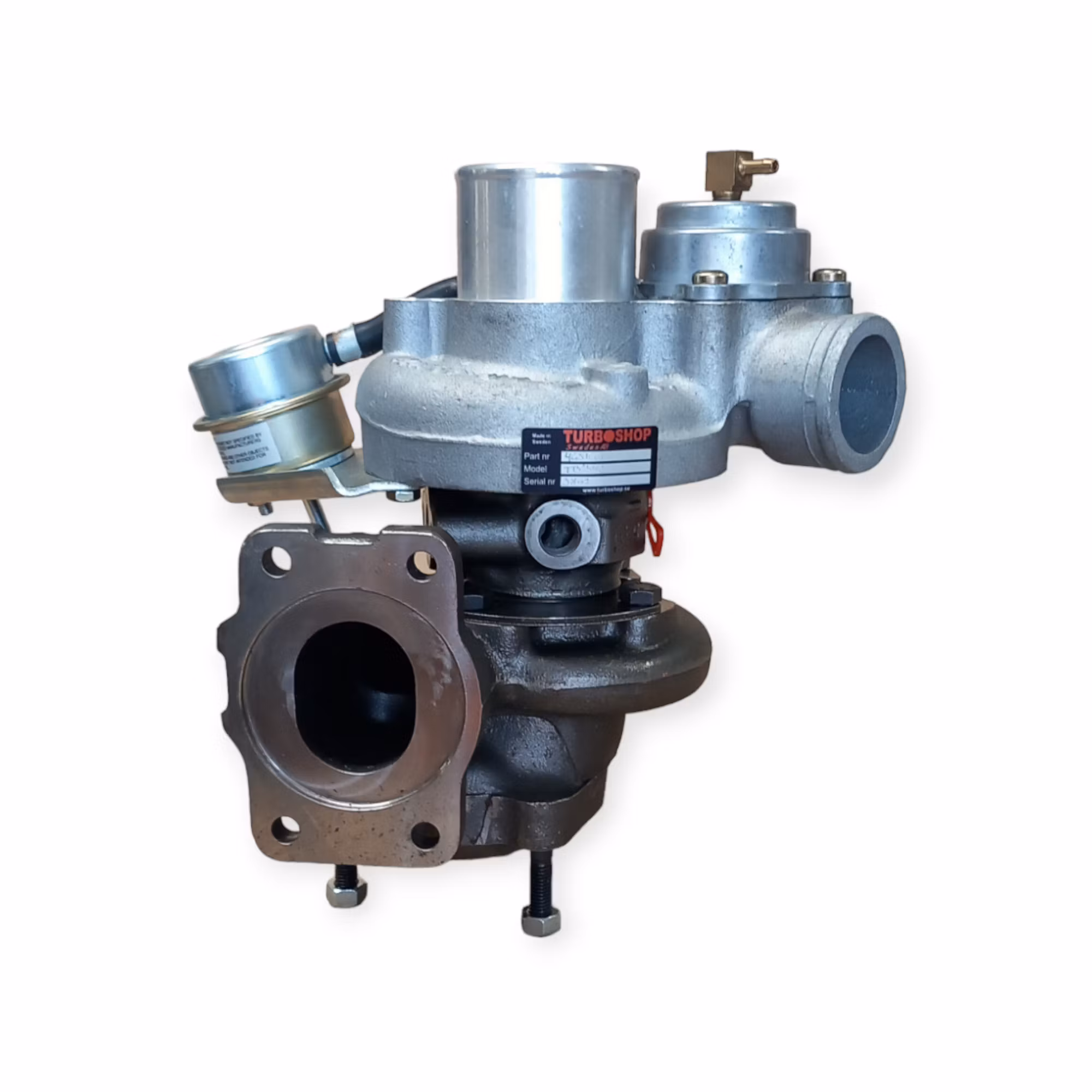

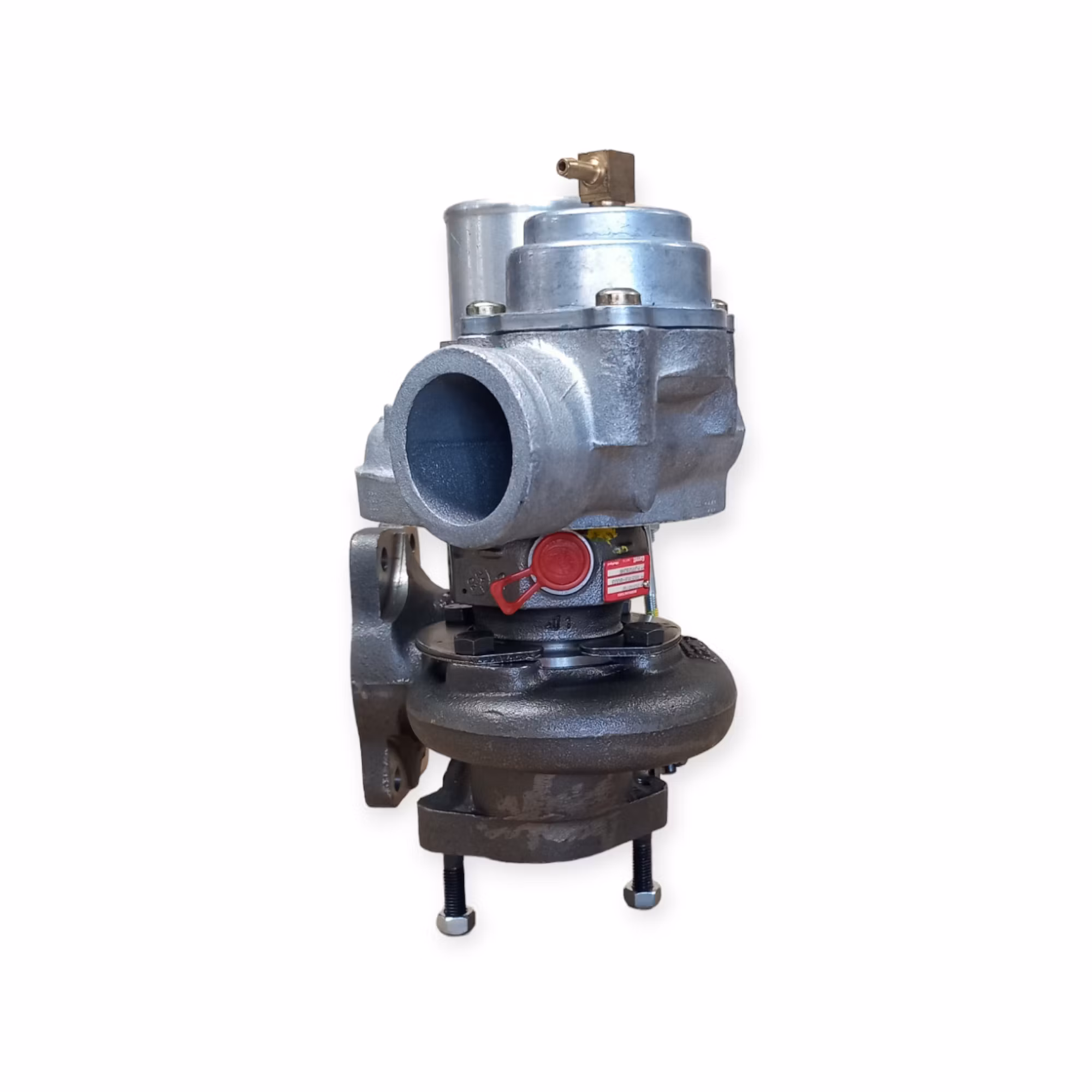

465169-5003S Garrett TB2543 Originalnummer : 5003712, 3517642 , 8603518 (Fabriksny)
Ännu en unik Volvo turbo, helt fabriksny!
465169-5003S Garrett TB2543 Originalnummer : 5003712, 3517642 , 8603518 ( Fabriksny )
Ersätter 465169-5001S
Packningssats ingår vid köp utav denna turbo.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 465169-5003S |
| Previous Version | 465169-0001, 465169-0003 |
| OE Number | 5003712, 3517642 |
| Year | 1991- |
| Description | Volvo 740, 760, 765, 940 |
| CHRA | 443854-0034 (443854-5034S, 443854-0050) |
| Turbo Model | TB2543 |
| Engine | B230, B230FT |
| Engine Manufacturer | Volvo |
| Displacement | 2.3L, 2316 ccm, 4 Cylinders |
| Power | 121/140/167 |
| RPM Max | 5200 |
| Fuel | Gas |
| Angle α (compressor housing) | 327º |
| Angle β (turbine housing) | 285º |
| Bearing Housing | 444357-0014 (1100025460)(Water Cooled) |
| Turbine Wheel | 435922-0001 (432620-0002, 435257-0001, 435257-0002, 435737-0005)(Ind. 41.5 mm, Exd. 53. mm, Trm 61, 11 Blades) (1100025436) |
| Comp. Wheel | 431350-0015 (431350-0001, 431350-0007) (Ind. 39.75 mm, Exd. 52. mm, Trm 58, 8+8 Blades, Billet) |
| Back plate | 432280-0001 (444655-0001) |
| Heat shield Number | 443594-0001 $13.84 NEW IN STOCK |
| Repair Kit | 709143-0001 (1100025761) |
| Turbine Housing | 413567-0025 |
| Compressor Cover | 413663-0003 (413663-0103) |
| Turbine Housing AR | 0.64 |
| Actuator | 432340-0011 |
| Settings waste gate (pressure) | 0.43-0.50 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (oil outlet) | 413709-0001 (Paper) |
| Manufacturer | Honeywell-Garrett |
Applications
1991- Volvo 740, 760 Engine B230FT
1994- Volvo 765, 940, 960 Engine B230FT
